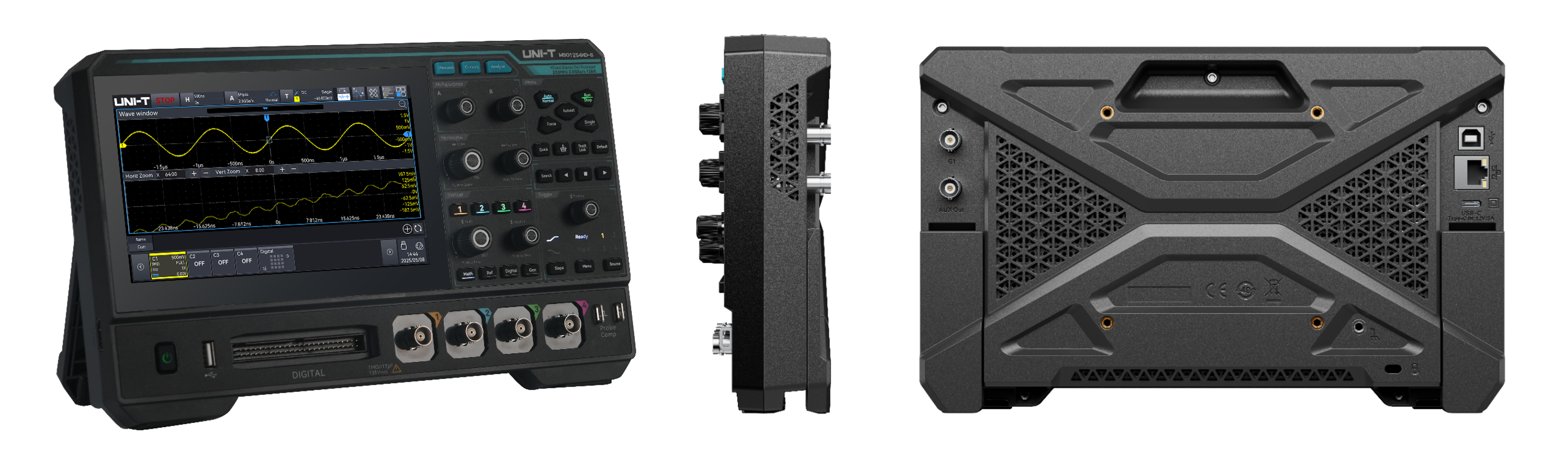

UNI-T MSO1000HD Series High Resolution Oscilloscope

12-Bit High-Resolution ADC

4096-level quantization (16× finer than 8-bit ADCs) enables precise waveform detail restoration, ideal for capturing subtle signal variations.

High-Speed Signal Capture

• Bandwidth: 250 MHz
• Sample Rate: 2.5 GSa/s (single channel)
• Deep Memory: 100 Mpts/CH for long-term signal recording without data loss

Ultra Phosphor 3.0 Technology

200,000 wfms/s capture rate with low-jitter digital trigger system for real-time anomaly detection.

Compact Mixed-Channel Design

Analog channels + 16 digital channels (MSO models) for concurrent analog signal analysis and digital protocol debugging.

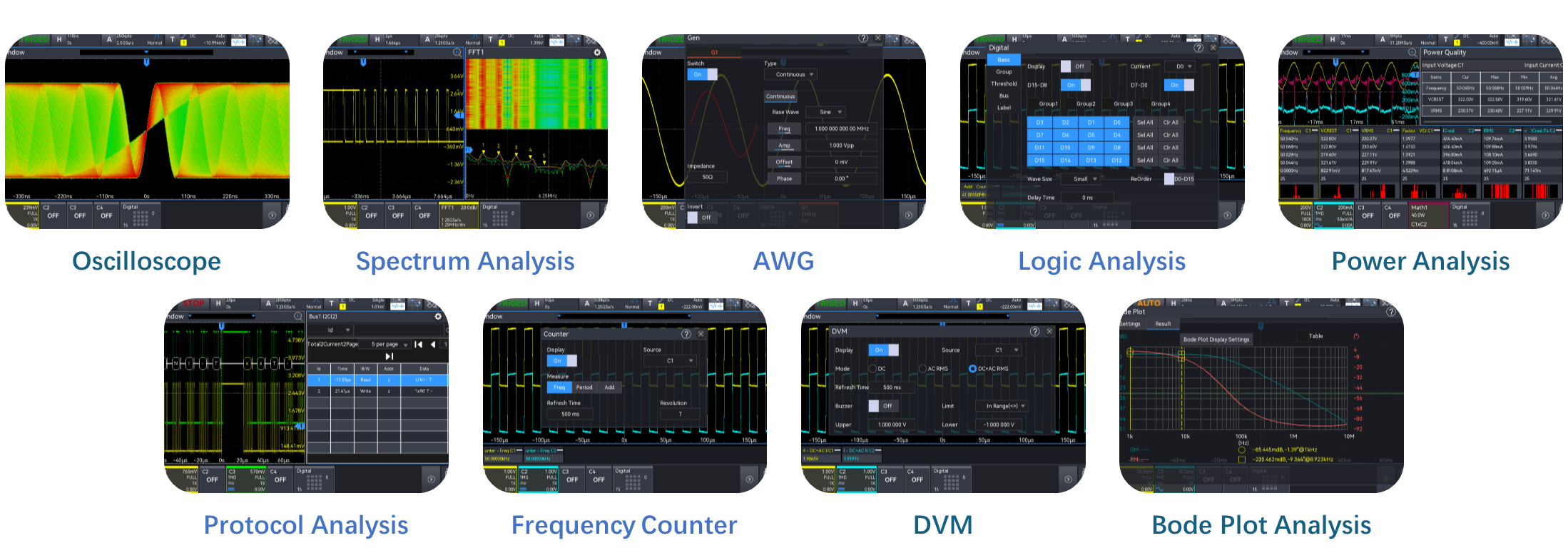

All-in-One Testing Equipment

All-in-one testing capabilities of MSO1000HD Series

• Arbitrary Waveform Generator: 1 CH, 25 MHz output for generating complex test signals in system validation.
• Power Analysis: Includes 12+ BODE plots for evaluating power supply efficiency and stability.
• Protocol Analysis: Supports 7 protocols (e.g., CAN, I2C) for embedded communication troubleshooting system.
• Frequency Counter: 7-digit precision for accurate frequency measurement in signal characterization.
• DVM (Digital Voltmeter): 4-digit resolution for precise voltage measurements in component testing.
