DC Electronic Loads
DC Electronic Loads
DC Electronic Loads
UNI-T DC-Load product interface and function, simple operation, high resolution, good reliability. According to the needs of industrial and scientific research customers, it provides solutions suitable for different scenarios and Automatic Test Equipment integration, especially suitable for industry customers. UNI-T electronic load products provide customers with flexible, fast and effective solutions, and provide unparalleled customer value for education, scientific research, manufacturing and other applications.

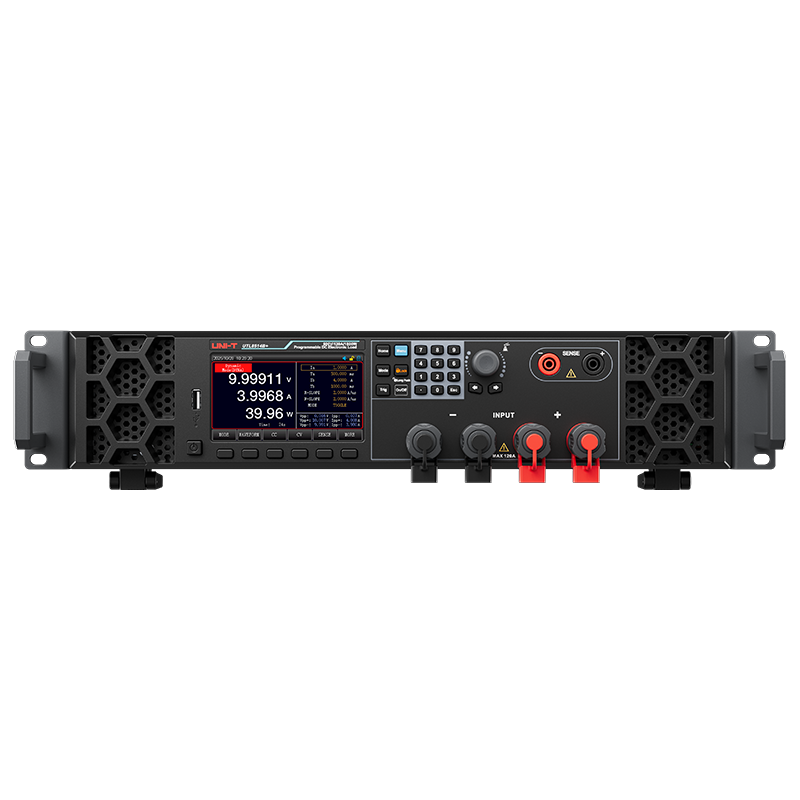

UTL8500X+
UTL8500X+
VOLTAGE:500V
CURRENT:120A
TOTAL POWER:200W/400W/600W
RESOLUTION:0.1mV/0.01mA
MAX. DYNAMIC FREQUENCY:50kHz
CURRENT SLEW RATE:0.0024A/μs~12A/μs
SIZE:½ 2U
CONNECTIVITY:RS232
STARTING PRICE:
UTL8500+
UTL8500+
VOLTAGE:150V
CURRENT:30A
TOTAL POWER:150W/300W
RESOLUTION:0.1mV/0.01mA
MAX. DYNAMIC FREQUENCY:50kHz
CURRENT SLEW RATE:0.0006A/μS-3A/μS
SIZE:½ 2U
CONNECTIVITY:RS232
STARTING PRICE:
UTL8200+
UTL8200+
VOLTAGE:150V
CURRENT:20A/40A
TOTAL POWER:400W
RESOLUTION:1mV/1mA
MAX. DYNAMIC FREQUENCY:5kHz
CURRENT SLEW RATE:0.04A/mS~0.2A/μS
SIZE:¼ 4U
CONNECTIVITY:RS232,optional RS485
STARTING PRICE:
UTL8500X
UTL8500X
VOLTAGE:150V
CURRENT:30A
TOTAL POWER:150W/300W
RESOLUTION:0.1mV/0.1mA
MAX. DYNAMIC FREQUENCY:10kHz
CURRENT SLEW RATE:3.0A/μS
SIZE:½ 2U
CONNECTIVITY:RS232,(Optional RS232, RS232-USB)
STARTING PRICE:
UTL8500
UTL8500
VOLTAGE:150V/500V
CURRENT:15A/30A/120A
TOTAL POWER:150W/300W/600W
RESOLUTION:0.1mV/0.1mA
MAX. DYNAMIC FREQUENCY:10kHz
CURRENT SLEW RATE:3.0A/μS
SIZE:½ 2U
CONNECTIVITY:RS232
STARTING PRICE:
Obsolete DC Electronic Loads (1 items)
