UPO2000HD Series
UPO2000HD Series

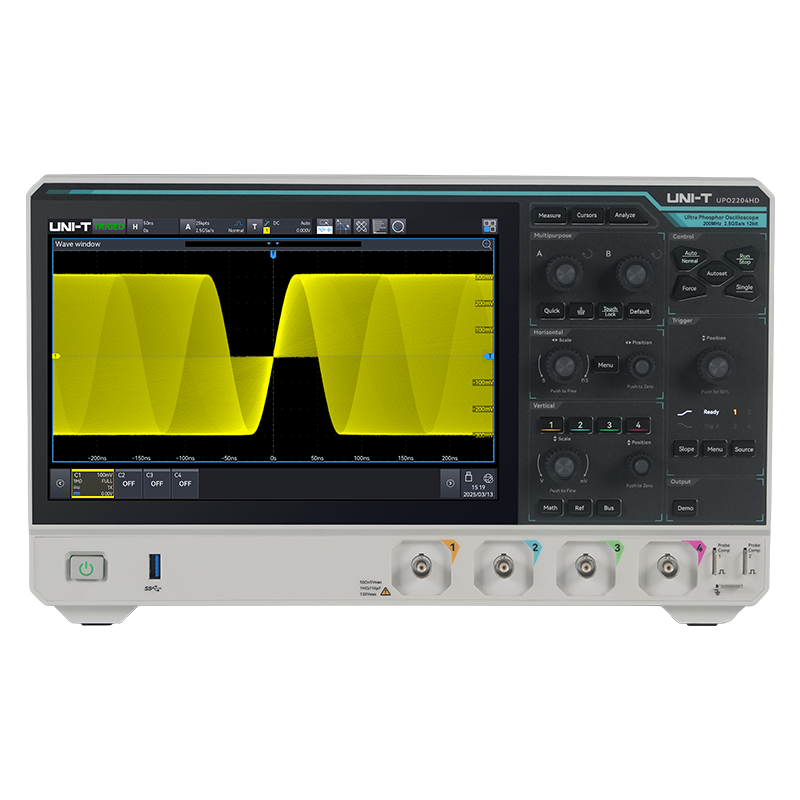

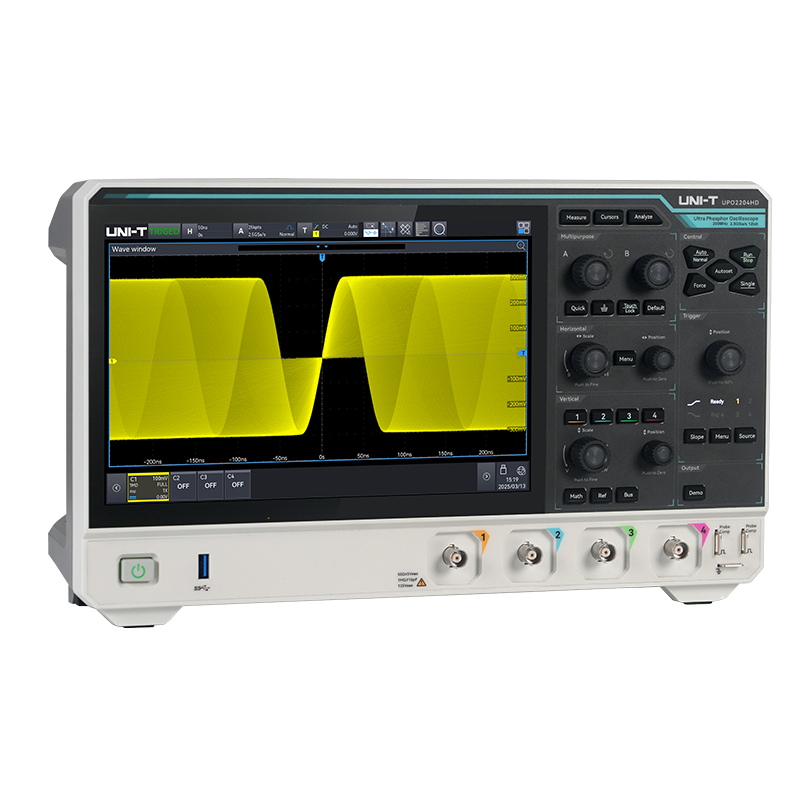

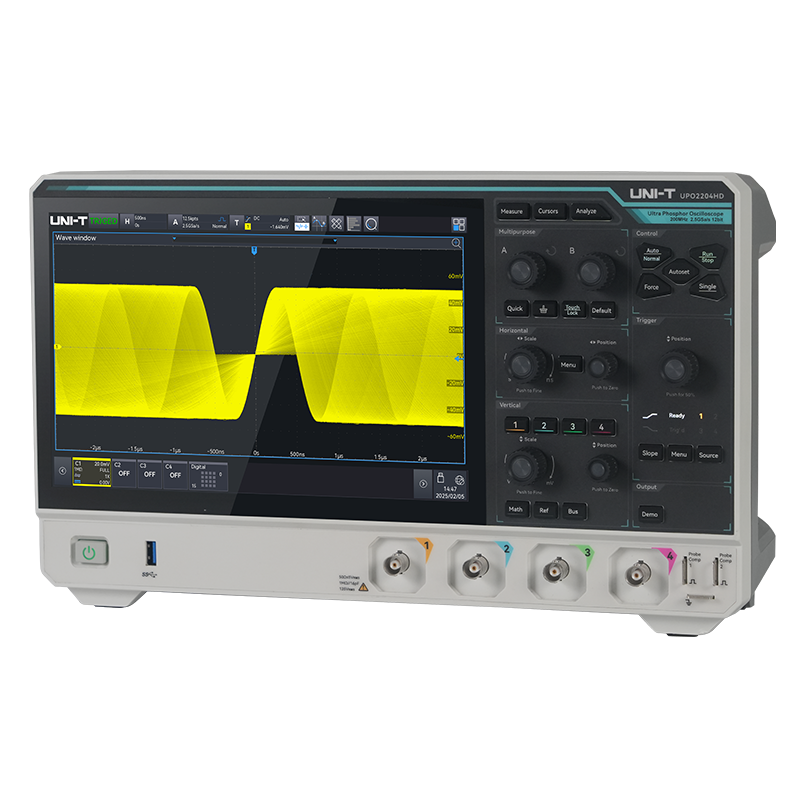

UPO2000HD series high-resolution oscilloscope has the maximum bandwidth of 200 MHz, the maximum sampling rate of 2.5 GSa/s, with the memory depth of up to 100 Mpts. UPO2000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 1,000,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. Multiple advanced measurement and analysis functions and rich trigger decoding types. Can be widely used in communication, aerospace, education and many other industries and fields.
100 MHz~200 MHz
BANDWIDTH
2/4
ANALOG CHANNELS
2.5GSa/s
REAL-TIME SAMPLE RATE
100Mpts
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS
Versatile Testing Equipment
-Oscilloscopes
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-High Precision Frequency Counter
-Digital Voltmeter
Versatile Testing Equipment

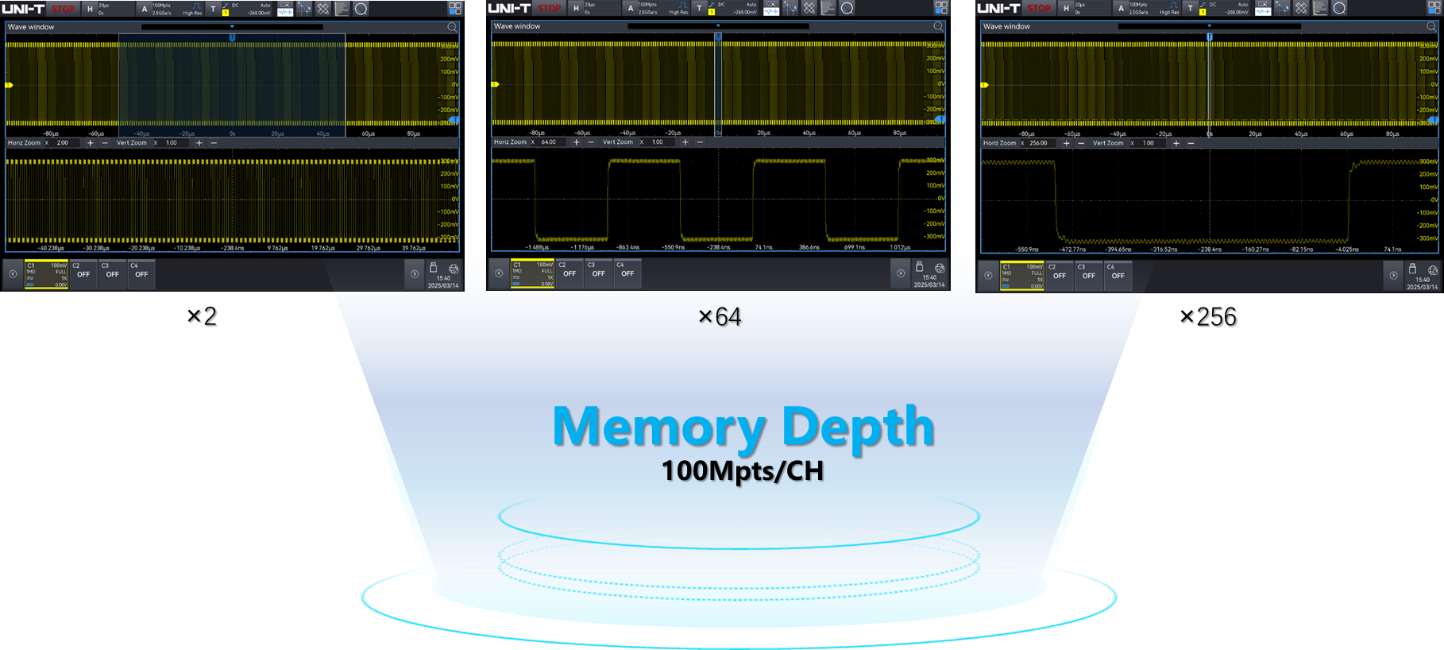

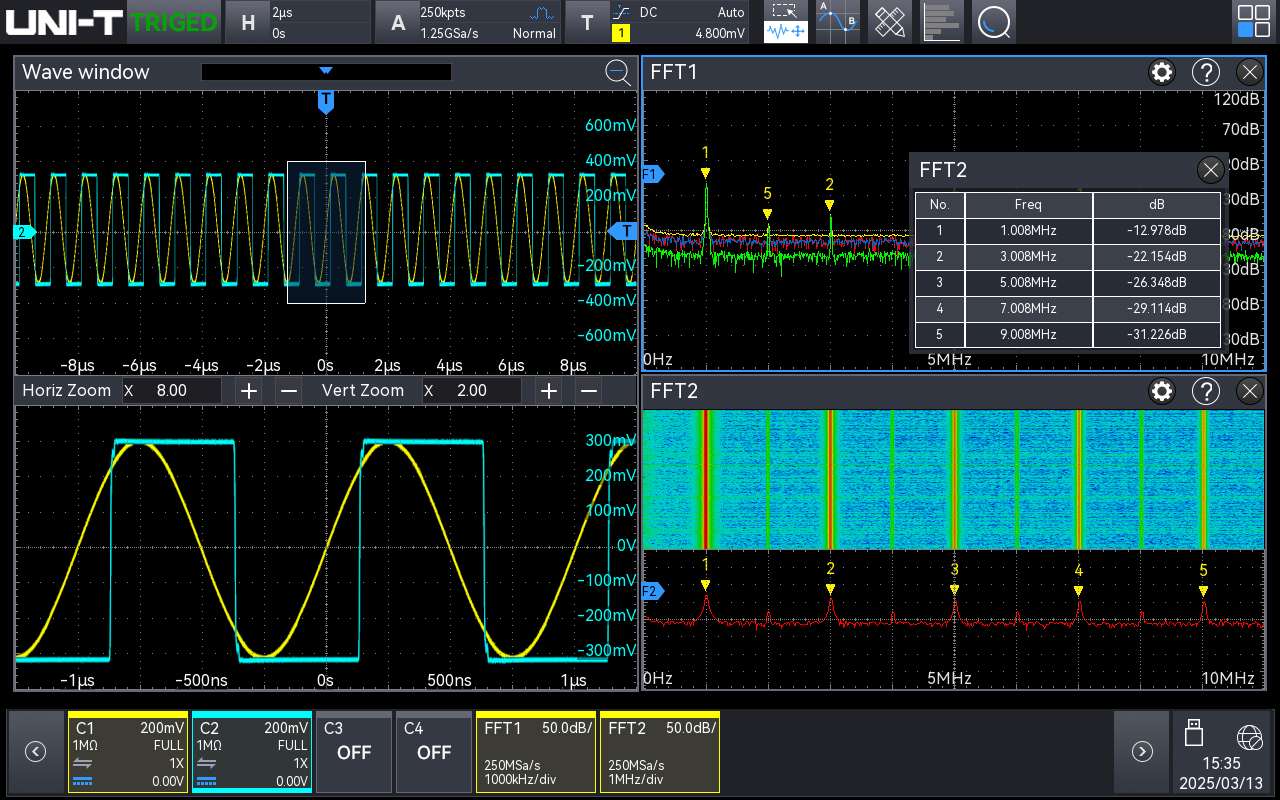

2D Infinite Zoom
Clear Horizontal and Vertical resolution
2D Infinite Zoom
2D Infinite Zoom

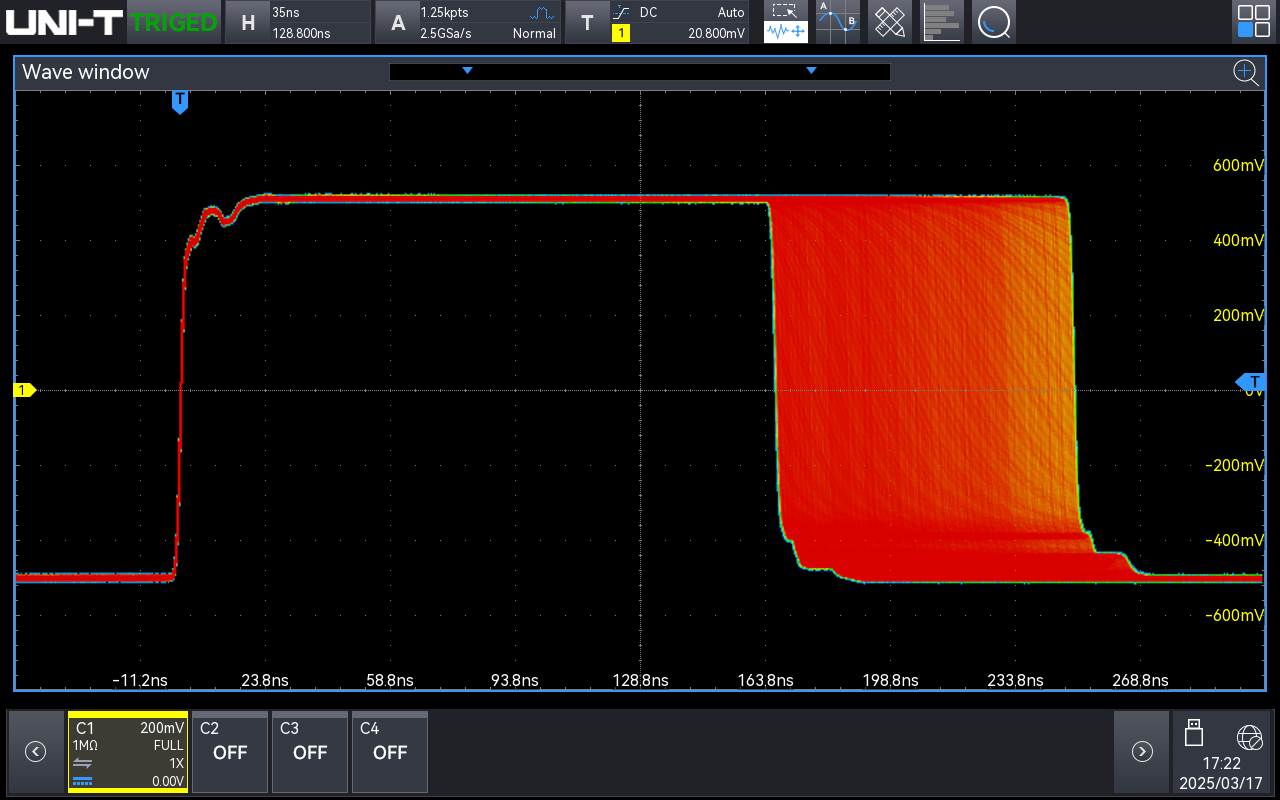

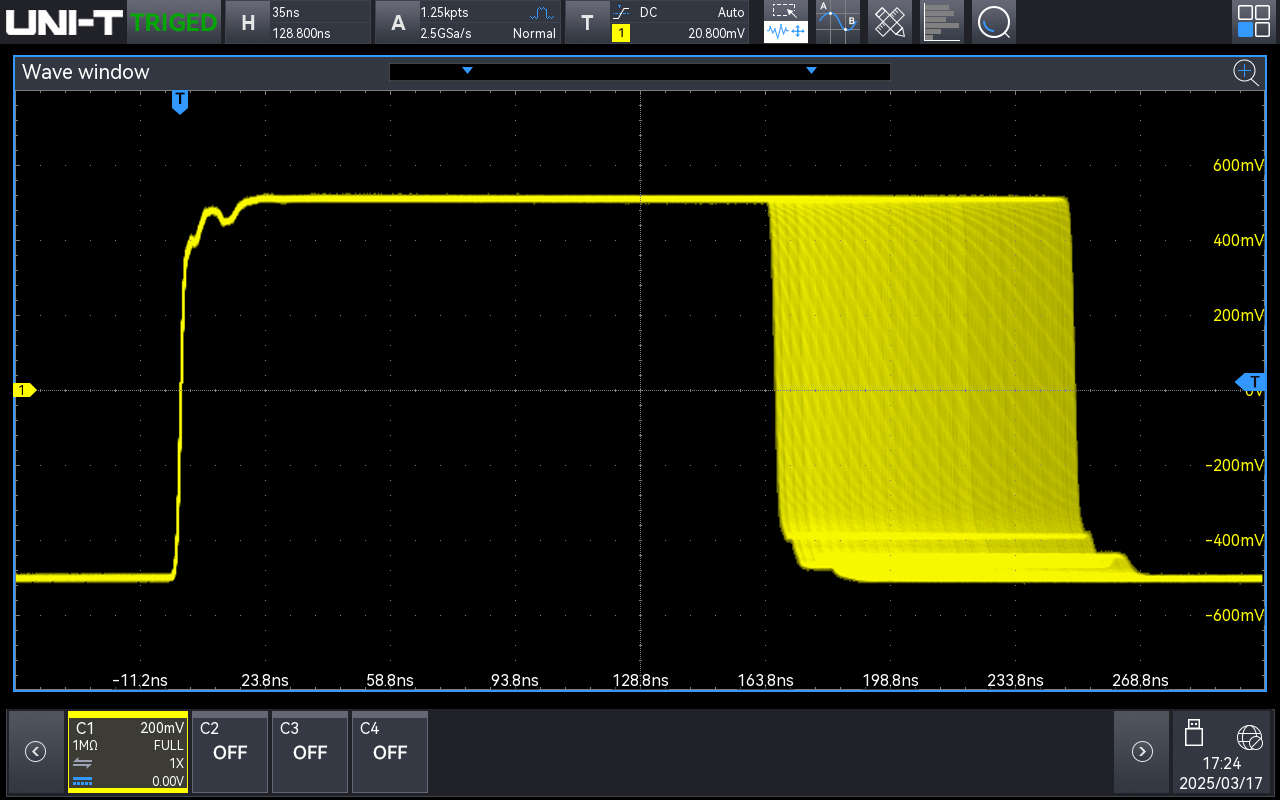

Ultra Phosphor 3.0
Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 250,000 wfms/s, and up to 1,000,000 wfms/s in the sequence mode.
Ultra Phosphor 3.0
Ultra Phosphor 3.0
56 types: Measurement, Statistics, Trend Graphs
56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.
56 types: Measurement, Statistics, Trend Graphs

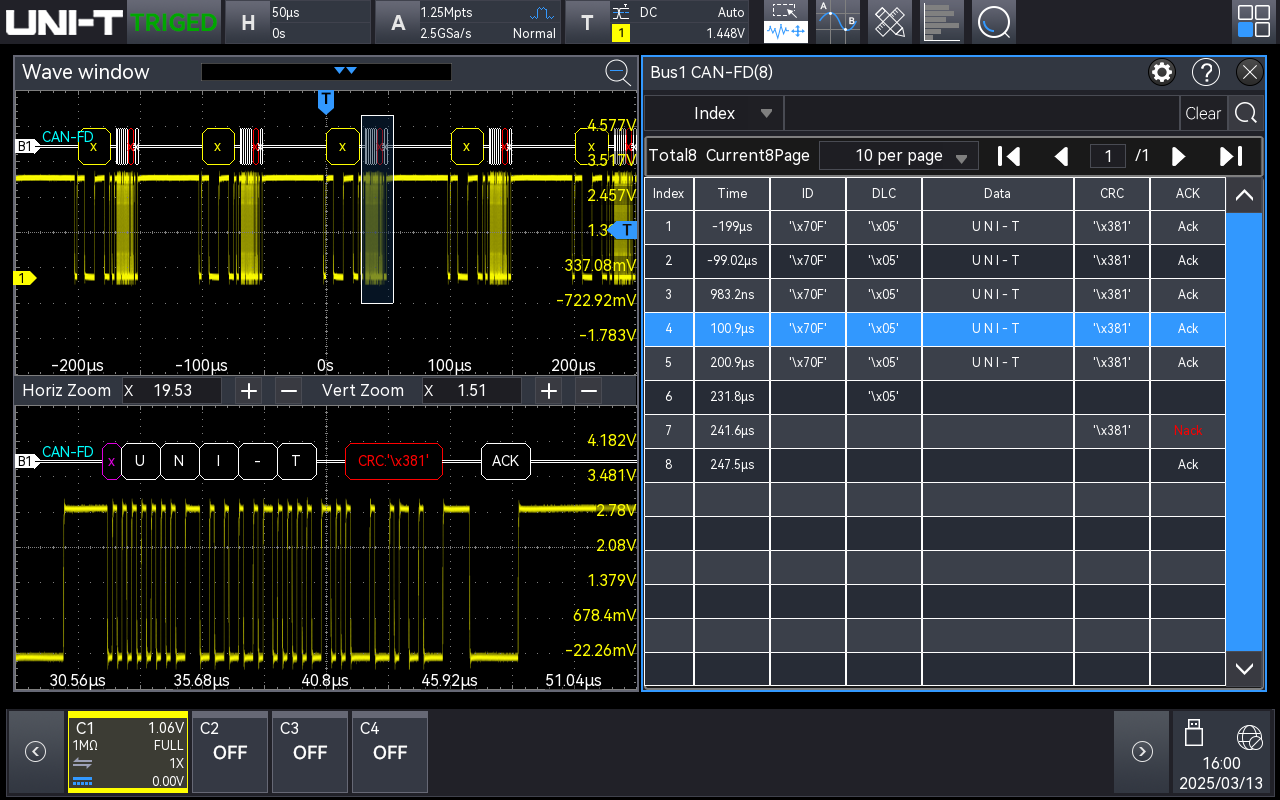

Protocol Decoding And Triggering
Supports 9 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN, FlexRay, SENT
-Audio
Protocol Decoding And Triggering
Spectrum Analyzer
-Standard enhanced FFT with up to 4 Mpts for 4-channel signal analysis
-Frequency range: 0 to 1.25 GHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list
Spectrum Analyzer
Power Analysis
Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current
Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Rds (on)
-Modulation Analysis
Output Analysis
-Ripple Analysis
-Power Efficiency
-Transient response
-ON/OFF time
Power Analysis

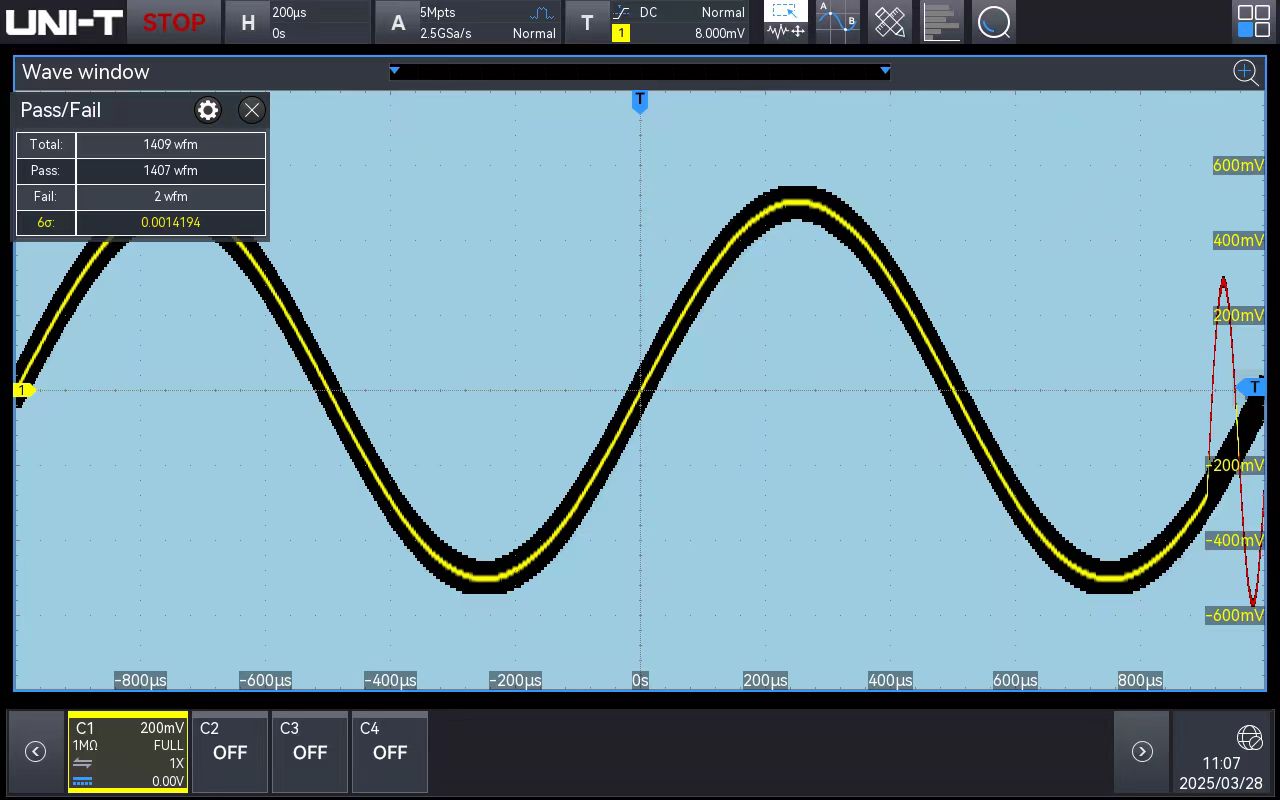

Hardware-accelerated mask testing: 6σ standard < 1s
The 6σ (Six Sigma) standard for electronic signals is a process with a defect rate of no more than 3.4 defects per million opportunities (DPMO). This means there are only 3.4 anomalies per 1,000,000 samples. With its ultra-high hardware capture rate, the hardware-accelerated template testing maintains the full capture rate of Ultra Phosphor 3.0, completing waveform tests that meet specific standards within 1 second (instead of several hours).
Hardware-accelerated mask testing: 6σ standard < 1s
MODEL
UPO2204HD
BANDWIDTH:200MHz
ANALOG CHANNELS:4
REAL-TIME SAMPLE RATE:2.5GSa/s
MAX. MEMORY DEPTH:100Mpts
WAVEFORM CAPTURE RATE:1,000,000wfms/s
DIGITAL CHANNELS:/
UPO2202HD
BANDWIDTH:200MHz
ANALOG CHANNELS:2
REAL-TIME SAMPLE RATE:2.5GSa/s
MAX. MEMORY DEPTH:100Mpts
WAVEFORM CAPTURE RATE:1,000,000wfms/s
DIGITAL CHANNELS:/
UPO2104HD
BANDWIDTH:100MHz
ANALOG CHANNELS:4
REAL-TIME SAMPLE RATE:2.5GSa/s
MAX. MEMORY DEPTH:100Mpts
WAVEFORM CAPTURE RATE:1,000,000wfms/s
DIGITAL CHANNELS:/
UPO2102HD
BANDWIDTH:100MHz
ANALOG CHANNELS:2
REAL-TIME SAMPLE RATE:2.5GSa/s
MAX. MEMORY DEPTH:100Mpts
WAVEFORM CAPTURE RATE:1,000,000wfms/s
DIGITAL CHANNELS:/
Data Sheet
download UPO2000HD Series Digital Oscilloscopes - Data Sheet
Version:V1.0
Release Date:2025/4/16
QuickStart Guide
download UPO2000HD Series Digital Oscilloscopes - QuickStart Guide
Version:V1.1
Release Date:2025/4/16
User Manual
download UPO2000HD Series Digital Oscilloscopes - User Manual
Version:V1.0
Release Date:2025/4/16
Programming Manual
download UPO2000HD Series Digital Oscilloscopes - Programming Manual
Version:V1.0
Release Date:2025/4/16
Service Manual
Performance Verification Guide
OPTIONS
UPO2000HD-BW1MT2M
Description:100MHz Upgrade to 200MHz Bandwidth
UPO2000HD-PWR
Description:Power Analysis Option
ACCESSORIES
UT-P20
download EN download DE
UT-P20
Description:Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
UT-P21
download EN download DE
UT-P21
Description:Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
UT-P30
download EN download DE
UT-P30
Description:Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: 800Vpp
UT-P31
download EN download DE
UT-P31
Description:High voltage differential probe: (100:1/1000:1) Bandwidth: 100MHz differential voltage: 1500Vpp
UT-P32
download EN download DE
UT-P32
Description:Differential probe:(1000:1/100:1)Bandwidth: 50MHz Input differential voltage: 3000Vpp
UT-P33
download EN download DE
UT-P33
Description:Differential probe:(1000:1/100:1) Bandwidth: 70/50MHz differential voltage: 14KVpp
UT-V23
download EN download DE
UT-V23
Description:High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
UT-P40
download EN download DE
UT-P40
Description:Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
UT-P41
download EN download DE
UT-P41
Description:Conversion ratio:100mV/A, 10mV/A, Current range: 50mA~100A Frequency: DC~100kHz, voltage: 600Vrms
UT-P43
download EN
UT-P43
Description:Current range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
UT-P44
download EN
UT-P44
Description:Current range: 40A AC/DC, Frequency: DC~50MHz,Conversion ratio:50mV/A
UT-P04
download EN download DE
UT-P04
Description:Probe factor:(10:1) Bandwidth: 100MHz.voltage:600Vpp
UT-P05
download EN download DE
UT-P05
Description:Probe factor:(10:1) Bandwidth: 200MHz.voltage:600Vpp
UT-P42
download EN download DE
UT-P42
Description:Conversion ratio:50mV/A, 5mV/A, Current range: 0.4A~200A Frequency: DC~150kHz, voltage: 600Vrms
UT-P35
download EN
UT-P35
Description:High voltage Differential probe:1:50,130V(DC+peakAC); 1:500,1300V(DC+peakAC),Bandwidth:50MHz,Precision:2%
UT-P36
download EN
UT-P36
Description:High voltage Differential probe: 1/200:560(DC+peakAC) 1/2000:5600(DC+peakAC), Bandwidth:100MHz,Precision:2%
UT-P4100A
download EN
UT-P4100A
Description:100A/600kHz Low frequency current probe Range:100A/10A Freq range:DC~600kHz Rise time:≤583ns
UT-P4030D
download EN
UT-P4030D
Description:30A/ DC~100MHz High frequency current probe Range:30A/5A Freq range:DC~100MHz Rise time:≤3.5ns
UT-P4150
download EN
UT-P4150
Description:150A/ DC-12MHz High frequency current probe Range:150A/30A Freq range:DC~12MHz Rise time:≤29ns
UT-P4500
download EN
UT-P4500
Description:500A/ DC~5MHz High frequency current probe Range:500A/75A Freq range:DC~5MHz Rise time:≤70ns
UT-P4100B
download EN
UT-P4100B
Description:100A/2MHz Low frequency current probe Range:100A/10A Freq range:DC~2MHz Rise time:≤175ns
UT-M13X
download EN
UT-M13X
Description:Oscilloscope Signal Protocol Demonstration Board
