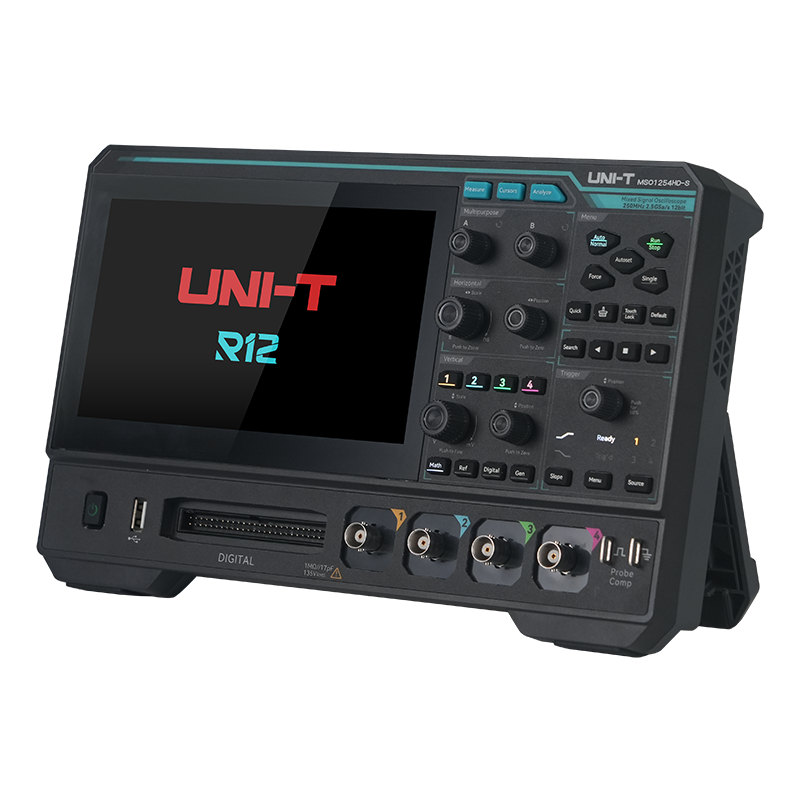

MSO1000HD Series
MSO1000HD series high-resolution oscilloscope has the maximum bandwidth of 250 MHz, the maximum sample rate of 2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the memory depth of up to 100 Mpts. MSO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 200,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter
150 MHz~250 MHz
BANDWIDTH
4
ANALOG CHANNELS
2.5GSa/s
REAL-TIME SAMPLE RATE
100Mpts
MAX. MEMORY DEPTH
1,000,000wfms/s
WAVEFORM CAPTURE RATE
16
DIGITAL CHANNELS
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS
Brand New Appearance Design
Double-sided slim design for a modern and compact factor
Dimensions：28.2cm×17.5cm×4.9cm
Brand New Appearance Design

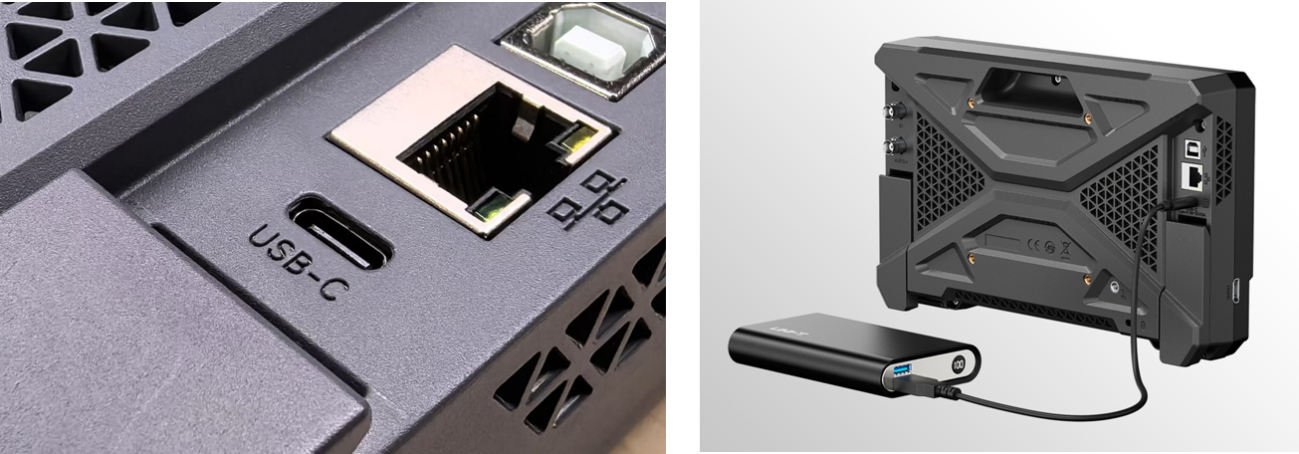

Type-C for Power Supply
MSO1000HD series adopts the latest Type-C power supply method. When no power source is available outdoors, it can be powered by a portable charger
Type-C for Power Supply
Enhanced resolution of 16-bit
Higher precision, lower noise floor. In 16-bit high-resolution mode, by combining 12-bit ADC with 4-bit ERES (enhanced resolution), the measurement accuracy is significantly improved, finely displaying the intricate details of waveforms. This effectively suppresses out-of-band noise and reduces the oscilloscope's inherent noise interference with the real signal, thereby ensuring a more precise measurement experience while increasing the sampling bits.
Enhanced resolution of 16-bit

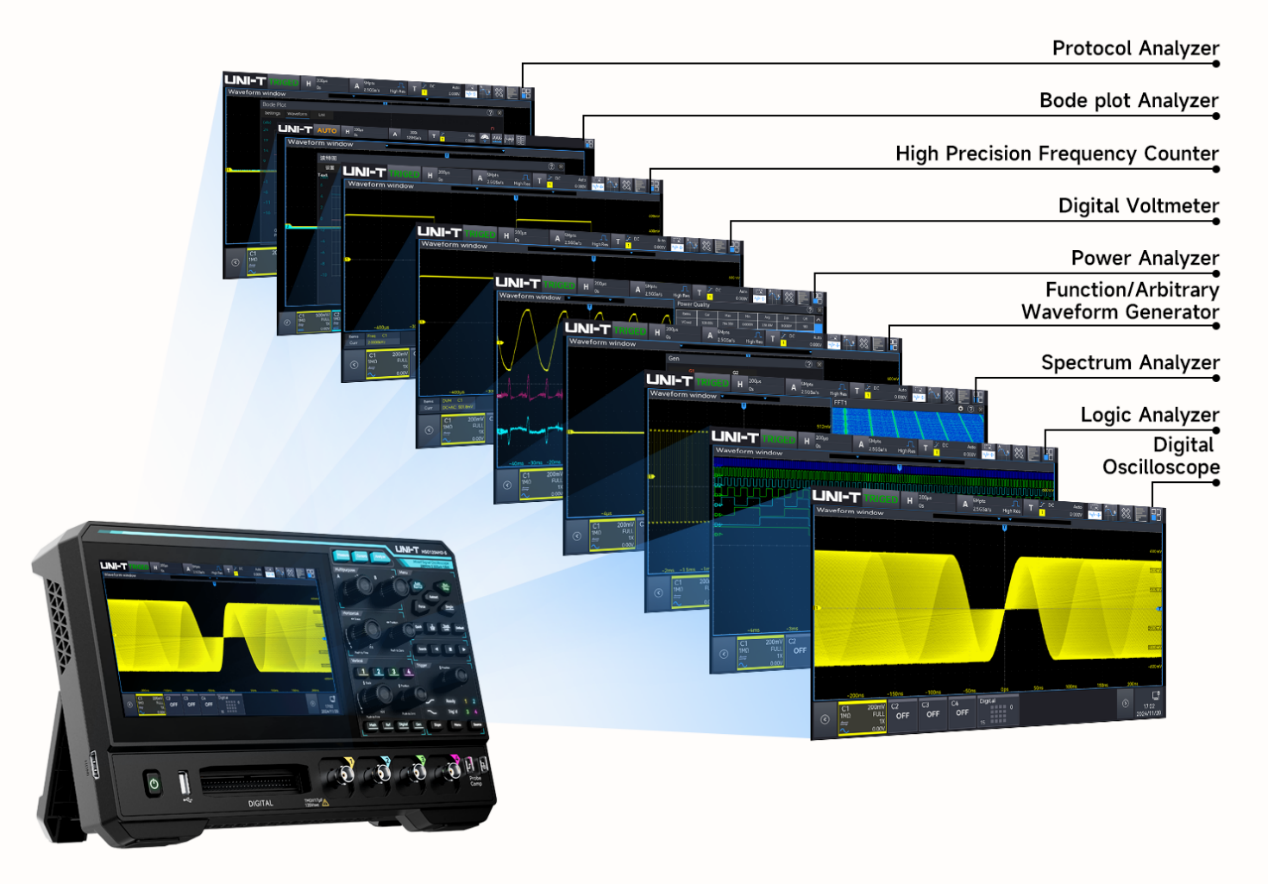

Versatile Testing Equipment
-Oscilloscopes
-Logic Analyzer
-Function/Arbitrary Waveform Generator
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-Bode plot Analyzer
-High Precision Frequency Counter
-Digital Voltmeter
Versatile Testing Equipment

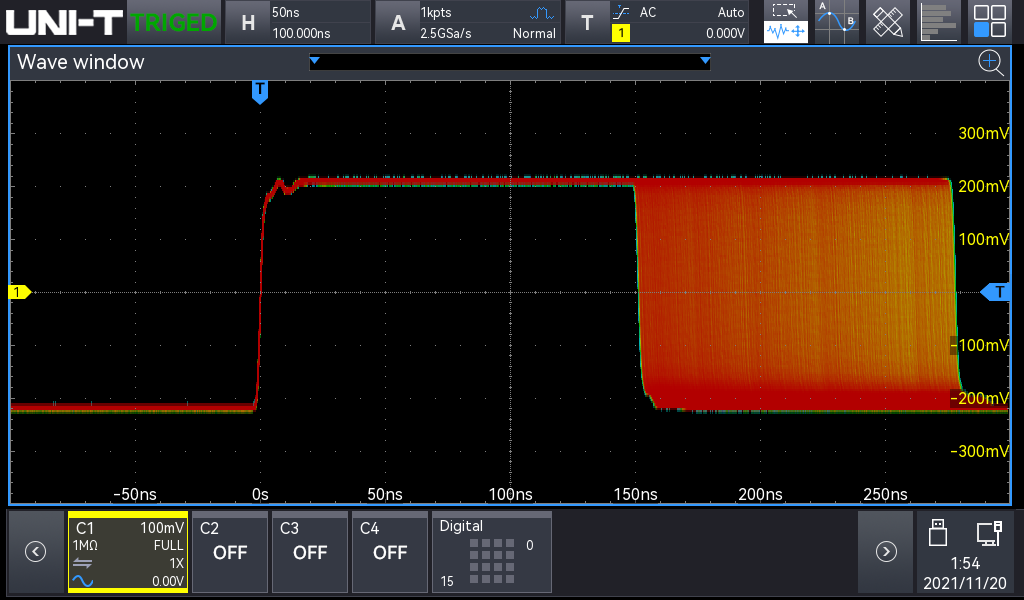

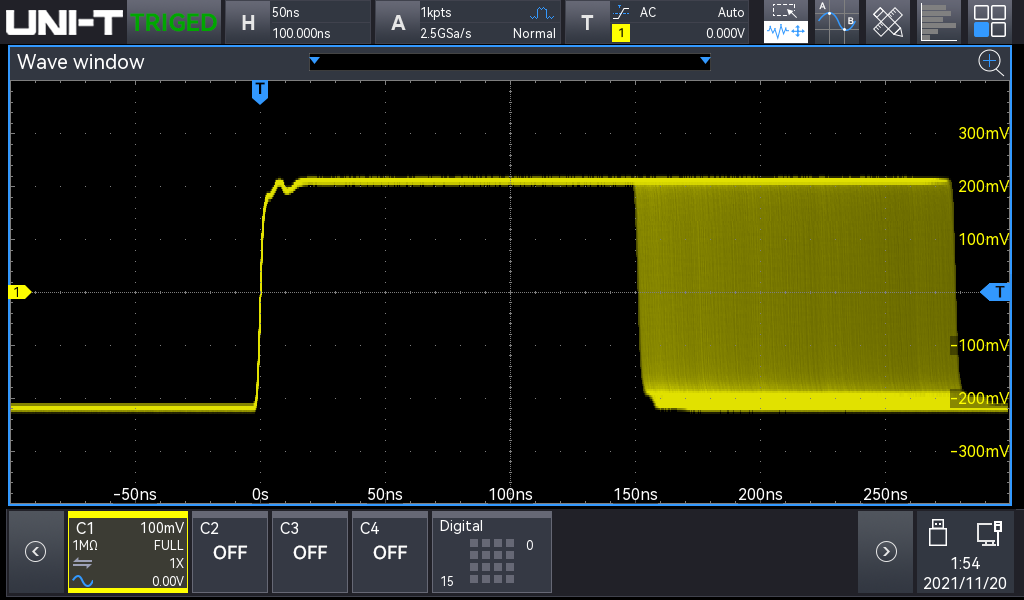

Ultra Phosphor 3.0
Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 200,000 wfms/s, and up to 1,000,000 wfms/s in the sequence mode.
Ultra Phosphor 3.0
Ultra Phosphor 3.0

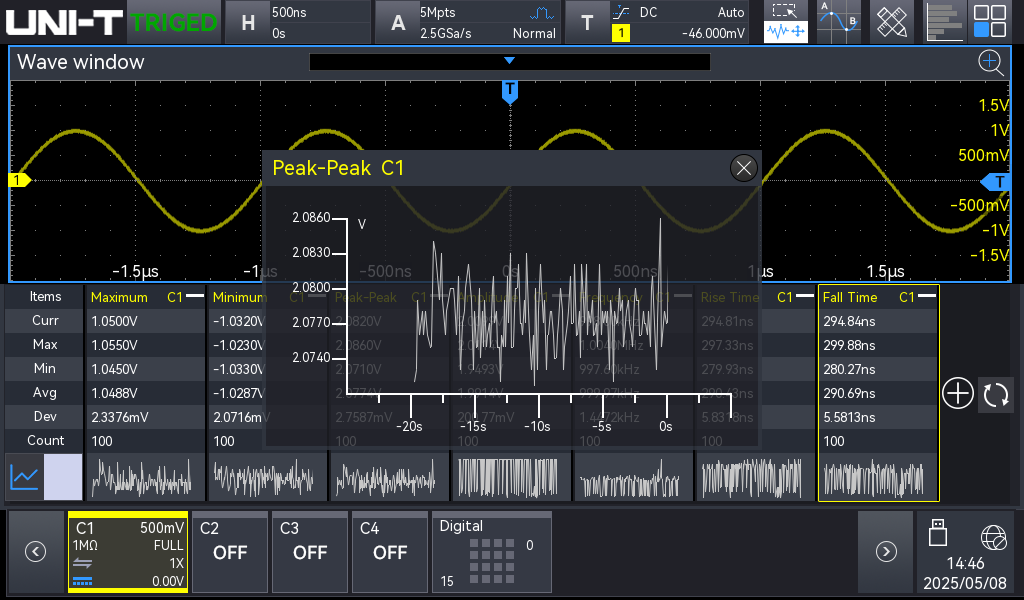

56 Types: Measurement, Statistics, Trend Graphs
56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.
56 Types: Measurement, Statistics, Trend Graphs

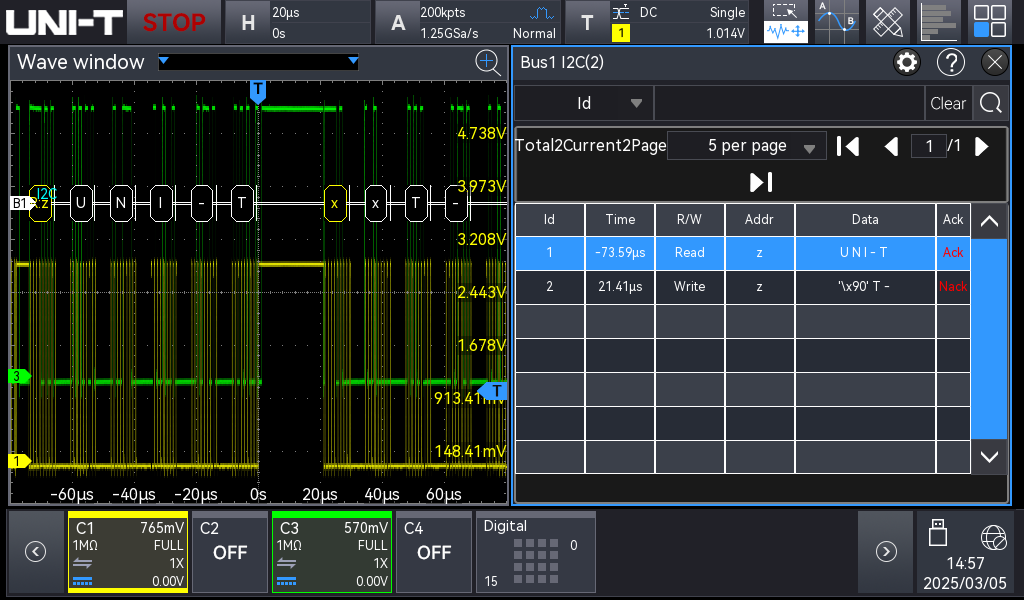

Protocol decoding and triggering
Supports 7 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN
-Audio: Audio
Protocol decoding and triggering

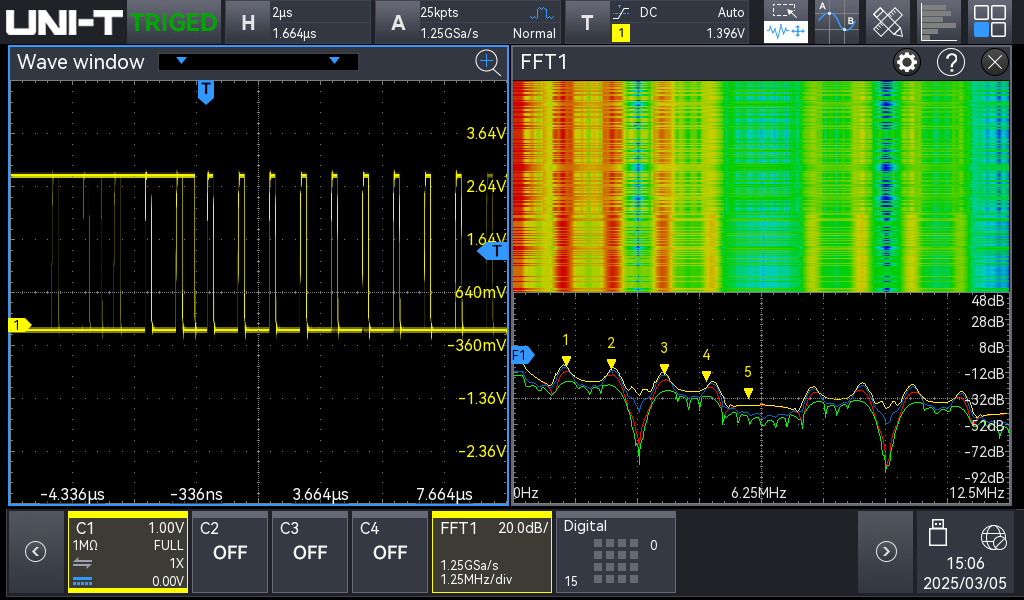

Spectrum Analyzer
-Standard enhanced FFT with up to 1 Mpts
for 4-channel signal analysis
-Frequency range: 0 to 1.25 GHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list
Spectrum Analyzer

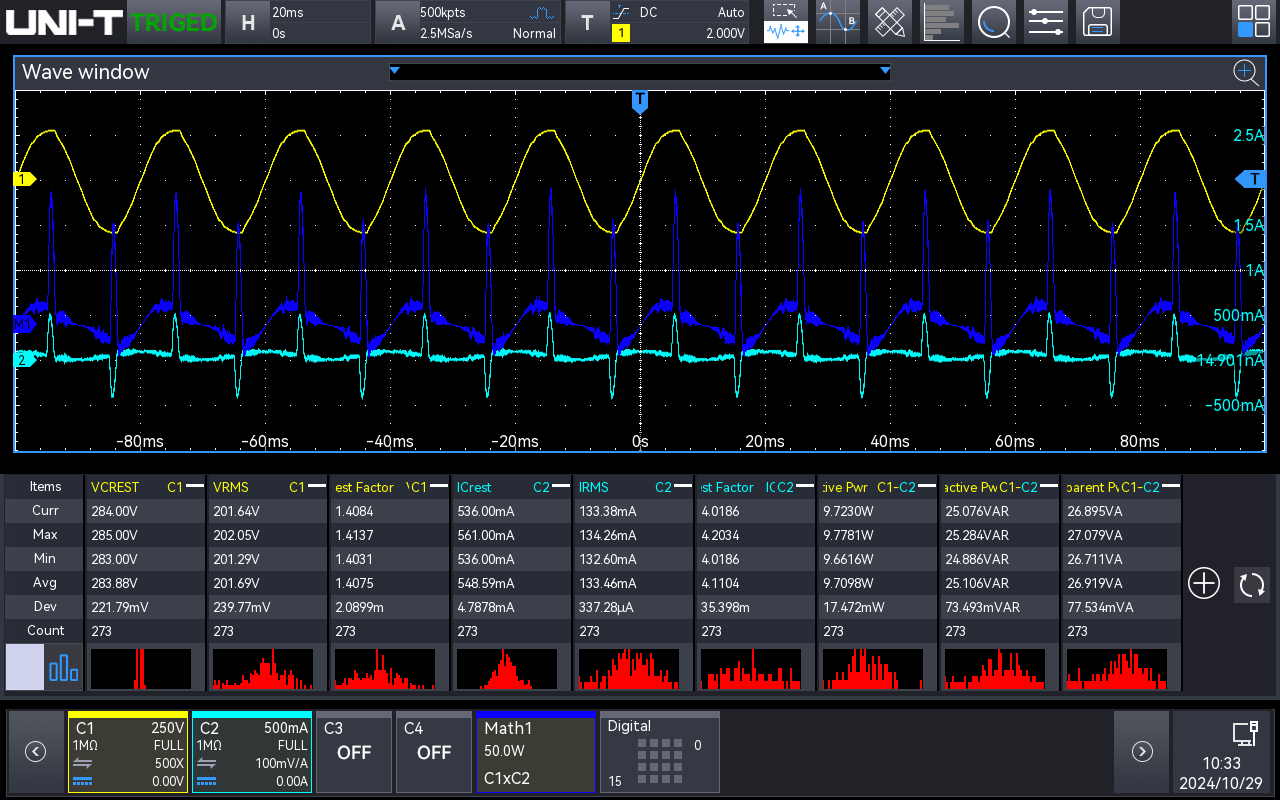

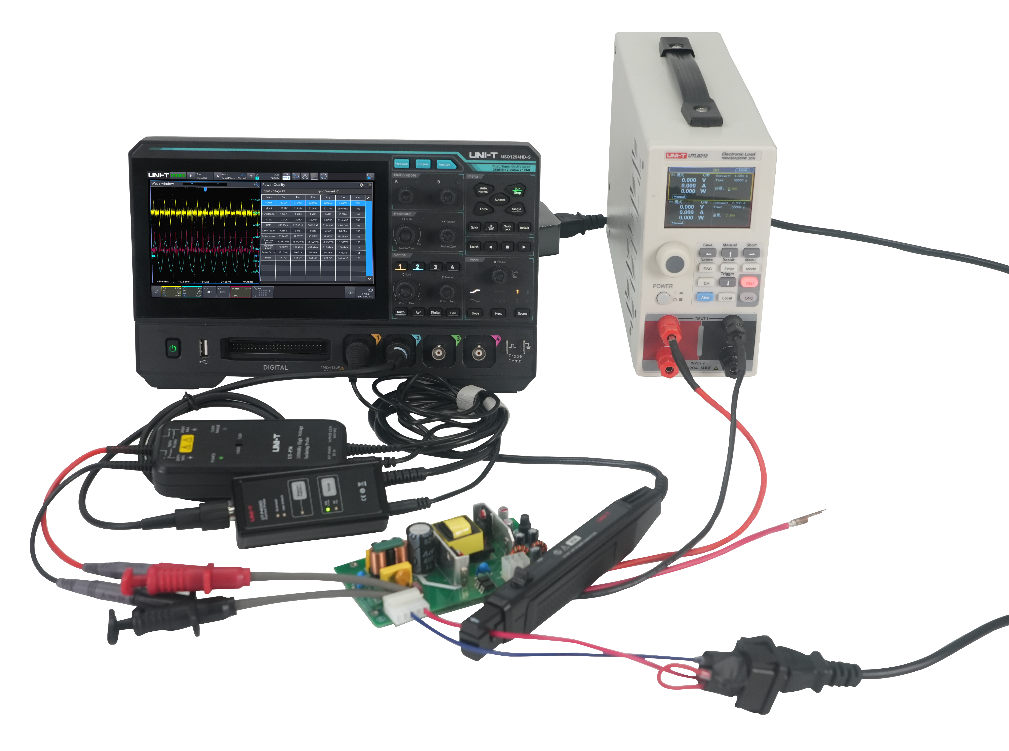

Power Analysis
Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current
Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Steady-State On-Resistance
Output Analysis
-Ripple Analysis
-Modulation Analysis
-Power Efficiency
-Transient response
-ON/OFF time
Power Analysis
Power Analysis
MODEL
MSO1254HD-S
BANDWIDTH：250MHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：2.5GSa/s
MAX. MEMORY DEPTH：100Mpts
WAVEFORM CAPTURE RATE：1,000,000wfms/s
DIGITAL CHANNELS：16
Get a Quote
Add to Compare
MSO1254HD
BANDWIDTH：250MHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：2.5GSa/s
MAX. MEMORY DEPTH：100Mpts
WAVEFORM CAPTURE RATE：1,000,000wfms/s
DIGITAL CHANNELS：16
Get a Quote
Add to Compare
MSO1154HD-S
BANDWIDTH：150MHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：2.5GSa/s
MAX. MEMORY DEPTH：100Mpts
WAVEFORM CAPTURE RATE：1,000,000wfms/s
DIGITAL CHANNELS：16
Get a Quote
Add to Compare
MSO1154HD
BANDWIDTH：150MHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：2.5GSa/s
MAX. MEMORY DEPTH：100Mpts
WAVEFORM CAPTURE RATE：1,000,000wfms/s
DIGITAL CHANNELS：16
Get a Quote
Add to Compare
Compare
Data Sheet
download MSO1000HD Series Digital Oscilloscopes - Data Sheet
Version：V1.0
Release Date：2025/5/22
QuickStart Guide
download MSO1000HD Series Digital Oscilloscopes - QuickStart Guide
Version：V1.0
Release Date：2025/5/22
User Manual
download MSO1000HD Series Digital Oscilloscopes - User Manual
Version：V1.0
Release Date：2025/5/22
Programming Manual
download MSO1000HD Series Digital Oscilloscopes - Programming Manual
Version：V1.0
Release Date：2025/5/22
Service Manual
Performance Verification Guide
OPTIONS
ACCESSORIES
UT-P06
download EN download DE
UT-P06
Description：Probe factor:(10:1) Bandwidth: 300MHz.voltage:600Vpp
Get a Quote
UT-P20
download EN download DE
UT-P20
Description：Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
Get a Quote
UT-P21
download EN download DE
UT-P21
Description：Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
Get a Quote
UT-P30
download EN download DE
UT-P30
Description：Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: 800Vpp
Get a Quote
UT-P31
download EN download DE
UT-P31
Description：High voltage differential probe: (100:1/1000:1) Bandwidth: 100MHz differential voltage: 1500Vpp
Get a Quote
UT-P32
download EN download DE
UT-P32
Description：Differential probe:（1000:1/100:1）Bandwidth: 50MHz Input differential voltage: 3000Vpp
Get a Quote
UT-P33
download EN download DE
UT-P33
Description：Differential probe:(1000:1/100:1) Bandwidth: 70/50MHz differential voltage: 14KVpp
Get a Quote
UT-V23
download EN download DE
UT-V23
Description：High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
Get a Quote
UT-P40
download EN download DE
UT-P40
Description：Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
Get a Quote
UT-P41
download EN download DE
UT-P41
Description：Conversion ratio:100mV/A, 10mV/A, Current range: 50mA~100A Frequency: DC~100kHz, voltage: 600Vrms
Get a Quote
UT-P43
download EN
UT-P43
Description：Current range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
Get a Quote
UT-P44
download EN
UT-P44
Description：Current range: 40A AC/DC, Frequency: DC~50MHz,Conversion ratio:50mV/A
Get a Quote
UT-P05
download EN download DE
UT-P05
Description：Probe factor:(10:1) Bandwidth: 200MHz.voltage:600Vpp
Get a Quote
UT-P42
download EN download DE
UT-P42
Description：Conversion ratio:50mV/A, 5mV/A, Current range: 0.4A~200A Frequency: DC~150kHz, voltage: 600Vrms
Get a Quote
UT-P35
download EN
UT-P35
Description：High voltage Differential probe:1:50，130V(DC+peakAC); 1:500,1300V(DC+peakAC),Bandwidth:50MHz,Precision:2%
Get a Quote
UT-P36
download EN
UT-P36
Description：High voltage Differential probe: 1/200:560(DC+peakAC) 1/2000:5600(DC+peakAC), Bandwidth:100MHz,Precision:2%
Get a Quote
UT-ISOT
download EN download DE
UT-ISOT
Description：Isolation transfomer for Bode plot application (Hardware)
Get a Quote
UT-P4100A
download EN
UT-P4100A
Description：100A/600kHz Low frequency current probe Range：100A/10A Freq range：DC~600kHz Rise time：≤583ns
Get a Quote
UT-P4030D
download EN
UT-P4030D
Description：30A/ DC～100MHz High frequency current probe Range：30A/5A Freq range：DC~100MHz Rise time：≤3.5ns
Get a Quote
UT-P4150
download EN
UT-P4150
Description：150A/ DC-12MHz High frequency current probe Range：150A/30A Freq range：DC~12MHz Rise time：≤29ns
Get a Quote
UT-P4500
download EN
UT-P4500
Description：500A/ DC～5MHz High frequency current probe Range：500A/75A Freq range：DC~5MHz Rise time：≤70ns
Get a Quote
UT-P4100B
download EN
UT-P4100B
Description：100A/2MHz Low frequency current probe Range：100A/10A Freq range：DC~2MHz Rise time：≤175ns
Get a Quote
UT-M13X
download EN
UT-M13X
Description：Oscilloscope Signal Protocol Demonstration Board
Get a Quote
UT-M26
Description：16-channel logic analyzer probe
