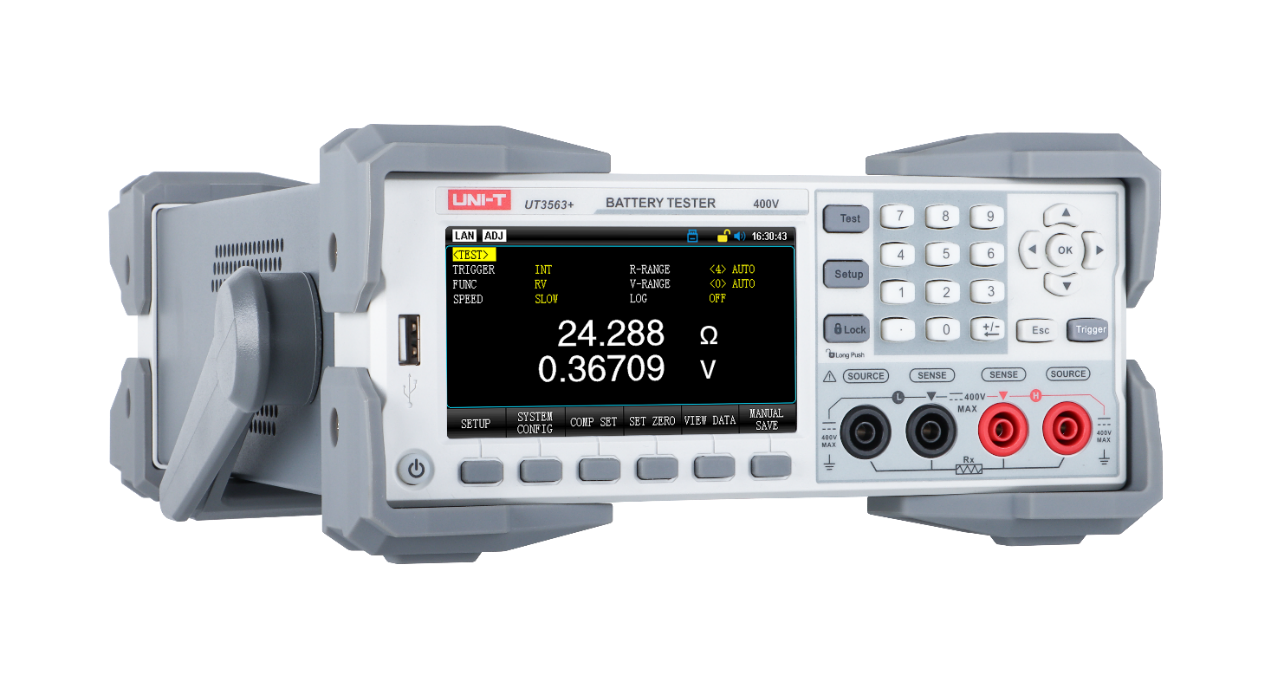

UNI-T Launches UT3560+ Series Battery Testers for Fast, Accurate Resistance and Voltage Testing

UNI-T is pleased to introduce the UT3560+ Series Battery Testers, a new generation of high-accuracy, high-speed instruments designed for battery testing in production lines, quality inspection, and R&D laboratories. The series includes UT3562+ and UT3563+, supporting battery voltage testing up to 100 V and 400 V, respectively.

Engineered for reliable battery testing, the UT3560+ Series measures resistance from 0.0001 mΩ to 3.3 kΩ and DC voltage from 0.00001 V up to 400 V. With 0.5% resistance accuracy, 0.01% voltage accuracy, and resolution down to 0.1 μΩ / 10 μV, it enables detection of subtle battery performance variations for cell grading and quality control.

Key Features

High-Accuracy Resistance and Voltage Measurement with High Resolution

• Up to 100 readings/s for production-line testing
• 0.1 μΩ / 10 μV resolution for detecting small performance changes

Provides reliable performance for precision battery testing

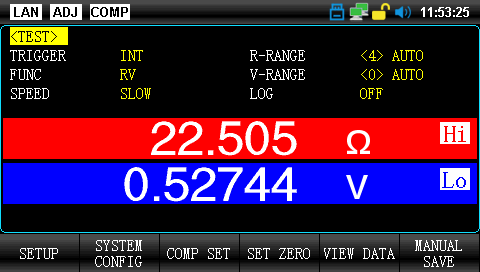

Built-in Comparator with Hi / In / Lo Sorting for Automated Battery Inspection

The built-in comparator function automatically classifies test results into Hi, In, and Lo categories, making it well suited for battery sorting and automated inspection applications.

Supports efficient product sorting and quality control

Reliable Low-Resistance Testing

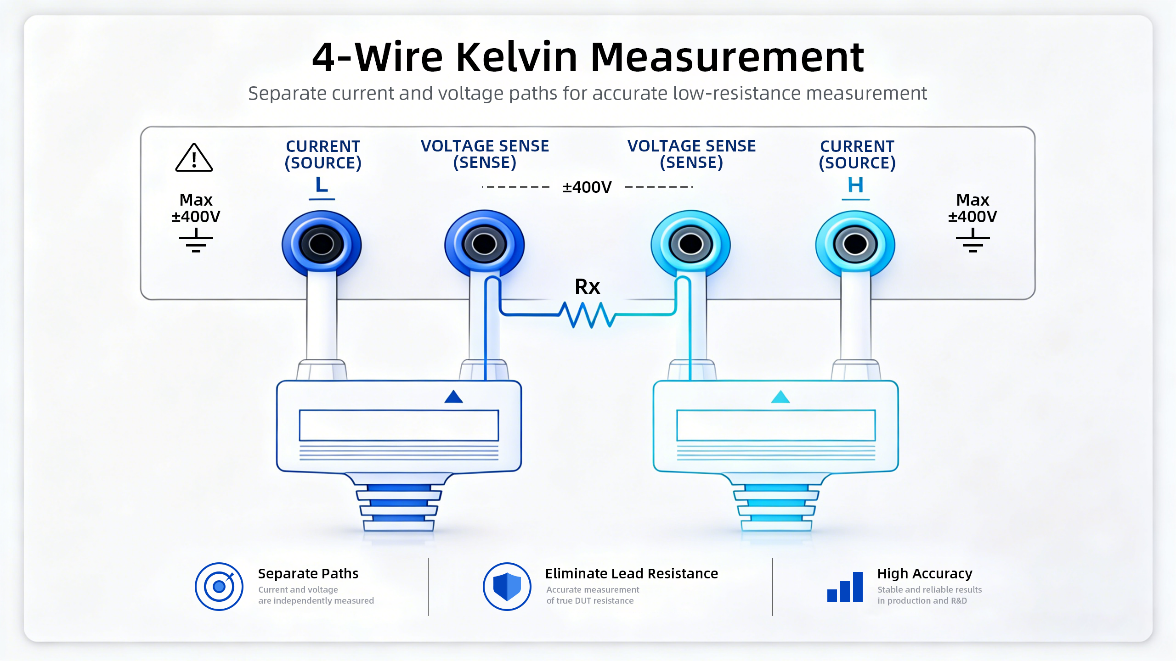

4-wire Kelvin measurement, contact check, and zero adjustment help reduce connection-related errors.

Ensures accurate and consistent low-resistance measurement

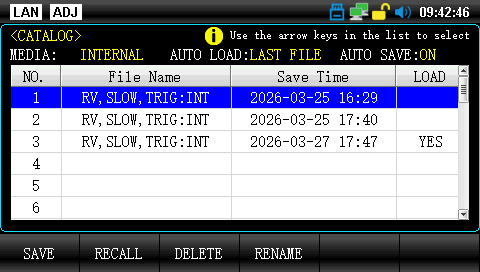

Built-in Data Logging and File Management for Traceable Battery Testing

Store up to 10,000 data records and 500 manual records, with USB data export and configuration file management.

Supports traceability and production data analysis

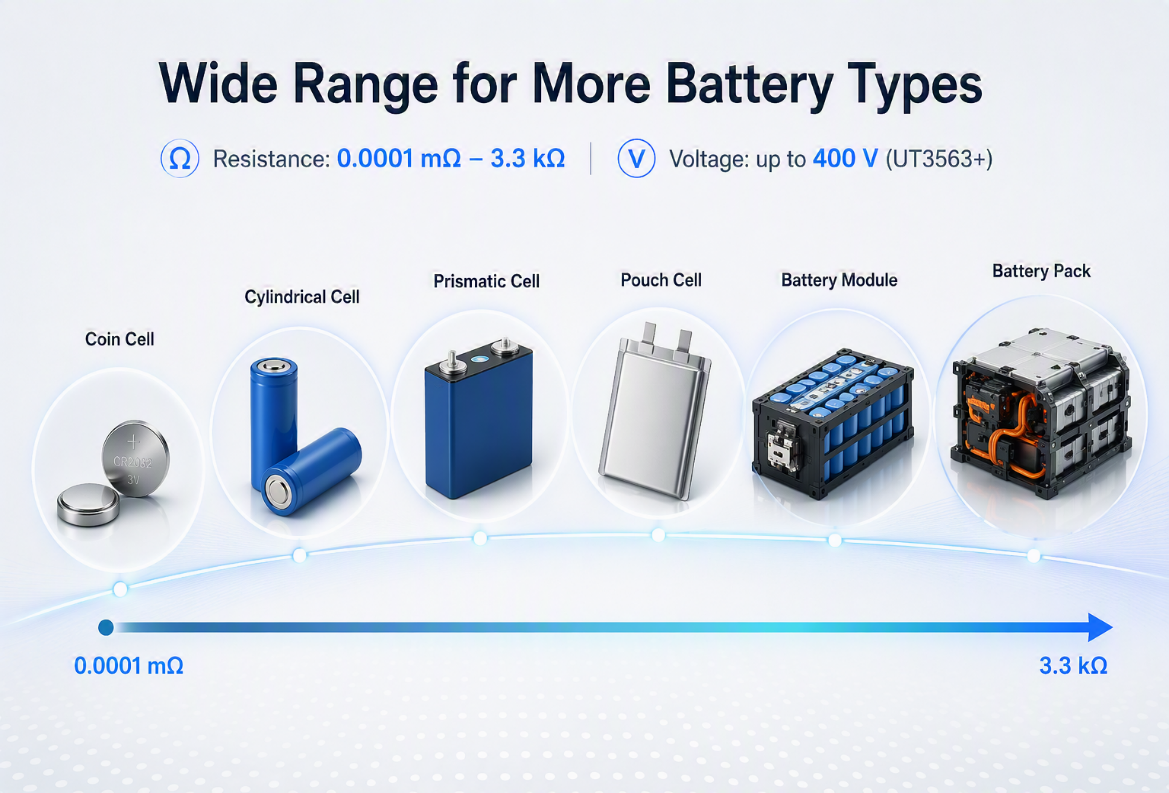

Wide Measurement Range Covers Diverse Battery Applications

Delivers a resistance measurement range from 0.0001 mΩ to 3.3 kΩ and a DC voltage measurement range up to 400 V, supporting applications ranging from coin cells to EV battery packs.

Reduces equipment cost and simplifies setup

The UT3560+ Series Supports a Wide Range of Battery Testing Scenarios

• Battery cell production lines
• EV battery module and pack testing
• Battery sorting and quality control
• Battery R&D laboratories
• Battery module and pack assembly
• Energy storage system testing and maintenance

Need a Battery Tester for Your Application?

Whether you are building a production test station, validating battery modules, or improving quality inspection workflows, the UT3560+ Series provides the accuracy, connectivity, and data functions needed for efficient battery testing.

Contact Us to learn more about the UT3560+ Series Battery Testers, Download the Datasheet for technical details, or Get a Quote for customized pricing.
