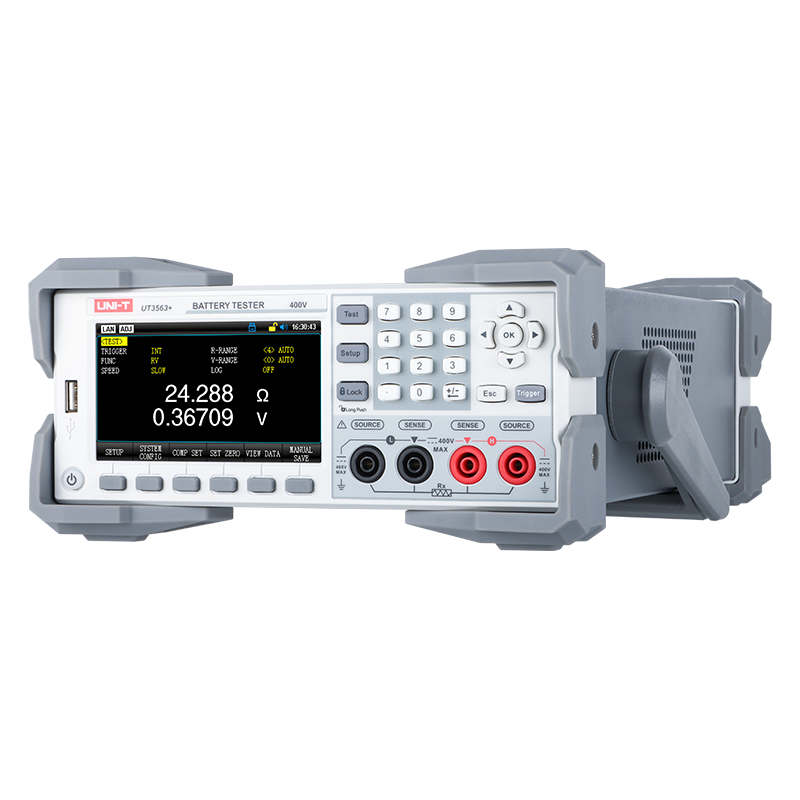

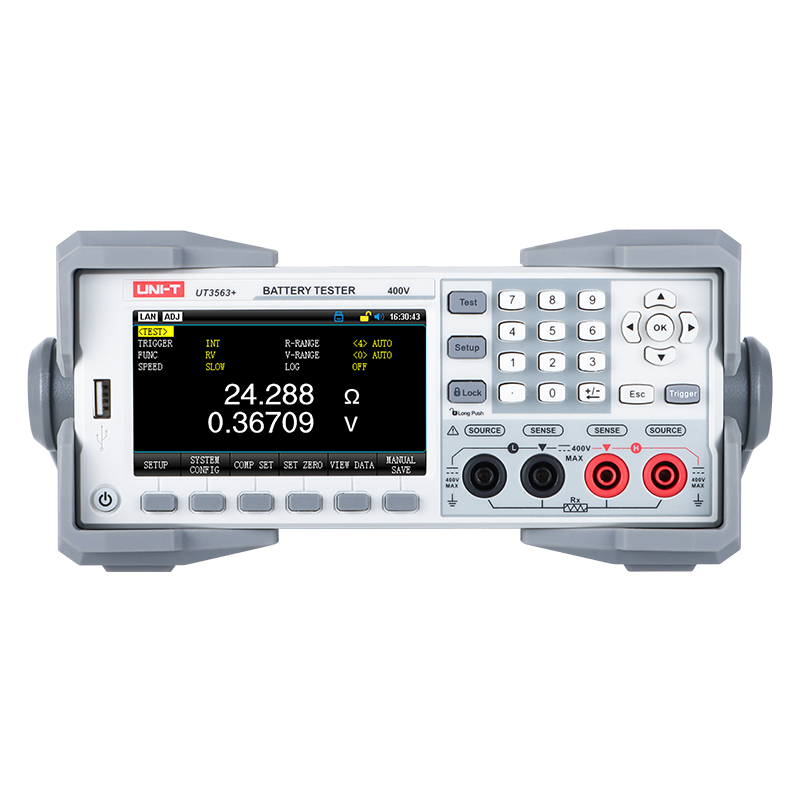

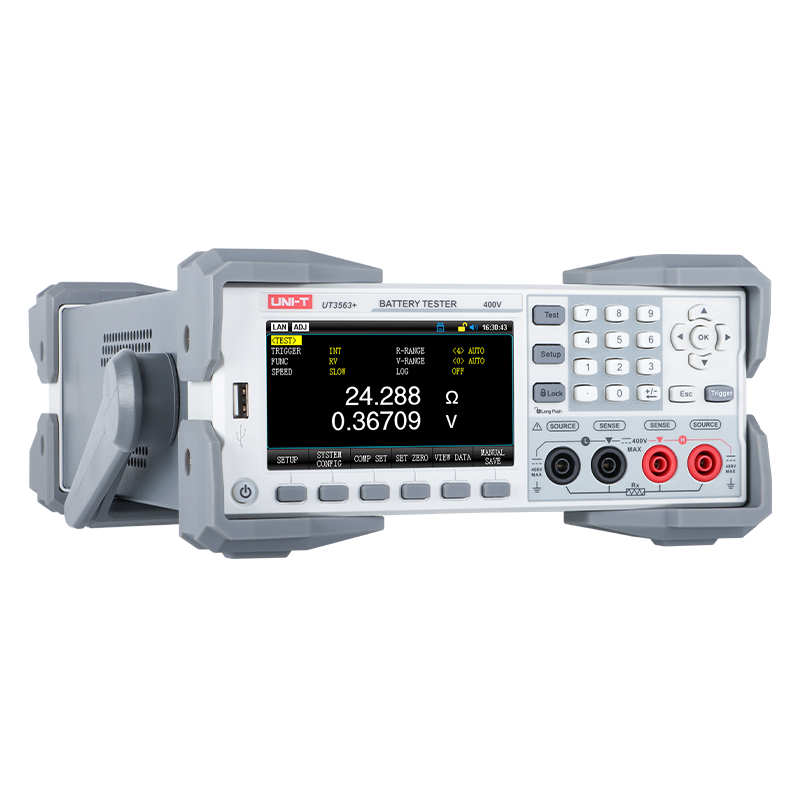

UT3560+ Series
The UT3560+ Series Battery Tester is a high-accuracy and high-speed instrument for battery evaluation. It measures resistance from 0.0001 mΩ to 3.3 kΩ and DC voltage up to 400 V, with 0.5% resistance accuracy and 0.01% voltage accuracy. Its fast measurement rate reaches 100 readings per second, improving testing efficiency. The tester supports RS-232C, RS-485, USB, LAN, and Handler interfaces, and is compatible with SCPI and Modbus-RTU protocols for automation and remote control. It is widely used for lithium, NiMH, NiCd, button, cylindrical, and pouch batteries in production and testing environments.
0.01mV~400V
VOLTAGE RANGE
0.1μΩ~3.3000kΩ
RESISTANCE RANGE
Voltage:0.01% ,Resistance:0.5%
ACCURACY

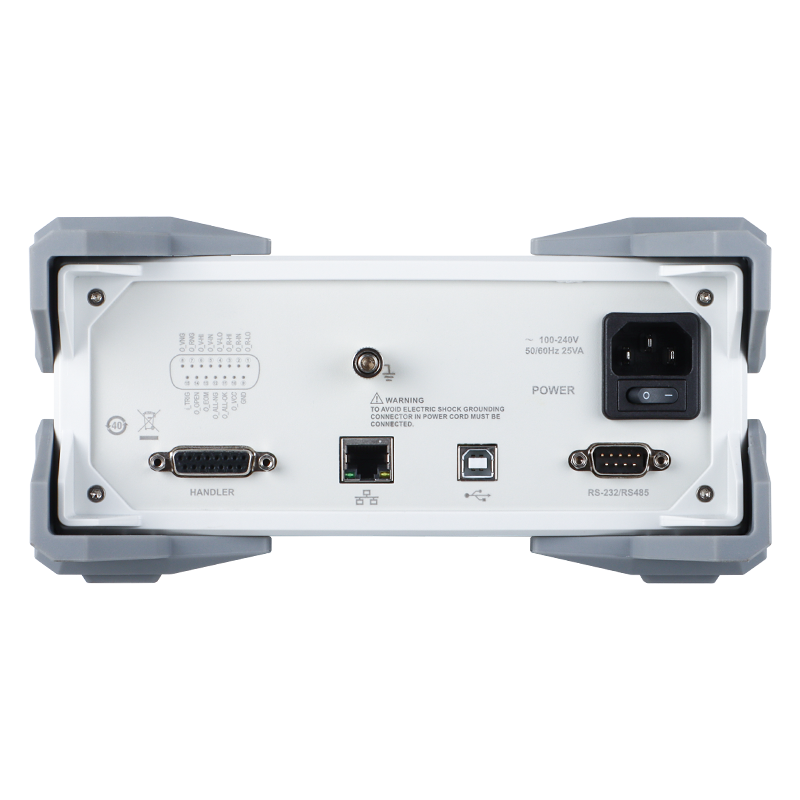

RS-232/485, USB DEVICE, LAN, HANDLER
CONNECTIVITY
½ 2U
SIZE
4.3'' TFT LCD
DISPLAY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

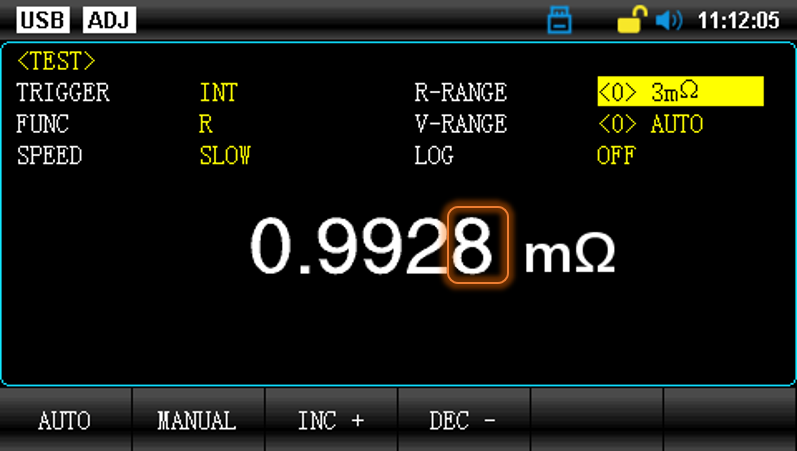

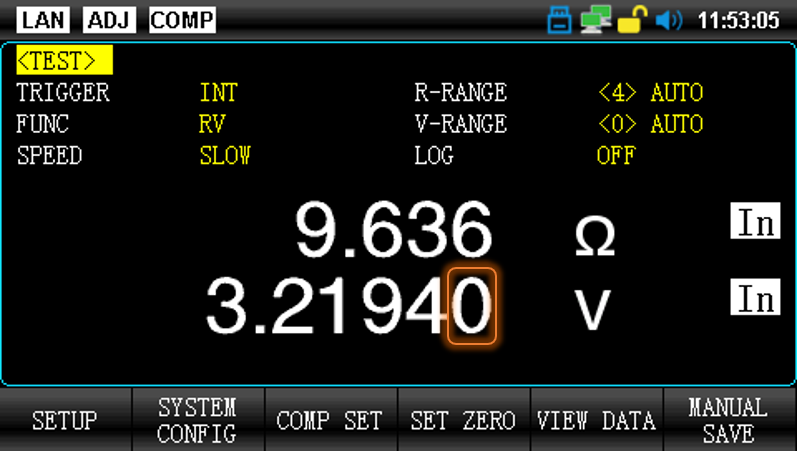

High Accuracy & High Resolution Measurement
0.5% resistance accuracy, 0.01% voltage accuracy, and ultra-fine resolution down to 0.1 μΩ / 10 μV.
High Accuracy & High Resolution Measurement
High Accuracy & High Resolution Measurement

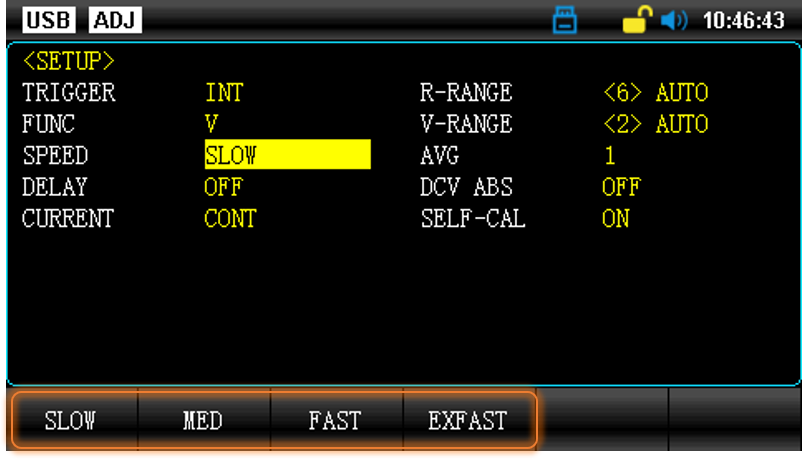

Fast Measurement up to 100 Readings/s
Ultra-fast test speed up to 100 measurements per second for high-throughput production.
Fast Measurement up to 100 Readings/s

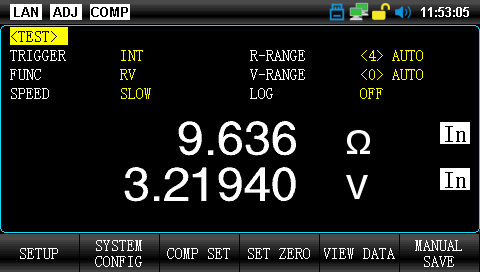

4.3-inch LCD Display
Measure resistance and voltage simultaneously with real-time display.
4.3-inch LCD Display

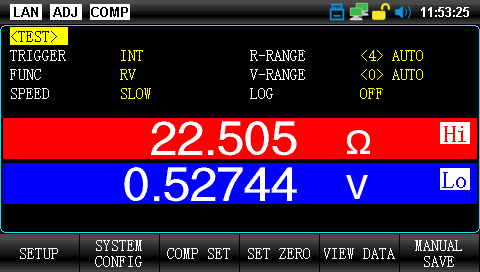

Advanced Comparator & Sorting Function
Built-in comparator supports multi-mode sorting (Hi/Lo/In) with buzzer and handler output.
Advanced Comparator & Sorting Function

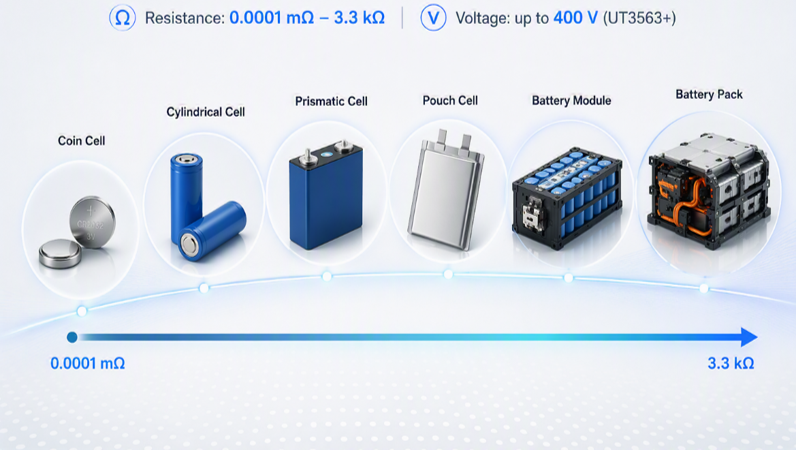

Wide Range for More Battery Types
Resistance: 0.0001 mΩ – 3.3 kΩ
Voltage: up to 400 V (UT3563+)
Wide Range for More Battery Types
MODEL
UT3562+
VOLTAGE RANGE：0.01mV~100V
RESISTANCE RANGE：0.1μΩ~3.3000kΩ
ACCURACY：Voltage:0.01% ,Resistance:0.5%
CONNECTIVITY：RS-232/485, USB DEVICE, LAN, HANDLER
SIZE：½ 2U
DISPLAY：4.3'' TFT LCD
Get a Quote
Add to Compare
UT3563+
VOLTAGE RANGE：0.01mV~400V
RESISTANCE RANGE：0.1μΩ~3.3000kΩ
ACCURACY：Voltage:0.01% ,Resistance:0.5%
CONNECTIVITY：RS-232/485, USB DEVICE, LAN, HANDLER
SIZE：½ 2U
DISPLAY：4.3'' TFT LCD
Get a Quote
Add to Compare
Compare
Data Sheet
download UT3560+ Series Battery Testers - Data Sheet
Version：V1.0
Release Date：2026/7/17
QuickStart Guide
User Manual
download UT3560+ Series Battery Testers - User Manual
Version：V1.0
Release Date：2026/7/17
Programming Manual
Service Manual
Performance Verification Guide
OPTIONS
ACCESSORIES
UT-L80
UT-L80
Description：Crown probe test lines(Four terminal connection type)
Get a Quote
UT-L82
UT-L82
Description：Kelvin test lead (four-terminal wiring type)
Get a Quote
UT-L81
UT-L81
Description：Alligator clip test leads
Get a Quote
UT-L86
UT-L86
Description：Crown test lead
Get a Quote
UT-L87
UT-L87
Description：Kalvin Clips Test Wire (four-terminal wiring type)
Get a Quote
