UNI-T Launches New 12-Bit Rack-Mount Oscilloscope for High-Density System Integration and Multi-Instrument Synchronization

As automated test systems become more compact and signal environments become more complex, engineers need oscilloscopes that deliver high channel density, accurate signal acquisition, and seamless system integration—without taking up valuable rack space.

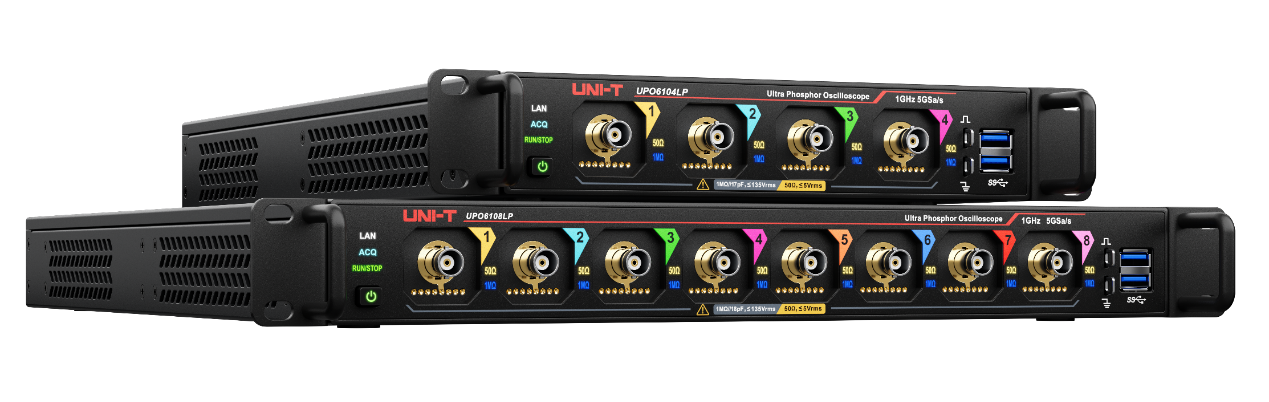

UNI-T introduces the UPO6000LP Series High-Resolution Oscilloscopes, a compact 1U rack-mount oscilloscope platform designed for high-density system integration, multi-instrument synchronization, and advanced signal analysis. Designed for scalable automated test systems, the UPO6000LP Series is ideal for use in R&D labs, production lines, validation platforms, and industrial test environments.

Key Features

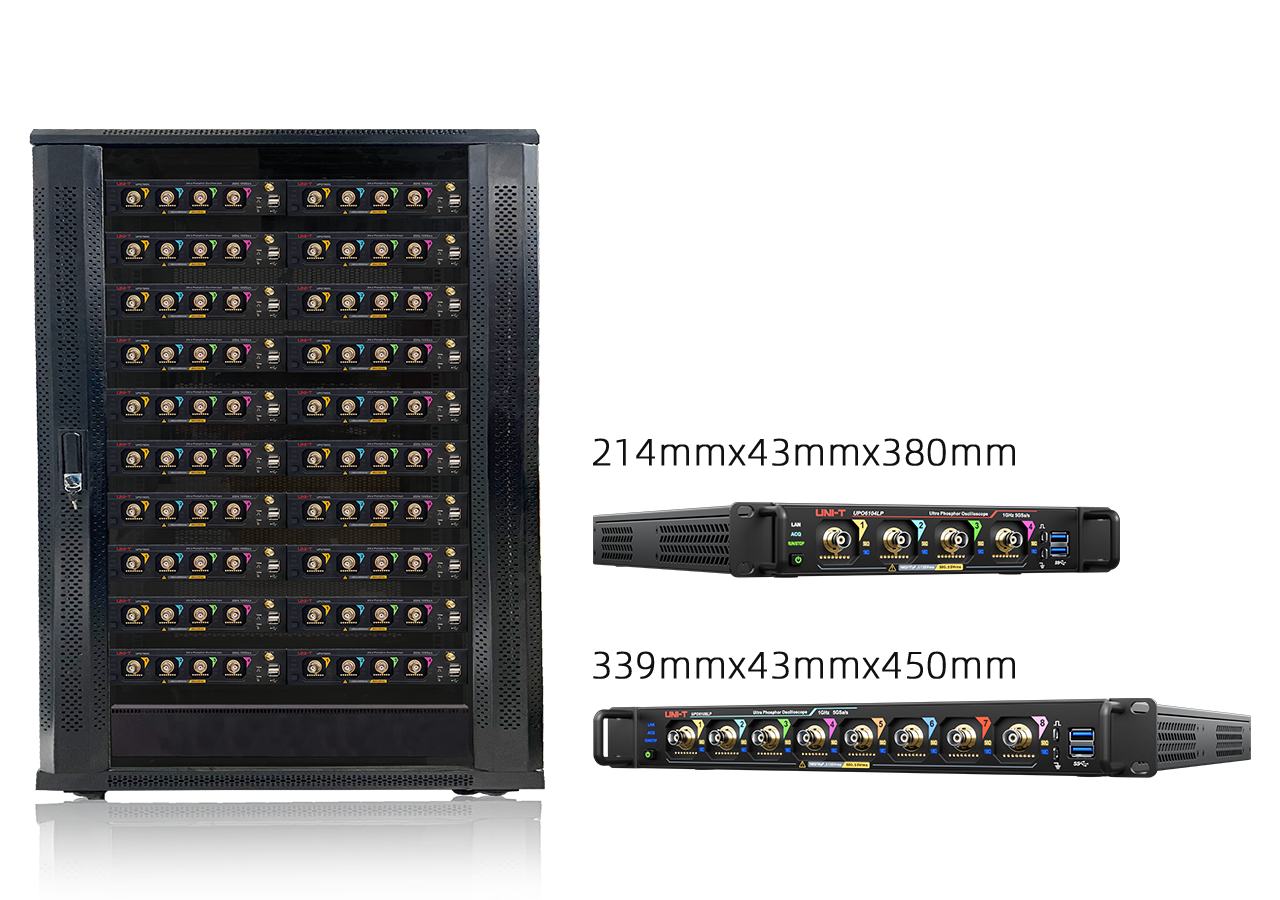

1U Rack-Mount Design for High-Density Integration

Available in half-rack and full-rack configurations to maximize rack-space efficiency for high-density test systems.

The first choice for space‑constrained test environments

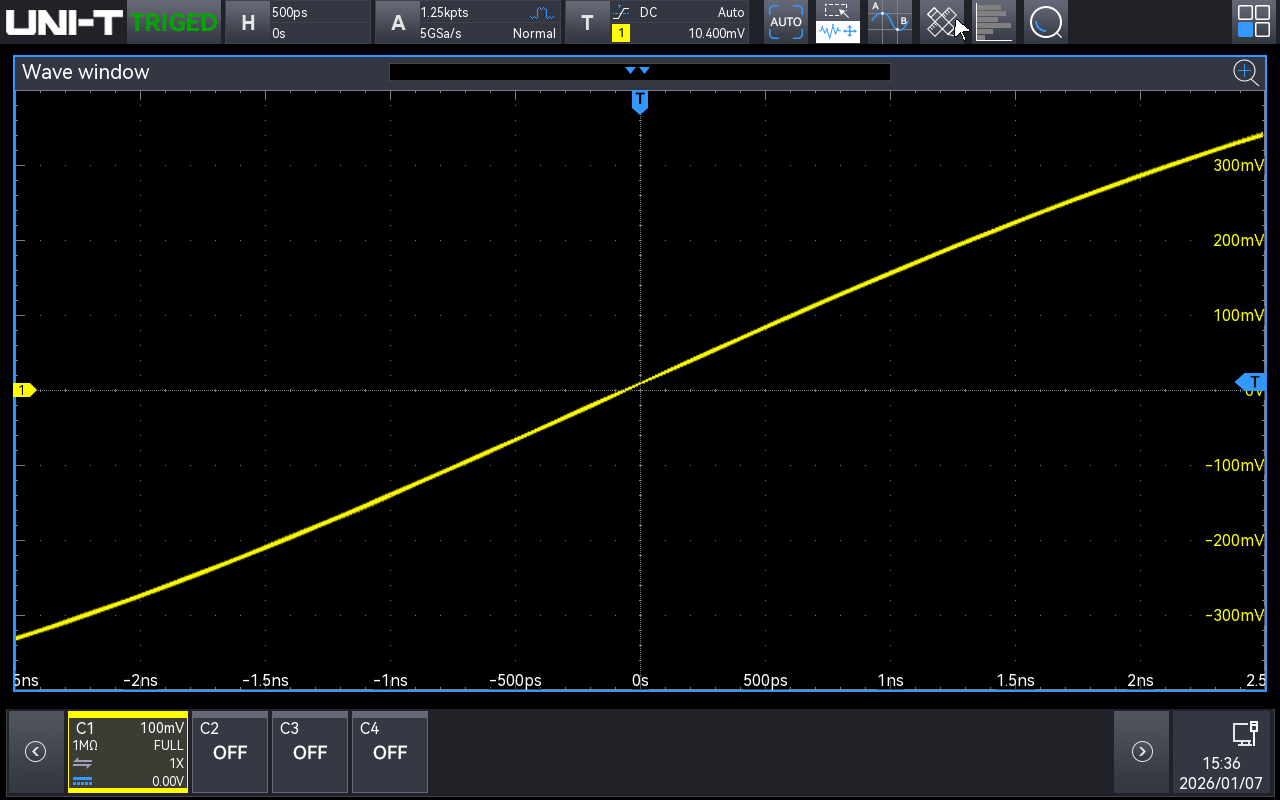

12-bit High Resolution for Enhanced Signal Visibility

Enhanced Resolution mode supports up to 16-bit resolution, enabling improved visibility of small signal variations and fine waveform details.

High-Resolution Signal Acquisition for Improved Waveform Visibility

Up to 500 Mpts Memory Depth with Fast Waveform Capture

UPO6000LP supports long-duration waveform acquisition while maintaining high timing resolution for detailed signal analysis.

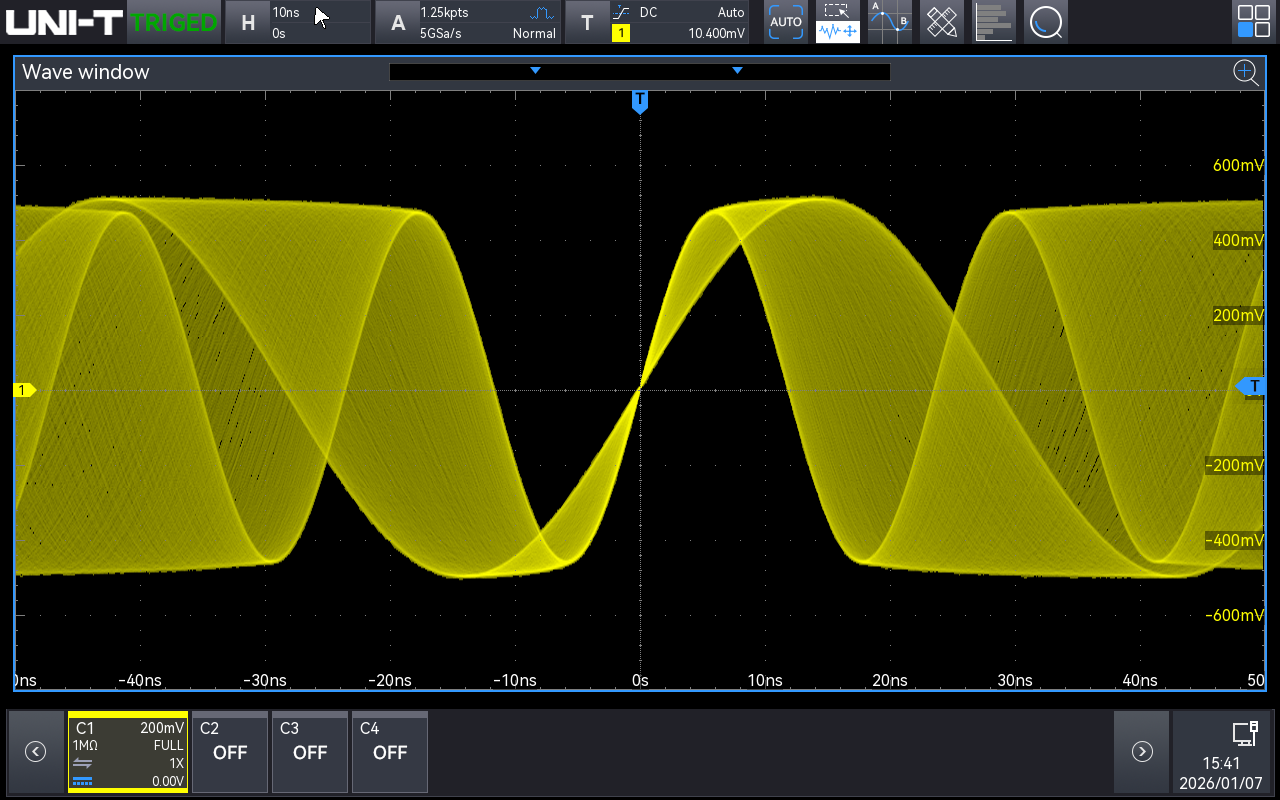

Up to 1,000,000 wfms/s Waveform Capture Rate in Sequence Mode

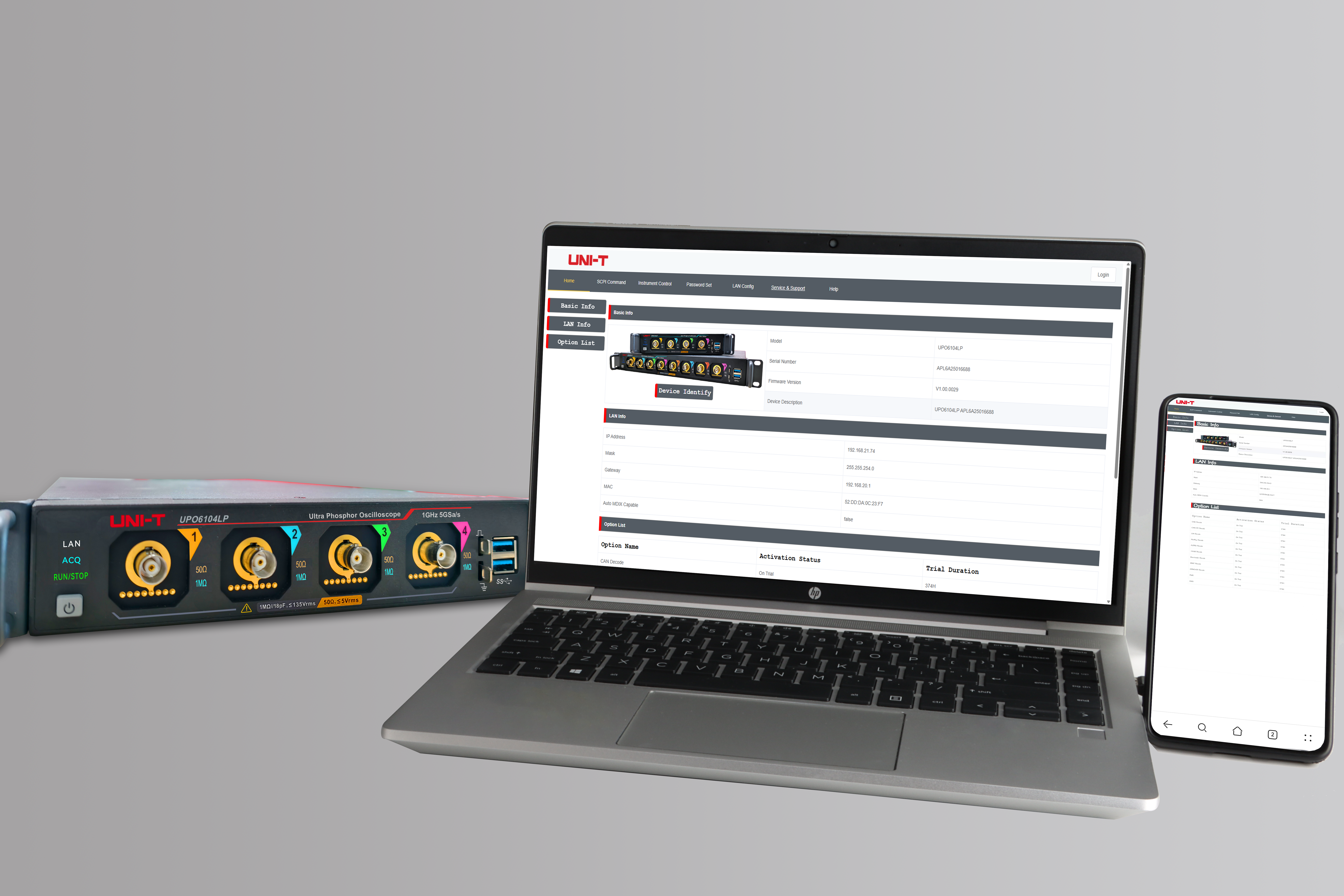

Remote Control and Automation Ready

Supports LAN, USB, HDMI, SCPI remote commands, and a built-in web server for remote operation, automated test development, and seamless system-level integration.

Flexible Near-end/Far-end Platform

4/8 Analog Channels with Scalable Synchronization

Available in 4-channel and 8-channel models, with external trigger input and optional Gen output on 4-channel models enabling synchronized testing across complex multi-signal systems.

High-Density Synchronous Acquisition System

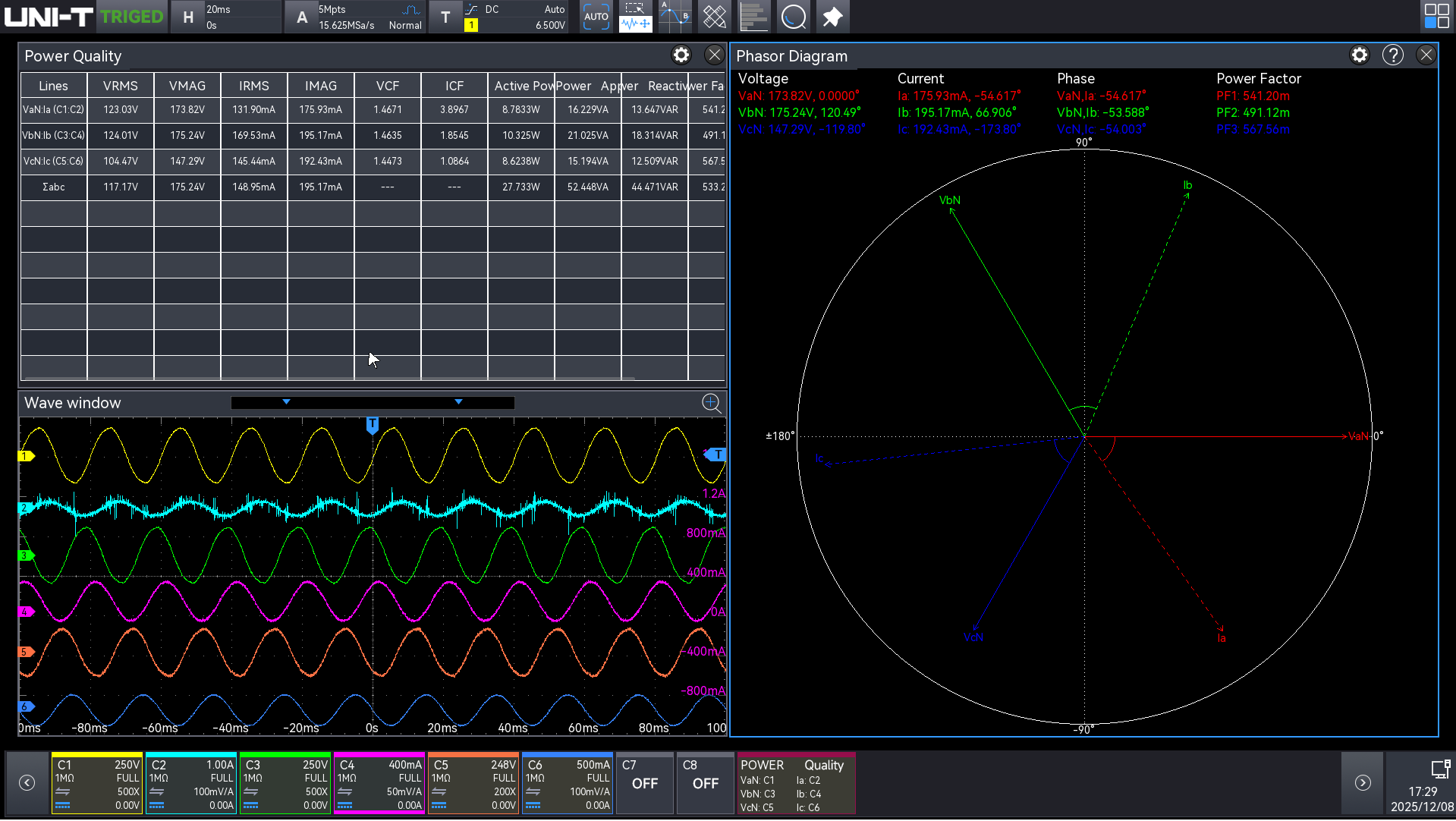

Integrated Power Analysis and Three-Phase Power Analysis

Supports synchronized voltage and current measurements for power integrity, motor drive testing, and power supply validation.

Three-Phase Power Analysis Solution

From multi-channel validation platforms to automated test racks and advanced signal analysis, the UNI-T UPO6000LP Series is engineered to support high-density testing with a compact 1U rack-mount form factor, flexible synchronization, and advanced analysis capabilities.

Explore how the UPO6000LP Series optimize your automated and high-density test systems: Contact Us to learn more about the UPO6000LP Series, Download Datasheet for technical details, or Get a Quote for customized pricing.
