The signal generator output port is equipped with overvoltage protection. When the input voltage exceeds | ± 9V |, the overvoltage protection will be triggered.

The UPO6000LP series high-resolution oscilloscopes are high-density integrated oscilloscopes designed for engineering applications.

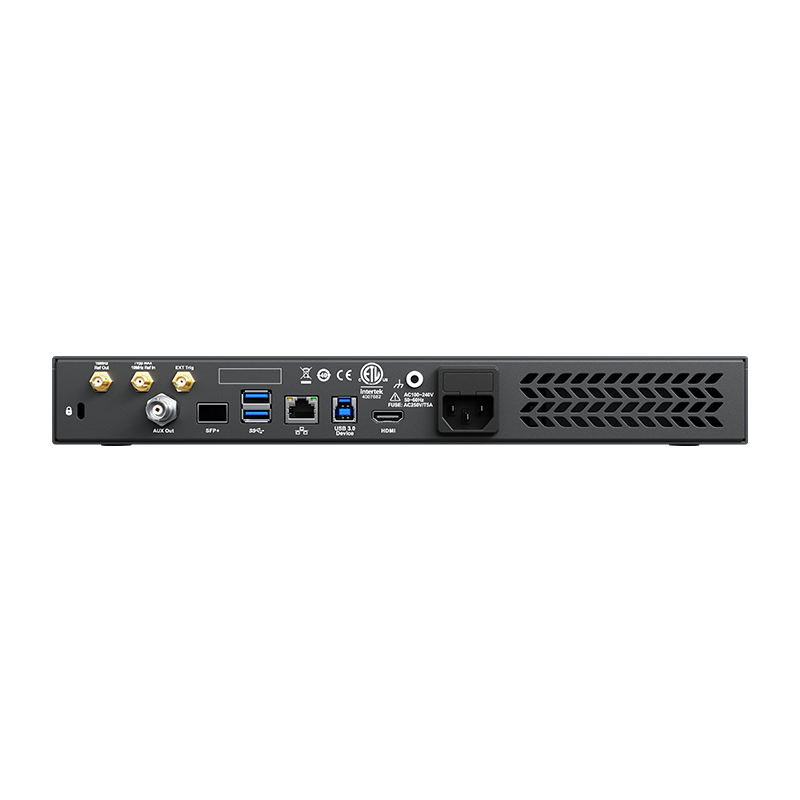

Featuring a 1U, displayless form factor, the series requires an external HDMI monitor and USB mouse for operation. This design makes it particularly well-suited for rack-mounted system integration and automated test environments.
The product offers the following key features:
 • 4/8 analog channel architecture, supporting high-density multi-channel testing
 • 12-bit high-resolution sampling for enhanced waveform detail
 • Up to 500 Mpts deep memory, enabling long-duration signal capture and analysis
 • Advanced triggering capabilities, allowing reliable capture of complex signals
 • Comprehensive measurement and analysis functions to meet demanding engineering requirements

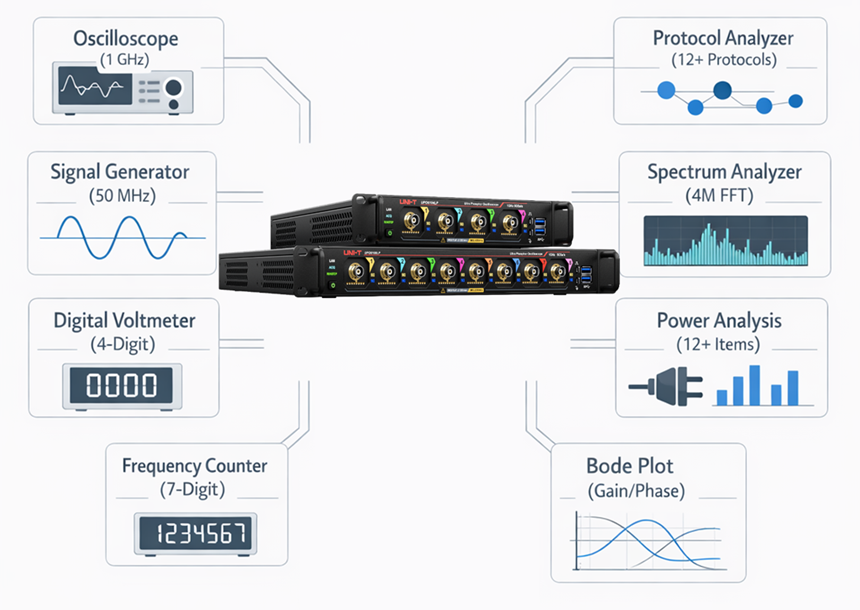

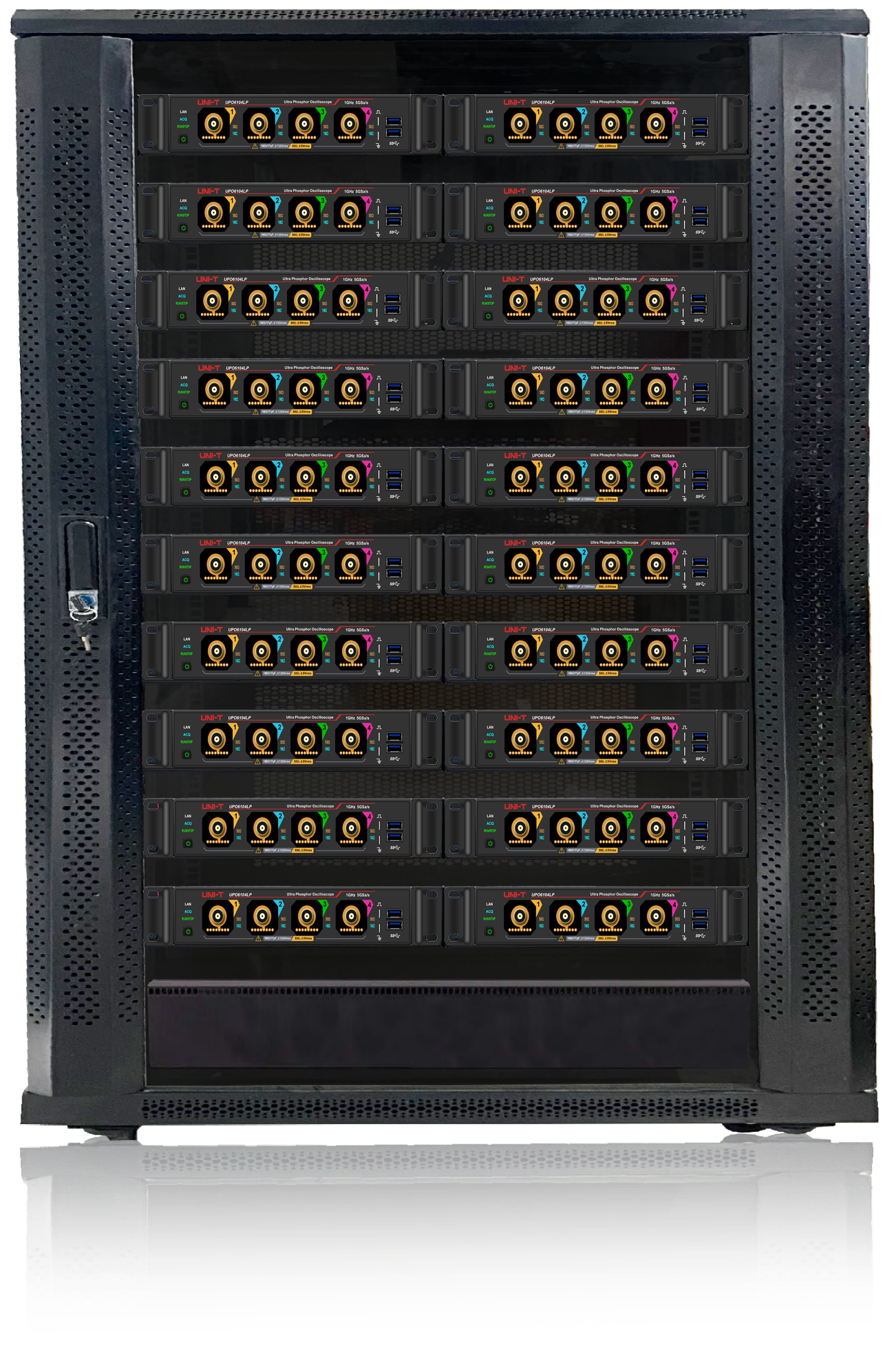

The UPO6000LP Series is especially suitable for applications such as automated test equipment (ATE), multi-channel synchronous acquisition, and high-density rack integration.

When performing the Auto Setup function on the UPO6000LP series oscilloscopes, the signal under test must meet the following basic conditions:
 • Signal frequency is not less than 10 Hz
 • Signal amplitude is not less than 12 mVpp
 • Duty cycle of a square wave signal is greater than 5%
If these conditions are not satisfied, the Auto Setup function may fail to correctly identify the signal or may not complete a stable configuration.

The UPO6000LP series high-resolution oscilloscopes include six models, categorized into 4-channel and 8-channel versions based on the number of input channels:
▶ 4-channel models
 • UPO6104LP (1 GHz)
 • UPO6054LP (500 MHz)
 • UPO6034LP (350 MHz)

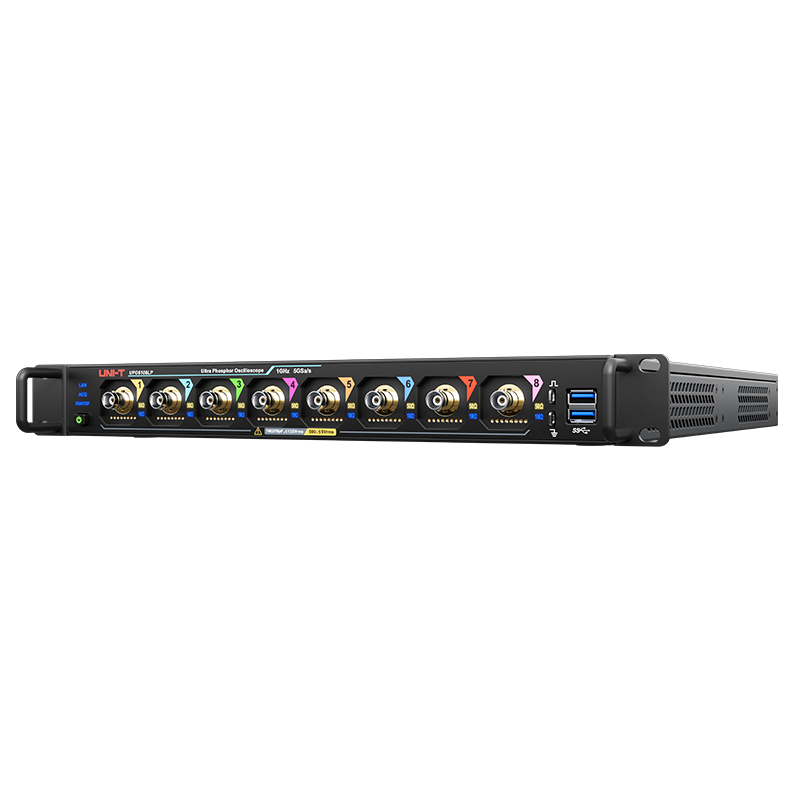

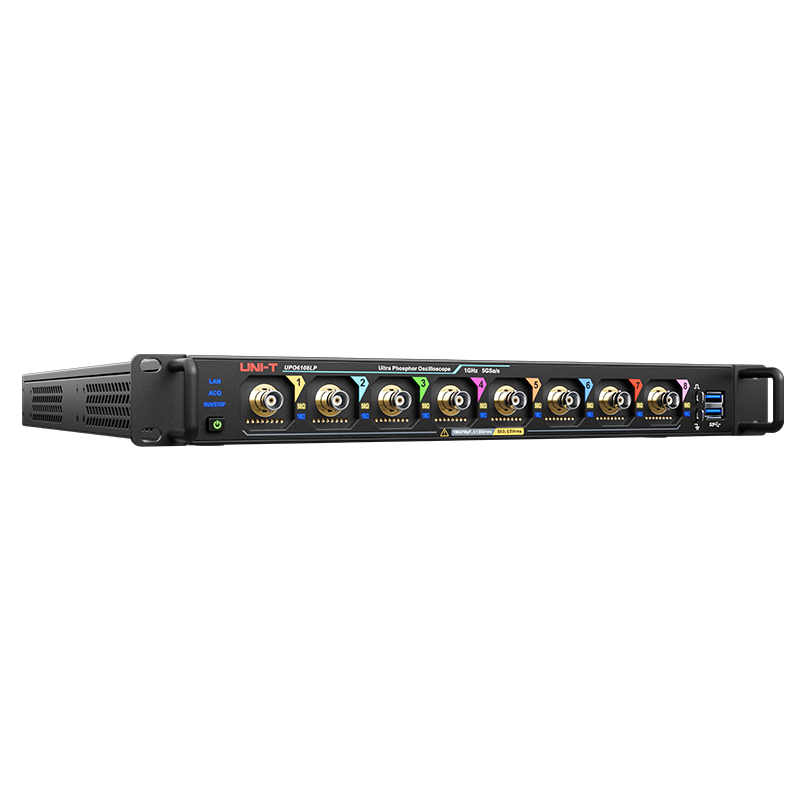

▶ 8-channel models
 • UPO6108LP (1 GHz)
 • UPO6058LP (500 MHz)
 • UPO6038LP (350 MHz)
The key differences lie in the number of channels, signal source support, and functional positioning:
 • The 4-channel models support a built-in signal generator (Gen), making them suitable for integrated excitation and measurement applications.

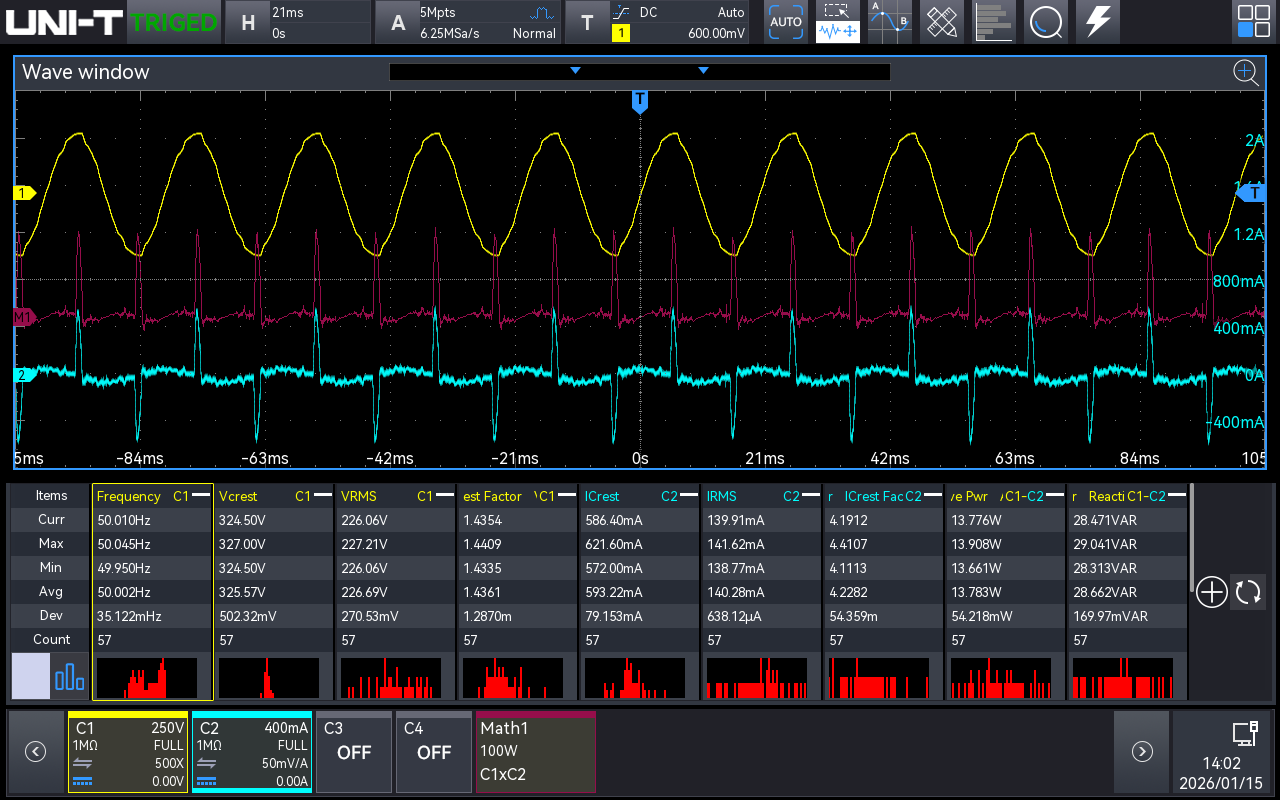

 • The 8-channel models support three-phase power analysis, making them suitable for high-density multi-channel acquisition and power system testing.

The UPO6000LP Series oscilloscopes support a wide range of serial protocol decoding and analysis functions, covering both standard and optional protocols.
Standard configuration includes: RS232/422/485/UART, I2C, SPI。
