Real-Time Signal Analysis Across a Wide Frequency Range—Up to 40 GHz

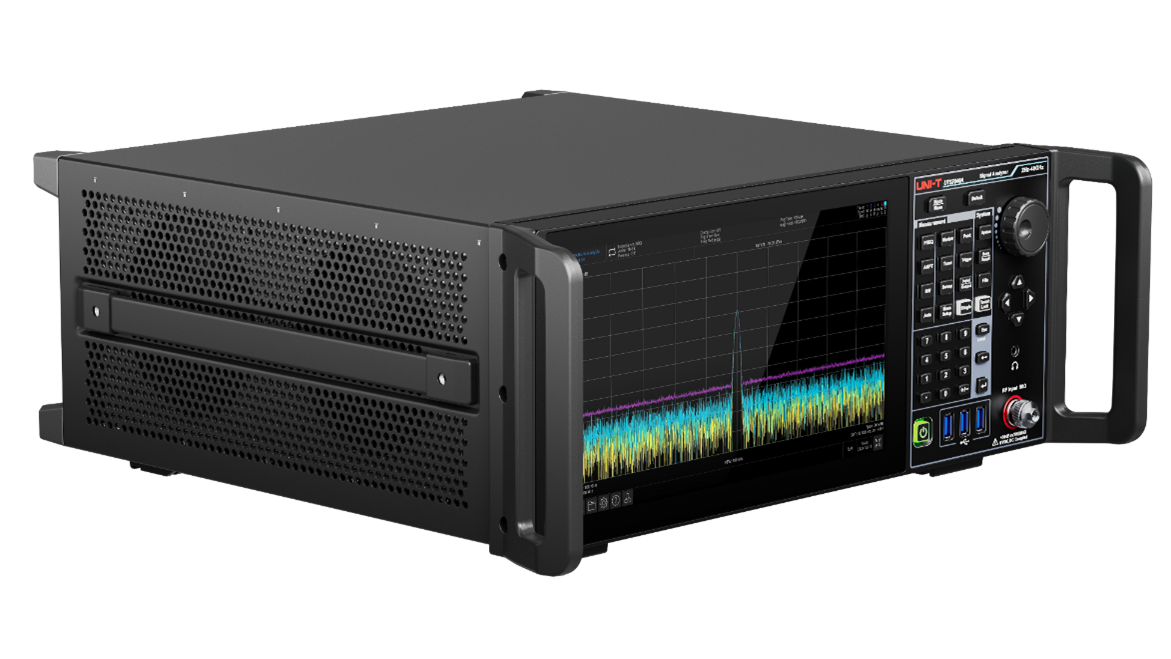

UTS7000A Series Signal Analyzer, with a wide frequency range of up to 40 GHz, captures signals accurately and analyzes them in real time—even in complex scenarios—helping you boost your testing efficiency in every way.
It supports a maximum measurable frequency of 40 GHz and 100,001 sweep points for comprehensive signal acquisition. Featuring a DANL as low as -167 dBm, excellent phase noise < -110 dBc/Hz, and precise RBW down to 1 Hz, it renders weak signals visible and complex spectra crystal clear.
See the overview of UTS7000A
Breaking through the noise floor interference of the instrument to capture weak signals.

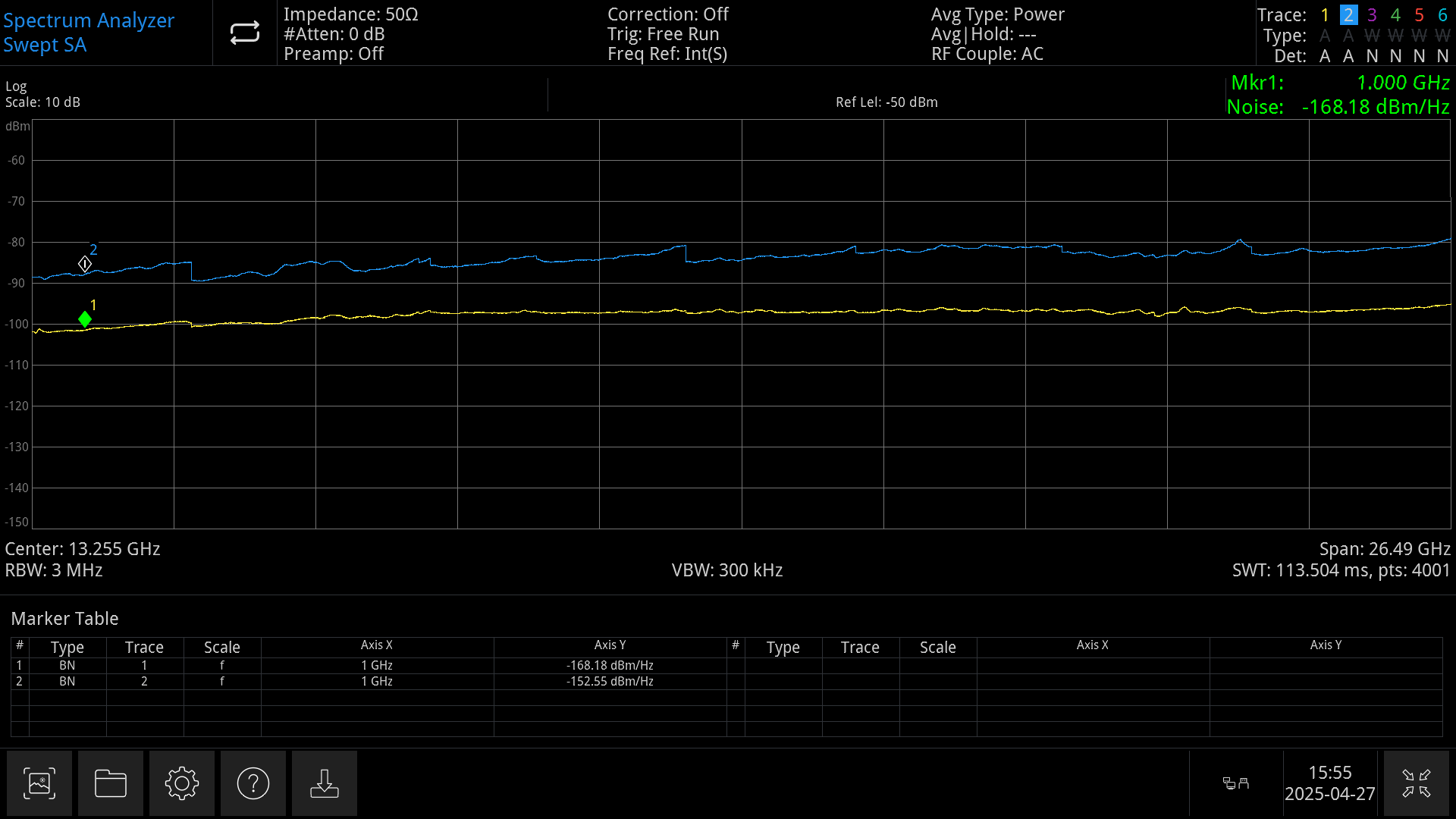

DANL — up to -167 dBm

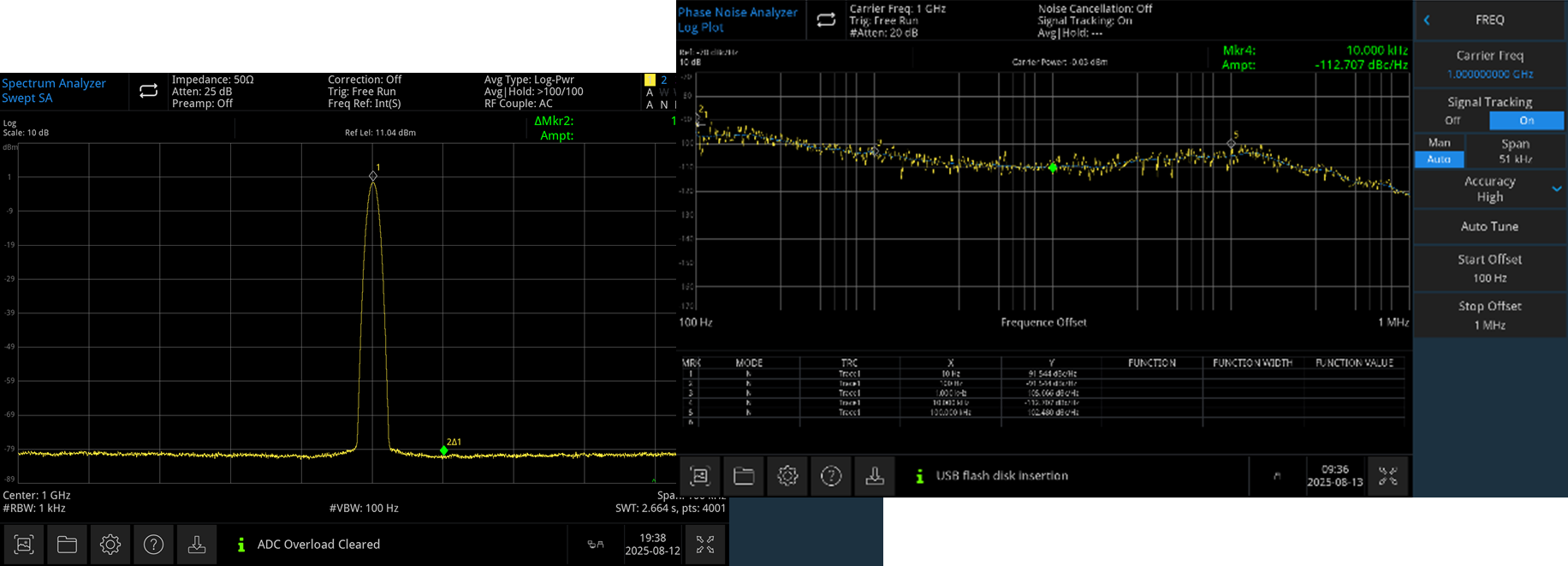

At a 1 GHz carrier frequency with a 10 kHz offset, phase noise is -110 dBc/Hz.

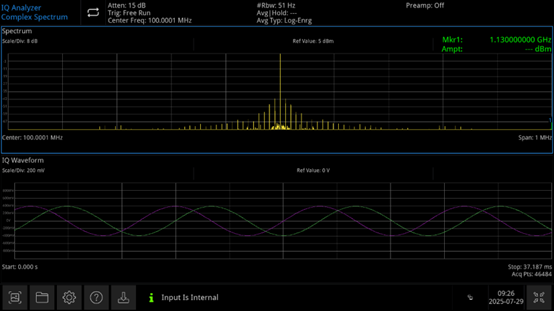

Supports five selectable analysis bandwidths: Efficiently acquires and analyzes I/Q data for accurate signal characterization.

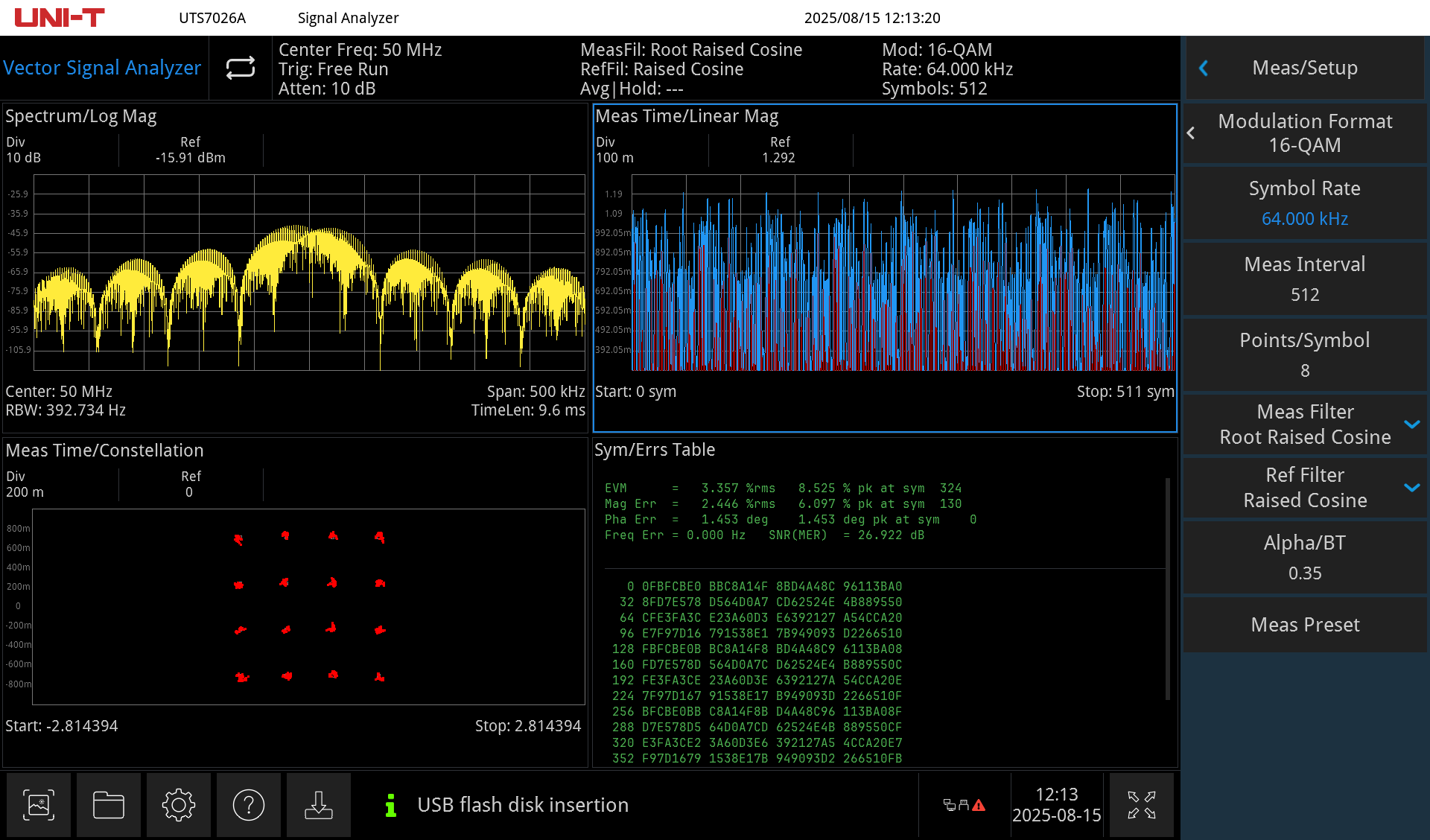

Comprehensive modulation and demodulation analysis capabilities, supporting demodulation and analysis of analog modulations (AM, FM, PM) and digital modulations (FSK, PSK, ASK, MSK, QAM), with extraction of signal quality, EVM, and other key metrics.

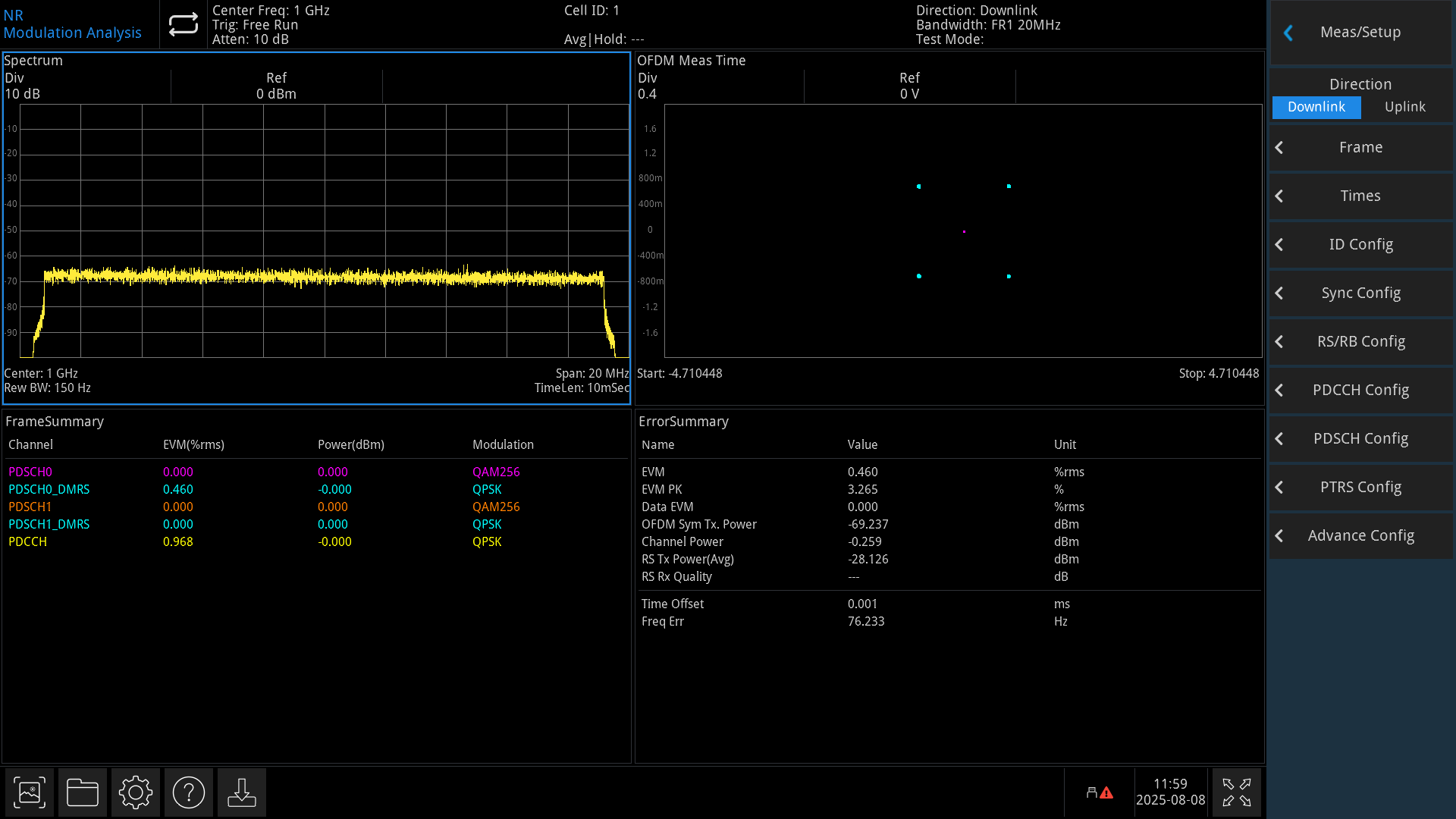

4G LTE and 5G NR Analysis — Higher Accuracy and Reliability

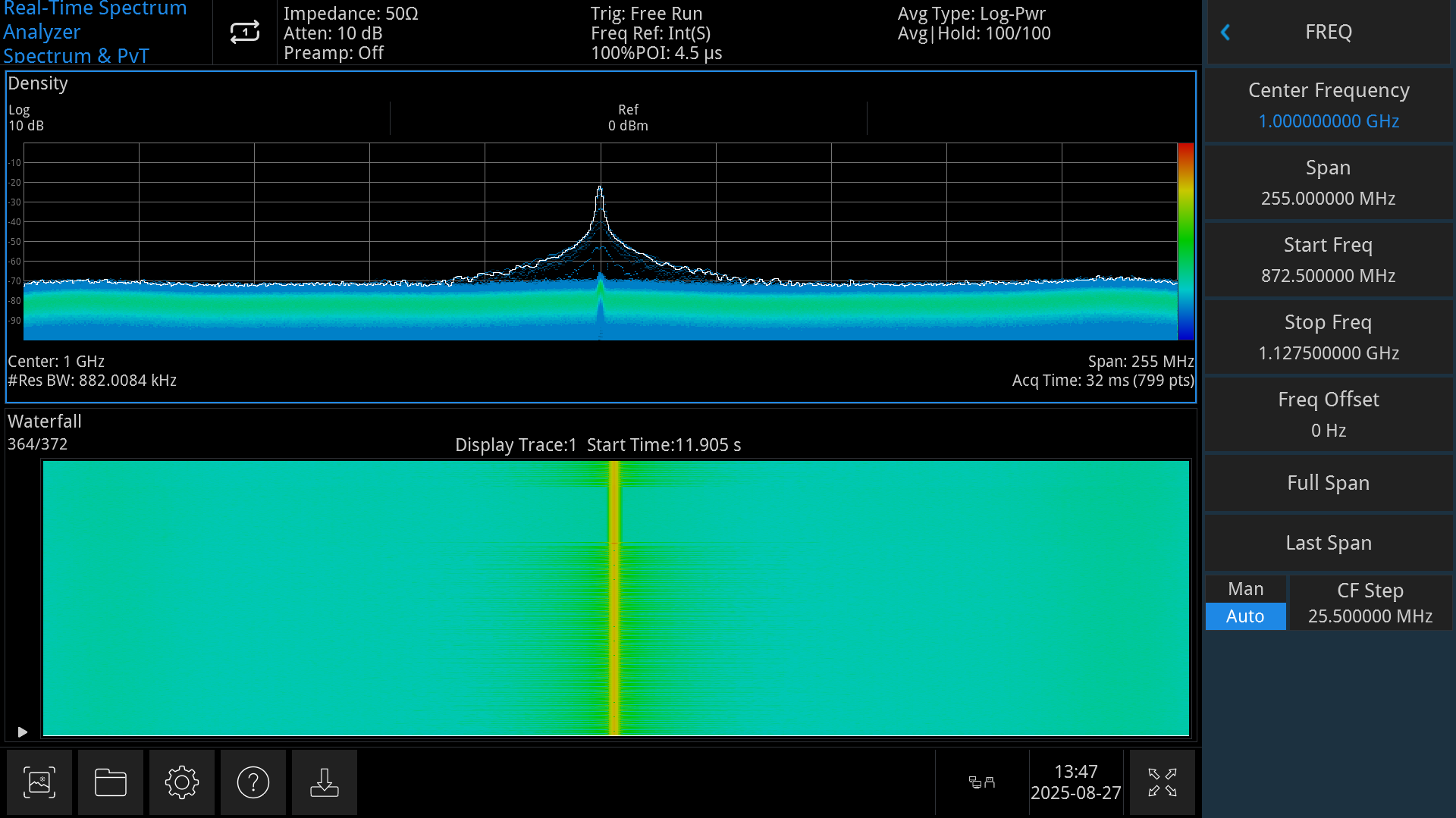

Good Real-Time Spectrum Analysis — 100% Frequency-Domain Signal Capture Achieved Within 4.5 μs.
