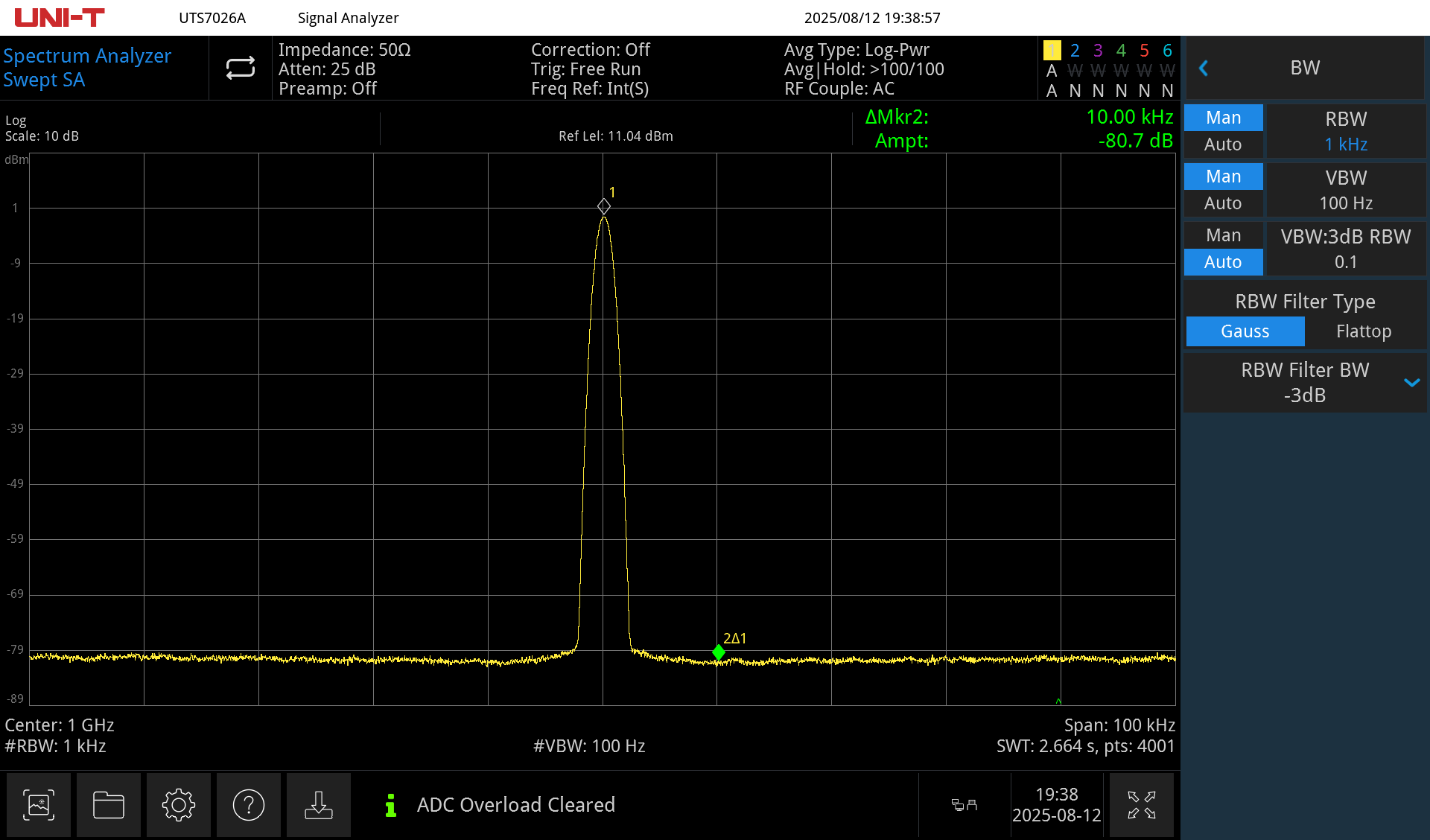

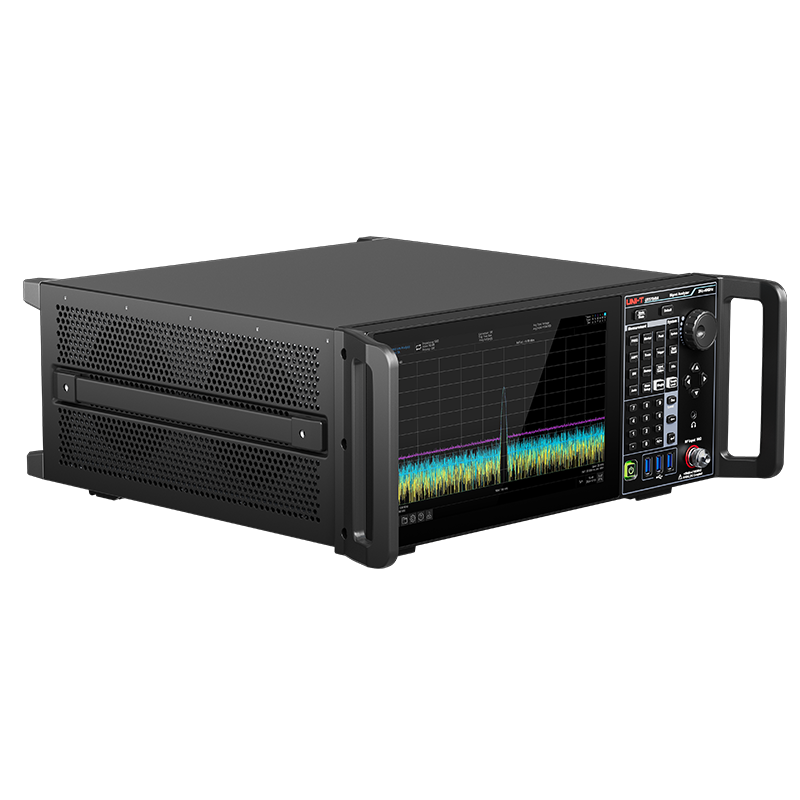

Engineered to meet demanding requirements in communication signal analysis, the UTS7000A achieves phase noise performance better than –110 dBc/Hz (typical) at a 10 kHz offset with a 1 GHz carrier, ensuring accurate and stable measurements.

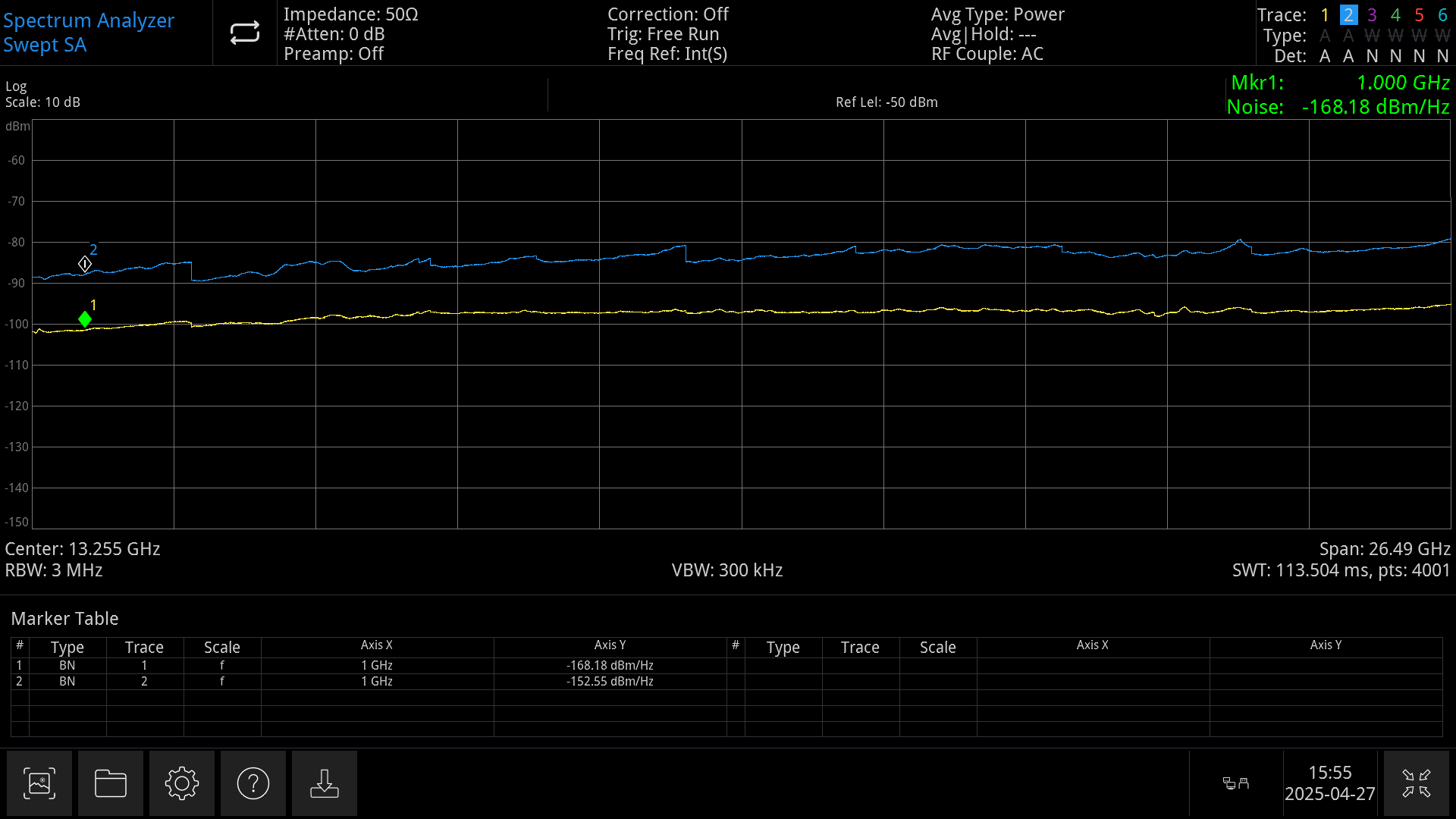

Detecting weak signals can be challenging due to interference from the instrument's inherent noise floor. The UTS7000A series features a low displayed average noise level (DANL) of –167 dBm (typical), delivering exceptional sensitivity for reliable weak signal detection.

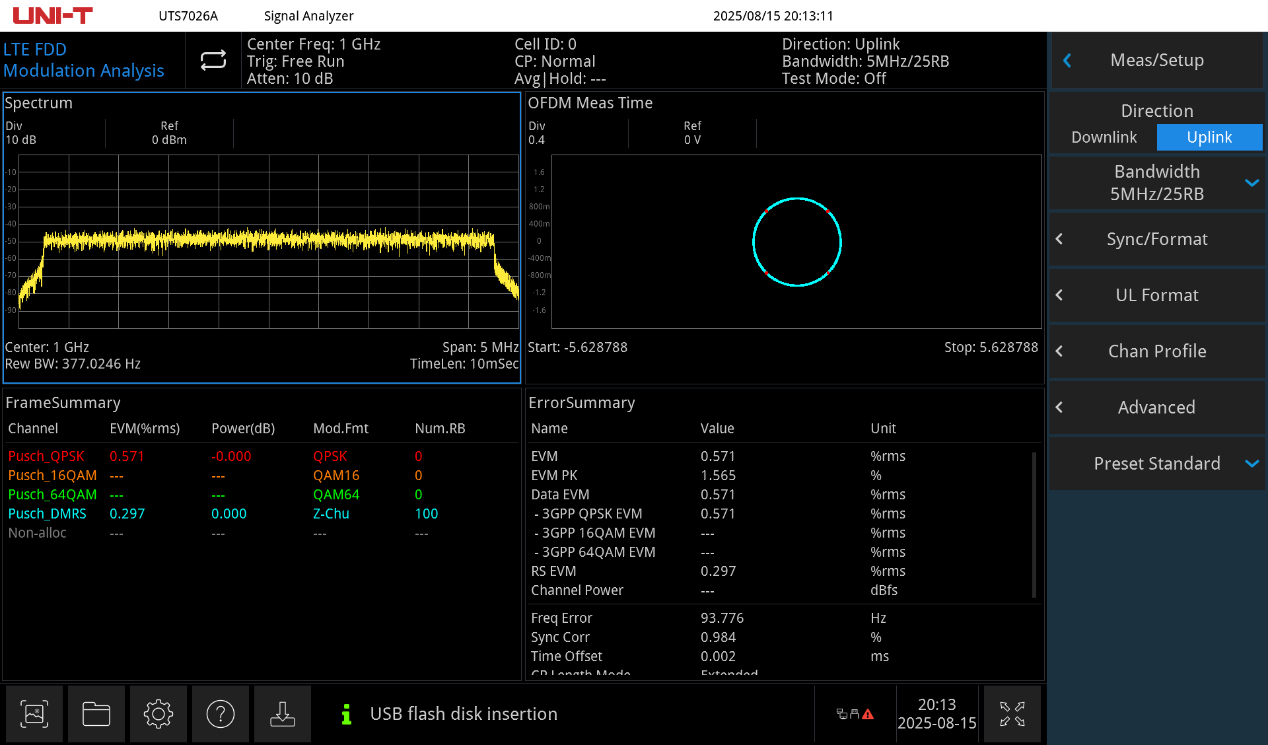

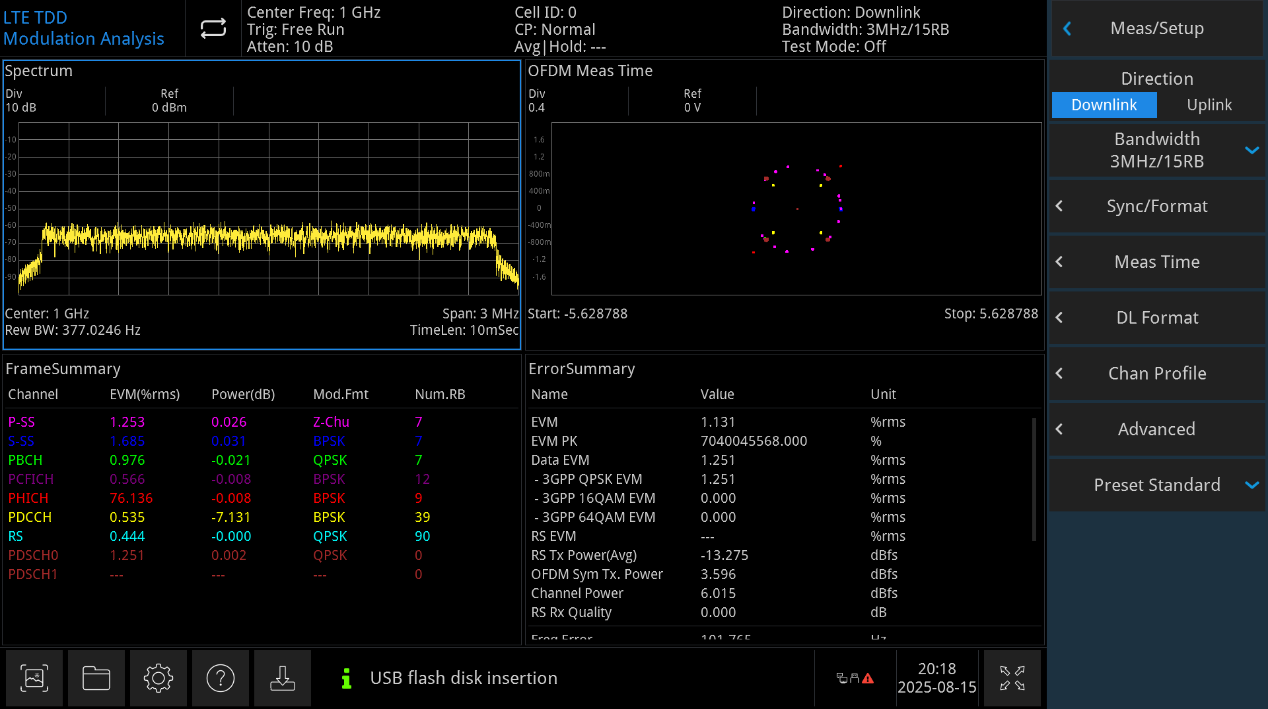

The LTE signal analysis function enables modulation analysis of both uplink and downlink signals.
It supports FDD and TDD duplexing modes and a variety of modulation formats, ranging from QPSK to 256QAM.

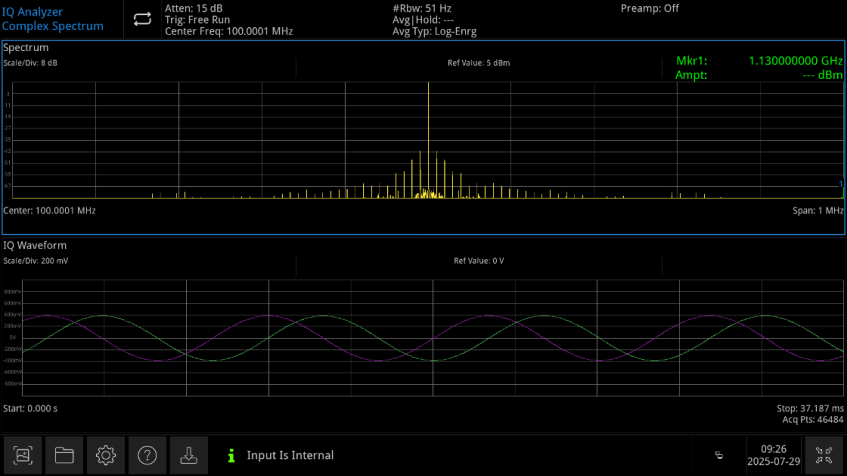

Efficiently acquires and analyzes I/Q data for accurate signal characterization.

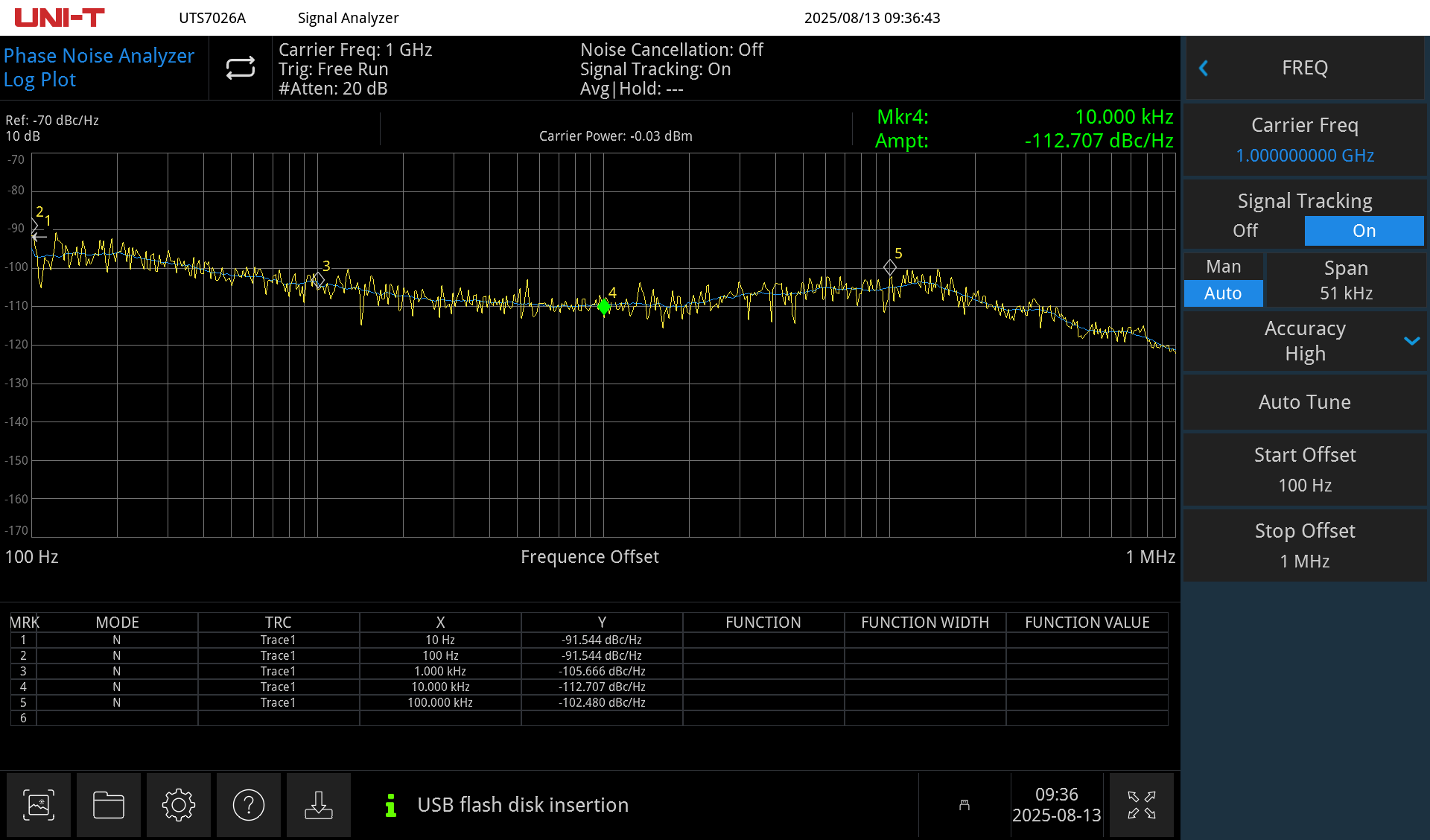

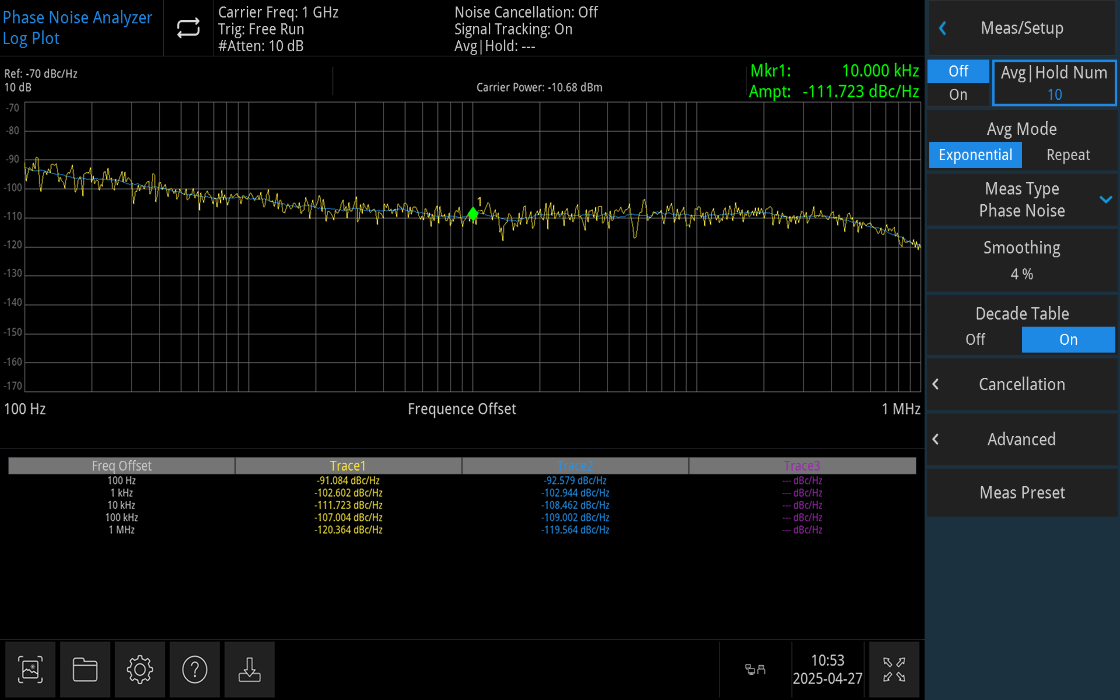

One-click phase noise analysis enables fast and reliable phase noise measurement.

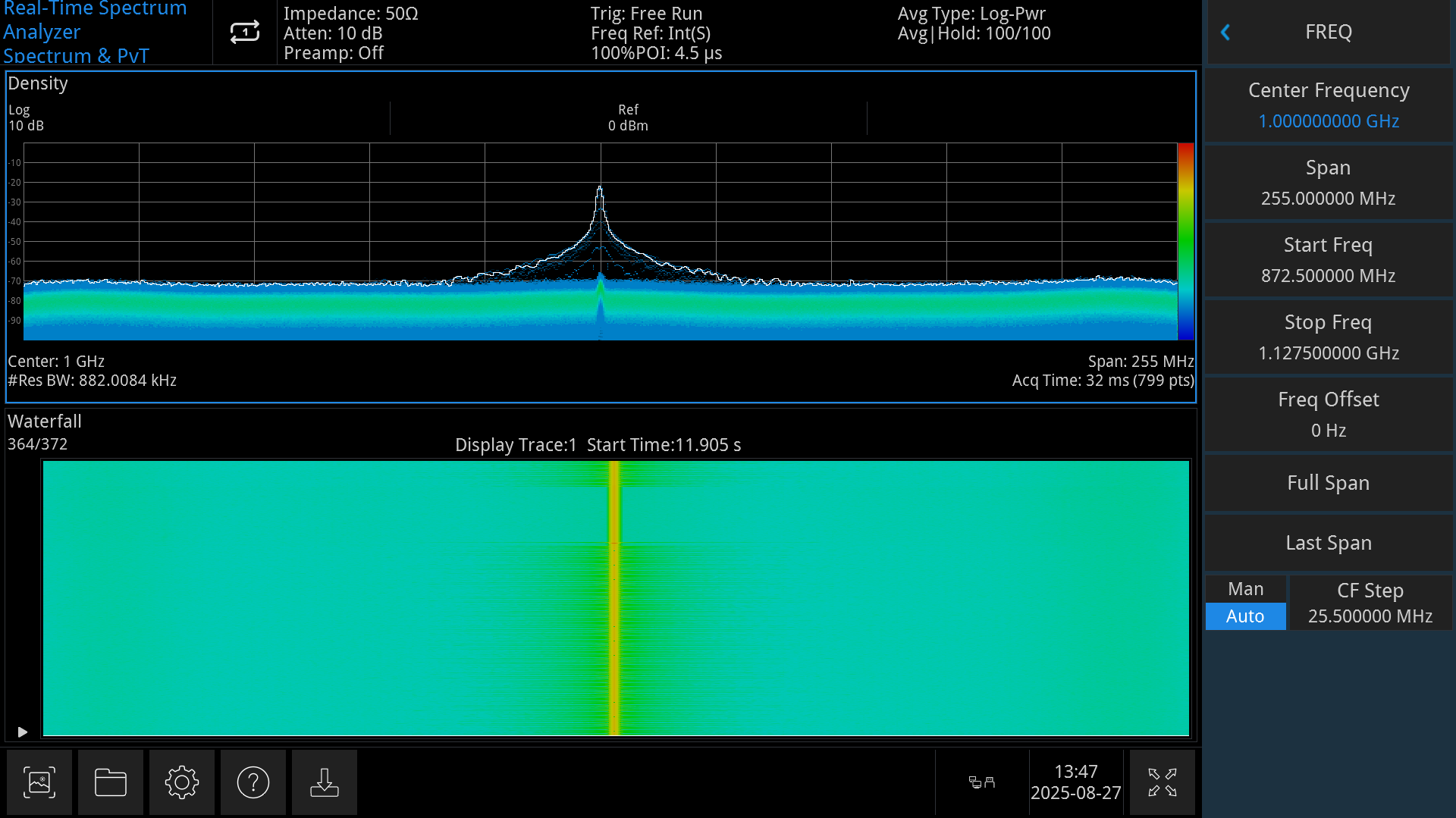

The real-time spectrum analysis function provides an ideal tool for testing time-varying signals such as burst, agile, and frequency-hopping signals. The real-time analysis bandwidth include 20MHz, 40 MHz, 85 MHz, 160 MHz, and 255 MHz. The instrument achieves 100% frequency-domain signal capture in under 4.5 μs.

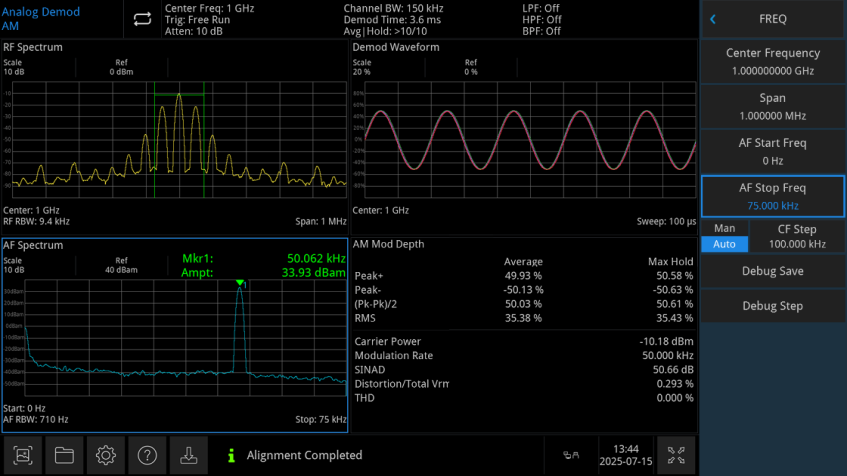

Analog modulation analysis: AM, FM, PM.

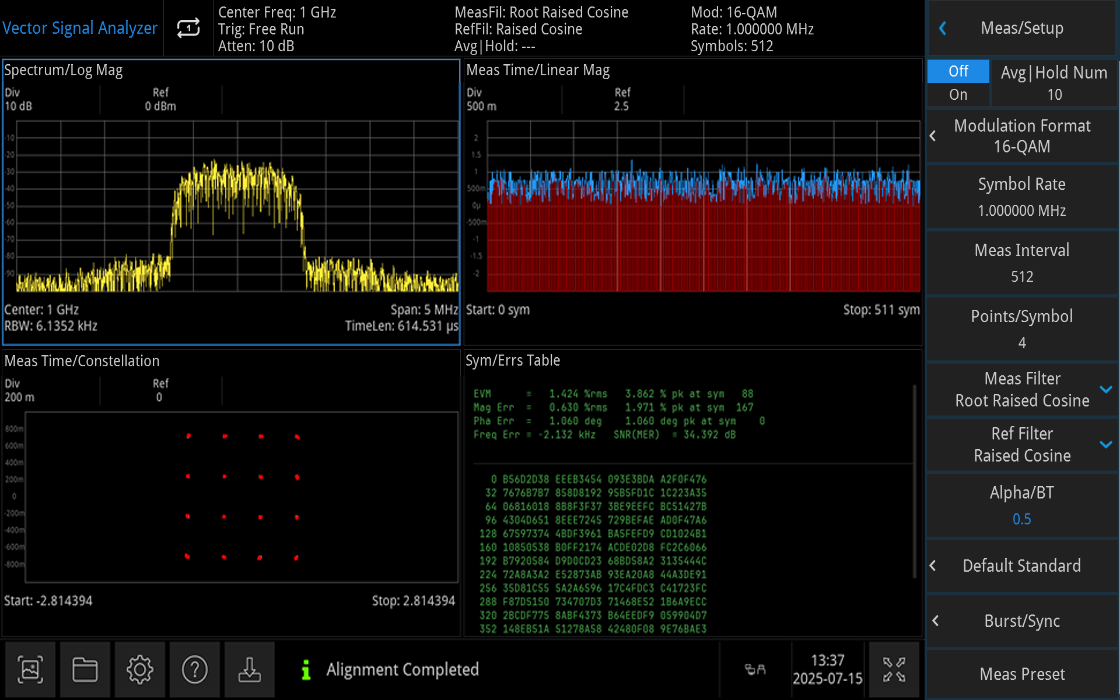

Digital modulation analysis: FSK, PSK, ASK, MSK, QAM, and other modulated signals.
Performing demodulation analysis enables the extraction of signal quality metrics and error vector magnitude (EVM).

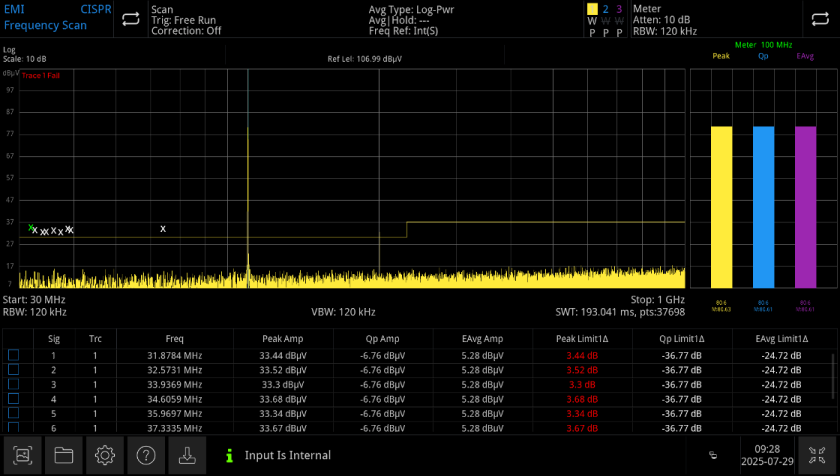

Early EMI pre-compliance testing during development mitigates launch risks by identifying conduction/radiation issues promptly, accelerating certification.
