UTS3000A Series
UTS3000A Series
The UTS3000A series are signal analyzers with a frequency range of 9 kHz to 8.4 GHz. It can be used as the main equipment required to build an automatic control system. At the same time, it can meet your different testing and application needs in the testing systems required for enterprise R&D/factory production/education and scientific research, etc.
9kHz~8.4GHz
FREQUENCY RANGE
1Hz~10MHz
RBW

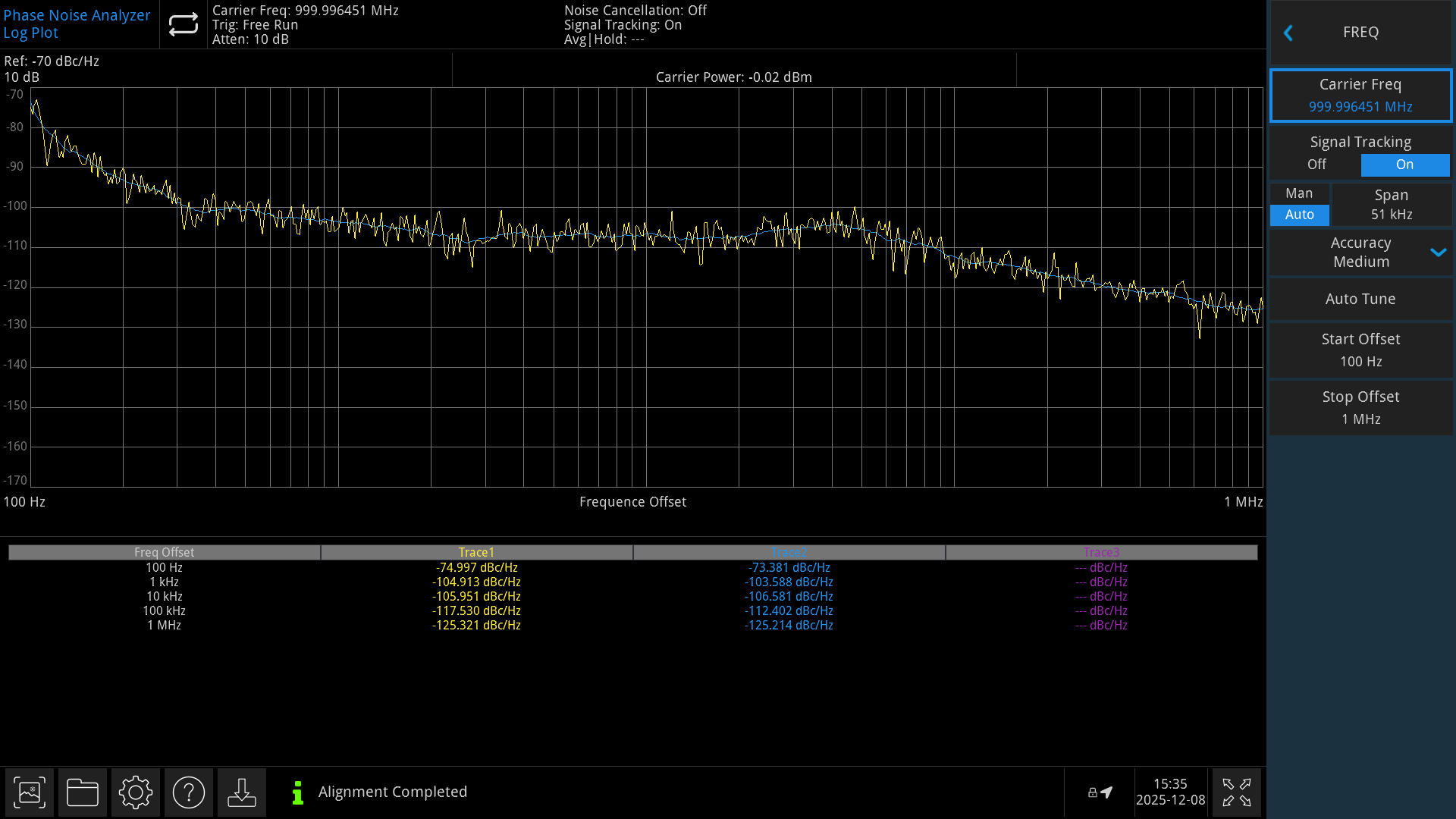

-100dBc/Hz @10kHz
PHASE NOISE
-165dBm
DANL
YES
TRACE SOURCE
10.1 inch TFT LCD(touch screen)
DISPLAY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS
Excellent selectivity
Selectivity factor up to 4.8:1. Better ability to distinguish adjacent signals
Excellent selectivity
VNA Vector Network Analysis
The VNA mode can accurately characterize the network properties of the DUT by measuring the S11 and S21 parameters of the components and circuit network.
VNA Vector Network Analysis
Real Time Spectrum Mode
Real-time bandwidth optional 40MHz, 100% POI is only 6.68μs, effectively capturing transient signals and measuring them accurately.
Real Time Spectrum Mode
FMT Mask
Trigger measurements of episodic or transient signals via frequency template triggering
FMT Mask
VSA Vector Signal Analysis
ASK/FSK/PSK/QAM/MSK/DPSK digital modulation signal analysis and EVM calculation
VSA Vector Signal Analysis
Analog Demodulation Analysis
AM, FM, PM demodulation analysis, rapid analysis of modulated signals
Analog Demodulation Analysis
EMI analysis
Optional EMI analysis kit for EMI pre-compliance tests
EMI analysis
One-key advanced measurement
ACP,
Channel Power,
CNR,
Harmonics,
Occupied,
Spectrum Monitor,
TOI,
T-power
One-key advanced measurement
One-key advanced measurement
One-key advanced measurement
MODEL
UTS3084A
FREQUENCY RANGE:9kHz~8.4GHz
RBW:1Hz~10MHz
PHASE NOISE:-100dBc/Hz @10kHz
DANL:-165dBm
TRACE SOURCE:Yes
DISPLAY:10.1 inch TFT LCD(touch screen)
UTS3060A
FREQUENCY RANGE:9kHz~6.0GHz
RBW:1Hz~10MHz
PHASE NOISE:-100dBc/Hz @10kHz
DANL:-165dBm
TRACE SOURCE:Yes
DISPLAY:10.1 inch TFT LCD(touch screen)
UTS3036A
FREQUENCY RANGE:9kHz~3.6GHz
RBW:1Hz~10MHz
PHASE NOISE:-100dBc/Hz @10kHz
DANL:-165dBm
TRACE SOURCE:Yes
DISPLAY:10.1 inch TFT LCD(touch screen)
Data Sheet
download UTS3000A Series Signal Analyzers - Data Sheet
Version:V1.0
Release Date:2024/9/14
QuickStart Guide
download UTS3000A Series Signal Analyzers - QuickStart Guide
Version:V1.0
Release Date:2024/9/18
User Manual
download UTS3000A Series Signal Analyzers - User Manual
Version:V1.0
Release Date:2024/9/18
Programming Manual
download Spectrum Analyzers Signal Analyzers - Programming Guide
Version:V1.0
Release Date:2024/8/22
Service Manual
Performance Verification Guide
OPTIONS
UTS3000A-EMI
download UTS3000A-EMI
Description:EMI Measurement option for UTS3000Aseries
UTS3000A-AMK
UTS3000A-AMK
Description:Advanced measurement kit for UTS3000A series
UTS3000A-AMA
download UTS3000A-AMA
Description:Analog demodulation measurement option for UTS3000A series
UTS3000A-FDD-LTE
Description:FDD-LTE demodulation analysis option for UTS3000A series
UTS3000A-I/Q
UTS3000A-I/Q
Description:I/Q Analyzer option for UTS3000A series
UTS3000A-TDD-LTE
Description:TDD-LTE demodulation analysis option for UTS3000A series
UTS3000A-NR40
Description:NR40 demodulation analysis option for UTS3000A series
UTS3000A-B40
download UTS3000A-B40
Description:RTSA 40MHz analysis option for UTS3000A series
UTS3000A-VSA
download UTS3000A-VSA
Description:Digital demodulation analysis option for UTS3000A series
ACCESSORIES
UT-CK01
download UT-CK01
Description:Spectrum Utility Kit: include NSMAJ-NJ-0.7M DC-6G Cable x1, NJ-NJ-0.7M DC-6G Cable x1, SMA-N-KJ-T DC-6GHz Adapter x2,N-BNC-JK DC-4GHz Adapter x2, 2400MHz-2500MHz Antenna x2, 824-960MHz/1710-1990MHz x2
UTS-EMI01
download UTS-EMI01
Description:Frequency range: 30MHz ~ 3GHz; include 3 Pcs magnetic field near-field probes and 1 Pcs electric field near field probe; 1 Pcs N-SMA cable, 1 Pcs N-BNC
UT-W02-6GHz
UT-W02-6GHz
Description:N-SMA-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz
UT-W01-6GHz
UT-W01-6GHz
Description:N-N-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz
UT-C02-4GHz
UT-C02-4GHz
Description:N-BNC-JK adaptor,DC-4GHz VSWR≤1.15:1@4GHz IL≤0.2dB@4GHz
UT-C01-6GHz
UT-C01-6GHz
Description:N-SMA-JK adaptor,DC-6GHz VSWR≤1.15:1@6GHz IL≤0.2dB@6GHz
UTS-T01
UTS-T01
Description:Receiving antenna,working frequency 2400MHz-2500MHz,Gain<2dBi
UTS-T02
UTS-T02
Description:Receiving antenna,working frequency 824MHz-960MHz,Gain<2dBi
UT-3009F
UT-3009F
Description:Female VNA Calibration Kit(9GHz)
UT-3009M
UT-3009M
Description:Male VNA Calibration Kit(9GHz)
UT-3009F/M
UT-3009F/M
Description:Female-Male VNA Calibration Kit(9GHz)
UT-VNA18-3.5M-NM
Description:VNA Test Cable KIt(18GHz)
