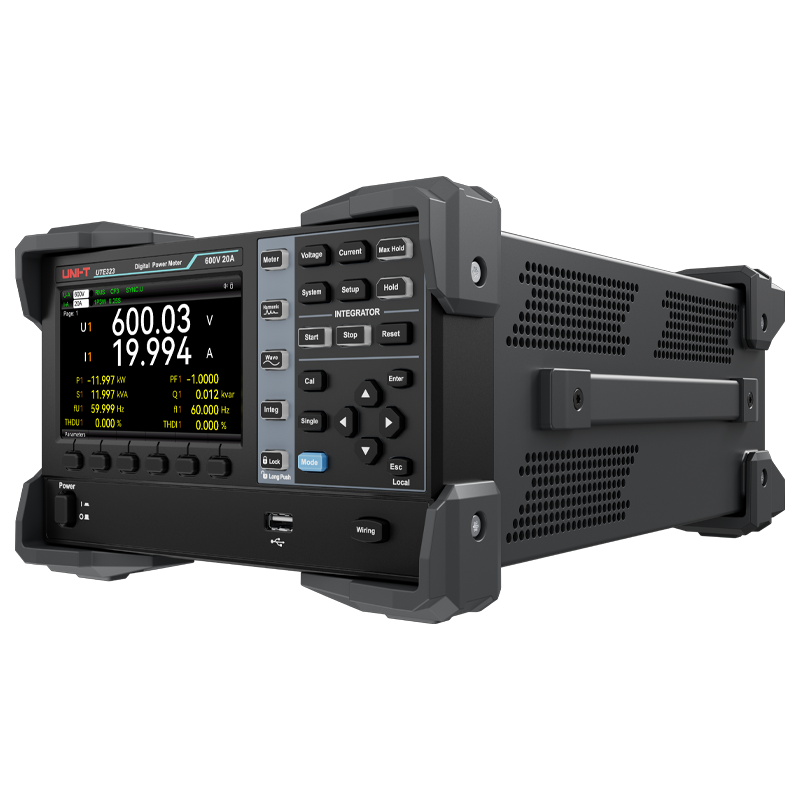

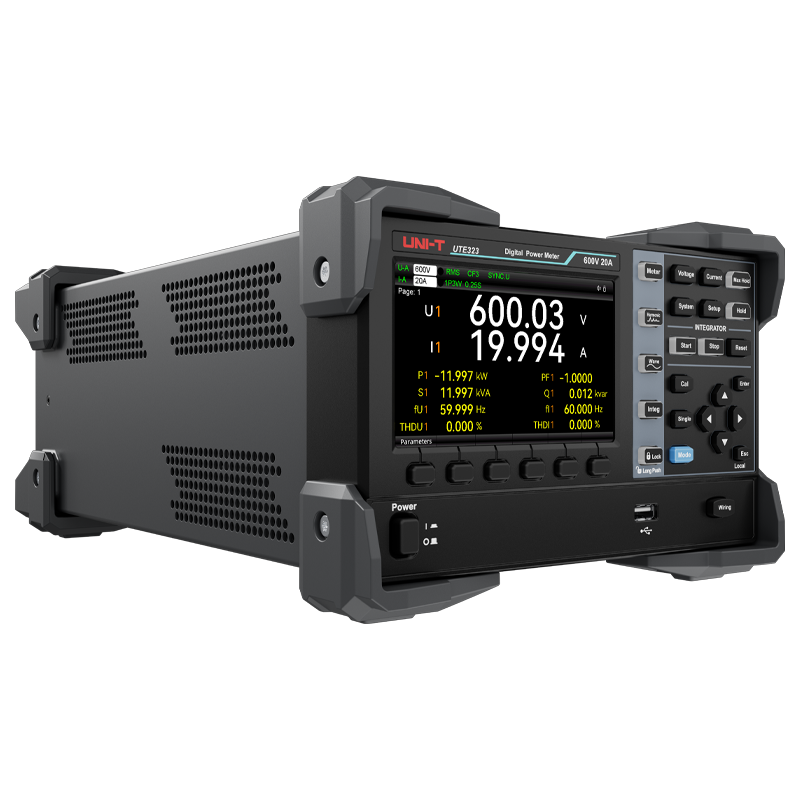

UTE323 Series
The UTE323 series is a high-precision, high-performance digital power meter featuring a 5-inch full-color display, extensive interface options, and waveform display capabilities for enhanced user experience. Its high accuracy and resolution deliver precise measurement results, while the 50A/1000V current and voltage range, along with a 300kHz measurement bandwidth, make it suitable for a wide range of applications in production, testing, and research and development.
75mV~600V
VOLTAGE RANGE
2.5mA~20A
CURRENT RANGE
DC, 0.1Hz~300kHz
FREQUENCY RANGE
±(0.1% rdg.+ 0.05% F.S.)
ACCURACY
DC, RMS, VMean
MEASUREMENT MODE
LAN, USB, GPIB/RS-232
CONNECTIVITY
½ 2U
SIZE
5'' TFT LCD
DISPLAY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

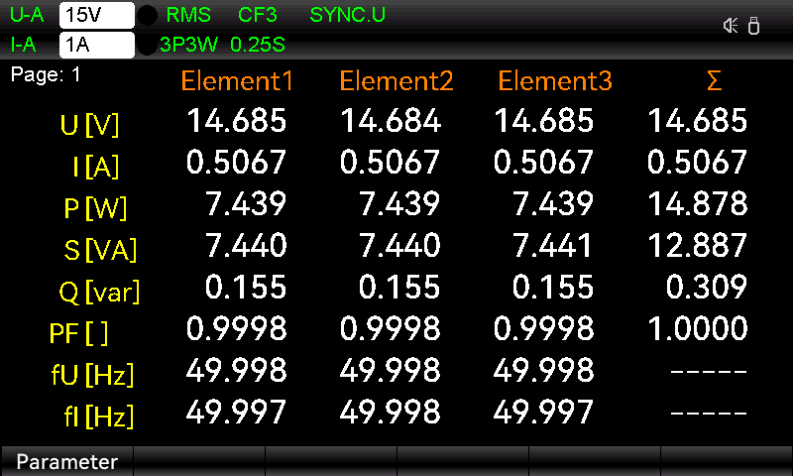

5-inch LCD
Equipped with an 800×480 display, this 5-inch TFT LCD (3-channel model) presents complex data through multiple on-screen parameters via its sharp, user-friendly interface—optimizing visibility and operational efficiency.
5-inch LCD

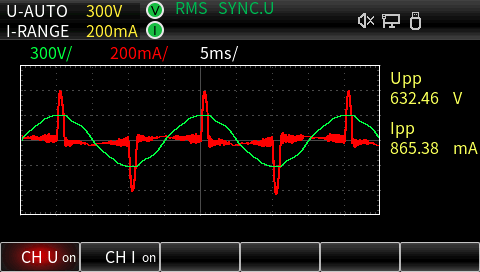

High sample rate
With a sample rate of 1MSa/s (1-channel model) and 300 kSa/s (3-channel model), the system acquires denser data points to faithfully reproduce fine signal nuances and ensure measurement fidelity during rapid transient events.
High sample rate
High sample rate

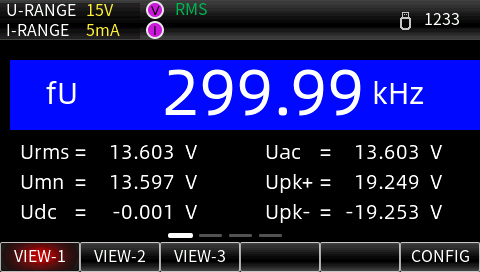

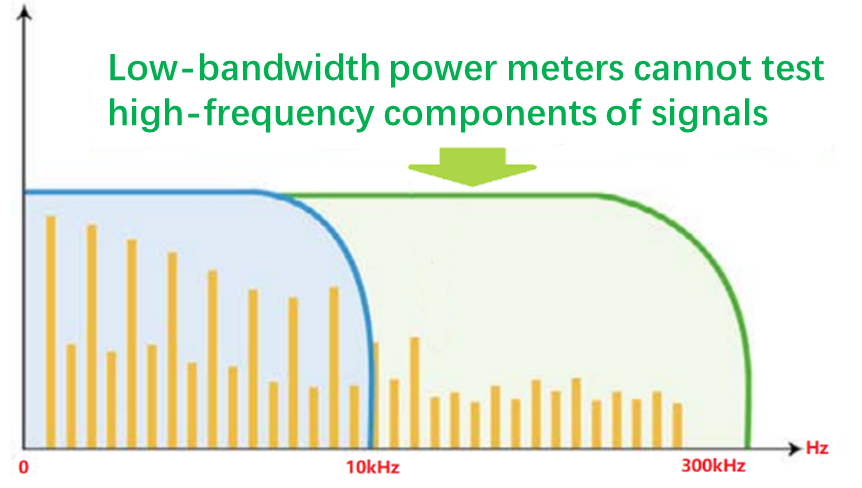

300kHz Analog Bandwidth
With an impressive 300 kHz analog bandwidth, the UTE300 series reliably acquires fast transient events and harmonics.
300kHz Analog Bandwidth
300kHz Analog Bandwidth

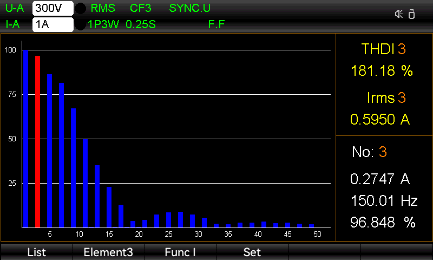

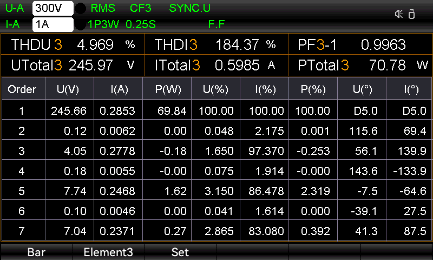

Harmonic analysis
Compliant with IEC61000-4-7 for harmonic measurement. Analyzes voltage/current/power/phase angle parameters and displays harmonic components up to the 50th order.
Harmonic analysis
Harmonic analysis

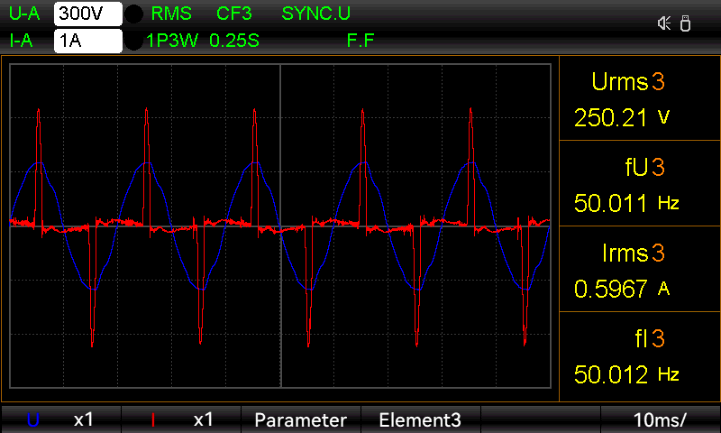

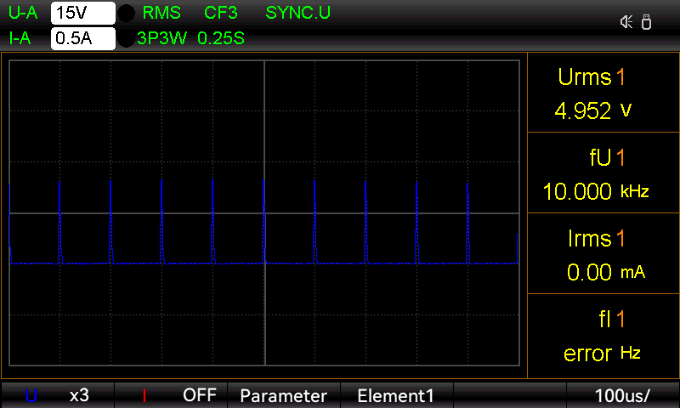

Display wave function
The power meter features comprehensive waveform visualization capabilities, simultaneously rendering voltage and current waveforms in real time. Within this display mode, key parameters are overlaid directly onto the graph for immediate reference.
Display wave function
Display wave function

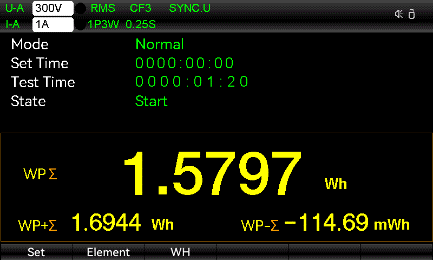

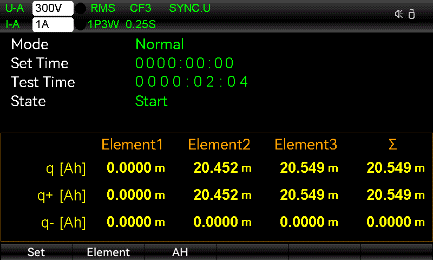

Integral function
The power meter supports integral function for parameters including WP, WP+, WP-, q, q+, q-. Integration applies to all measurement units. Its dedicated interface offers five distinct display pages: individual channels (CH1–CH3), combined totals, and a consolidated view showing all integrated parameters simultaneously.
Integral function
Integral function

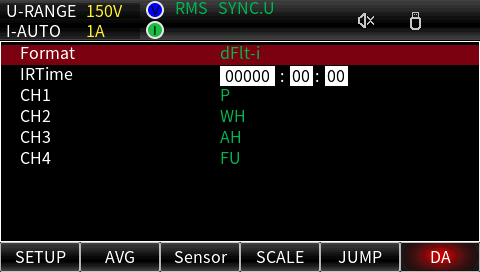

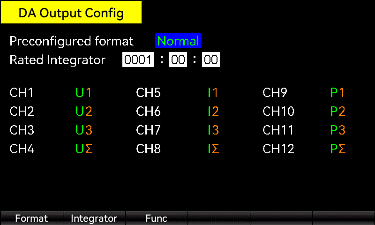

DA output
Configured with 12 D/A output channels, it can proportionally scale and output parameters such as voltage, current, and power from each unit.
DA output
DA output
MODEL
UTE323G
VOLTAGE RANGE：75mV~600V
CURRENT RANGE：2.5mA~20A
FREQUENCY RANGE：DC, 0.1Hz~300kHz
ACCURACY：±(0.1% rdg.+ 0.05% F.S.)
MEASUREMENT MODE：DC, RMS, VMean
CONNECTIVITY：GPIB, LAN, USB
SIZE：½ 2U
DISPLAY：5'' TFT LCD
Get a Quote
Add to Compare
UTE323
VOLTAGE RANGE：75mV~600V
CURRENT RANGE：2.5mA~20A
FREQUENCY RANGE：DC, 0.1Hz~300kHz
ACCURACY：±(0.1% rdg.+ 0.05% F.S.)
MEASUREMENT MODE：DC, RMS, VMean
CONNECTIVITY：RS-232, LAN, USB
SIZE：½ 2U
DISPLAY：5'' TFT LCD
Get a Quote
Add to Compare
