UT3515-Sx Series
UT3515-Sx Series

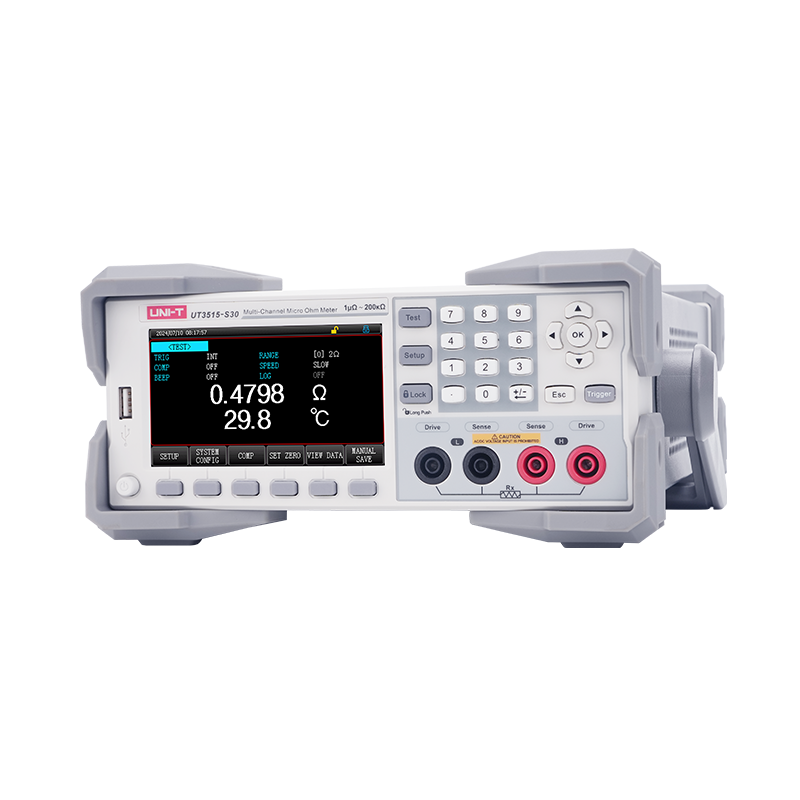

UT3515-Sx series benchtop Micro Ohm Meters includes the UT3515-S10, UT3515-S20, and UT3515-S30 models. They feature a 4.3-inch TFT LCD display and offer high precision, high resolution, and high-speed measurement capabilities, with a maximum accuracy of 0.05% and a minimum resolution of 1 μΩ. UT3515-Sx series comes standard with RS-232C, RS485, LAN port, and HANDLER communication interfaces, and supports SCPI and MODBUS RTU protocols. These models can communicate with computers, PLCs, or WINCE devices, enabling efficient remote control and data acquisition.
Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ
MEASURING RANGE
230ms/10CH
MAX. TEST RATE
RS232,RS485,HANDLER,LAN
CONNECTIVITY
½ 2U
SIZE
4.3'' TFT LCD
DISPLAY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

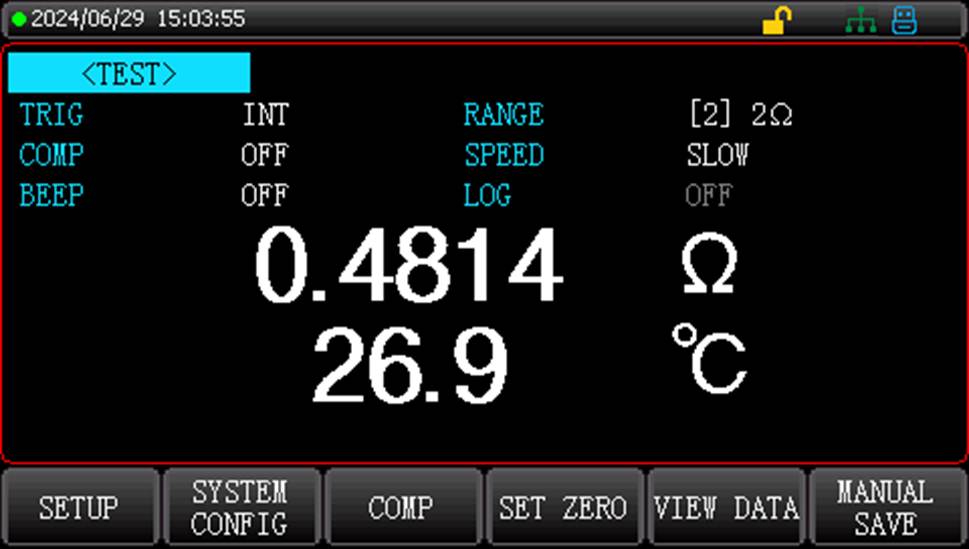

Flexible switching between single and scan modes

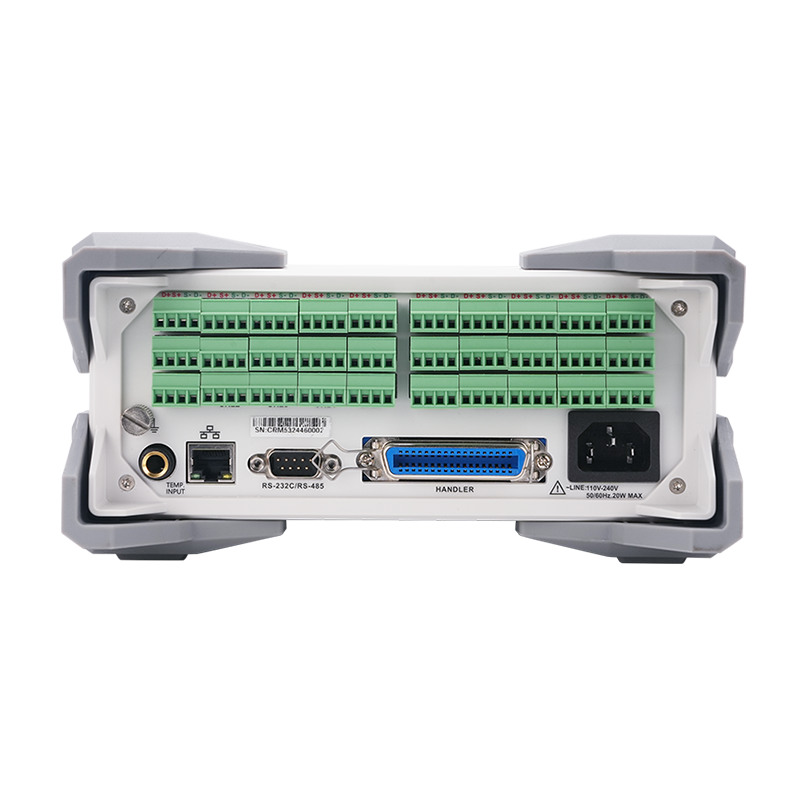

One-touch switching in the setup menu, flexible application of front-end single mode testing or rear-panel multi-channel scanning
Flexible switching between single and scan modes
Flexible switching between single and scan modes

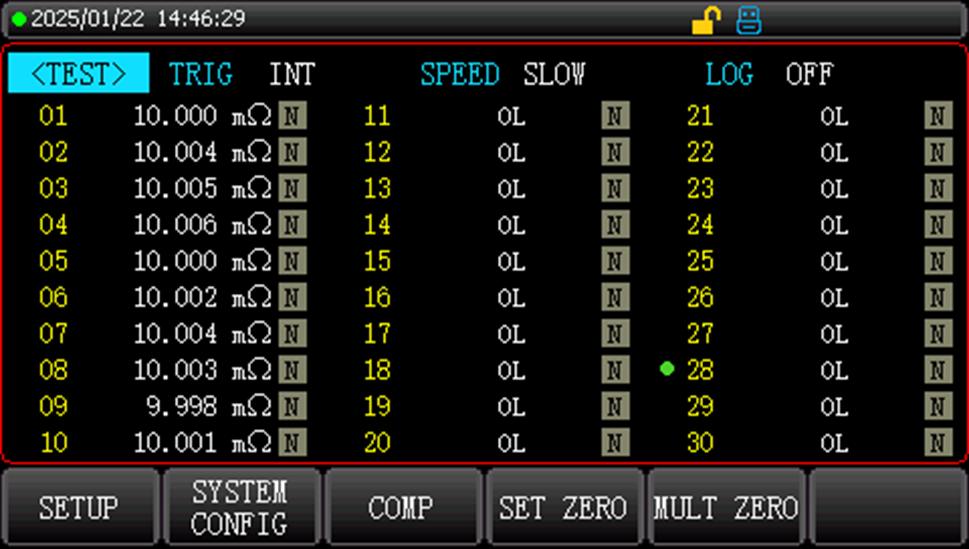

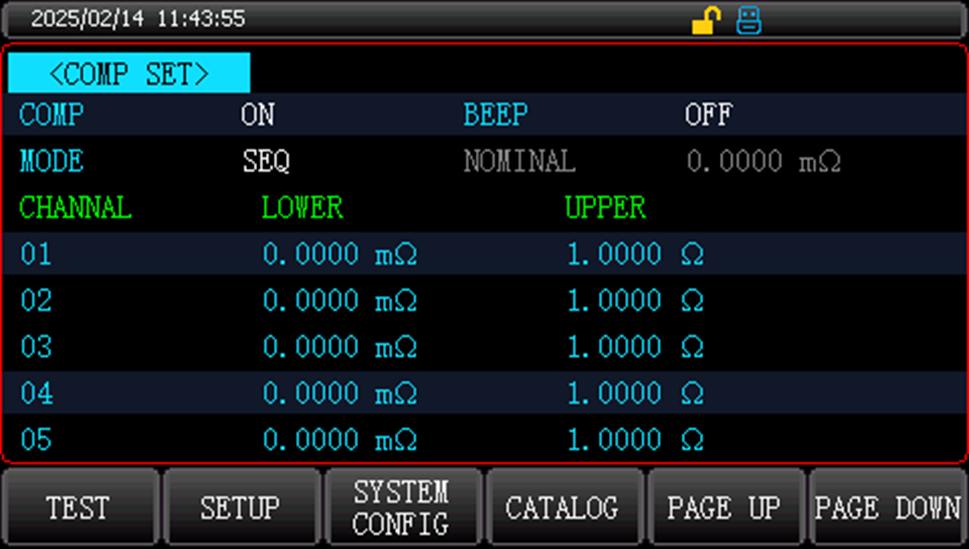

Multi-channel measurement
30-channel high-speed scanning measurement. Synchronized display.
Measurement results can be sorted in three levels.
Multi-channel measurement
Multi-channel measurement

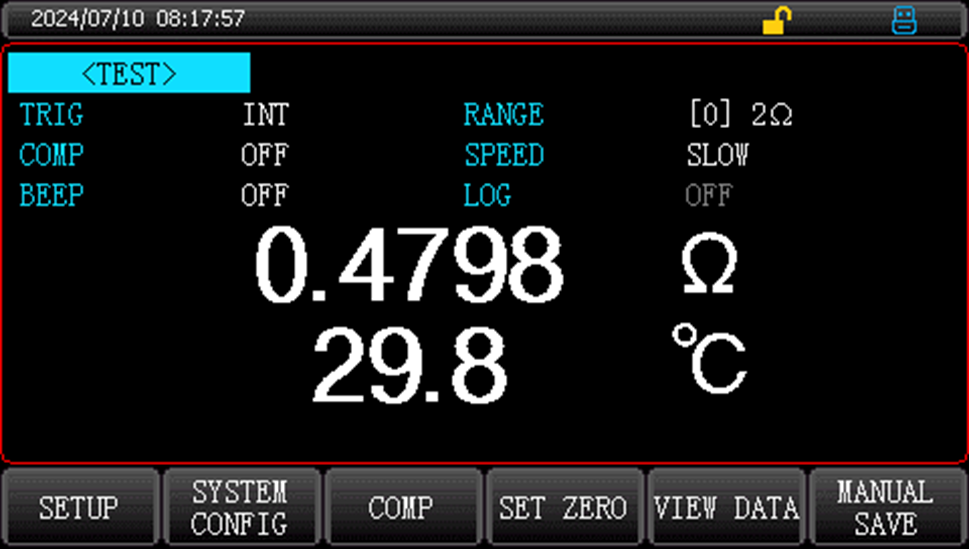

Multiple test modes (Single mode)
Five test modes are available: R, R-T, T, LPR, and LPR-T. LPR is a low-voltage test mode designed to effectively protect the DUT
Multiple test modes (Single mode)
Multiple test modes (Single mode)

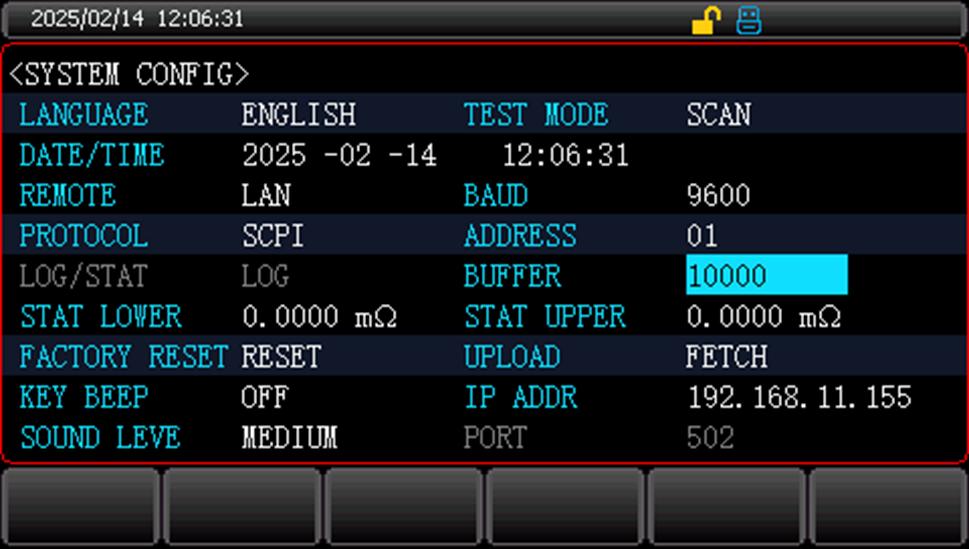

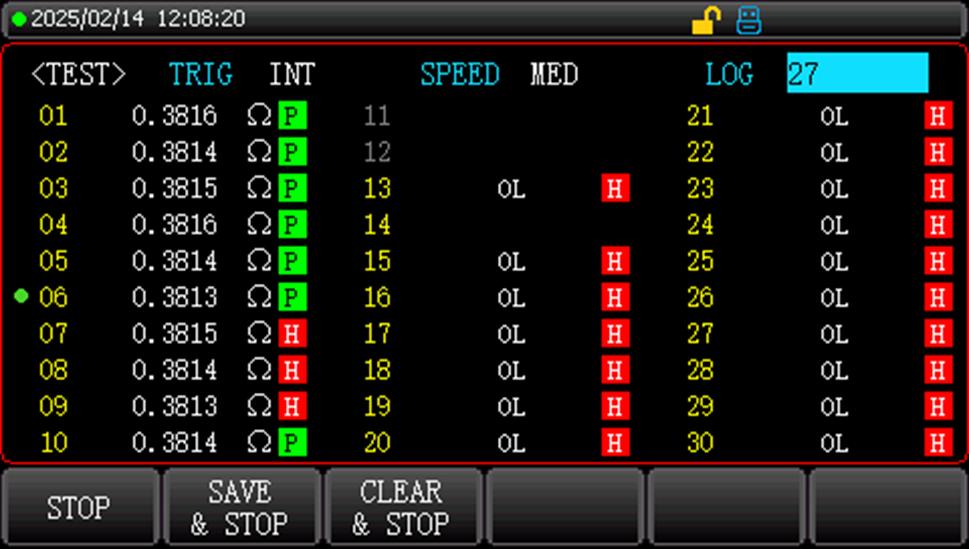

Logging (Multi-channel)
Logging: : Supports recording data up to 10,000 groups of data.
Logging (Multi-channel)
Logging (Multi-channel)

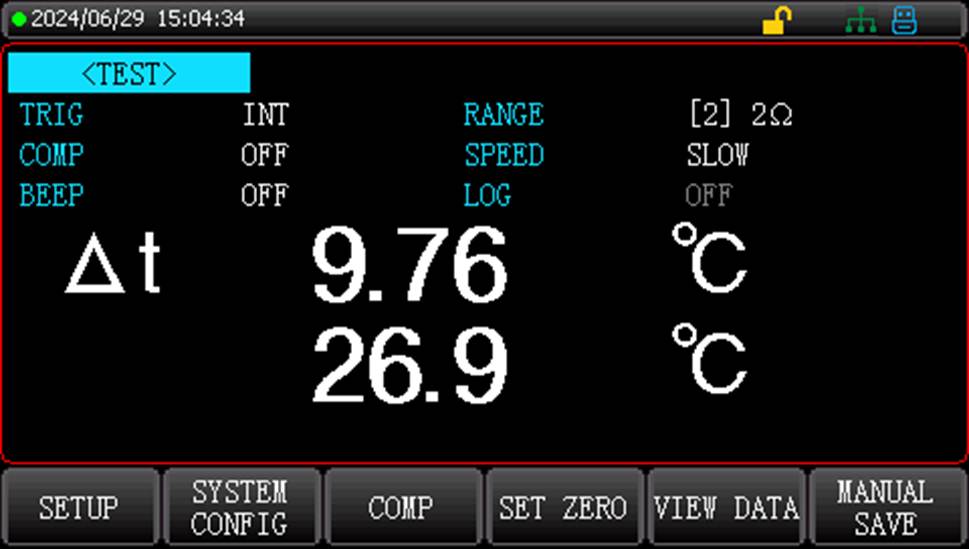

Temperature correction and conversion
Temperature correction: Compensates for measurement deviations caused by temperature fluctuations.
Temperature conversion: Calculates the difference between the DUT’s internal temperature and the ambient temperature using the thermal characteristics of the resistor.
Temperature correction and conversion
Temperature correction and conversion
MODEL
UT3515-S10
MEASURING RANGE:Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ
MAX. TEST RATE:230ms/10CH
CONNECTIVITY:RS232,RS485,HANDLER,LAN
SIZE:½ 2U
DISPLAY:4.3'' TFT LCD
UT3515-S20
MEASURING RANGE:Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ
MAX. TEST RATE:230ms/10CH
CONNECTIVITY:RS232,RS485,HANDLER,LAN
SIZE:½ 2U
DISPLAY:4.3'' TFT LCD
UT3515-S30
MEASURING RANGE:Scan mode: 1μ – 200kΩ Single mode: 1 μΩ~2 MΩ
MAX. TEST RATE:230ms/10CH
CONNECTIVITY:RS232,RS485,HANDLER,LAN
SIZE:½ 2U
DISPLAY:4.3'' TFT LCD
