UPO6000HD Series
The UPO6000HD series of high-resolution oscilloscopes offers a flexible choice of 8- or 6-channel configurations, featuring 1 GHz bandwidth and a high-precision 12-bit ADC with a sampling rate of up to 5 GSa/s, providing low noise and solid vertical measurement accuracy. The instrument integrates multiple functions, including spectrum analyzer, digital voltmeter, protocol analyzer, and power/three-phase analysis into a single unit, while supporting multi-channel synchronized real-time observation for precise debugging and in-depth analysis of complex systems.
350 MHz~1 GHz
BANDWIDTH
6/8
ANALOG CHANNELS
5GSa/s
REAL-TIME SAMPLE RATE
500Mpts
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

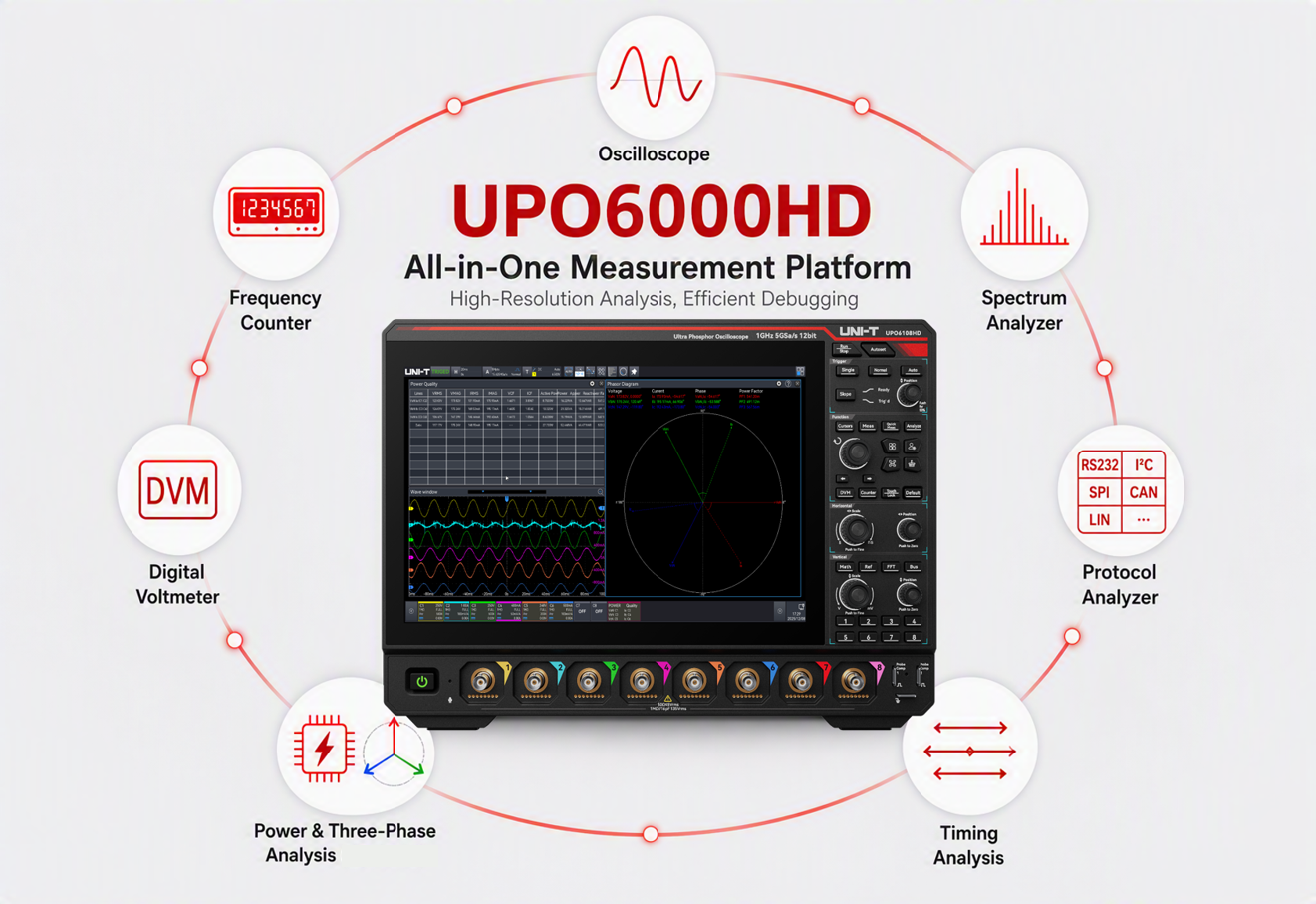

All-in-One Measurement Platform
Integrating Oscilloscope, Spectrum Analyzer, Protocol Analysis, Timing Analysis, Power Analysis, DVM and Counter into one powerful debugging platform.
All-in-One Measurement Platform

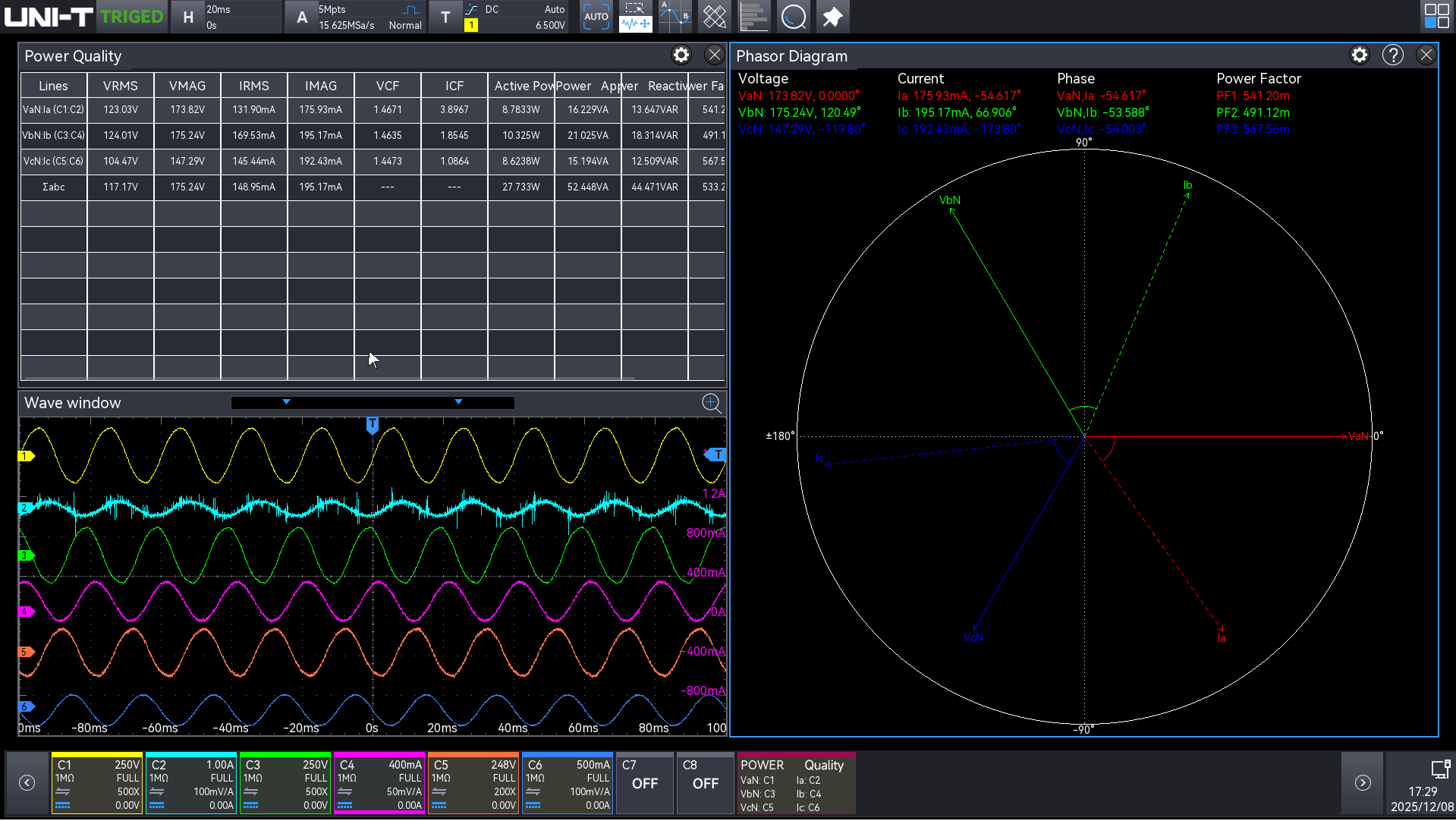

Three‑Phase Power Analysis Solution
-High Precision Synchronous Measurement
Accurate three phase voltage and current acquisition for reliable analysis.
-One Click Key Parameter Analysis
Fast evaluation of power quality, harmonics, efficiency, and DQ0 performance.
-Real Time Vector Visualization
Space vector display accelerates motor drive debugging and optimization.
-Built for Modern Power Applications
Ideal for EV drives, industrial motors, and renewable energy inverters.
Three‑Phase Power Analysis Solution

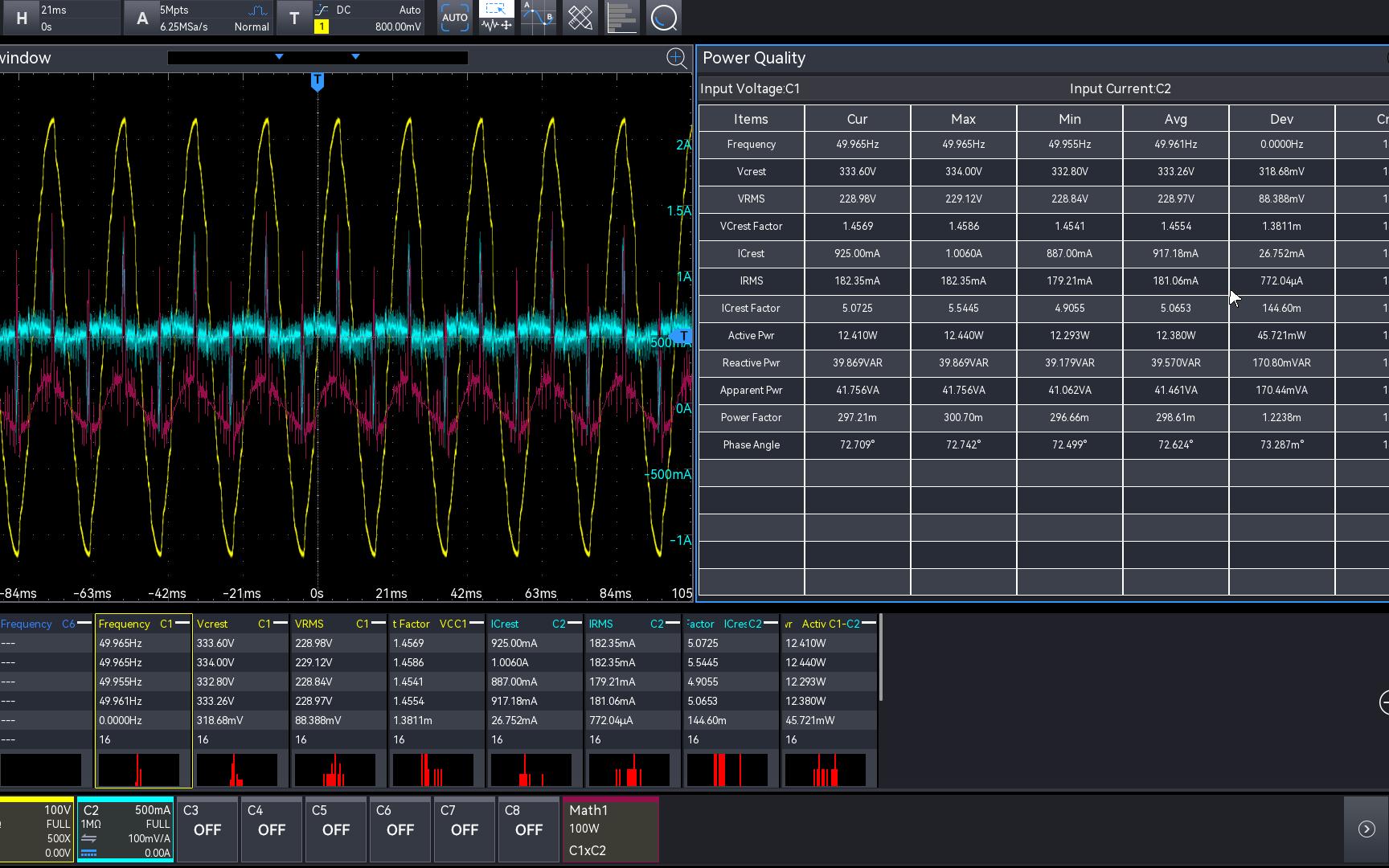

Advanced Power Analysis
Input • Switching • Output
• Power Quality
• Harmonics
• Inrush Current
• Switching Loss
• SOA
• Slew Rate
• RDS(ON)
• Modulation
• Ripple
• Efficiency
• Transient Response
• Turn On/Off Time
Advanced Power Analysis

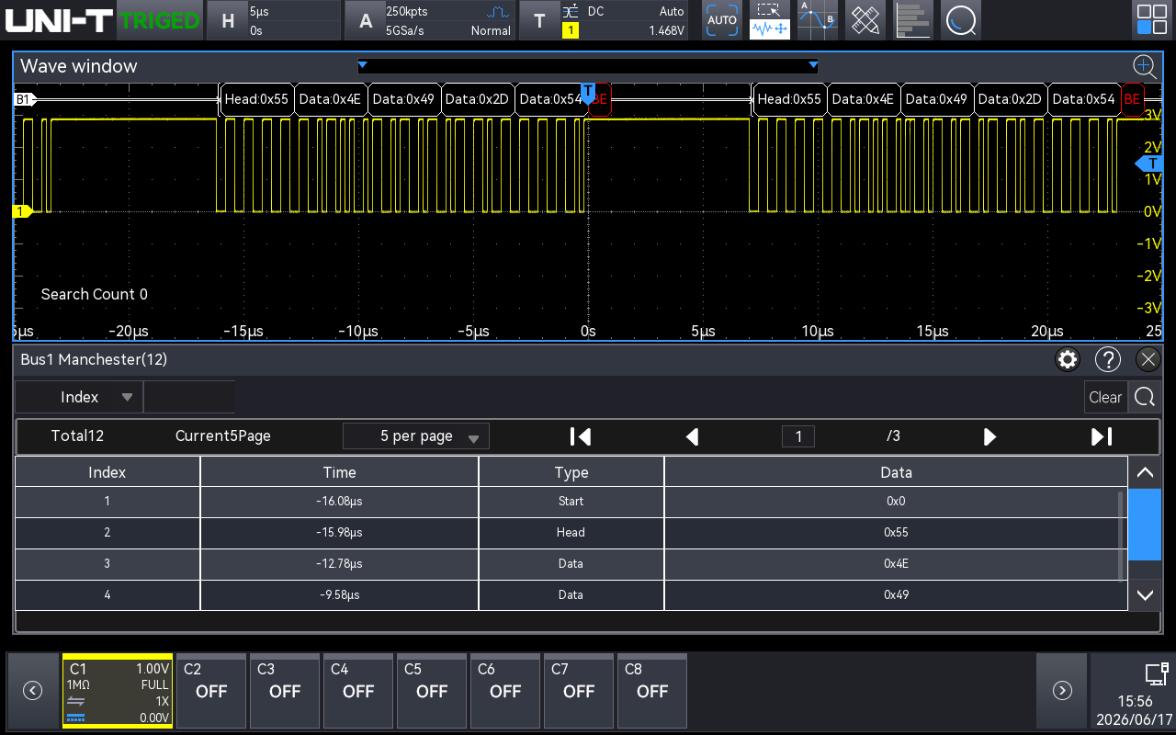

Serial Protocol Analysis
Support triggering, decoding and analysis for 12 serial protocols, helping engineers accelerate development of embedded, automotive and industrial systems.
Serial Protocol Analysis

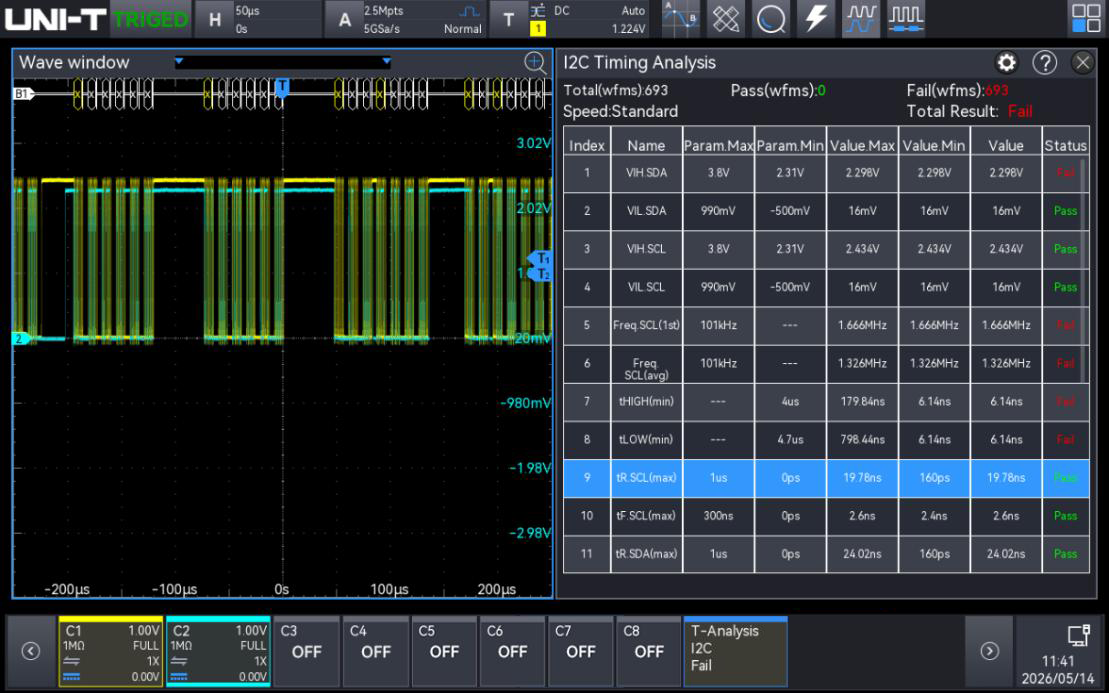

Dedicated Timing Analysis
Analyze timing relationships, setup and hold margins, bus timing behavior and signal synchronization to quickly identify design bottlenecks.
Dedicated Timing Analysis
MODEL
UPO6108HD
BANDWIDTH：1 GHz
ANALOG CHANNELS：8
REAL-TIME SAMPLE RATE：5GSa/s
MAX. MEMORY DEPTH：500Mpts
WAVEFORM CAPTURE RATE：1.000,000wfms/s
DIGITAL CHANNELS：/
Get a Quote
Add to Compare
UPO6106HD
BANDWIDTH：1 GHz
ANALOG CHANNELS：6
REAL-TIME SAMPLE RATE：5GSa/s
MAX. MEMORY DEPTH：500Mpts
WAVEFORM CAPTURE RATE：1.000,000wfms/s
DIGITAL CHANNELS：/
Get a Quote
Add to Compare
UPO6058HD
BANDWIDTH：500 MHz
ANALOG CHANNELS：8
REAL-TIME SAMPLE RATE：5GSa/s
MAX. MEMORY DEPTH：500Mpts
WAVEFORM CAPTURE RATE：1.000,000wfms/s
DIGITAL CHANNELS：/
Get a Quote
Add to Compare
UPO6056HD
BANDWIDTH：500 MHz
ANALOG CHANNELS：6
REAL-TIME SAMPLE RATE：5GSa/s
MAX. MEMORY DEPTH：500Mpts
WAVEFORM CAPTURE RATE：1.000,000wfms/s
DIGITAL CHANNELS：/
Get a Quote
Add to Compare
UPO6038HD
BANDWIDTH：350 MHz
ANALOG CHANNELS：8
REAL-TIME SAMPLE RATE：5GSa/s
MAX. MEMORY DEPTH：500Mpts
WAVEFORM CAPTURE RATE：1.000,000wfms/s
DIGITAL CHANNELS：/
Get a Quote
Add to Compare
UPO6036HD
BANDWIDTH：350 MHz
ANALOG CHANNELS：6
REAL-TIME SAMPLE RATE：5GSa/s
MAX. MEMORY DEPTH：500Mpts
WAVEFORM CAPTURE RATE：1.000,000wfms/s
DIGITAL CHANNELS：/
Get a Quote
Add to Compare
Compare
Data Sheet
download UPO6000HD Series Digital Oscilloscopes - Data Sheet
