MSO8000HD Series

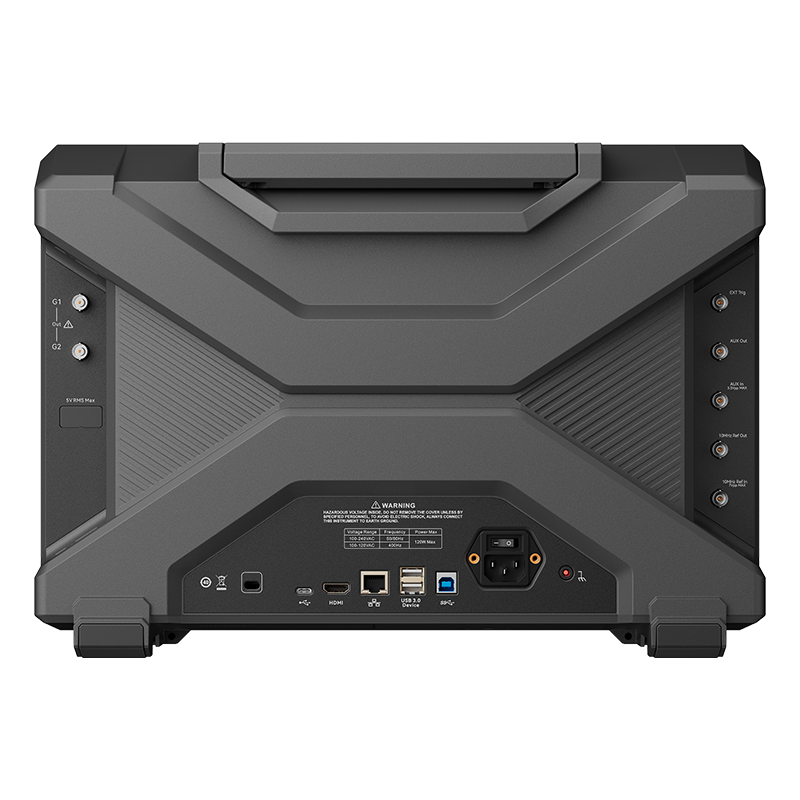

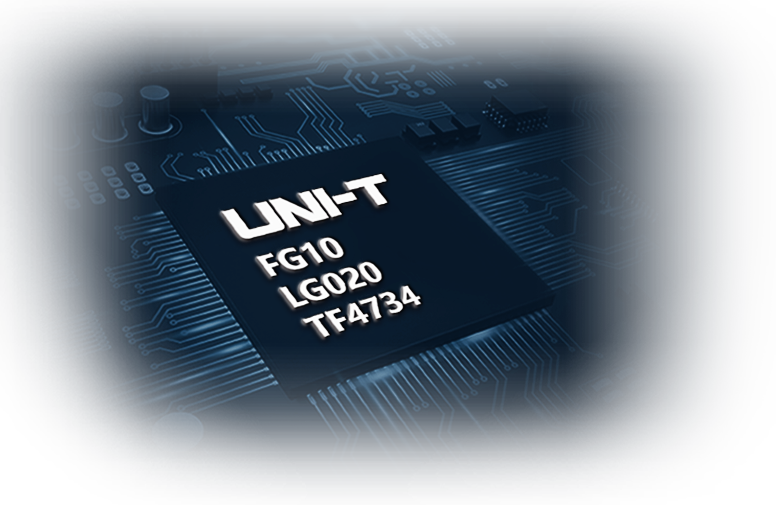

The MSO8000HD Series high-resolution oscilloscopes provides two bandwidth 8 GHz and 5 GHz. The entire series features a standard 20 GSa/s sample rate and 12-bit vertical resolution. Equipped with UNI-T’s independently developed analog front-end chipset, these oscilloscopes offer optimized performance and a lower noise floor, delivering significant advantages in testing high-speed and high-dynamic-range signals.
8 GHz
BANDWIDTH
4
ANALOG CHANNELS
20 GSa/s
REAL-TIME SAMPLE RATE
2 Gpts(opt.)
MAX. MEMORY DEPTH
1.000,000wfms/s
WAVEFORM CAPTURE RATE
16(opt.)
DIGITAL CHANNELS
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS
Lower Noise and Enhanced ENOB
- Noise floor: 50mV/div, as low as 800μV at full bandwidth (Typ.)
- ENOB: >7 bits (at full system bandwidth, 50Ω, 50 mV/div, -3dBFS).
- SFDR: ≥ 50dBc (Typ.)
- Low intrinsic jitter: ≤150fs RMS
- High bandwidth precision BNC connector: ＞10GHz.
Lower Noise and Enhanced ENOB

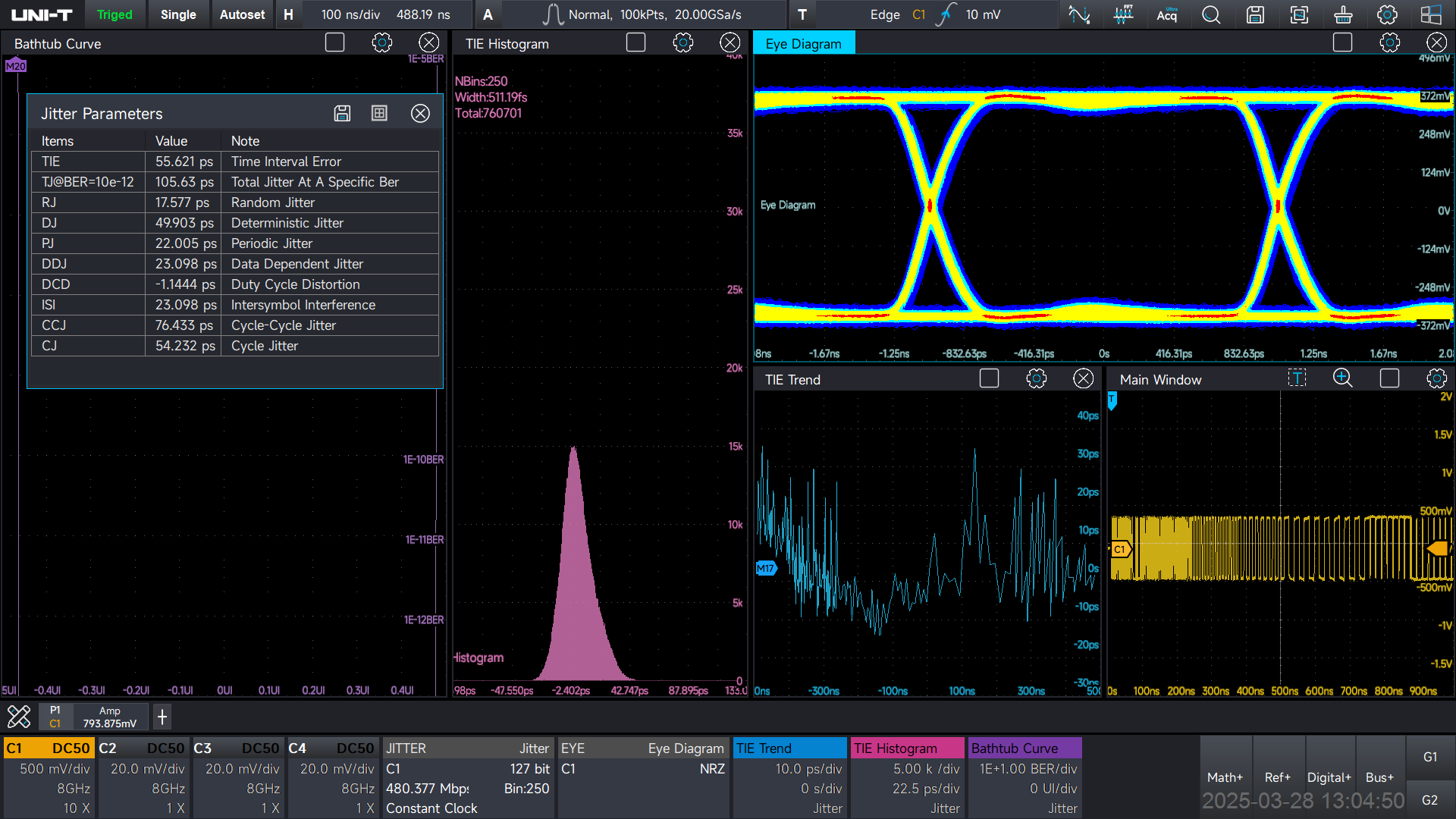

Jitter Analysis and Eye Diagram
-Jitter Analysis View: Eye Diagram, Trend Chart, Histogram, TIE spectrum, Bath Curve
-Jitter Measurement: TIE, Cycle-Cycle Jitter, Period Jitter, PJ, TJ@BER, RJ, DJ, DDJ, DCD, ISI
Jitter Analysis and Eye Diagram

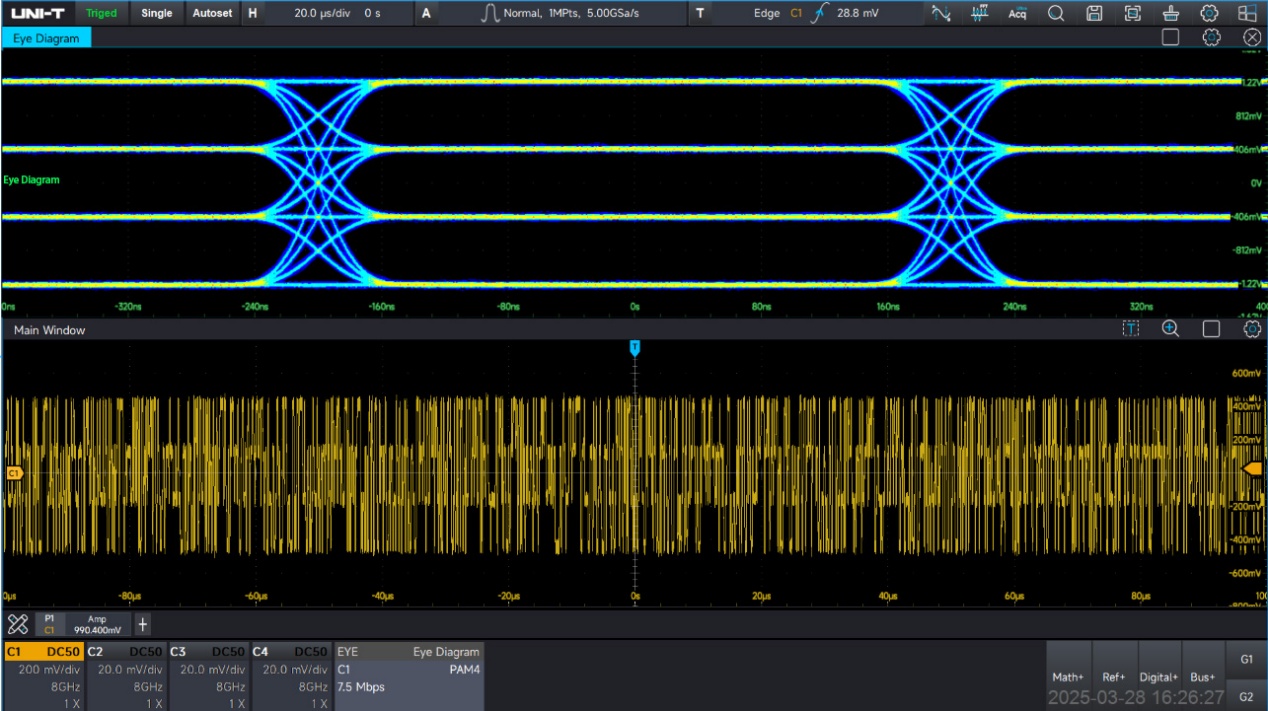

PAM-N Analysis
Supports to PAM-3 to PAM-16 signal analysis. Equipped with a 12-bit ADC and delivering over 7 bits of Effective Number of Bits (ENOB) at full bandwidth, it can recover clocks from PAM-N signals with small amplitude differences and perform real-time eye diagram measurements.
PAM-N Analysis

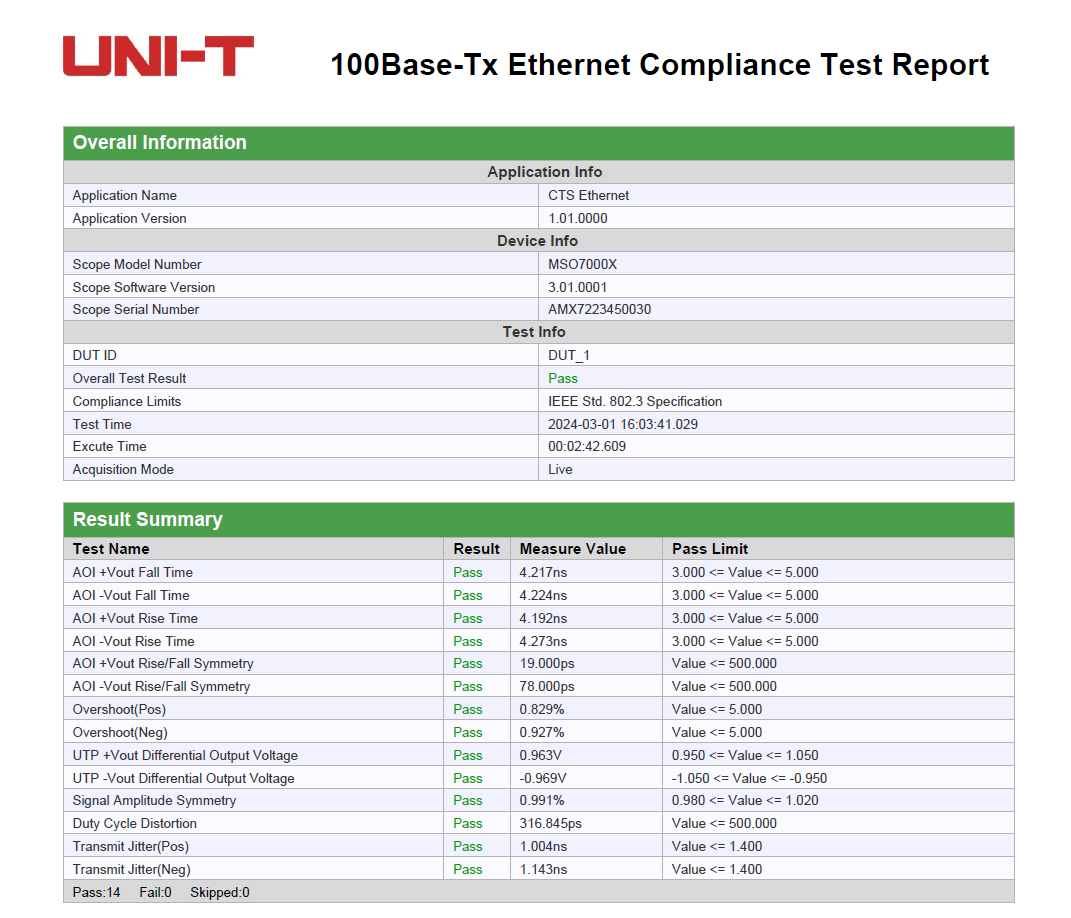

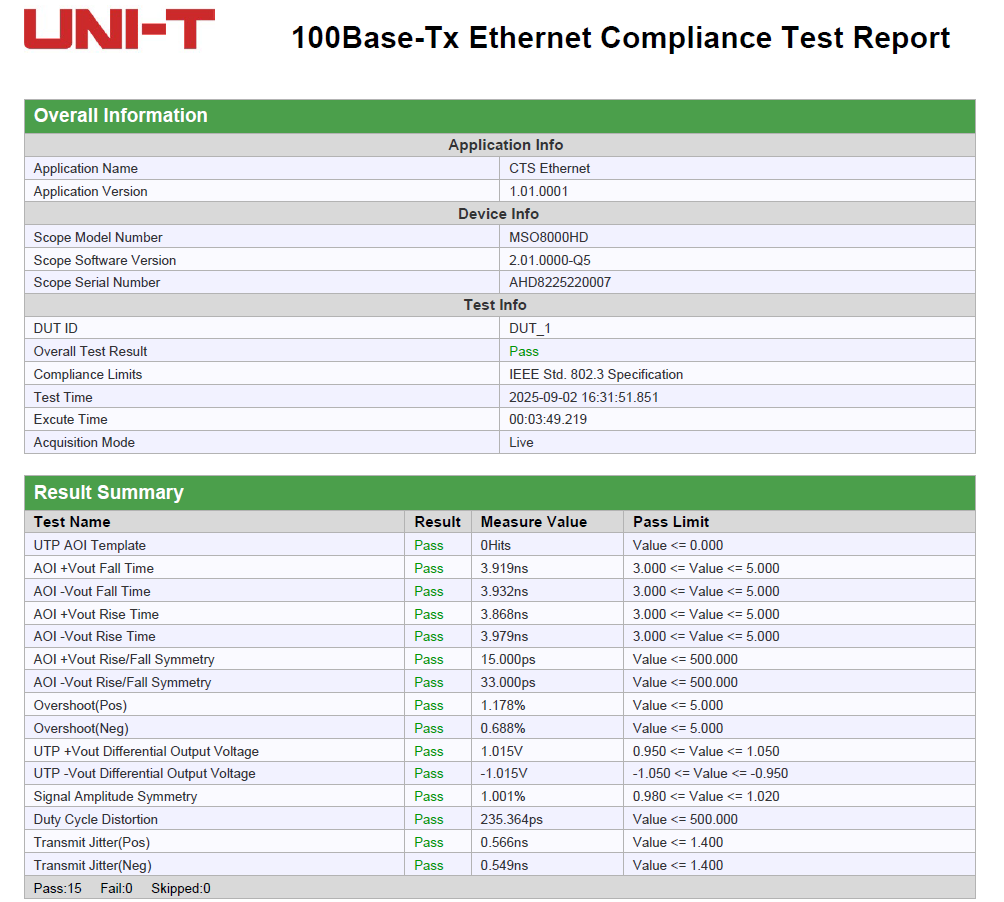

Protocol Compliance Test
-Supports USB 2.0 and 100/1000 Mbps Ethernet protocol compliance testing.
-Mainstream protocols such as automotive Ethernet, MIPI, and PCIe are being added gradually.
Protocol Compliance Test
Protocol Compliance Test
Serial Protocol Analysis
Supports more than 21 protocols
-Embedded serial bus: RS-232/422/485/UART, I2C, SPI, SMBUS, SPMI, AudioBus (I2S, LJ, RJ, TDM)
- Automotive serial bus: CAN, LIN, CAN-FD, SENT, FlexRay, I3C, PSI5
-Computers & Communications: USB2.0, PCIe2.0, Ethernet, NRZ, Manchester, 8b/10b
-Aerospace serial bus: MIL-STD-1553，ARINC 429
Serial Protocol Analysis
MATLAB Embedded Programming
Support MATLAB embedded programming ，
Operational results are rendered directly to the oscilloscope window.
MATLAB Embedded Programming
Advanced Filter Designer
Supports filter types:
-Butterworth
-Chebyshev Type I
-Chebyshev Type II
-Elliptic
-Sampling method
-Remez
-Window function
Advanced Filter Designer
MODEL
MSO8804HD
BANDWIDTH：8 GHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：20 GSa/s
MAX. MEMORY DEPTH：2 Gpts(opt.)
WAVEFORM CAPTURE RATE：1,000,000 wfms/s
DIGITAL CHANNELS：16(opt.)
Get a Quote
Add to Compare
Compare
Data Sheet
download MSO8000HD Series Digital Oscilloscopes - Data Sheet
Version：V2.0
Release Date：2025/8/15
QuickStart Guide
download MSO8000HD Series Digital Oscilloscopes - QuickStart Guide
Version：V2.0
Release Date：2025/8/15
User Manual
download MSO8000HD Series Digital Oscilloscopes - User Manual
Version：V2.0
Release Date：2025/8/15
Programming Manual
download MSO8000HD Series Digital Oscilloscopes - Programming Manual
Version：V2.0
Release Date：2025/8/15
Service Manual
Performance Verification Guide
OPTIONS
MSO8000HD-MD2G
MSO8000HD-MD2G
Description：Extend the oscilloscope's maximum memory depth to 1 Gpts/CH (full channel) and 2 Gpts/CH (half channel)
Get a Quote
MSO8000HD-AWG
MSO8000HD-AWG
Description：Dual channel 60 MHz function/arbitrary waveform generator
Get a Quote
MSO8000HD-LA
MSO8000HD-LA
Description：16-channel logic analyzer option
Get a Quote
MSO8000HD-CTSUSB20
download EN
MSO8000HD-CTSUSB20
Description：USB 2.0 Compliance Test Option
Get a Quote
MSO8000HD-CTS100
download EN
MSO8000HD-CTS100
Description：100MBASE-Tx Ethernet Compliance Test Option
Get a Quote
MSO8000HD-JITTER
MSO8000HD-JITTER
Description：Advanced Jitter analysis and Eye diagram
Get a Quote
MSO8000HD-MAT
MSO8000HD-MAT
Description：Matlab Embedded Programming Option
Get a Quote
MSO8000HD-FILTER
MSO8000HD-FILTER
Description：Advanced Filter Designer Option
Get a Quote

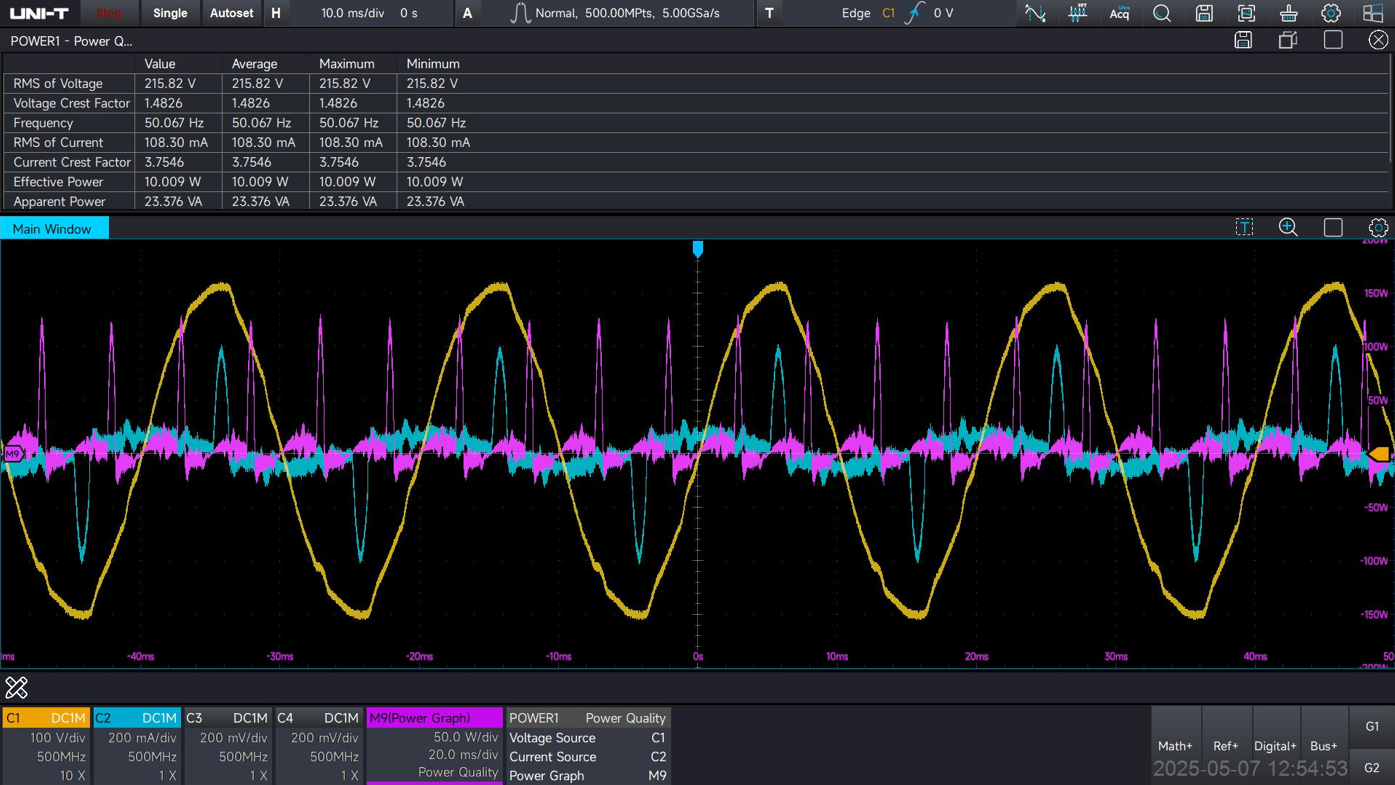

MSO8000HD-PWR
MSO8000HD-PWR
Description：Advanced power analysis for MSO8504HD
Get a Quote
MSO8000HD-BND
MSO8000HD-BND
Description：Upgrade suit(including Advanced Jitter Analysis and Eye Diagram, Protocol Trigger and Analysis)
Get a Quote
MSO8000HD-SMBUS
Description：Embedded Serial Bus Trigger and Analysis Option (SMBus)
Get a Quote
MSO8000HD-SPMI
Description：Power Management Serial Bus Trigger and Analysis Option
Get a Quote
MSO8000HD-PCIe2
Description：PCIe Bus Trigger and Analysis Option（PCIe1.0，2.0）
Get a Quote
MSO8000HD-USB2
Description：USB Bus Trigger and Analysis Option（USB2.0）
Get a Quote
MSO8000HD-NET
Description：Ethernet Bus Analysis Option（10BASE-T、100BASE-TX）
Get a Quote
MSO8000HD-I3C
Description：Embedded Trigger/Decode Option (I3C)
Get a Quote
MSO8000HD-CANFD
MSO8000HD-CANFD
Description：Automotive serial bus trigger and analysis (CAN FD)
Get a Quote
MSO8000HD-FLEX
MSO8000HD-FLEX
Description：Automotive serial bus trigger and analysis (FlexRay)
Get a Quote
MSO8000HD-SENT
MSO8000HD-SENT
Description：Automotive sensor trigger and analysis (SENT)
Get a Quote
MSO8000HD-PSI5
Description：Automotive Serial Bus Analysis Option (PSI5)
Get a Quote
MSO8000HD-AUDIO
MSO8000HD-AUDIO
Description：Audio serial bus trigger and analysis (I2S, LJ, RJ, TDM)
Get a Quote
MSO8000HD-AERO
MSO8000HD-AERO
Description：Aerospace serial bus trigger and analysis (including MIL-STD-1553, ARINC 429)
Get a Quote
MSO8000HD-MANCH
Description：Serial Bus Trigger and Analysis Option (Manchester)
Get a Quote
MSO8000HD-8B10B
Description：8b/10b Signal Analysis Option
Get a Quote
MSO8000HD-NRZ
Description：NRZ Signal Analysis Option
Get a Quote
ACCESSORIES
UT-PD1500
download EN
UT-PD1500
Description：1.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe
Get a Quote
UT-PD2500
download EN
UT-PD2500
Description：UT-PD2500
Get a Quote
UT-PA1000
download EN download DE
UT-PA1000
Description：1GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe
Get a Quote
UT-PA2000
download EN download DE
UT-PA2000
Description：2GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe
Get a Quote
UT-P07
download EN download DE
UT-P07
Description：Probe factor:(10:1) Bandwidth: 500MHz.voltage:300Vpp
Get a Quote
UT-P07A
download EN download DE
UT-P07A
Description：Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
Get a Quote
UT-P20
download EN download DE
UT-P20
Description：Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
Get a Quote
UT-P21
download EN download DE
UT-P21
Description：Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
Get a Quote
UT-V23
download EN download DE
UT-V23
Description：High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
Get a Quote
UT-P30
download EN download DE
UT-P30
Description：Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: 800Vpp
Get a Quote
UT-P31
download EN download DE
UT-P31
Description：High voltage differential probe: (100:1/1000:1) Bandwidth: 100MHz differential voltage: 1500Vpp
Get a Quote
UT-P32
download EN download DE
UT-P32
Description：Differential probe:（1000:1/100:1）Bandwidth: 50MHz Input differential voltage: 3000Vpp
Get a Quote
UT-P33
download EN download DE
UT-P33
Description：Differential probe:(1000:1/100:1) Bandwidth: 70/50MHz differential voltage: 14KVpp
Get a Quote
UT-P35
download EN
UT-P35
Description：High voltage Differential probe:1:50，130V(DC+peakAC); 1:500,1300V(DC+peakAC),Bandwidth:50MHz,Precision:2%
Get a Quote
UT-P36
download EN
UT-P36
Description：High voltage Differential probe: 1/200:560(DC+peakAC) 1/2000:5600(DC+peakAC), Bandwidth:100MHz,Precision:2%
Get a Quote
UT-P40
download EN download DE
UT-P40
Description：Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
Get a Quote
UT-P41
download EN download DE
UT-P41
Description：Conversion ratio:100mV/A, 10mV/A, Current range: 50mA~100A Frequency: DC~100kHz, voltage: 600Vrms
Get a Quote
UT-P42
download EN download DE
UT-P42
Description：Conversion ratio:50mV/A, 5mV/A, Current range: 0.4A~200A Frequency: DC~150kHz, voltage: 600Vrms
Get a Quote
UT-P43
download EN
UT-P43
Description：Current range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
Get a Quote
UT-P44
download EN
UT-P44
Description：Current range: 40A AC/DC, Frequency: DC~50MHz,Conversion ratio:50mV/A
Get a Quote
UT-P4030D
download EN
UT-P4030D
Description：30A/ DC～100MHz High frequency current probe Range：30A/5A Freq range：DC~100MHz Rise time：≤3.5ns
Get a Quote
UT-P4100A
download EN
UT-P4100A
Description：100A/600kHz Low frequency current probe Range：100A/10A Freq range：DC~600kHz Rise time：≤583ns
Get a Quote
UT-P4100B
download EN
UT-P4100B
Description：100A/2MHz Low frequency current probe Range：100A/10A Freq range：DC~2MHz Rise time：≤175ns
Get a Quote
UT-P4150
download EN
UT-P4150
Description：150A/ DC-12MHz High frequency current probe Range：150A/30A Freq range：DC~12MHz Rise time：≤29ns
Get a Quote
UT-P4500
download EN
UT-P4500
Description：500A/ DC～5MHz High frequency current probe Range：500A/75A Freq range：DC~5MHz Rise time：≤70ns
Get a Quote
UT-M15
UT-M15
Description：Logic analyzer probe:16CH
Get a Quote
UT-USB20-SQ-HD
download EN
UT-USB20-SQ-HD
Description：USB 2.0 Test Fixture
Get a Quote
UT-ISOT
download EN download DE
UT-ISOT
Description：Isolation transfomer for Bode plot application (Hardware)
Get a Quote
UT-M13X
download EN
UT-M13X
Description：Oscilloscope Signal Protocol Demonstration Board
Get a Quote
UT-GBE-FT
download EN
UT-GBE-FT
Description：100M/1000M ETH Test Fixture
Get a Quote
download EN
UT-PR2060
Description：1GHz bandwidth, ±60V DC, AC/DC coupling mode, ±1% accuracy Low-Noise Power Rail Probe
Get a Quote
