High Resolution Oscilloscopes
>
MSO6000HDP Series

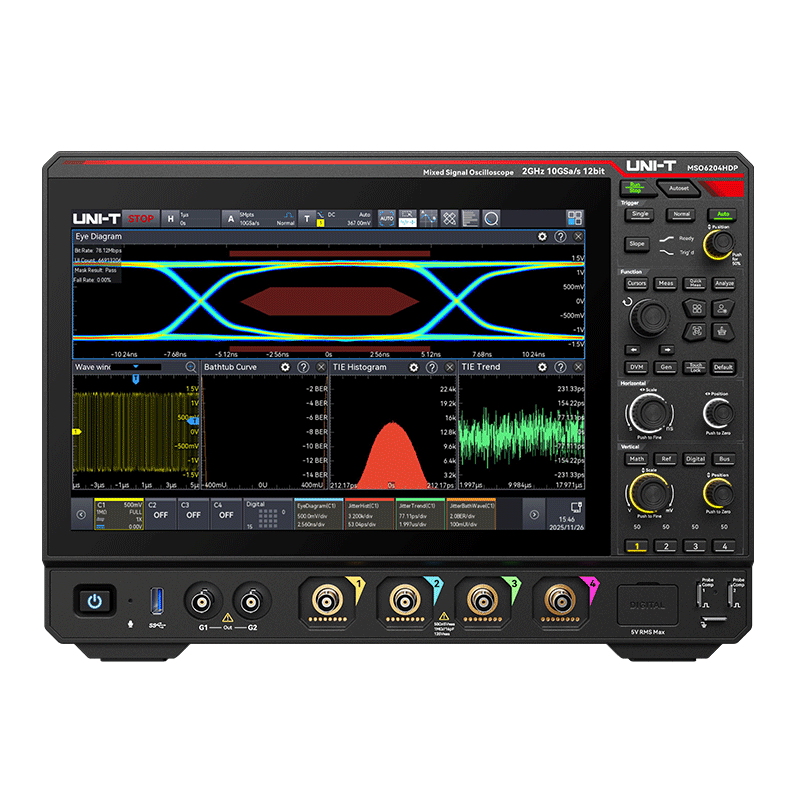

https://unitrend.oss-cn-hongkong.aliyuncs.com/uploads/image/20260824/085125d6ba8f44b1d558e0af08719.png

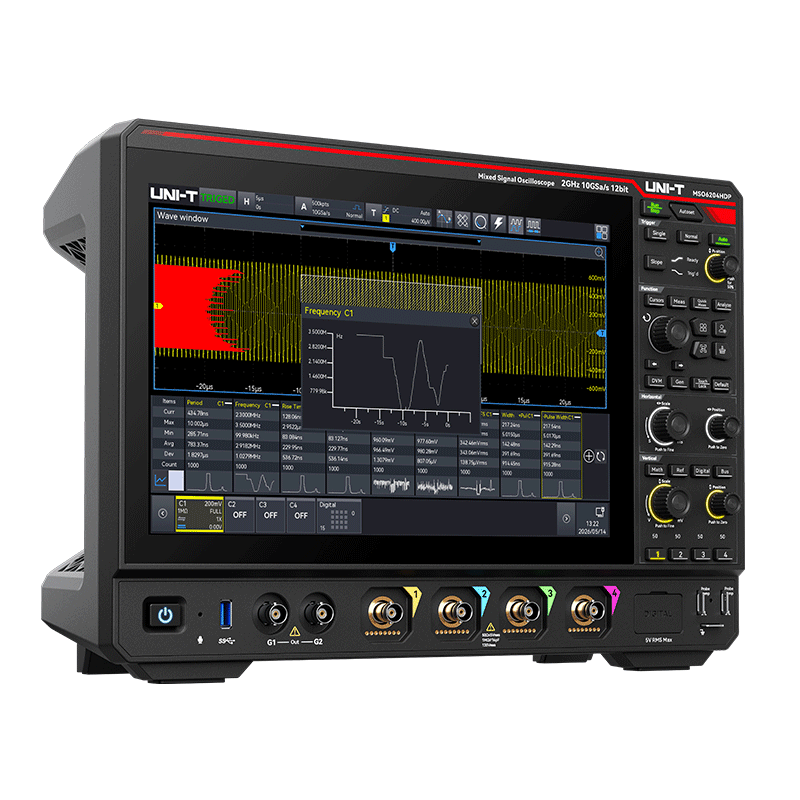

https://unitrend.oss-cn-hongkong.aliyuncs.com/uploads/image/20260824/08512539900c45bba9e7b21501694.png

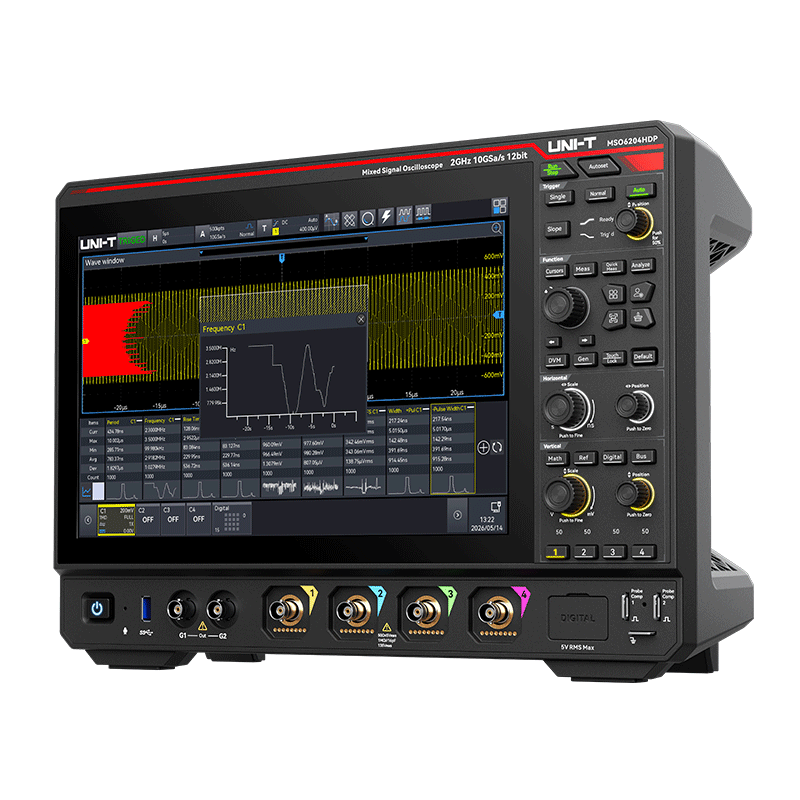

https://unitrend.oss-cn-hongkong.aliyuncs.com/uploads/image/20260824/0851250bf29924c7c35232c803586.png

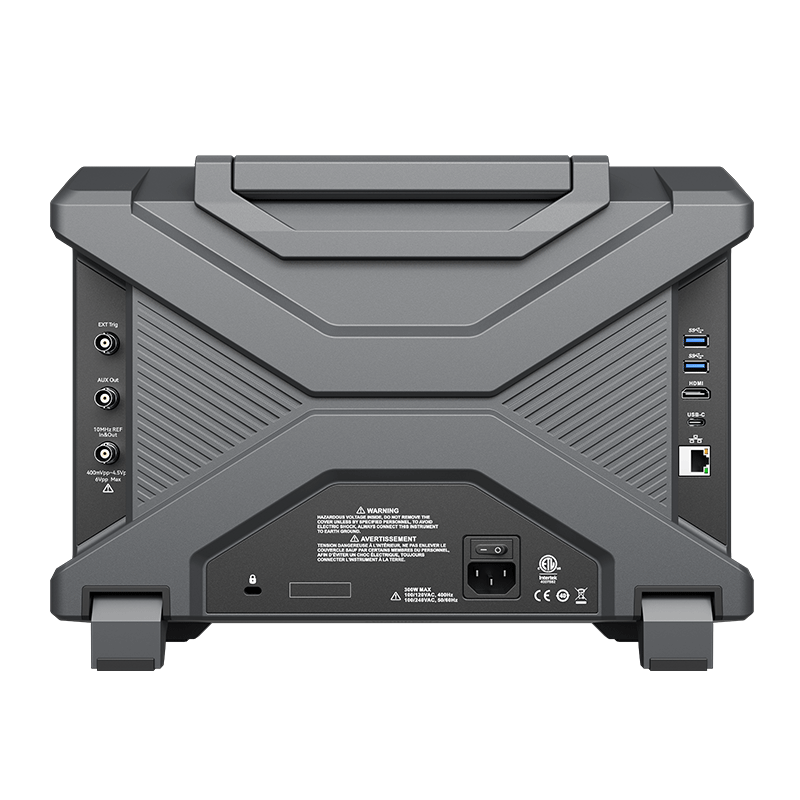

https://unitrend.oss-cn-hongkong.aliyuncs.com/uploads/image/20260824/085125f6659b72d95338ec4405337.png
Datasheet
Download
Get Quote
MSO6000HDP Series
The MSO6000HDP Series high-resolution oscilloscopes deliver up to 2 GHz bandwidth, 10 GSa/s sampling rate, 12-bit vertical resolution, and 1 Gpts memory depth. The series also integrates power analysis, timing analysis, and protocol decoding, as well as jitter analysis, eye diagram testing, and USB and Ethernet compliance testing, making it a one-stop debugging platform that significantly improves engineering efficiency throughout the entire workflow, from signal observation to standard compliance verification.
1GHz, 2GHz
BANDWIDTH
4
ANALOG CHANNELS
10GSa/s
REAL-TIME SAMPLE RATE
1 Gpts
MAX. MEMORY DEPTH
2.000,000wfms/s
WAVEFORM CAPTURE RATE
16
DIGITAL CHANNELS
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

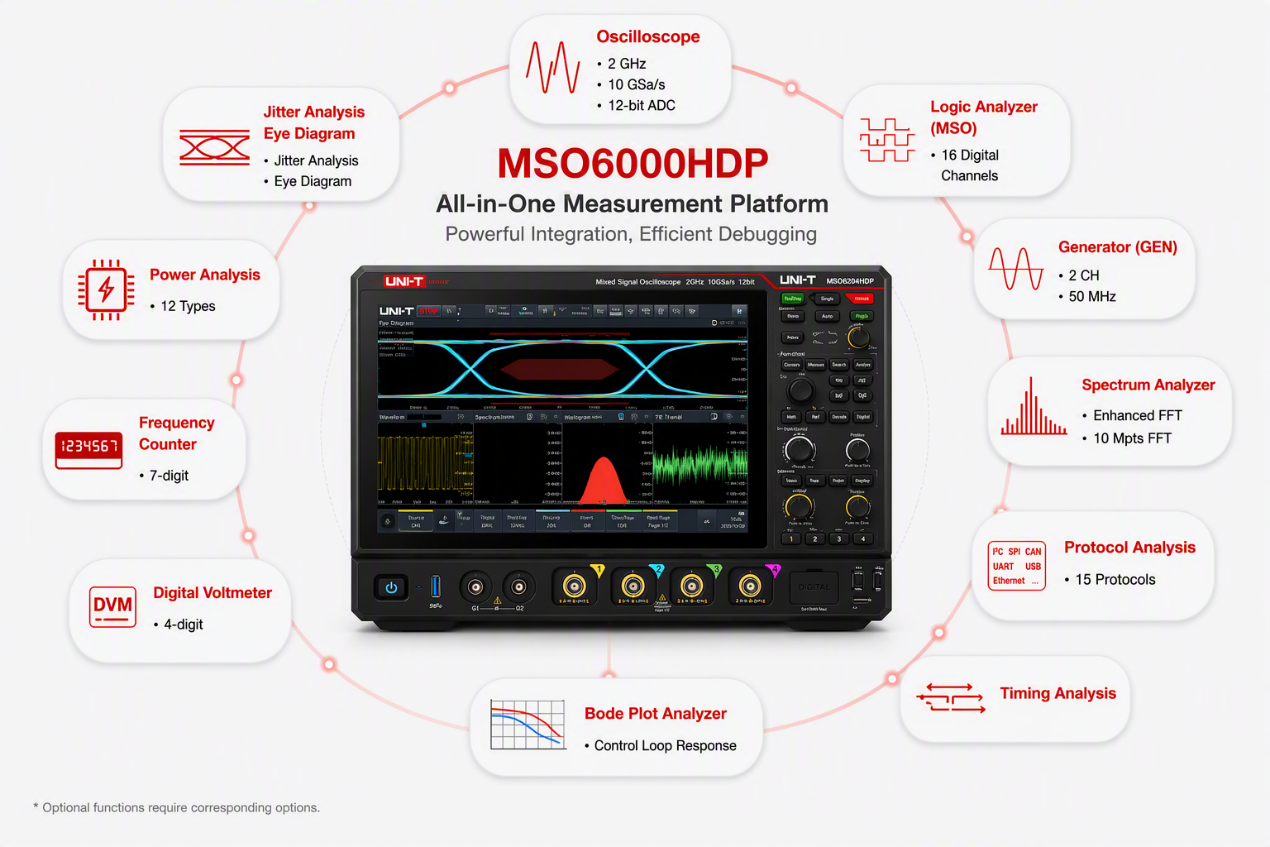

All-in-One Measurement Platform
Integrating Oscilloscope, Logic Analyzer, GEN, Spectrum Analyzer, Protocol Analysis, Timing Analysis, Power Analysis, Jitter & Eye Diagram, DVM, Counter and Bode Plot Analyzer into one powerful debugging platform.
All-in-One Measurement Platform
Jitter Analysis and Eye Diagram

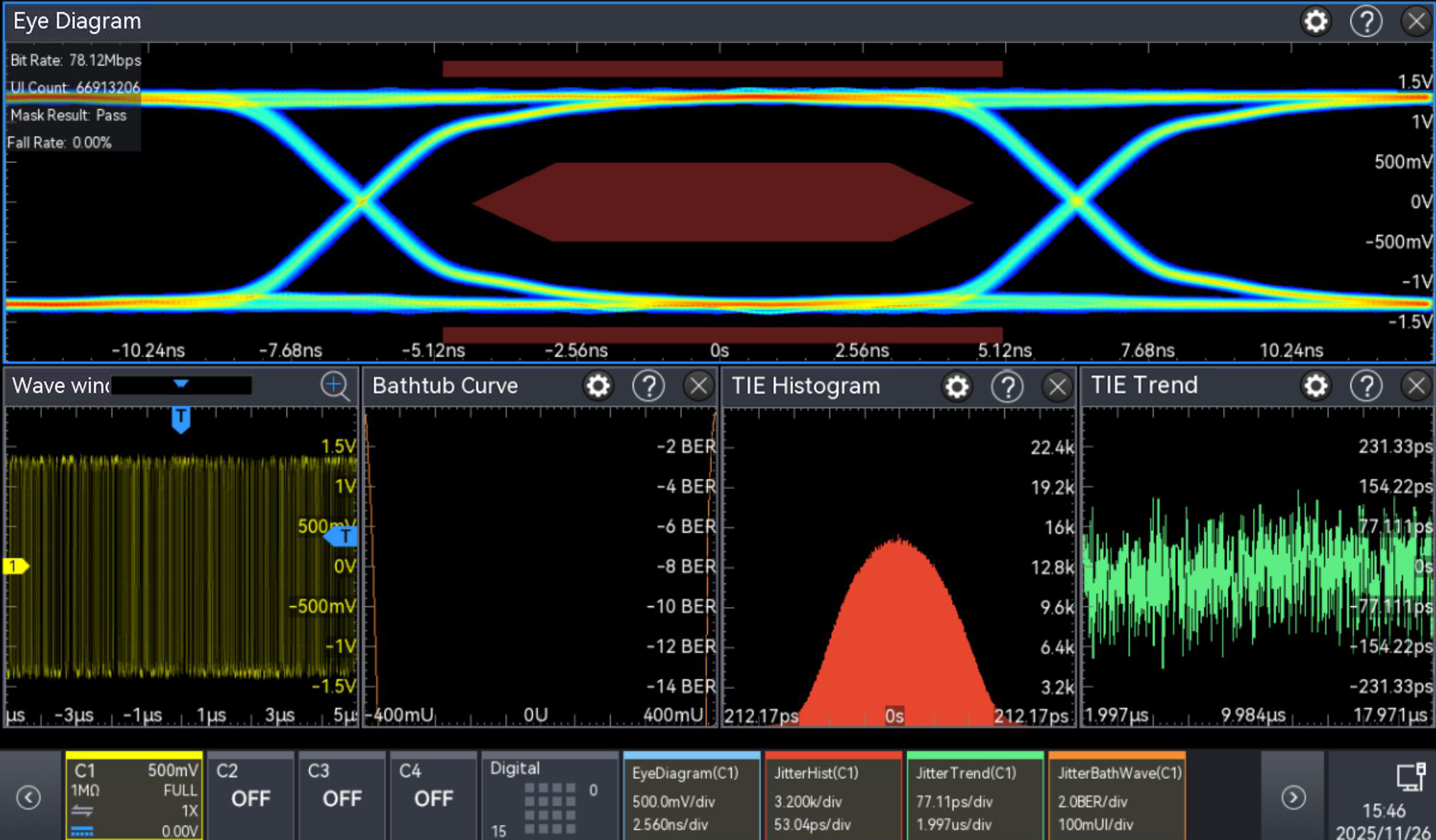

Integrated eye diagram and jitter analysis tools provide deeper visibility into signal integrity, enabling faster validation of high-speed interfaces.
Jitter Analysis and Eye Diagram
Protocol Compliance Test

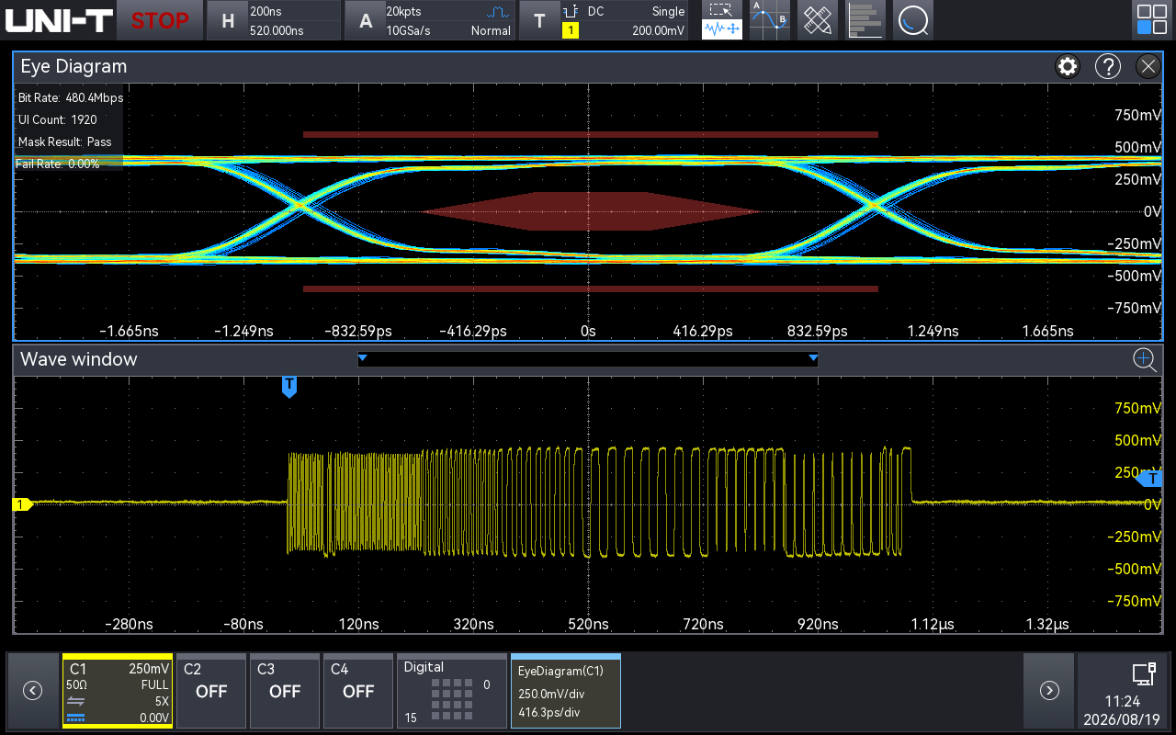

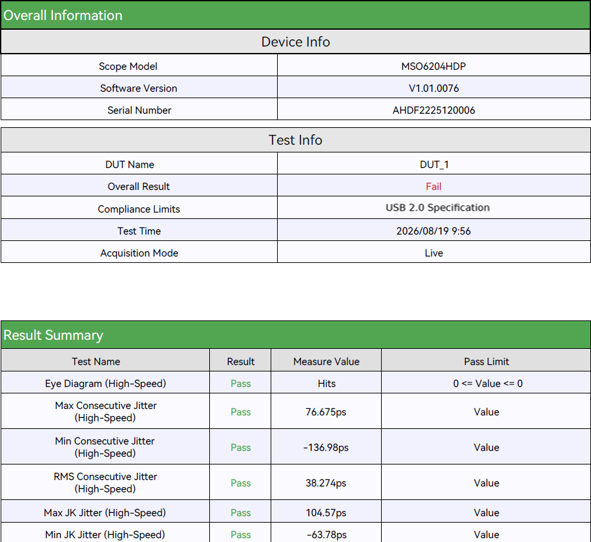

Comprehensive compliance testing support for USB 2.0, 100BASE-TX, 1000BASE-T protocols.
Protocol Compliance Test
Protocol Compliance Test
Advanced Power Analysis

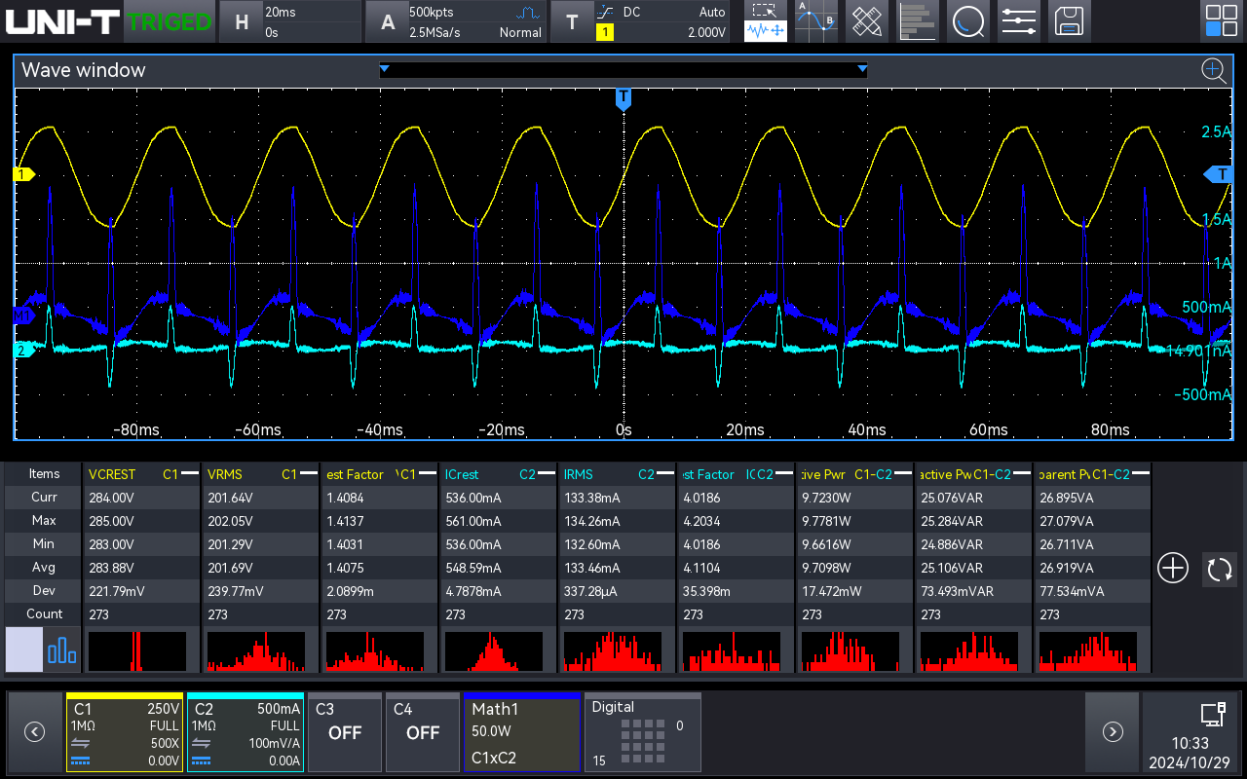

Input • Switching • Output • Control Loop
• Power Quality
• Harmonics
• Inrush Current
• Switching Loss
• SOA
• Slew Rate
• RDS(on)
• Modulation
• Ripple
• Efficiency
• Transient Response
• Turn On/Off Time
• Loop Analysis
• PSRR
Advanced Power Analysis
Serial Protocol Analysis

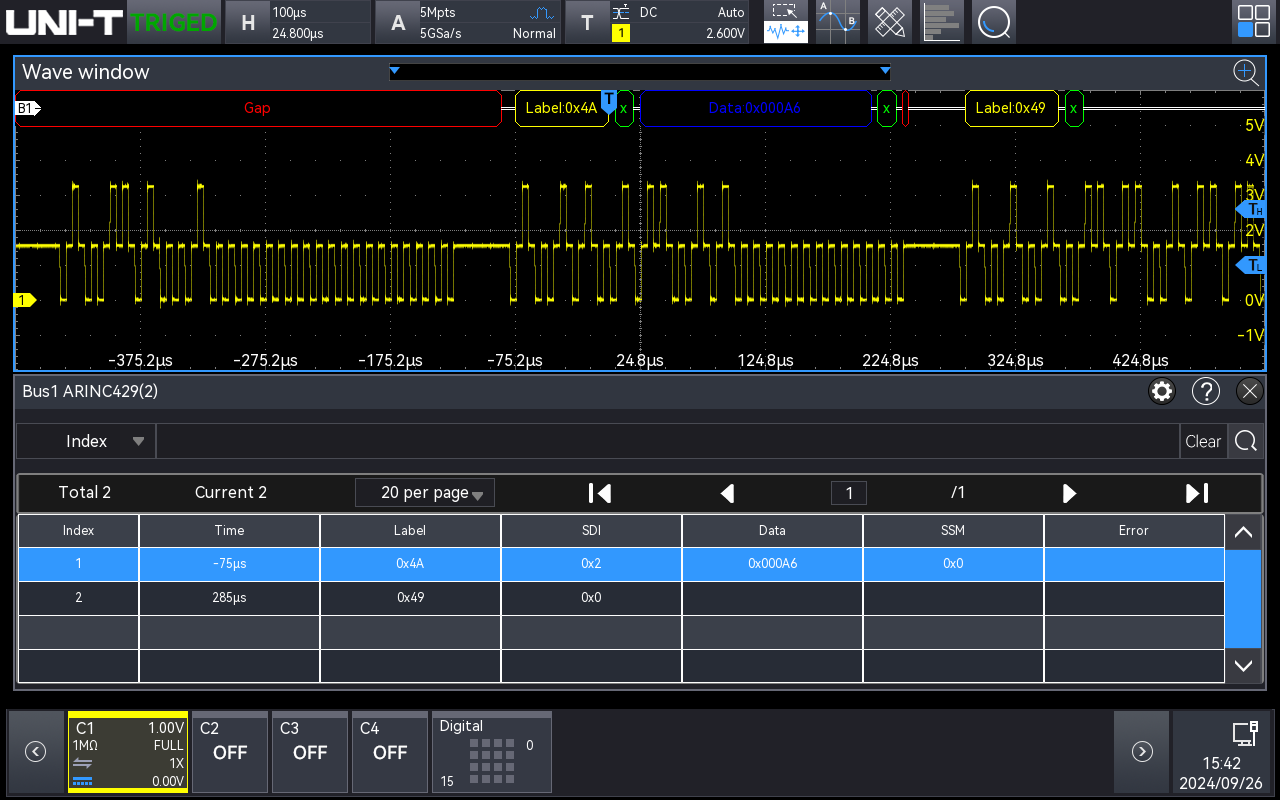

Support triggering, decoding and analysis for 15 serial protocols, helping engineers accelerate development of embedded, automotive and industrial systems.
Serial Protocol Analysis

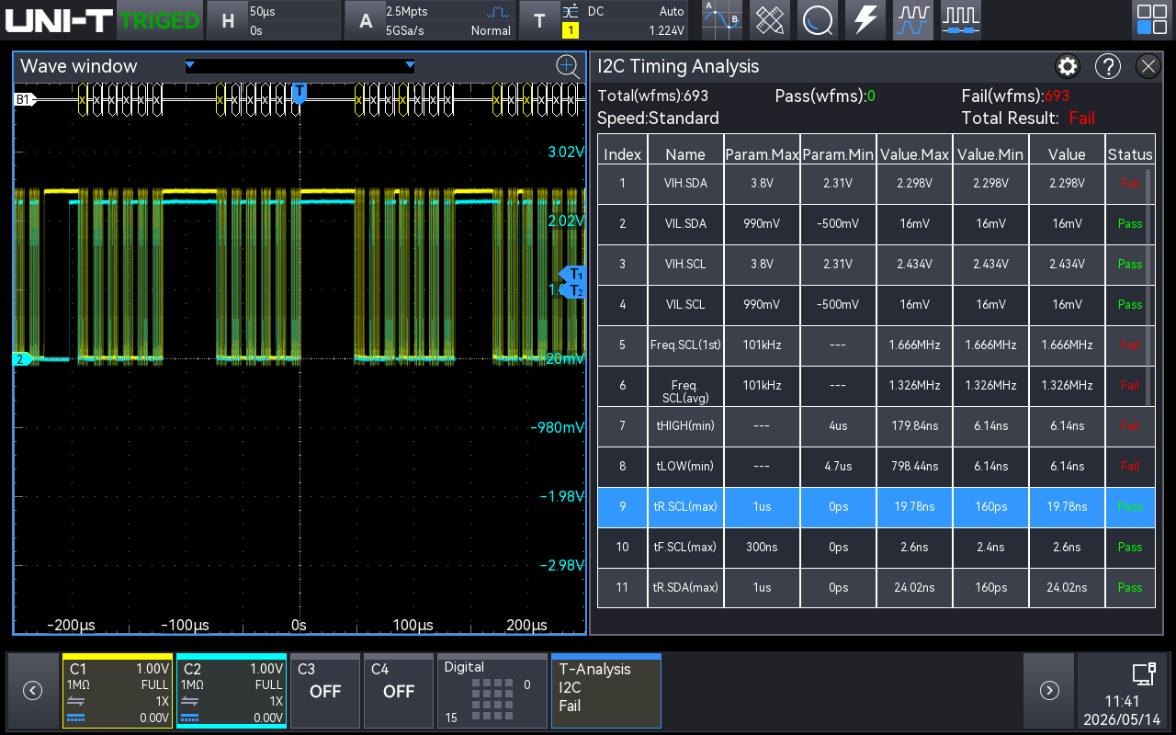

Dedicated Timing Analysis
Analyze timing relationships, setup and hold margins, bus timing behavior and signal synchronization to quickly identify design bottlenecks.
Dedicated Timing Analysis
MODEL
MSO6204HDP
BANDWIDTH：2 GHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：10GSa/s
MAX. MEMORY DEPTH：1 Gpts
WAVEFORM CAPTURE RATE：2.000,000wfms/s
DIGITAL CHANNELS：16
Get a Quote
Add to Compare
MSO6104HDP
BANDWIDTH：1 GHz
ANALOG CHANNELS：4
REAL-TIME SAMPLE RATE：10GSa/s
MAX. MEMORY DEPTH：1 Gpts
WAVEFORM CAPTURE RATE：2.000,000wfms/s
DIGITAL CHANNELS：16
Get a Quote
Add to Compare
Compare
Data Sheet
download MSO6000HDP Series Digital Oscilloscopes - Data Sheet
Version：V1.0
Release Date：2026/8/24
QuickStart Guide
download MSO6000HDP Series Digital Oscilloscopes - QuickStart Guide
Version：V1.0
Release Date：2026/8/24
User Manual
download MSO6000HDP Series Digital Oscilloscopes - User Manual
Version：V1.0
Release Date：2026/8/24
Programming Manual
Service Manual
Performance Verification Guide
OPTIONS
MSO6000HDP-BW1GT2G
MSO6000HDP-BW1GT2G
Description：1GHz Upgrade to 2GHz Bandwidth
Get a Quote
MSO6000HDP-CAN
MSO6000HDP-CAN
Description：Automotive Serial Bus Trigger and Analysis Option (CAN)
Get a Quote
MSO6000HDP-CANFD
MSO6000HDP-CANFD
Description：Automotive Serial Bus Trigger and Analysis Option (CAN-FD)
Get a Quote
MSO6000HDP-LIN
MSO6000HDP-LIN
Description：Automotive Serial Bus Trigger and Analysis Option (LIN)
Get a Quote
MSO6000HDP-FLEX
MSO6000HDP-FLEX
Description：Automotive Serial Bus Trigger and Analysis Option (FlexRay)
Get a Quote
MSO6000HDP-SENT
MSO6000HDP-SENT
Description：Automotive Sensor Bus Trigger and Analysis Option (SENT)
Get a Quote
MSO6000HDP-1WIRE
MSO6000HDP-1WIRE
Description：Automotive Sensor Bus Trigger and Analysis Option (1-WIRE)
Get a Quote
MSO6000HDP-CANXL
MSO6000HDP-CANXL
Description：Automotive Serial Bus Trigger and Analysis Option (CAN-XL)
Get a Quote
MSO6000HDP-AUTO
MSO6000HDP-AUTO
Description：Automotive Serial Bus Trigger and Decode Option (including CAN, CAN-FD, LIN, FlexRay, SENT, 1-WIRE, CAN-XL)
Get a Quote
MSO6000HDP-AUDIO
MSO6000HDP-AUDIO
Description：Audio Serial Bus Trigger and Analysis Option (I2S, LJ, RJ, TDM)
Get a Quote
MSO6000HDP-MIL1553
MSO6000HDP-MIL1553
Description：Aerospace Serial Bus Trigger and Analysis Option (MIL-STD-1553)
Get a Quote
MSO6000HDP-ARINC429
MSO6000HDP-ARINC429
Description：Aerospace Serial Bus Trigger and Analysis Option (ARINC429)
Get a Quote
MSO6000HDP-MANCH
MSO6000HDP-MANCH
Description：Serial Bus Trigger and Analysis Option (Manchester)
Get a Quote
MSO6000HDP-BND
MSO6000HDP-BND
Description：All Serial Bus Trigger and Decode Options (including EMBD, AUTO, Audio, MIL-STD, ARINC, Manchester, 1-WIRE, CAN-XL)
Get a Quote
MSO6000HDP-PWR
MSO6000HDP-PWR
Description：Power Analysis Option
Get a Quote
MSO6000HDP-GEN
MSO6000HDP-GEN
Description：Dual-Channel 50 MHz Arbitrary Waveform Generator Option (including Gen and Bode plot)
Get a Quote
MSO6000HDP-TIMING
MSO6000HDP-TIMING
Description：Timing Analysis Option (including I2C, SPI, CAN, I2S, Reset, Switch, RS-232/422/485/UART, LIN)
Get a Quote
MSO6000HDP-JITTER
MSO6000HDP-JITTER
Description：Advanced Jitter and Eye Diagram Analysis Option
Get a Quote
MSO6000HDP-CTS100
Description：100BASE-Tx Ethernet Compliance Analysis Option
Get a Quote
MSO6000HDP-CTS1000
Description：1000BASE-T Ethernet Compliance Analysis Option
Get a Quote
MSO6000HDP-CTSUSB20
MSO6000HDP-CTSUSB20
Description：USB 2.0 Compliance Analysis Option
Get a Quote
ACCESSORIES
UT-PD1500
download EN
UT-PD1500
Description：1.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe
Get a Quote
UT-PD2500
download EN
UT-PD2500
Description：2.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe
Get a Quote
UT-PA1000
download EN download DE
UT-PA1000
Description：1GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe
Get a Quote
UT-PA2000
download EN download DE
UT-PA2000
Description：2GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe
Get a Quote
UT-P07A
download EN download DE
UT-P07A
Description：Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
Get a Quote
UT-P20
download EN download DE
UT-P20
Description：Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
Get a Quote
UT-P21
download EN download DE
UT-P21
Description：Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
Get a Quote
UT-V23
download EN download DE
UT-V23
Description：High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
Get a Quote
UT-P30
download EN download DE
UT-P30
Description：Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: 800Vpp
Get a Quote
UT-P31
download EN download DE
UT-P31
Description：High voltage differential probe: (100:1/1000:1) Bandwidth: 100MHz differential voltage: 1500Vpp
Get a Quote
UT-P32
download EN download DE
UT-P32
Description：Differential probe:（1000:1/100:1）Bandwidth: 50MHz Input differential voltage: 3000Vpp
Get a Quote
UT-P33
download EN download DE
UT-P33
Description：Differential probe:(1000:1/100:1) Bandwidth: 70/50MHz differential voltage: 14KVpp
Get a Quote
UT-P35
download EN
UT-P35
Description：High voltage Differential probe:1:50，130V(DC+peakAC); 1:500,1300V(DC+peakAC),Bandwidth:50MHz,Precision:2%
Get a Quote
UT-P36
download EN
UT-P36
Description：High voltage Differential probe: 1/200:560(DC+peakAC) 1/2000:5600(DC+peakAC), Bandwidth:100MHz,Precision:2%
Get a Quote
UT-P40
download EN download DE
UT-P40
Description：Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
Get a Quote
UT-P41
download EN download DE
UT-P41
Description：Conversion ratio:100mV/A, 10mV/A, Current range: 50mA~100A Frequency: DC~100kHz, voltage: 600Vrms
Get a Quote
UT-P42
download EN download DE
UT-P42
Description：Conversion ratio:50mV/A, 5mV/A, Current range: 0.4A~200A Frequency: DC~150kHz, voltage: 600Vrms
Get a Quote
UT-P43
download EN
UT-P43
Description：Current range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
Get a Quote
UT-P44
download EN
UT-P44
Description：Current range: 40A AC/DC, Frequency: DC~50MHz,Conversion ratio:50mV/A
Get a Quote
UT-P4030D
download EN
UT-P4030D
Description：30A/ DC～100MHz High frequency current probe Range：30A/5A Freq range：DC~100MHz Rise time：≤3.5ns
Get a Quote
UT-P4100A
download EN
UT-P4100A
Description：100A/600kHz Low frequency current probe Range：100A/10A Freq range：DC~600kHz Rise time：≤583ns
Get a Quote
UT-P4100B
download EN
UT-P4100B
Description：100A/2MHz Low frequency current probe Range：100A/10A Freq range：DC~2MHz Rise time：≤175ns
Get a Quote
UT-P4150
download EN
UT-P4150
Description：150A/ DC-12MHz High frequency current probe Range：150A/30A Freq range：DC~12MHz Rise time：≤29ns
Get a Quote
UT-P4500
download EN
UT-P4500
Description：500A/ DC～5MHz High frequency current probe Range：500A/75A Freq range：DC~5MHz Rise time：≤70ns
Get a Quote
download EN
UT-PR2060
Description：1GHz bandwidth, ±60V DC, AC/DC coupling mode, ±1% accuracy Low-Noise Power Rail Probe
Get a Quote
UT-P6150
UT-P6150
Description：Low-Impedance Passive Probe (1.5GHz)
Get a Quote
UT-M15
UT-M15
Description：Logic analyzer probe:16CH
Get a Quote
UT-USB20-SQ-HD
download EN
UT-USB20-SQ-HD
Description：USB 2.0 Test Fixture
Get a Quote
UT-ISOT
download EN download DE
UT-ISOT
Description：Isolation transfomer for Bode plot application (Hardware)
Get a Quote
UT-M13X
download EN
UT-M13X
Description：Oscilloscope Signal Protocol Demonstration Board
Get a Quote
UT-GBE-FT
download EN
UT-GBE-FT
Description：100M/1000M ETH Test Fixture
Get a Quote
