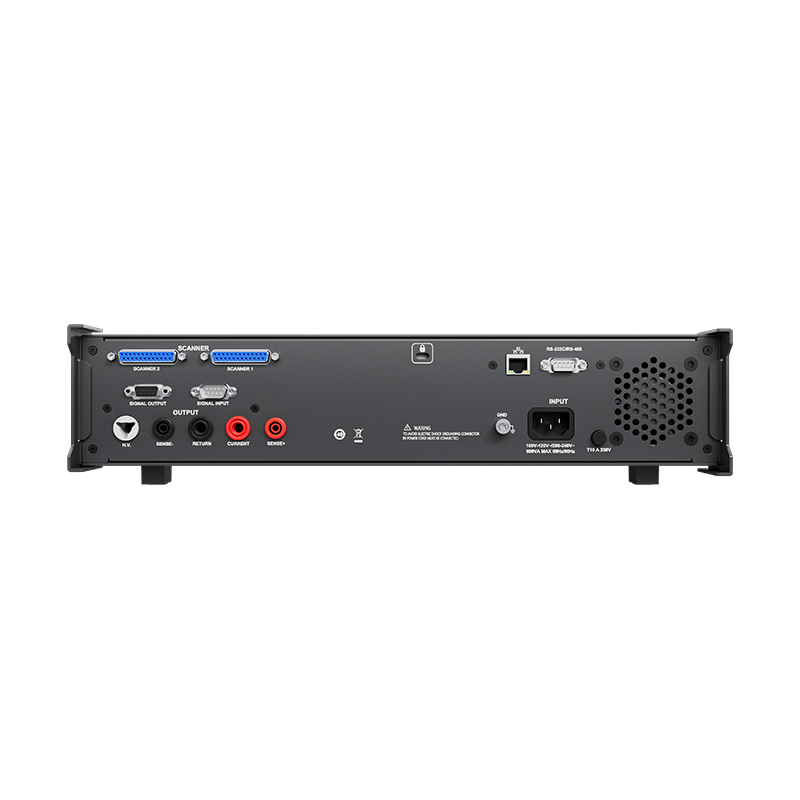

UT5400 Series
UT5400 series comprehensive safety testers integrate five key test functions: AC Withstand Voltage (ACW), DC Withstand Voltage (DCW), Insulation Resistance (IR), AC Ground Bond (AC GB), and Ground Continuity (GC). The series provides a high-test capacity of 500 VA, supporting a maximum AC output of 5 kV / 100 mA with 1% voltage accuracy, meeting the requirements of high-power withstand voltage testing.
ACW, DCW, IR, GB, GC, OSC
Mode
5kV/100mA
ACW
6kV/10mA
DCW
6kV/50GΩ
IR
40A/600mΩ/8V
GB
RS232, RS485, USB Host, LAN, Handler
Connectivity
5'' TFT LCD(touch screen)
Display
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

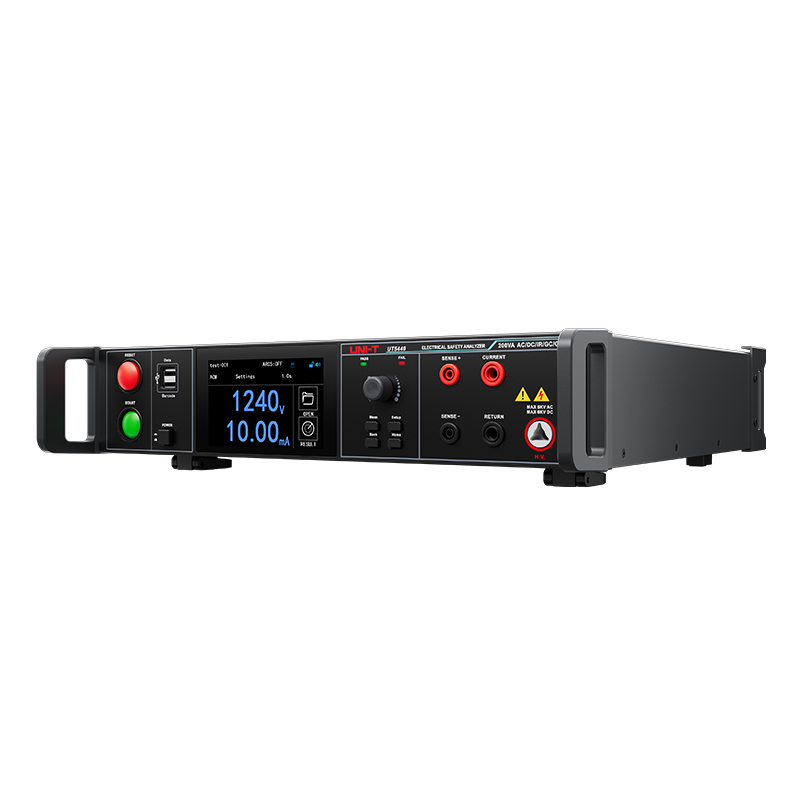

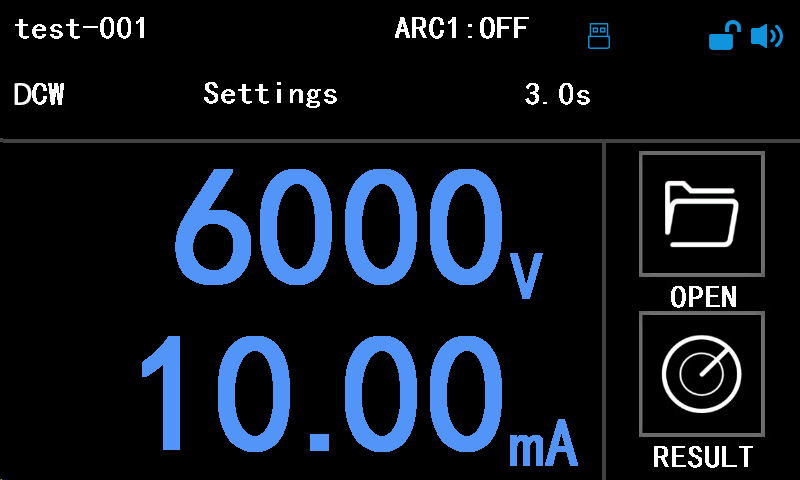

All in One Electrical Safety Analyzer
-AC Withstand Voltage (ACW) 5 kV/100 mA
-DC Withstand Voltage (DCW) 6 kV/10 mA

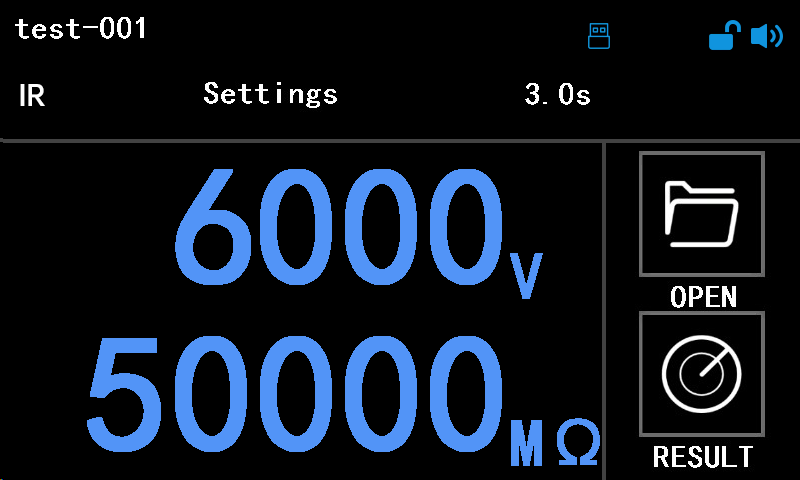

-Insulation Resistance (IR) 6 kV/50 GΩ
-Ground Bond (GB) 40 A/600 mΩ/8 V
-Ground continuity (GC) 1 mΩ~10 kΩ
-Open/Short/Circuit check (OSC)

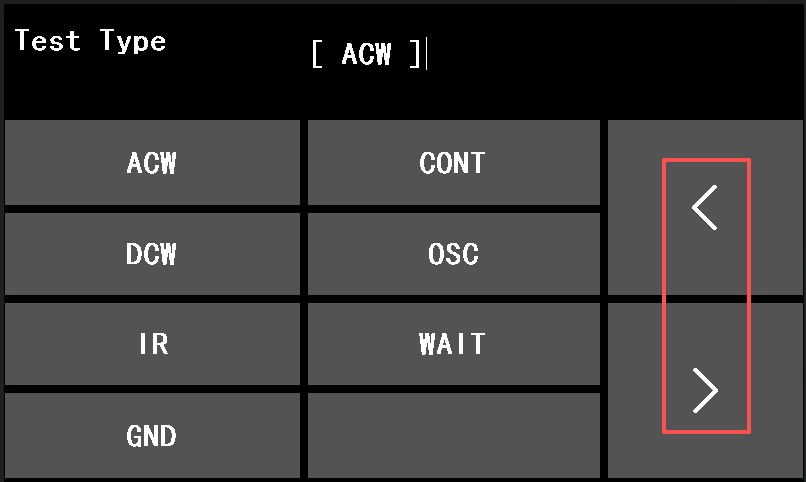

All in One Electrical Safety Analyzer
All in One Electrical Safety Analyzer
All in One Electrical Safety Analyzer
All in One Electrical Safety Analyzer

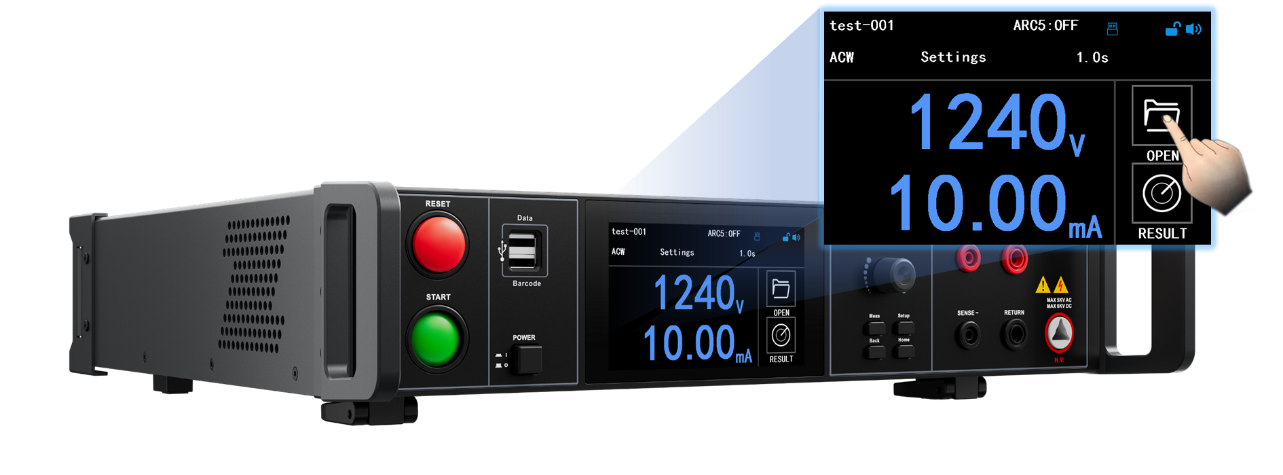

Convenient and Efficient User Interface
-5-inch capacitive touchscreen
-Front and rear-panel dual outputs interface
-2U standard rack height
-Extensive interfaces: RS232/485, USB Host, LAN, Handler, Barcode
-Standard protocols: SCPI, MODBUS
Convenient and Efficient User Interface

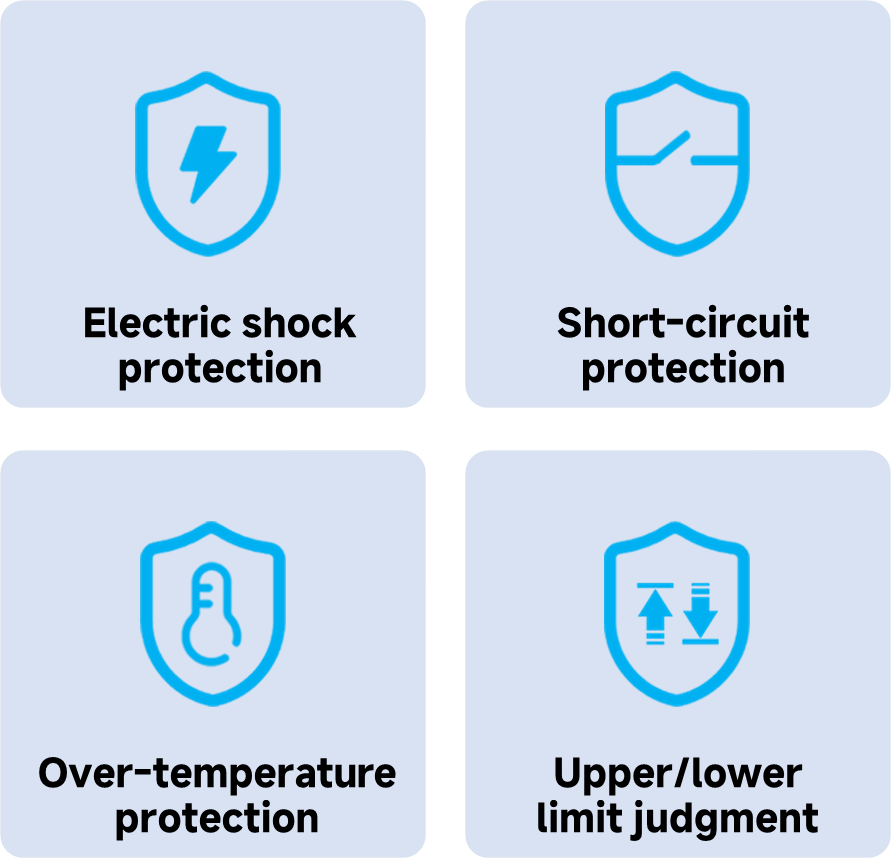

Multiple Safety Protections
Designed with multiple layers of safety protection, the instrument includes electric shock protection, short-circuit protection, upper/lower limit judgment, and over-temperature protection to safeguard both operators and equipment.
Multiple Safety Protections
High Precision, High Resolution, Rapid Judgment

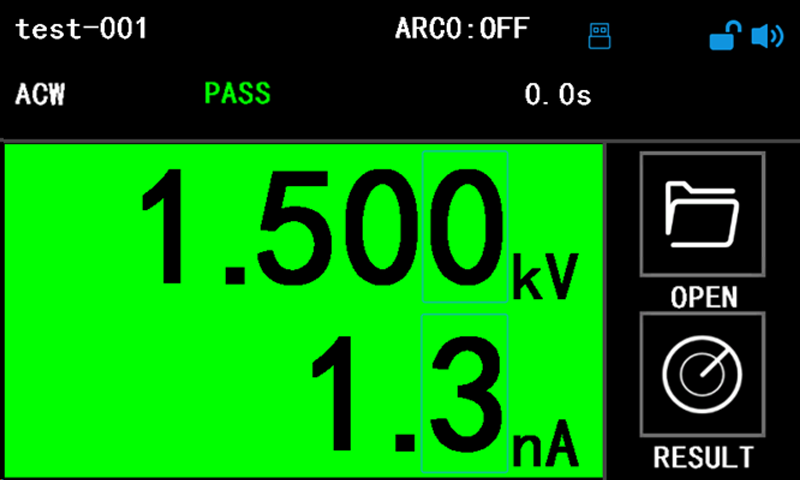

Voltage and current accuracy reaches up to 1%, with resolution as fine as 1 V/0.1 nA.
Test time is only 0.1 s, enabling rapid judgment.
High Precision, High Resolution, Rapid Judgment
Continuous Output

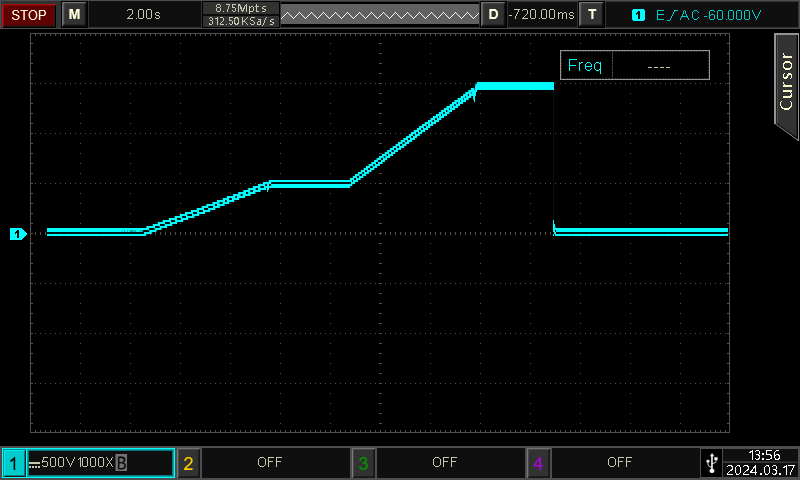

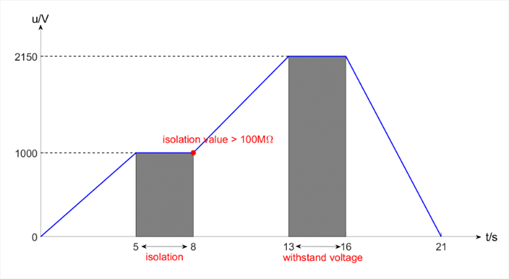

Unlike conventional testers where voltage drops, continuous output enables step-by-step boosting and cyclic aging tests to meet advanced safety requirements.
Continuous Output
Continuous Output
Wiring Reliability Detection

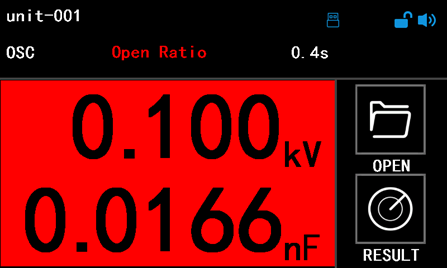

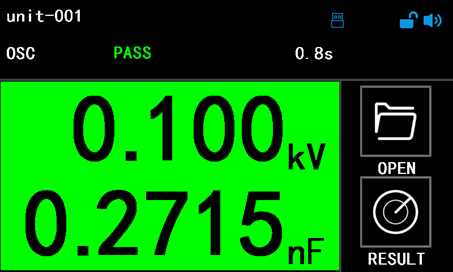

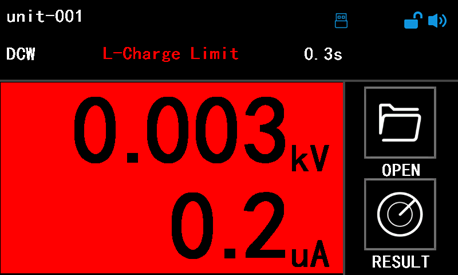

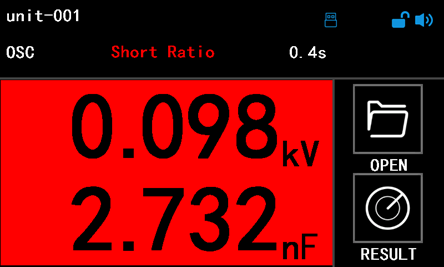

The UT5400 series features dual safeguards: OSC detection spots wiring faults, while the charging lower limit function simultaneously verifies lead contact during voltage tests, boosting efficiency and reliability.
Wiring Reliability Detection
Wiring Reliability Detection
Wiring Reliability Detection
Wiring Reliability Detection
Level 9 Arc Detection

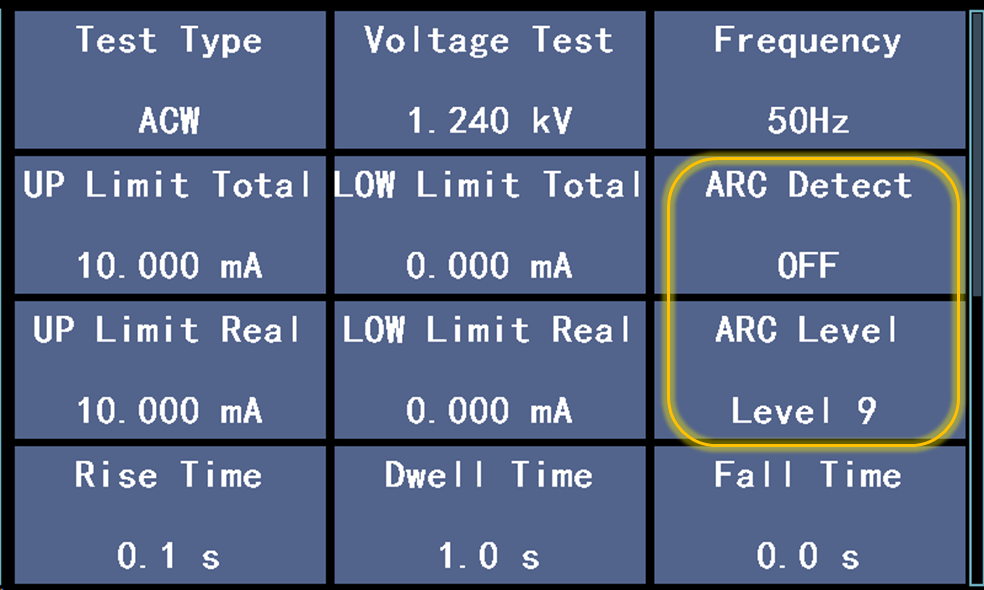

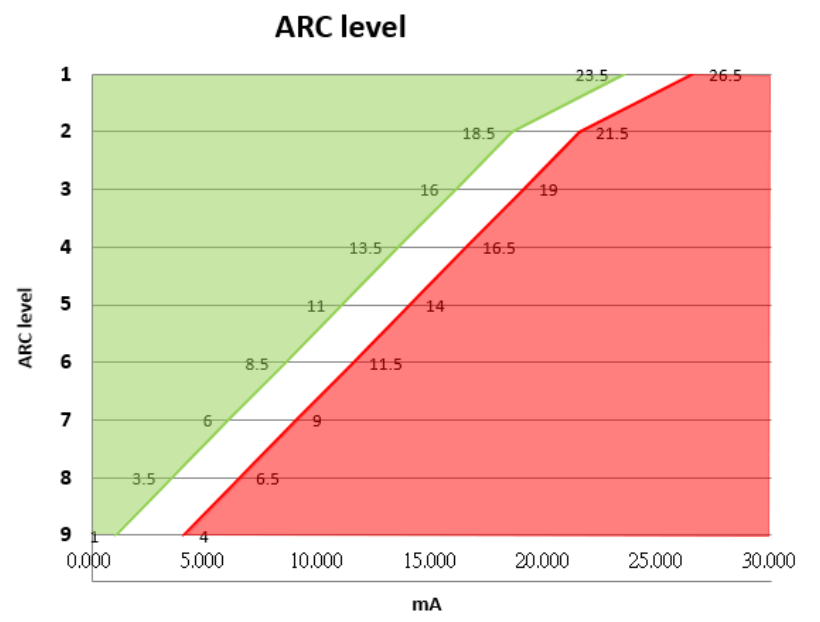

The adjustable Arc Detection (1-9 levels, with off option) provides unmatched precision in identifying hazardous leakage currents. This enhances test reliability and offers crucial flexibility for diverse safety compliance applications.
Level 9 Arc Detection
Level 9 Arc Detection
