UPO7000L Series
UPO7000L Series

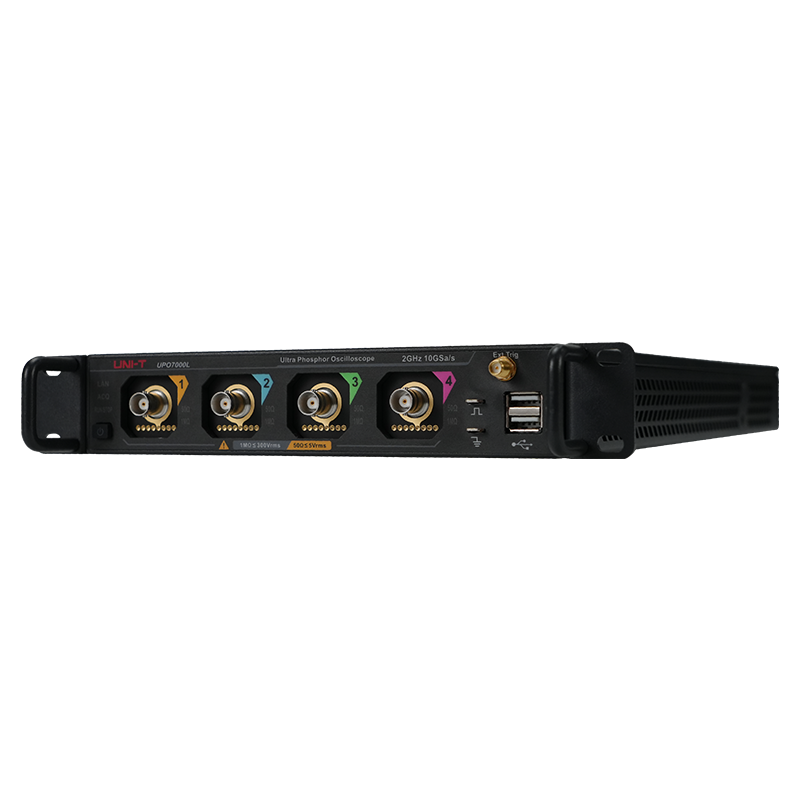

UPO7000L series digital phosphor oscilloscopes feature a compact, rack-mounted structural design with a slim and lightweight body. 1U height is designed for multi-machine system integration, high-density rack setups, and remote system operations, making it ideal for various application scenarios. The system supports multi-unit synchronous triggering and can be expanded to accommodate up to 128 oscilloscopes. Each unit integrates 4 analog channels, 1 external trigger channel, and 1 function/arbitrary waveform generator channel. With a flat body design and machine feet pads, the oscilloscopes are easy to stack and organize. leveraging the 7000 series platform, it ensures a smooth transition for users familiar with 7000X operation. Additionally, an external touch display can be connected, enabling a responsive touch experience similar to that of the 7000X series.
1GHz, 2GHz
BANDWIDTH
4
ANALOG CHANNELS
10GSa/s
REAL-TIME SAMPLE RATE
1Gpts
MAX. MEMORY DEPTH
2.000,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

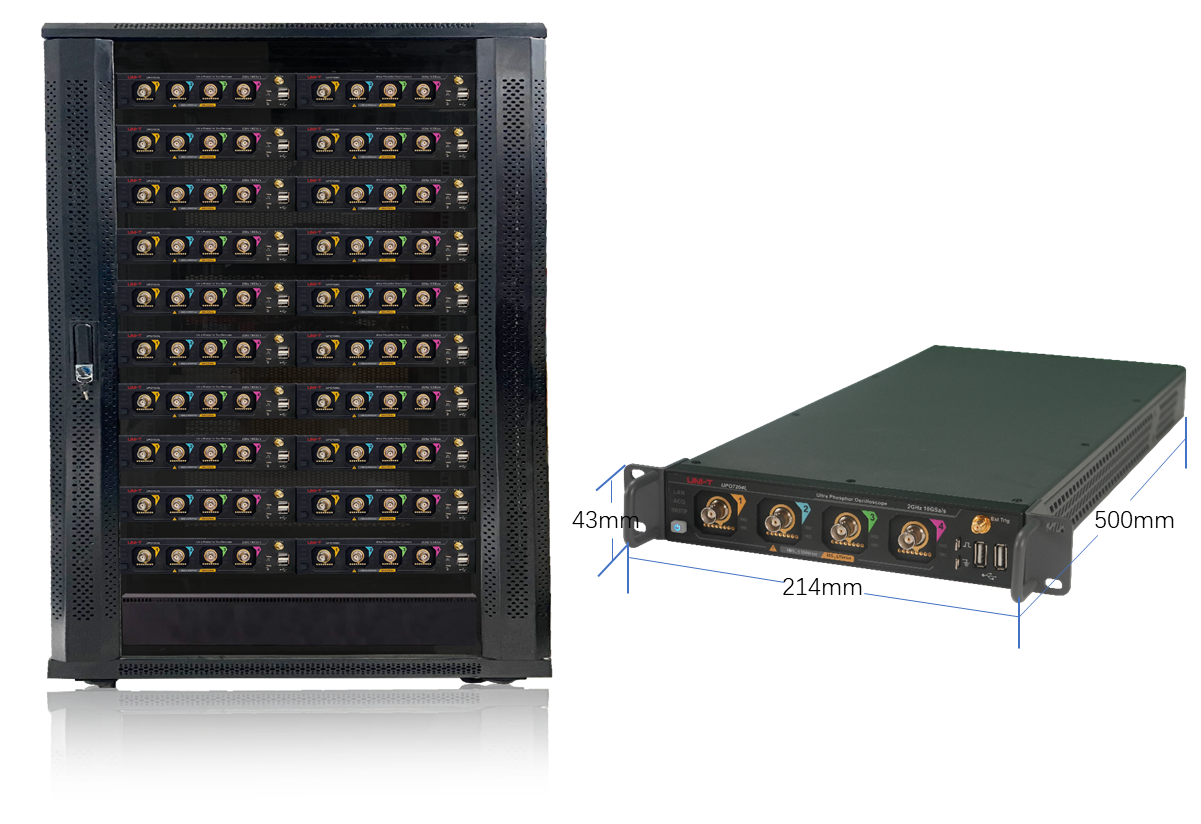

Compact Rack-Mounted Design
Compact Rack-Mounted Design for High-Density Integration: 214 mm (half-rack width) × 43 mm (1U height) × 500 mm (depth)
Compact Rack-Mounted Design

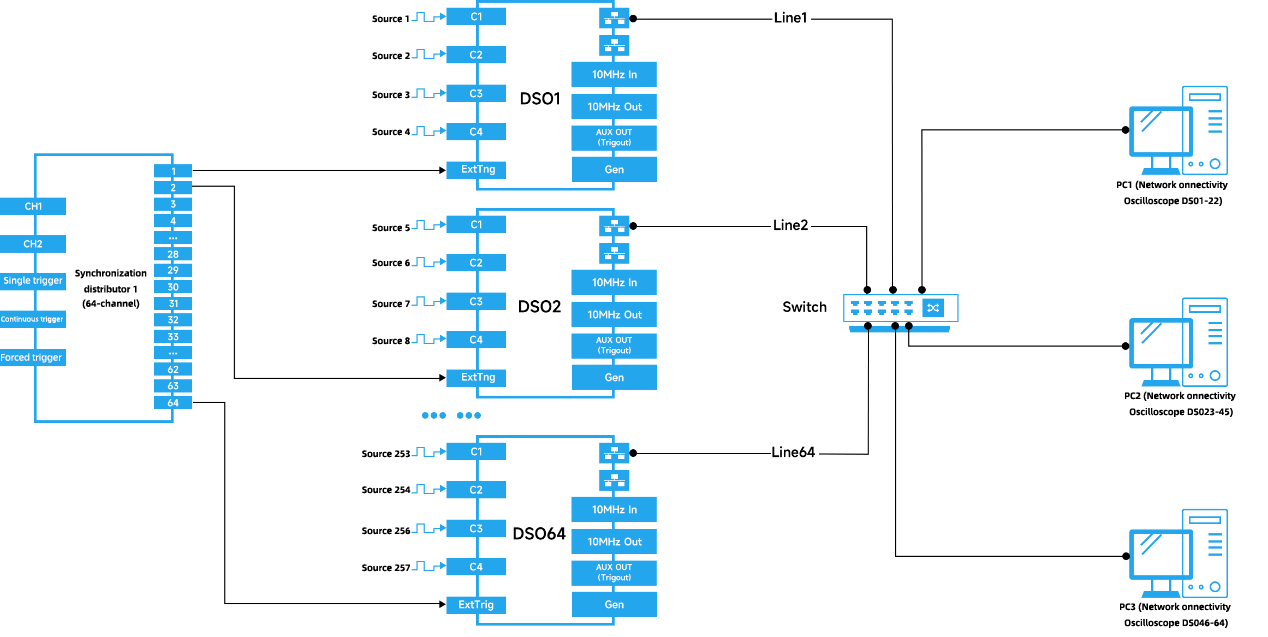

Multi-Machine Synchronization Scheme
-Supports clock synchronization
-Supports expansion to 512 channels
-Provide synchronization machine
-Gigabit Ethernet communication interface
-External trigger jitter ≤200ps rms
Multi-Machine Synchronization Scheme

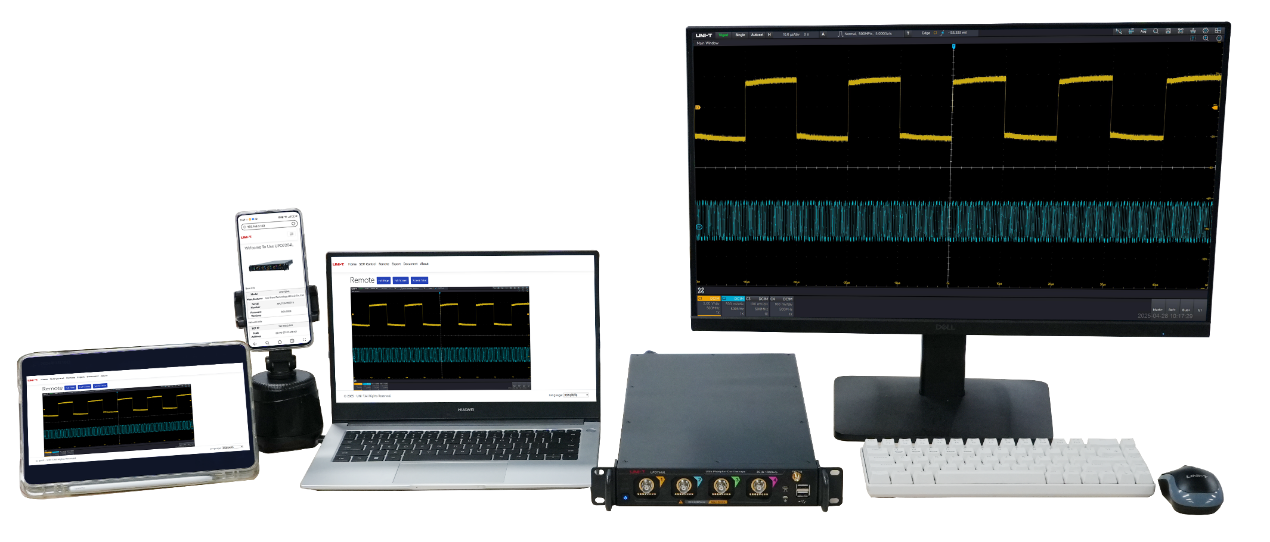

Flexible Near-end/Far-end Platform
-Supports connection to external displays and control devices.
-WebServer remote control: Enables oscilloscope access and control via mobile devices or PCs.
Flexible Near-end/Far-end Platform

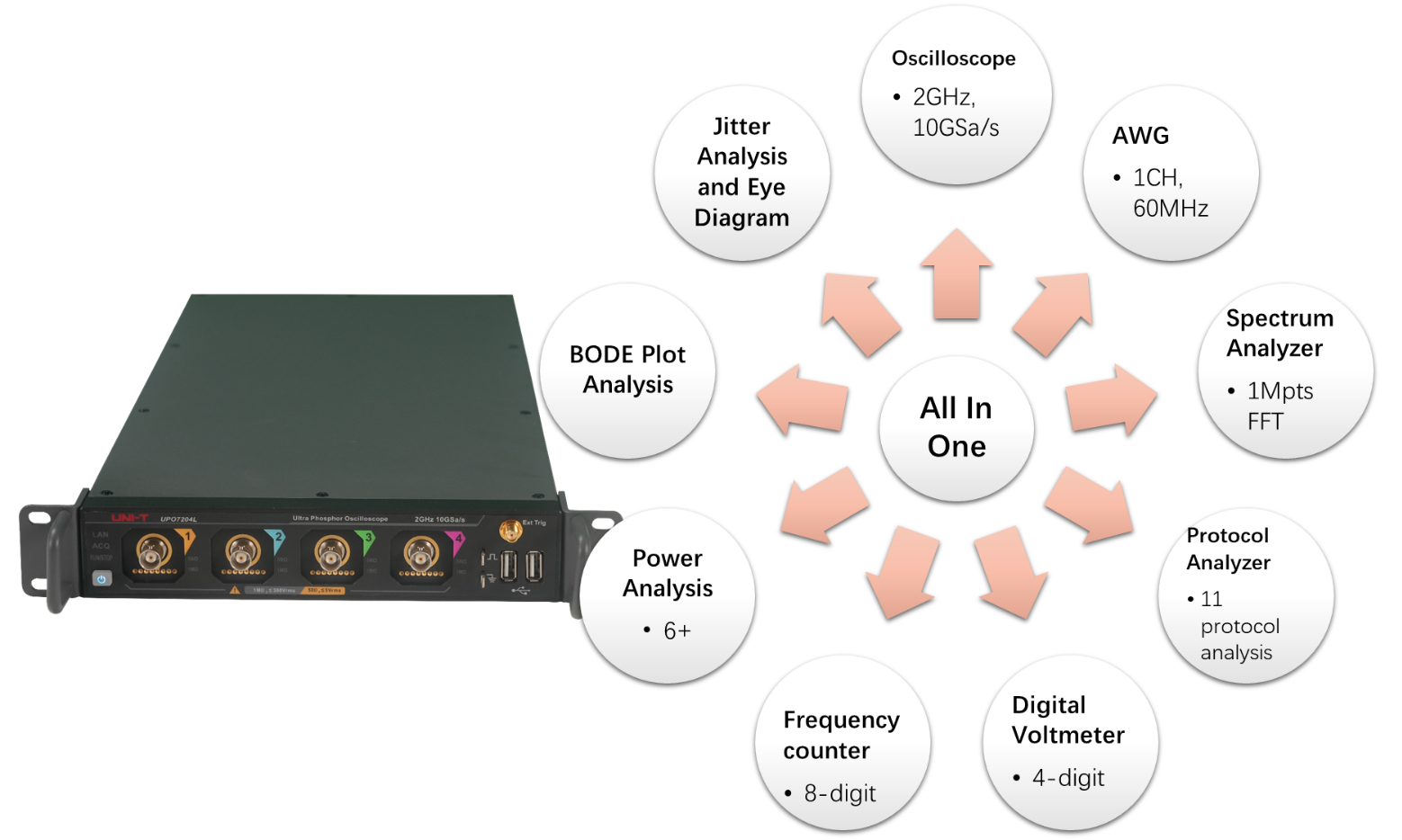

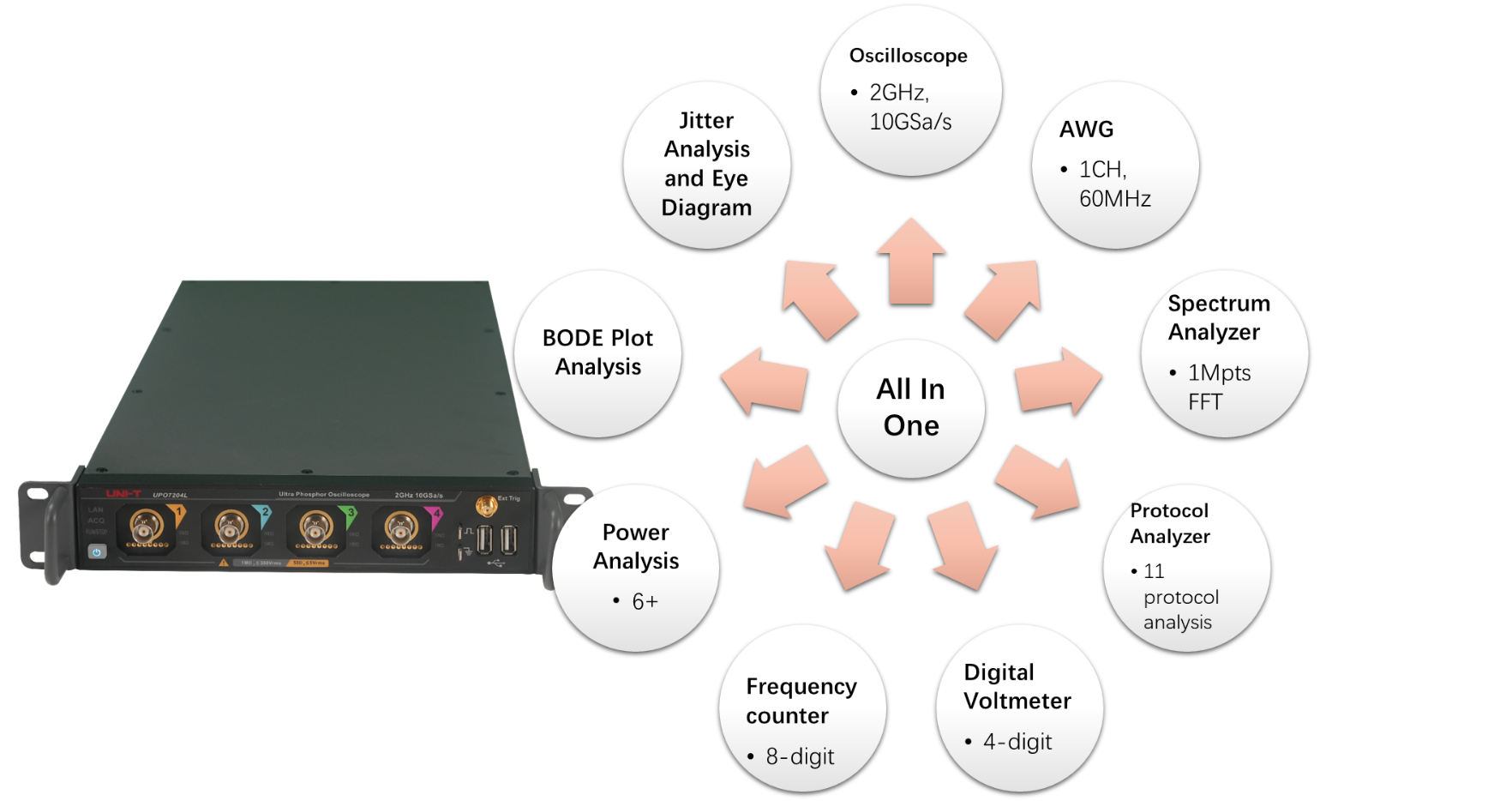

All-in-one Comprehensive Signal Measurement Instrument
All-in-one Comprehensive Signal Measurement Instrument

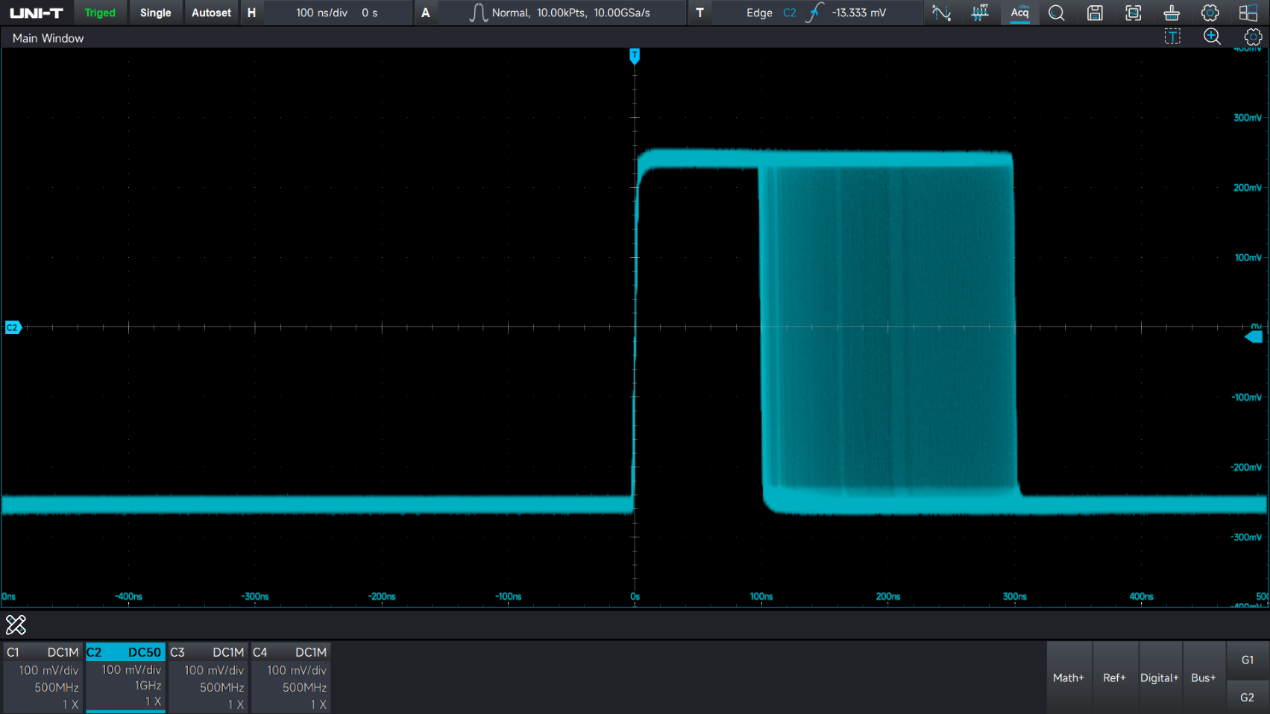

UltraAcq® Technology
- Upgrade real-time waveform capture rate to over 600,000 wfms/s
-2,000,000wfms/s in sequence mode
UltraAcq® Technology

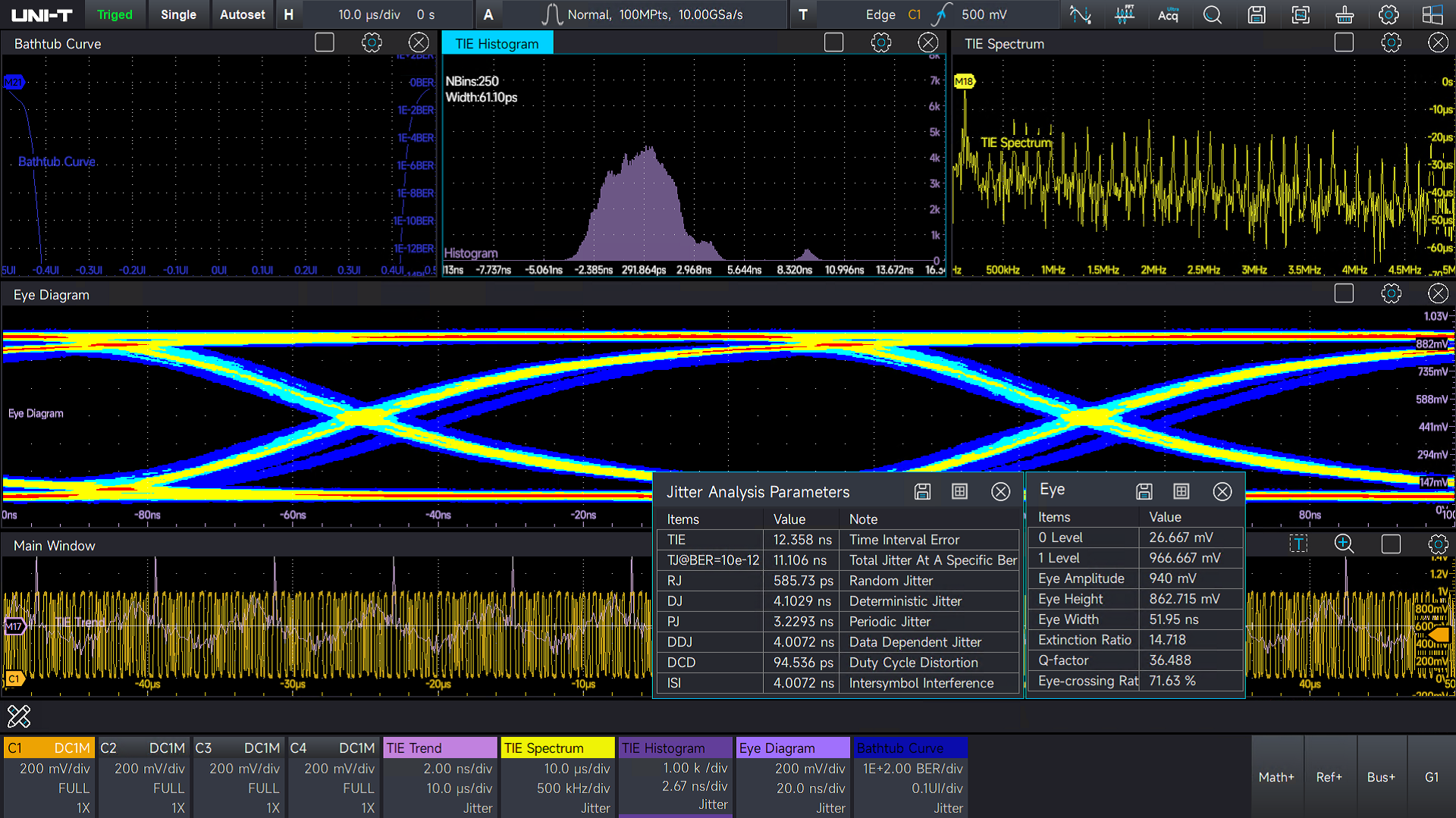

Jitter and Eye Diagram Analysis
Efficient measurement of clock and serial bus
-TIE, TJ, DJ, RJ, PJ, DDJ, DCD
-TIE Trend Chart, TIE Spectrogram
-TIE Histogram
-Bath Curve
Jitter and Eye Diagram Analysis
MATLAB Embedded Programming
Support MATLAB embedded programming ,
Operational results are rendered directly to the oscilloscope window
MATLAB Embedded Programming
Mathematical Operation

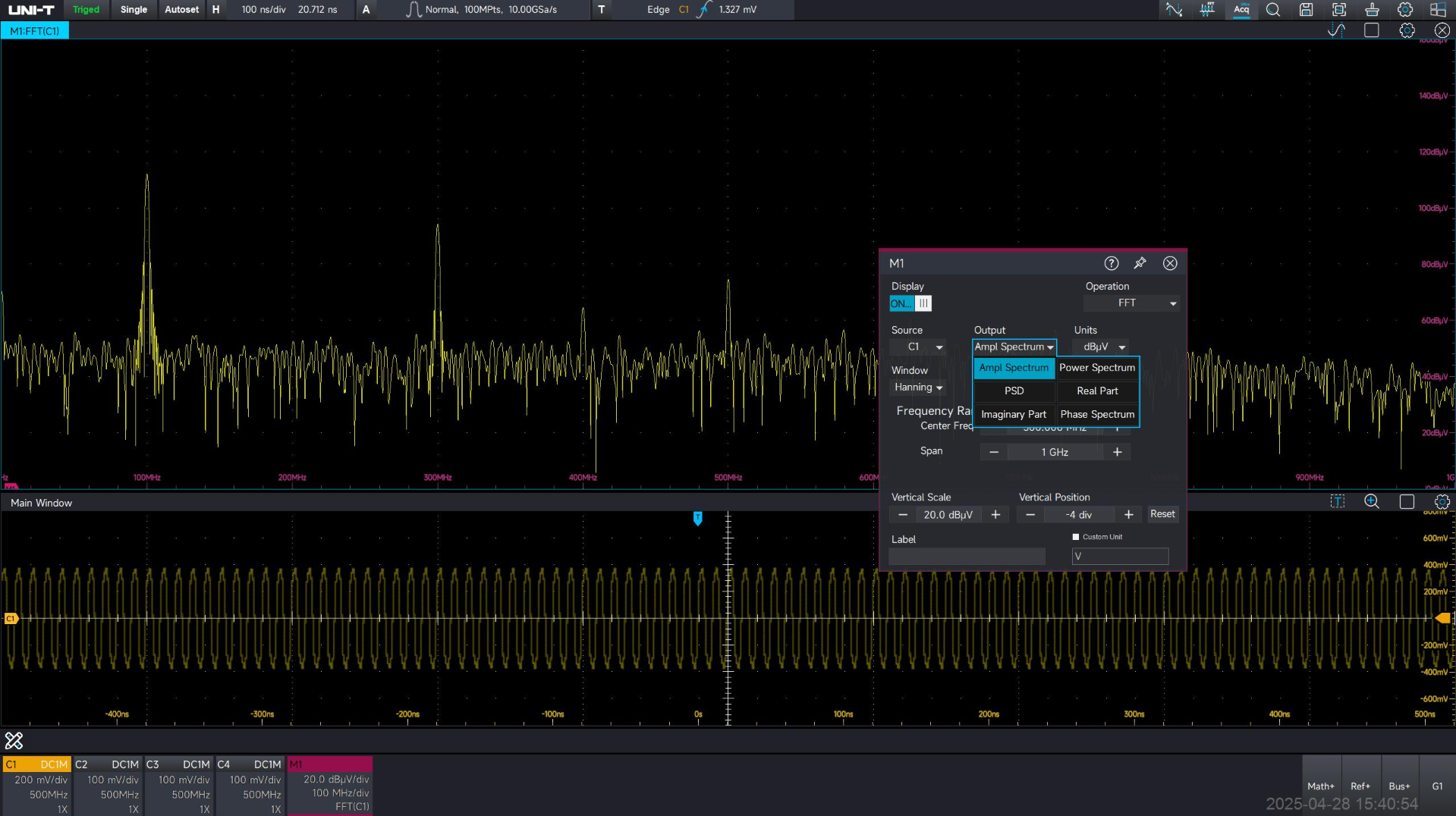

-Enhanced FFT: Provides the spectrum view of time-domain, frequency-domain, and modulation-domain

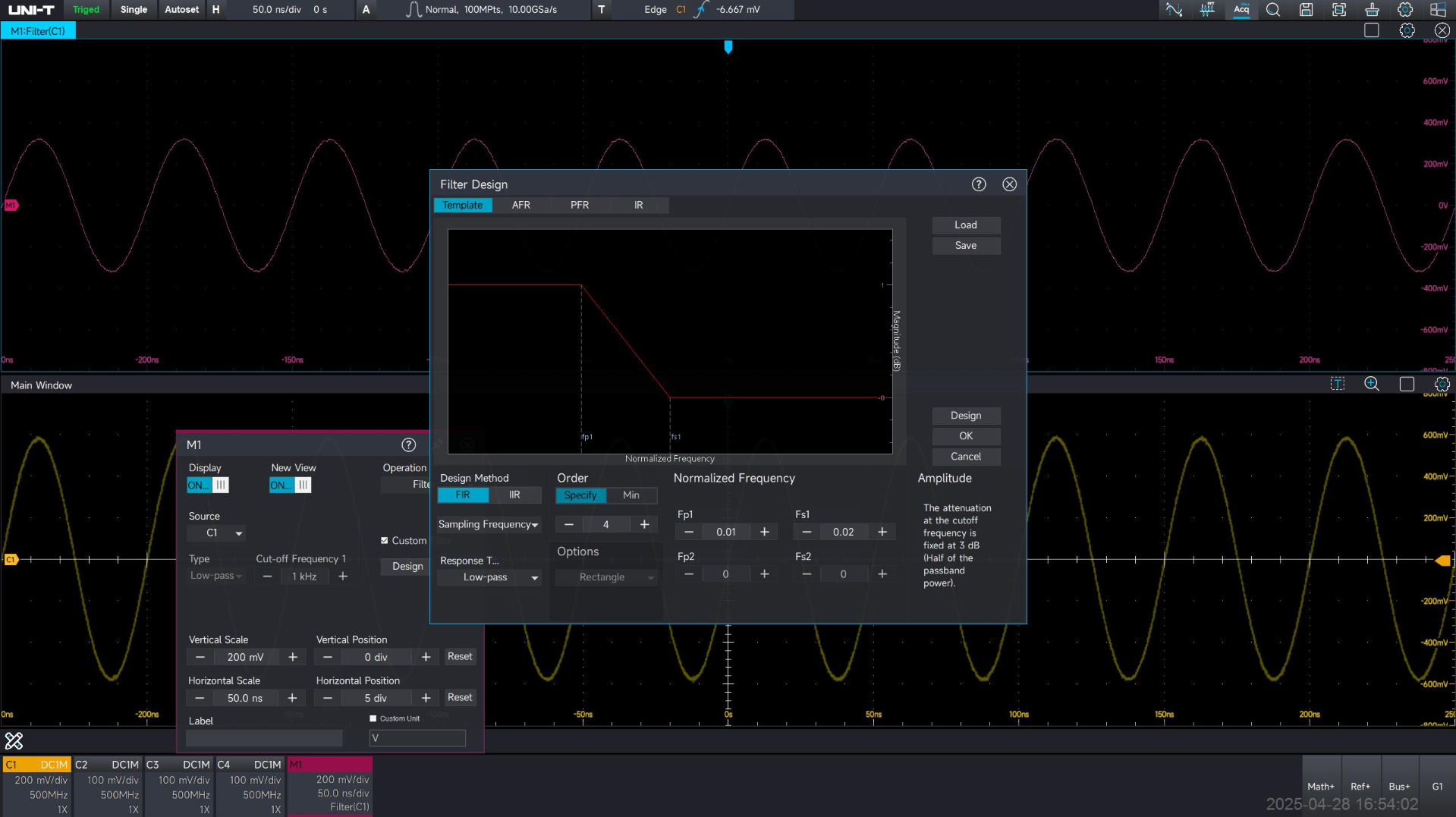

-Filter: High pass, low pass, band pass, and band limit

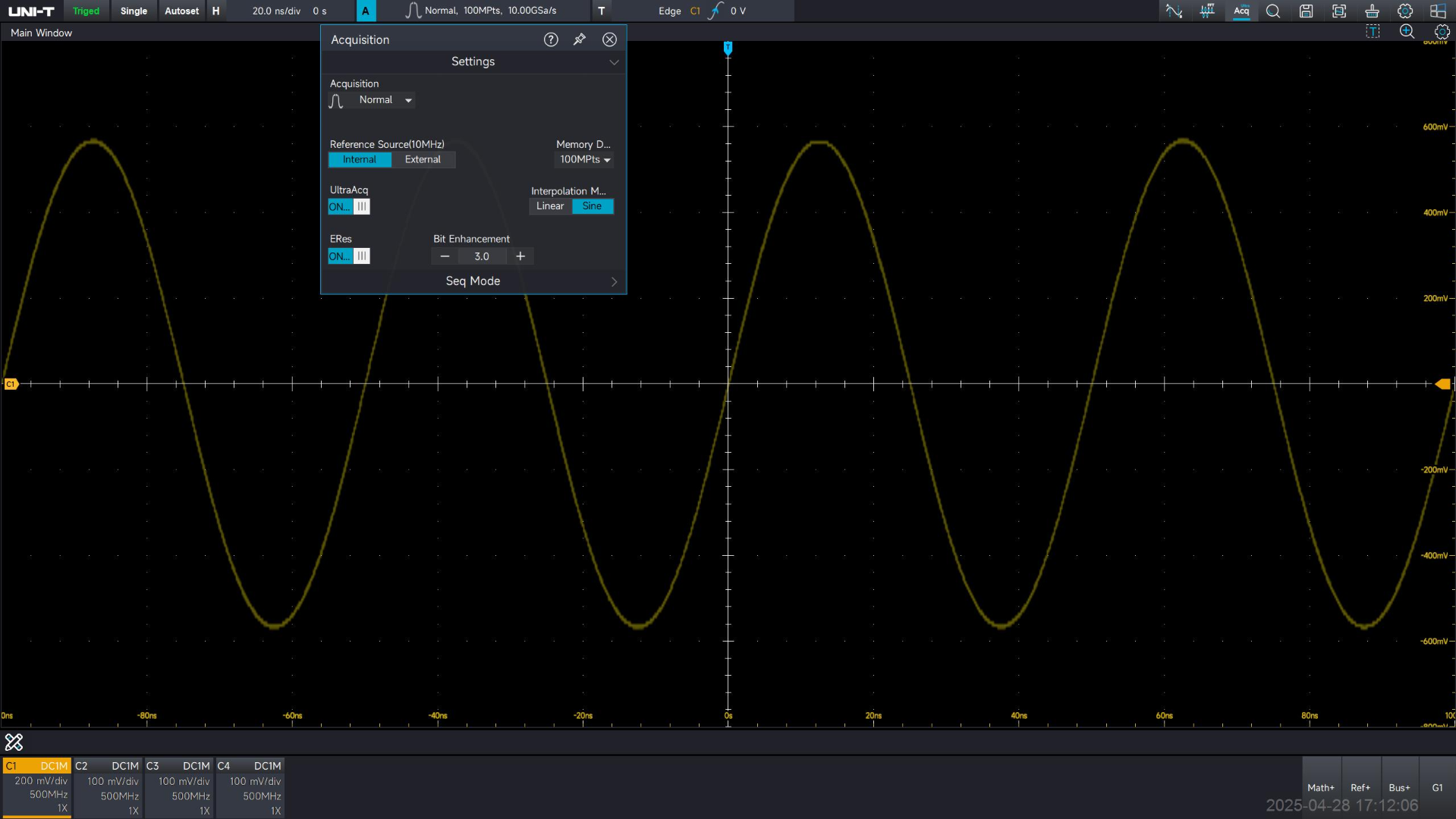

-Enhanced resolution mode: maximum resolution enhancement of 3-bit.
-User-defined function operation
-Embedded MATLAB
Mathematical Operation
Mathematical Operation
Mathematical Operation
Mathematical Operation
MODEL
UPO7204L
BANDWIDTH:2GHz
ANALOG CHANNELS:4
REAL-TIME SAMPLE RATE:10GSa/s
MAX. MEMORY DEPTH:1Gpts
WAVEFORM CAPTURE RATE:2,000,000wfms/s
DIGITAL CHANNELS:/
UPO7104L
BANDWIDTH:1GHz
ANALOG CHANNELS:4
REAL-TIME SAMPLE RATE:10GSa/s
MAX. MEMORY DEPTH:1Gpts
WAVEFORM CAPTURE RATE:2,000,000wfms/s
DIGITAL CHANNELS:/
Data Sheet
download UPO7000L Series Digital Oscilloscopes - Data Sheet
Version:V2.1
Release Date:2025/5/29
QuickStart Guide
download UPO7000L Series Digital Oscilloscopes - QuickStart Guide
Version:V2.1
Release Date:2025/5/29
User Manual
download UPO7000L Series Digital Oscilloscopes - User Manual
Version:V2.1
Release Date:2025/5/29
Programming Manual
download UPO7000L Series Digital Oscilloscopes-Programming Manual
Version:V2.1
Release Date:2025/5/29
Service Manual
Performance Verification Guide
OPTIONS
ACCESSORIES
UT-P20
download EN download DE
UT-P20
Description:Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
UT-P07
download EN download DE
UT-P07
Description:Probe factor:(10:1) Bandwidth: 500MHz.voltage:300Vpp
UT-P21
download EN download DE
UT-P21
Description:Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
UT-P30
download EN download DE
UT-P30
Description:Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: 800Vpp
UT-P31
download EN download DE
UT-P31
Description:High voltage differential probe: (100:1/1000:1) Bandwidth: 100MHz differential voltage: 1500Vpp
UT-P32
download EN download DE
UT-P32
Description:Differential probe:(1000:1/100:1)Bandwidth: 50MHz Input differential voltage: 3000Vpp
UT-P33
download EN download DE
UT-P33
Description:Differential probe:(1000:1/100:1) Bandwidth: 70/50MHz differential voltage: 14KVpp
UT-V23
download EN download DE
UT-V23
Description:High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
UT-P40
download EN download DE
UT-P40
Description:Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
UT-P41
download EN download DE
UT-P41
Description:Conversion ratio:100mV/A, 10mV/A, Current range: 50mA~100A Frequency: DC~100kHz, voltage: 600Vrms
UT-P43
download EN
UT-P43
Description:Current range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
UT-P44
download EN
UT-P44
Description:Current range: 40A AC/DC, Frequency: DC~50MHz,Conversion ratio:50mV/A
UT-P42
download EN download DE
UT-P42
Description:Conversion ratio:50mV/A, 5mV/A, Current range: 0.4A~200A Frequency: DC~150kHz, voltage: 600Vrms
UT-P35
download EN
UT-P35
Description:High voltage Differential probe:1:50,130V(DC+peakAC); 1:500,1300V(DC+peakAC),Bandwidth:50MHz,Precision:2%
UT-P36
download EN
UT-P36
Description:High voltage Differential probe: 1/200:560(DC+peakAC) 1/2000:5600(DC+peakAC), Bandwidth:100MHz,Precision:2%
UT-ISOT
download EN download DE
UT-ISOT
Description:Isolation transfomer for Bode plot application (Hardware)
UT-P4100A
download EN
UT-P4100A
Description:100A/600kHz Low frequency current probe Range:100A/10A Freq range:DC~600kHz Rise time:≤583ns
UT-P4030D
download EN
UT-P4030D
Description:30A/ DC~100MHz High frequency current probe Range:30A/5A Freq range:DC~100MHz Rise time:≤3.5ns
UT-P07A
download EN download DE
UT-P07A
Description:Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
UT-P4150
download EN
UT-P4150
Description:150A/ DC-12MHz High frequency current probe Range:150A/30A Freq range:DC~12MHz Rise time:≤29ns
UT-P4500
download EN
UT-P4500
Description:500A/ DC~5MHz High frequency current probe Range:500A/75A Freq range:DC~5MHz Rise time:≤70ns
UT-P4100B
download EN
UT-P4100B
Description:100A/2MHz Low frequency current probe Range:100A/10A Freq range:DC~2MHz Rise time:≤175ns
UT-PA2000
download EN
UT-PA2000
Description:Active single ended probe (2GHz; 10X)
UT-M13X
download EN
UT-M13X
Description:Oscilloscope Signal Protocol Demonstration Board
