UDP6720 Series

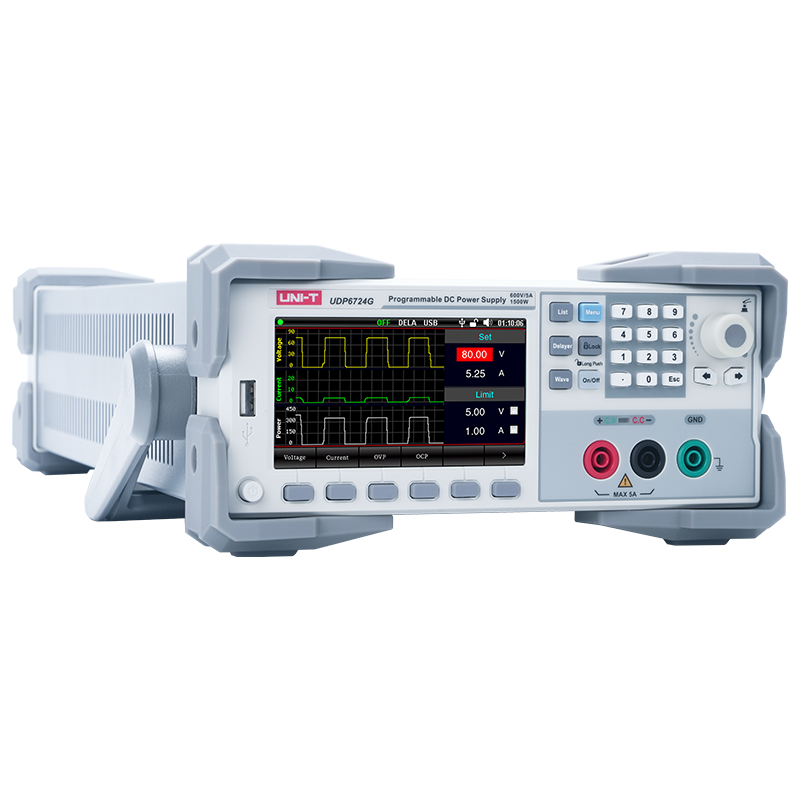

The UDP6720 series programmable DC power supply is a versatile switching power supply offering a wide operating range. This model is compact, lightweight, and highly functional, featuring a 4.3-inch LCD screen for intuitive parameter display and quick operation. It is suitable for use in automated test systems, product development and debugging, laboratories, teaching experiments, and mobile phone or home appliance repair.
Switching
TYPE
1
CHANNELS
1500 W
TOTAL POWER
0 - 150 V
OUTPUT VOLTAGE
0 - 40 A
OUTPUT CURRENT
10 mV,10 mA
RESOLUTION
<0.01%+20 mV <0.1%+10 mA
SETTING ACCURACY
RS232, RS485, USB Host, USB Device, LAN
CONNECTIVITY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS
List function
The list mode provides a sequence output of up to 200 steps to suit various output needs.
List function
Delayer function
The delayer mode provides a sequence output of up to 200 steps to realize automatic multiple power-on/off operations.
Delayer function
The output curve display
Intuitive voltage, current, power waveform display
The output curve display
Multiple interfaces & Dual protocol
Support SCPI, MODBUS dual protocol With RS232, RS 485, LAN, USB multiple interconnection ports
Multiple interfaces & Dual protocol
Perfect file management
100 configuration files, 40 delayer files and 40 list files can be saved
Perfect file management
Perfect file management
Perfect file management
4.3 inch full color LCD
Comprehensive information display, color separation to display different content, more convenient to use s
4.3 inch full color LCD
MODEL
UDP6724B
TYPE：Switching
CHANNELS：1
TOTAL POWER：1500 W
OUTPUT VOLTAGE：0 - 150 V
OUTPUT CURRENT：0 - 20 A
RESOLUTION：100 mV,10 mA
SETTING ACCURACY：<0.03%+20 mV <0.1%+20 mA
CONNECTIVITY：RS232, RS485, USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP6723B
TYPE：Switching
CHANNELS：1
TOTAL POWER：850 W
OUTPUT VOLTAGE：0 - 150V
OUTPUT CURRENT：0 - 20 A
RESOLUTION：100 mV,10 mA
SETTING ACCURACY：<0.03%+20 mV <0.1%+20 mA
CONNECTIVITY：RS232, RS485, USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP6724
TYPE：Switching
CHANNELS：1
TOTAL POWER：1500 W
OUTPUT VOLTAGE：0 - 80 V
OUTPUT CURRENT：0 - 40 A
RESOLUTION：10 mV,10 mA
SETTING ACCURACY：<0.03%+20 mV <0.1%+40 mA
CONNECTIVITY：RS232, RS485, USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP6723
TYPE：Switching
CHANNELS：1
TOTAL POWER：850 W
OUTPUT VOLTAGE：0 - 80 V
OUTPUT CURRENT：0 - 40 A
RESOLUTION：10 mV,10 mA
SETTING ACCURACY：<0.03%+20 mV <0.1%+40 mA
CONNECTIVITY：RS232, RS485, USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP6722
TYPE：Switching
CHANNELS：1
TOTAL POWER：400 W
OUTPUT VOLTAGE：0 - 80 V
OUTPUT CURRENT：0 - 20 A
RESOLUTION：10 mV,10 mA
SETTING ACCURACY：<0.01%+20 mV <0.1%+10 mA
CONNECTIVITY：RS232, RS485, USB Host, USB Device, LAN
Get a Quote
Add to Compare
Compare
Data Sheet
download UDP6720 Series DC Power Supplies - Data Sheet
Version：V1.2
Release Date：2025/3/24
QuickStart Guide
download UDP6720 Series DC Power Supplies - QuickStart Guide
Version：V1.1
Release Date：2025/3/24
User Manual
download UDP6720 Series DC Power Supplies - User Manual
Version：V1.2
Release Date：2025/3/24
Programming Manual
download UDP6720 Series DC Power Supplies - Programming Manual
Version：V1.2
Release Date：2025/3/24
Service Manual
Performance Verification Guide
OPTIONS
ACCESSORIES
UT-L0615-OO
UT-L0615-OO
Description：Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black
Get a Quote
UT-L0110-BU
UT-L0110-BU
Description：Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black
Get a Quote
UT-L0312-UU
UT-L0312-UU
Description：Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
Get a Quote
UT-L0320-UU
UT-L0320-UU
Description：Double U-type terminal 30A/2m power supply/electronic load test wire；Length: 2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
Get a Quote
UT-L0110-BB
UT-L0110-BB
Description：Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black
Get a Quote
UTE-L16C
UTE-L16C
Description：1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black
Get a Quote
