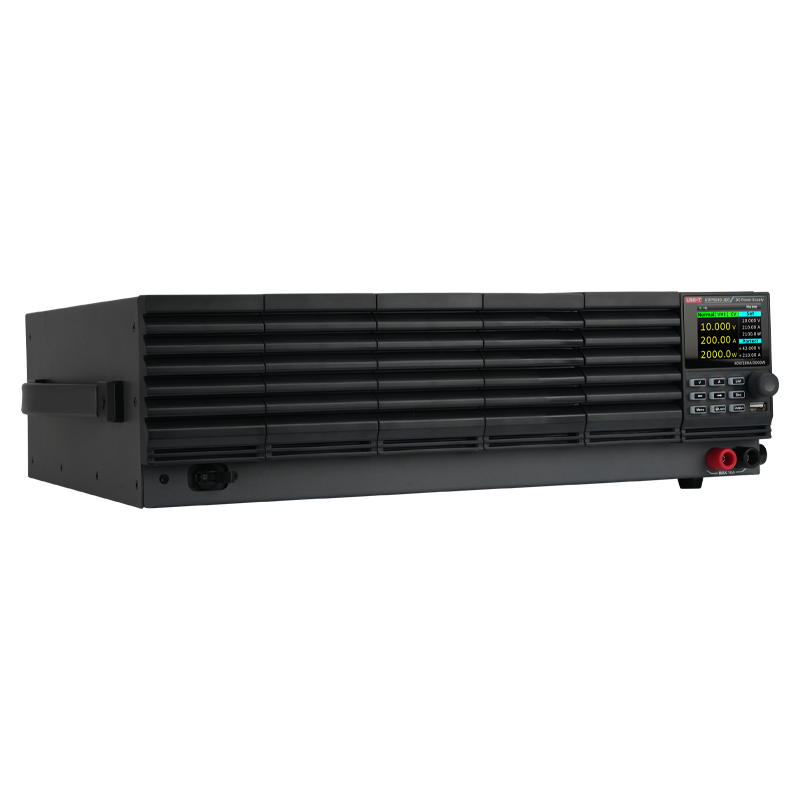

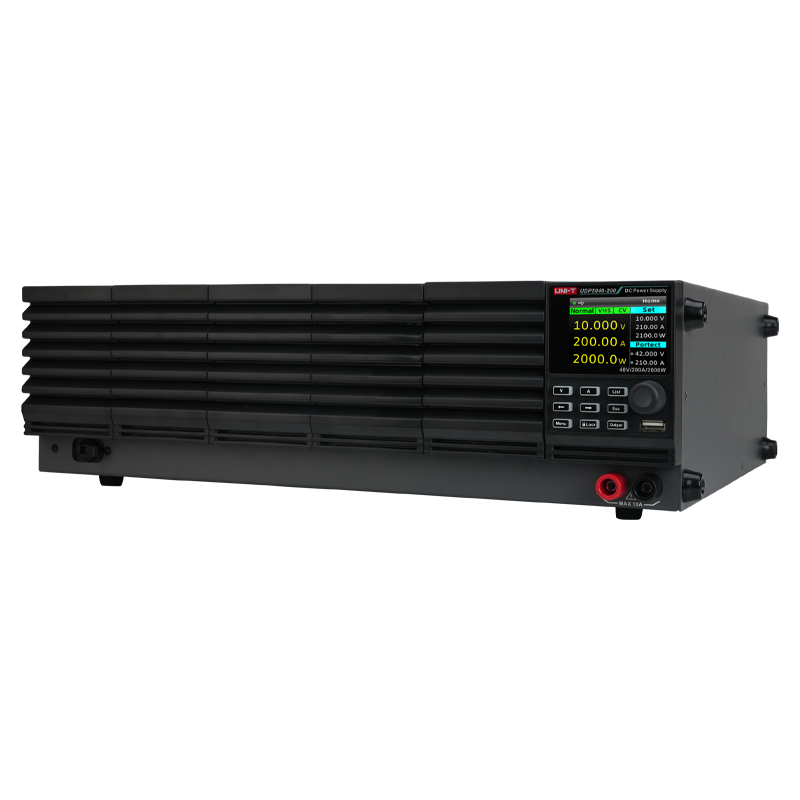

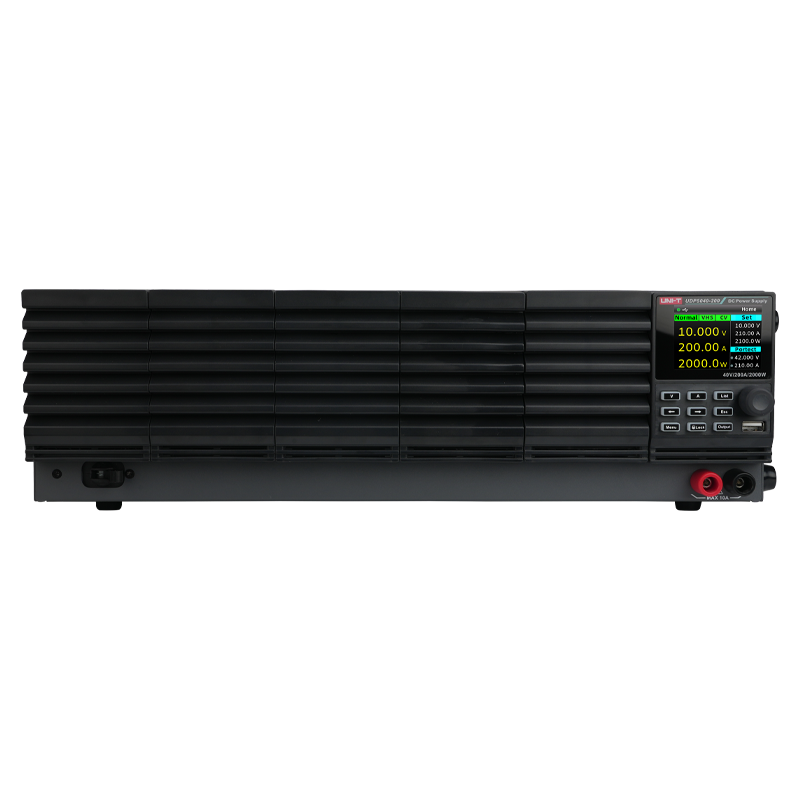

UDP5000 Series
UDP5000 series power supplies feature a compact design, high performance, versatile functionality, a wide output range, user-friendly operation, and flexible usage. The series includes four rated output voltages (40 V, 80 V, 160 V, 250 V) and four rated output power levels (400 W, 800 W, 1200 W, 2000 W), forming a total of 16 models
Switching
TYPE
1
CHANNELS
2000W
TOTAL POWER
0 - 250 V
OUTPUT VOLTAGE
0 - 200 A
OUTPUT CURRENT
1 mV,1 mA
RESOLUTION
V:0.05%+0.05%FS I:0.5%+0.1%FS
SETTING ACCURACY
USB Host, USB Device, LAN
CONNECTIVITY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

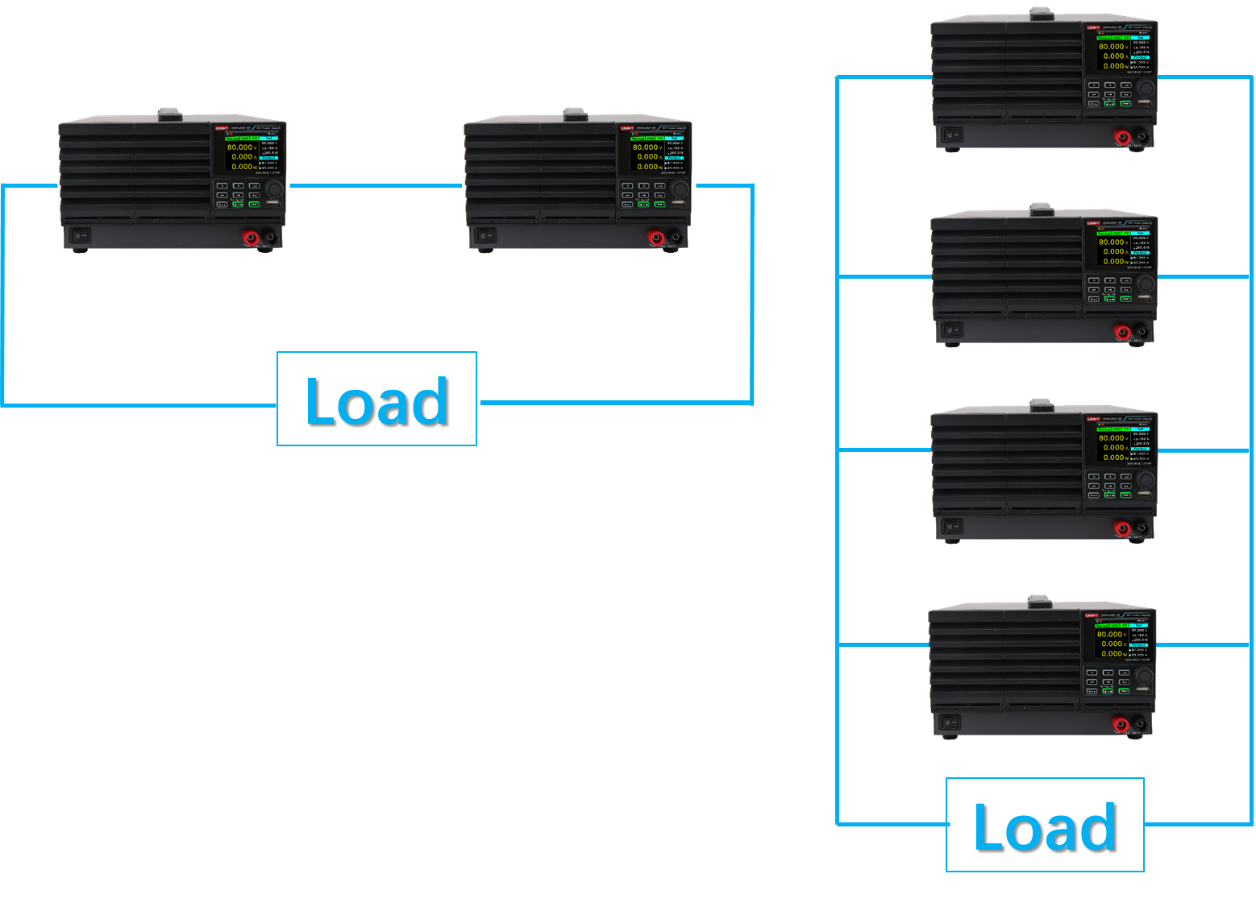

Series/Parallel Operation
Supports 2 units in series and 4 units in parallel
Rapidly expandable power supply output range
Max.: 500V, 480A, 4800W
Series/Parallel Operation

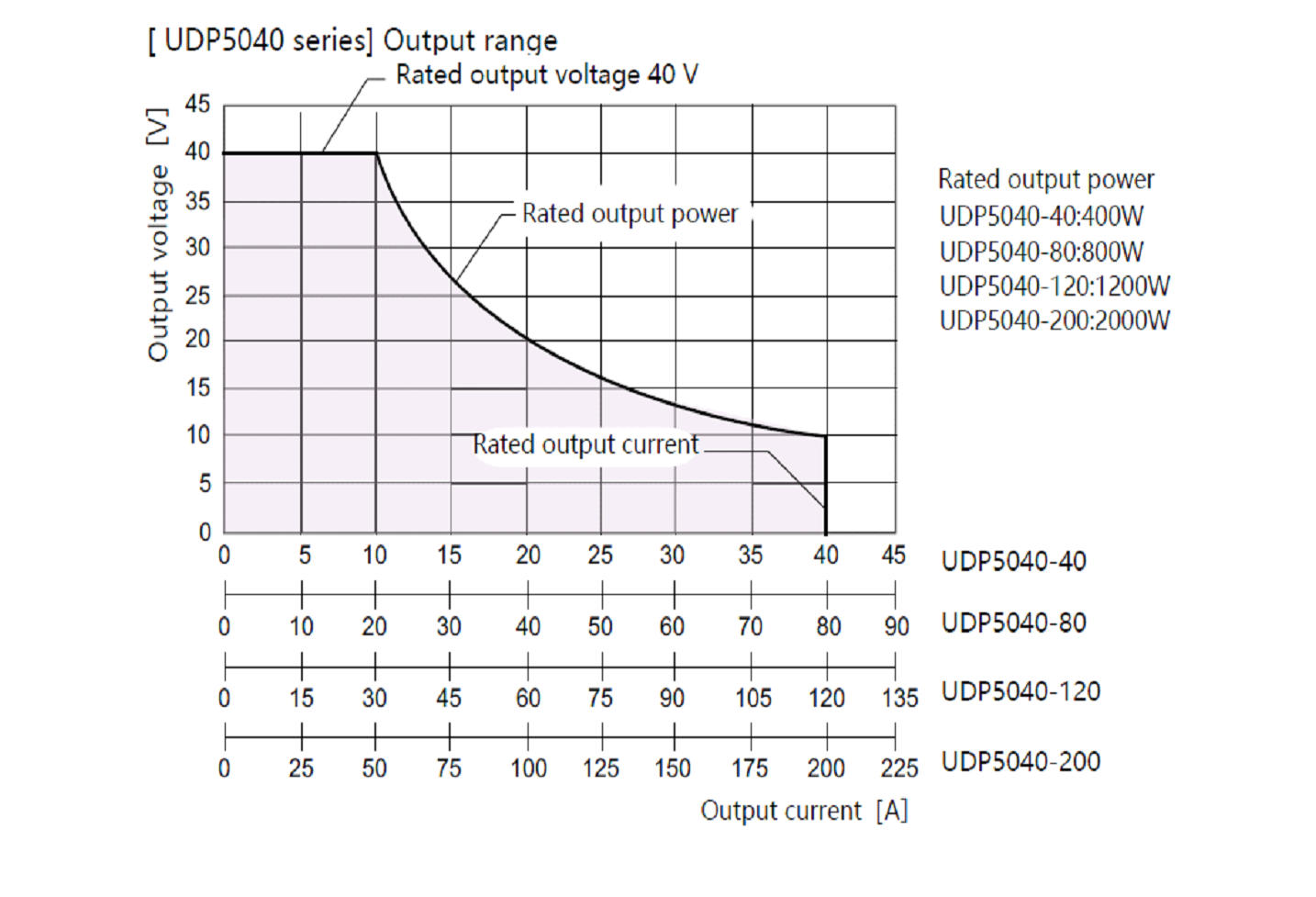

Wide Range Output
Power ratio up to 4.0
Wider voltage and current range for the same power
Wide Range Output
Adjustable Internal Resistance
Simulate the internal resistance of various batteries, real test application scenarios
Adjustable range: 0 to 31.25 Ω
Adjustable Internal Resistance

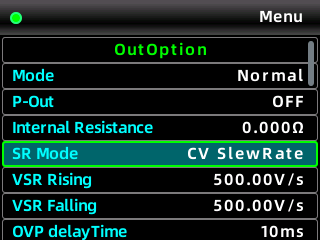

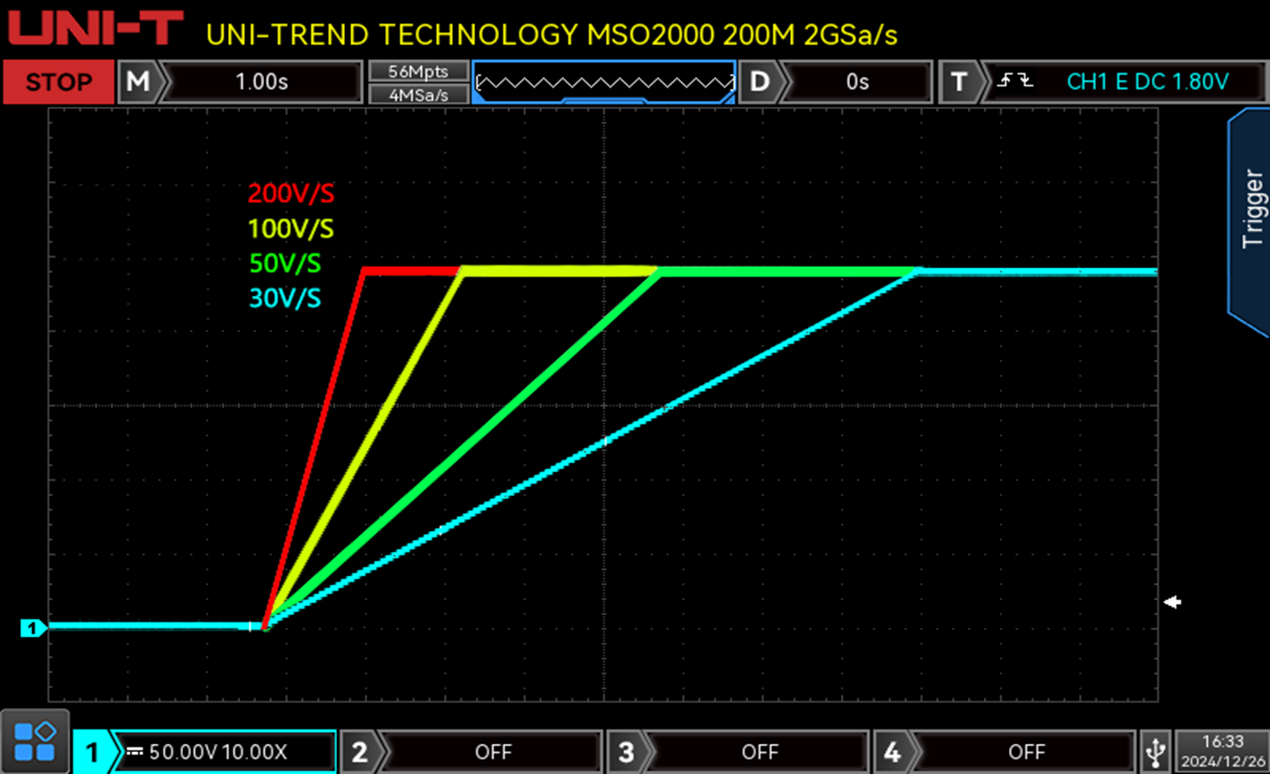

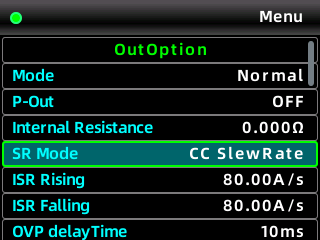

Adjustable Slew Rate
Supports adjustable slew rate of output voltage and current
Voltage adjustable range: 0.01 to 500V/s
Current adjustable range: 0.01 to 72A/s
Adjustable Slew Rate
Adjustable Slew Rate
Adjustable Slew Rate

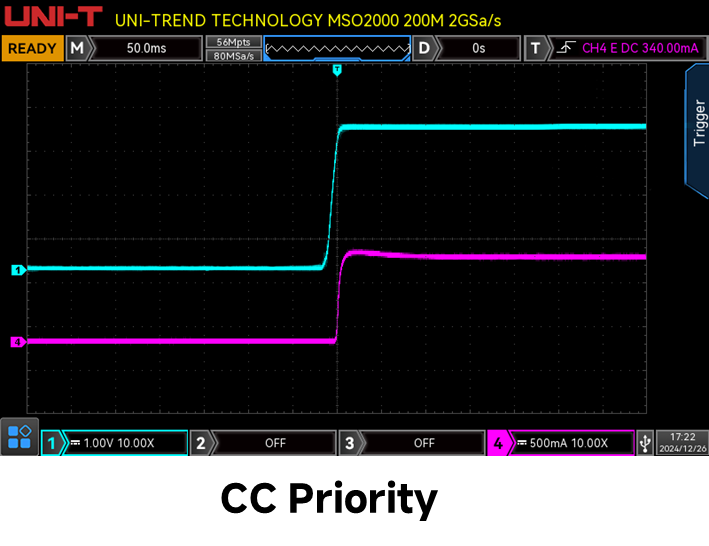

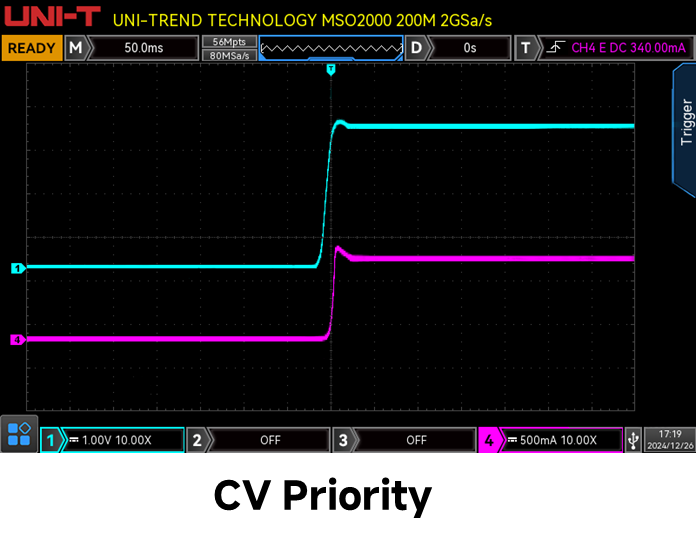

CC/CV Priority Mode
CV priority mode for fast voltage rise
CC priority mode for improved current overshoot
CC/CV Priority Mode
CC/CV Priority Mode

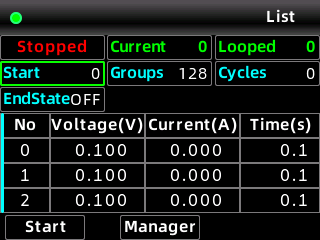

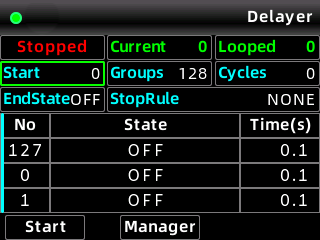

List And Delayer
Can measure external voltage, flexible application
List And Delayer
List And Delayer

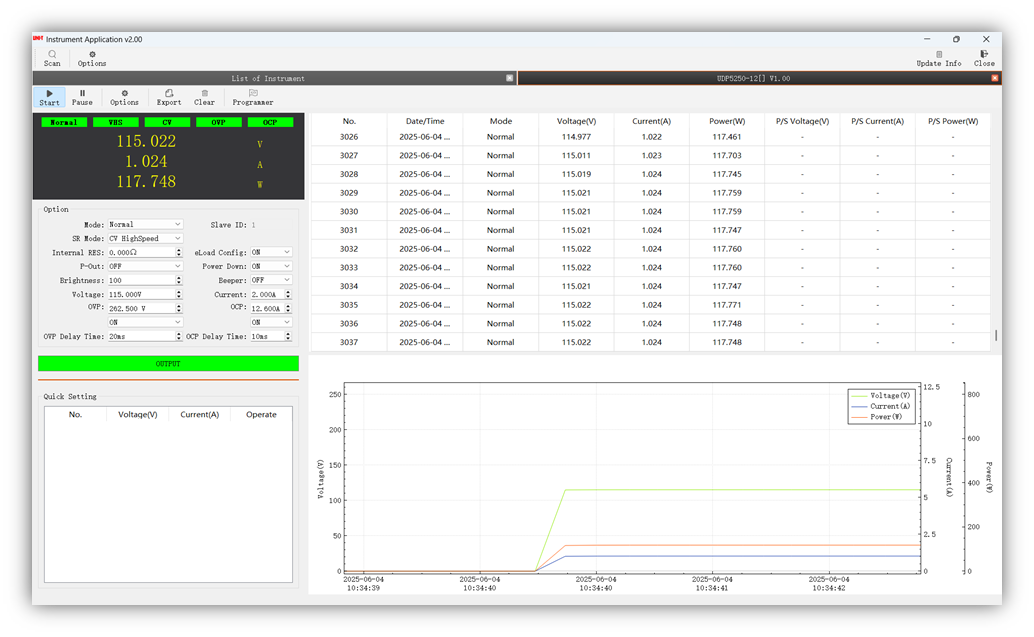

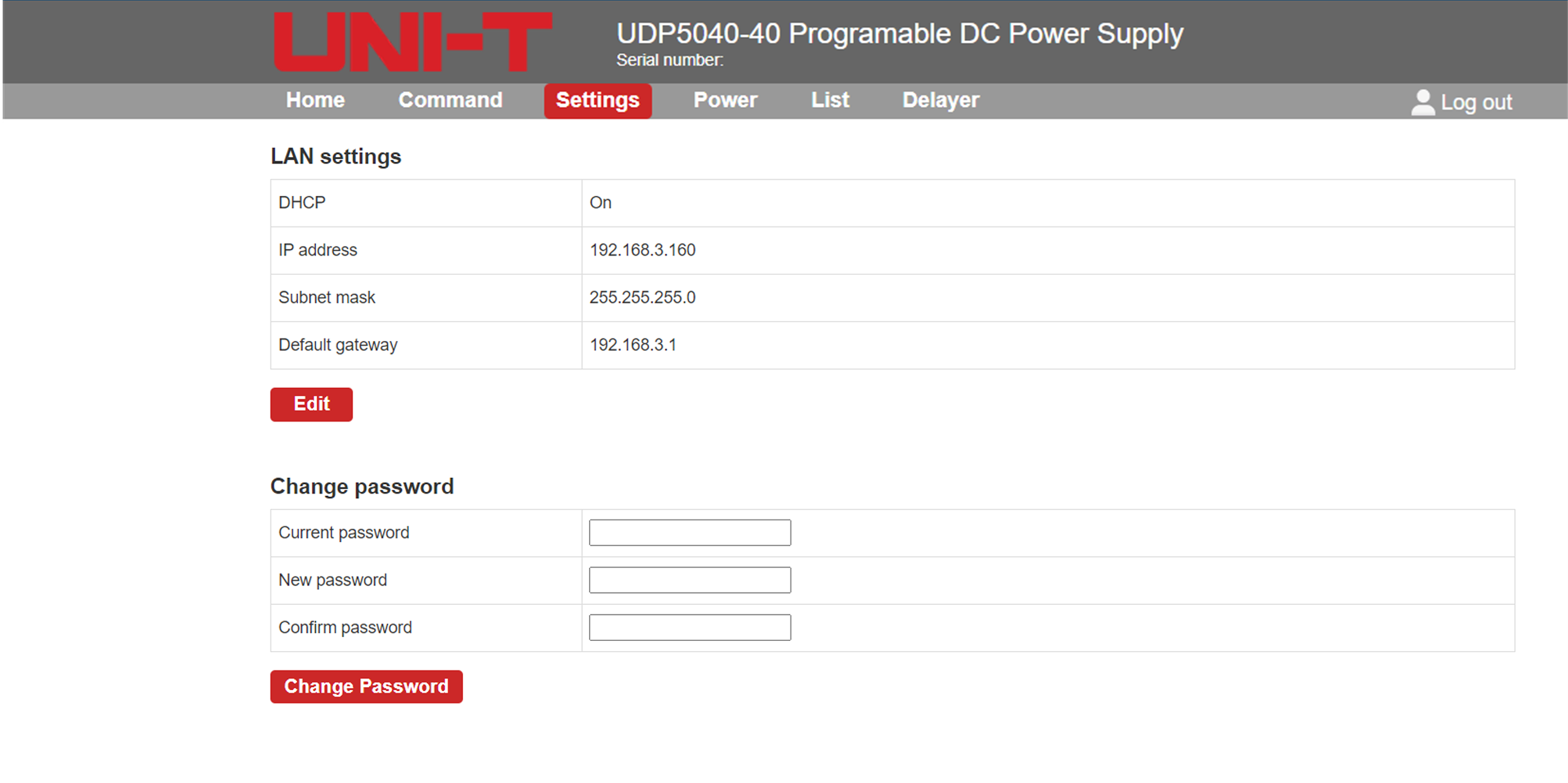

Remote Control
Remote control of the power supply from upper computer or the Web
Remote Control
Remote Control
MODEL
UDP5250-30
TYPE：Switching
CHANNELS：1
TOTAL POWER：2000W
OUTPUT VOLTAGE：0 - 250 V
OUTPUT CURRENT：0 - 30 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5160-40
TYPE：Switching
CHANNELS：1
TOTAL POWER：2000W
OUTPUT VOLTAGE：0 -160 V
OUTPUT CURRENT：0 - 40 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5080-100
TYPE：Switching
CHANNELS：1
TOTAL POWER：2000W
OUTPUT VOLTAGE：0 -80 V
OUTPUT CURRENT：0 - 100 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5040-200
TYPE：Switching
CHANNELS：1
TOTAL POWER：2000W
OUTPUT VOLTAGE：0 -40 V
OUTPUT CURRENT：0 - 200 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5250-18
TYPE：Switching
CHANNELS：1
TOTAL POWER：1200W
OUTPUT VOLTAGE：0 -250 V
OUTPUT CURRENT：0 - 18 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5160-24
TYPE：Switching
CHANNELS：1
TOTAL POWER：1200W
OUTPUT VOLTAGE：0 -160 V
OUTPUT CURRENT：0 - 24 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5080-60
TYPE：Switching
CHANNELS：1
TOTAL POWER：1200W
OUTPUT VOLTAGE：0 -80 V
OUTPUT CURRENT：0 - 60 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5040-120
TYPE：Switching
CHANNELS：1
TOTAL POWER：1200W
OUTPUT VOLTAGE：0 -40 V
OUTPUT CURRENT：0 - 120 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5250-12
TYPE：Switching
CHANNELS：1
TOTAL POWER：800W
OUTPUT VOLTAGE：0 -250 V
OUTPUT CURRENT：0 - 12 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5160-16
TYPE：Switching
CHANNELS：1
TOTAL POWER：800W
OUTPUT VOLTAGE：0 -160 V
OUTPUT CURRENT：0 - 16 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5080-40
TYPE：Switching
CHANNELS：1
TOTAL POWER：800W
OUTPUT VOLTAGE：0 -80 V
OUTPUT CURRENT：0 - 40 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5040-80
TYPE：Switching
CHANNELS：1
TOTAL POWER：800W
OUTPUT VOLTAGE：0 -40 V
OUTPUT CURRENT：0 - 80 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5250-6
TYPE：Switching
CHANNELS：1
TOTAL POWER：400W
OUTPUT VOLTAGE：0 -250 V
OUTPUT CURRENT：0 - 6 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5160-8
TYPE：Switching
CHANNELS：1
TOTAL POWER：400W
OUTPUT VOLTAGE：0 -160 V
OUTPUT CURRENT：0 - 8 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5080-20
TYPE：Switching
CHANNELS：1
TOTAL POWER：400W
OUTPUT VOLTAGE：0 -80 V
OUTPUT CURRENT：0 - 20 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
UDP5040-40
TYPE：Switching
CHANNELS：1
TOTAL POWER：400W
OUTPUT VOLTAGE：0 -40 V
OUTPUT CURRENT：0 - 40 A
RESOLUTION：1 mV,1 mA
SETTING ACCURACY：V:0.05%+0.05%FS I:0.5%+0.1%FS
CONNECTIVITY：USB Host, USB Device, LAN
Get a Quote
Add to Compare
Compare
Data Sheet
download UDP5000 Series DC Power Supplies - Data Sheet
Version：V1.2
Release Date：2025/6/25
QuickStart Guide
download UDP5000 Series DC Power Supplies - QuickStart Guide
Version：V1.2
Release Date：2025/6/25
User Manual
download UDP5000 Series DC Power Supplies - User Manual
Version：V1.2
Release Date：2025/6/25
Programming Manual
download UDP5000 Series DC Power Supplies - Programming Manual
Version：V1.0
Release Date：2025/6/25
Service Manual
Performance Verification Guide
OPTIONS
ACCESSORIES
UT-L0615-OO
UT-L0615-OO
Description：Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black
Get a Quote
UT-L0110-BU
UT-L0110-BU
Description：Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black
Get a Quote
UT-L0312-UU
UT-L0312-UU
Description：Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
Get a Quote
UT-L0320-UU
UT-L0320-UU
Description：Double U-type terminal 30A/2m power supply/electronic load test wire；Length: 2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
Get a Quote
UT-L0110-BB
UT-L0110-BB
Description：Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black
Get a Quote
UTE-L16C
UTE-L16C
Description：1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black
Get a Quote
