USG5000M Series
USG5000M Series product features DDS (Direct Digital Synthesis) technology, enabling it to generate high-precision, stable waveform output with a frequency range from 9 kHz to 22 GHz. This product is equipped with analog demodulation capabilities for AM, FM, and ΦM, as well as pulse modulation, impulse train generation, and power meter function. USG5000M series offers convenient operation, superior technical specifications, and an intuitive graphical display, making it a versatile tool for learning, testing, and enhancing work efficiency.
9 kHz-22 GHz
FREQUENCY RANGE
0.001 Hz
FREQUENCY RESOLUTION
-135 dBm - +25 dBm
LEVEL RANGE
<-122 dBc/Hz(1GHz@20kHz)
PHASE NOISE
Yes
MECHANICAL ATTENUATOR
5 inch TFT LCD (touch screen)
DISPLAY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

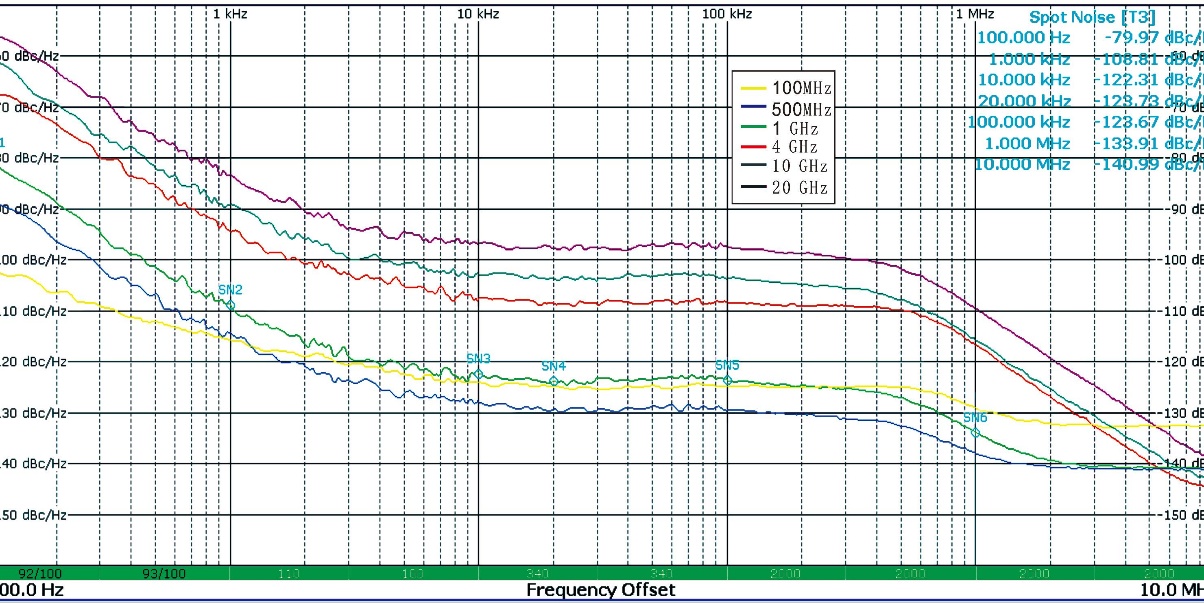

Low phase noise performance
Phase noise as low as -122 dBc/Hz (1 GHz, 20 kHz offset, Typ.)
Low phase noise performance
Analog Modulation
AM，FM，ΦM and Pulse modulation
Supports pulse trains triggering and user-defined pulse trains
Analog Modulation
Analog Modulation
Analog Modulation
Analog Modulation
Sweep
Support frequency and amplitude sweep;
Support step sweep, list sweep, user can customize the sweep list
Sweep
Function/ Arbitrary Waveform Generator
Max. output frequency 50 MHz
Supports standard waves, sweep and modulation
Function/ Arbitrary Waveform Generator
Function/ Arbitrary Waveform Generator
Function/ Arbitrary Waveform Generator
Power Meter Option
The power meter option connects to the instrument via the front panel USB port, enabling power measurement, power output control, and line loss calibration.
Power Meter Option
High-precision Pulse Generator
Features a stable clock source, optional pulse modulation and a narrow pulse generator. It has a minimum pulse width of up to 20 ns and a resolution of 10 ns
High-precision Pulse Generator
High-precision Pulse Generator
Flat display interface
With flat design, the human-machine interface is simple and easy to use. Waveforms can be visualized and switched between time domain and frequency domain waveforms on demand
Flat display interface
MODEL
USG5022M-P
FREQUENCY RANGE：9 kHz - 22 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：Yes
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
USG5014M-P
FREQUENCY RANGE：9 kHz - 14 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：Yes
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
USG5014M
FREQUENCY RANGE：9 kHz - 14 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：No
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
Compare
Data Sheet
download USG5000M Series RF Signal Generators - Data Sheet
Version：V1.0
Release Date：2025/2/19
QuickStart Guide
download USG3000M & USG5000M Series RF Signal Generators - QuickStart Guide
Version：V1.0
Release Date：2024/12/27
User Manual
download USG3000M & USG5000M Series RF Signal Generators - User Manual
Version：V1.2
Release Date：2025/4/16
Programming Manual
download USG3000M & USG5000M Series RF Signal Generators - Programming Manual
Version：V1.0
Release Date：2025/2/19
Service Manual
Performance Verification Guide
OPTIONS
USG5000M-PM
Description：Pulse modulation option for USG5000M series
Get a Quote
USG5000M-PG
Description：Narrow-pulse generator option for USG5000M series
Get a Quote
USG5000M-PK
Description：Power meter test option for USG5000M series
Get a Quote
USG5000M-GPIB
Description：GPIB controller for USG5000M series (factoryoption)
Get a Quote
ACCESSORIES
UT-CK01
download EN download DE
UT-CK01
Description：Spectrum Utility Kit: include NSMAJ-NJ-0.7M DC-6G Cable x1, NJ-NJ-0.7M DC-6G Cable x1, SMA-N-KJ-T DC-6GHz Adapter x2,N-BNC-JK DC-4GHz Adapter x2, 2400MHz-2500MHz Antenna x2, 824-960MHz/1710-1990MHz x2
Get a Quote
UT-CK02
download EN download DE
UT-CK02
Description：2.92J RF cable (UT-W03-40GHz)×1，2.92-KKG double female adaptor(UT-C04-40GHz)×2，SMA-N-KJG adaptor(UT-C03-18GHz)×1, Kit pouch(UT-CK02)×1
Get a Quote
UT-W02-6GHz
UT-W02-6GHz
Description：N-SMA-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz
Get a Quote
UT-W01-6GHz
UT-W01-6GHz
Description：N-N-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz
Get a Quote
UT-W03-40GHz
UT-W03-40GHz
Description：2.92J-2.92J RF cable, 1m, DC-40GHz VSWR≤1.25:1@40GHz IL≤3.5dB@40GHz
Get a Quote
UT-C02-4GHz
UT-C02-4GHz
Description：N-BNC-JK adaptor，DC-4GHz VSWR≤1.15:1@4GHz IL≤0.2dB@4GHz
Get a Quote
UT-C01-6GHz
UT-C01-6GHz
Description：N-SMA-JK adaptor，DC-6GHz VSWR≤1.15:1@6GHz IL≤0.2dB@6GHz
Get a Quote
UT-C04-40GHz
UT-C04-40GHz
Description：2.92-KKG adaptor，DC-40GHz VSWR≤1.20:1@40GHz IL≤0.3dB@40GHz
Get a Quote
UT-C03-18GHz
UT-C03-18GHz
Description：SMA-N-KJG adaptor，DC-18GHz VSWR≤1.15:1@18GHz IL≤0.3dB@18GHz
Get a Quote
