USG3000V Series
USG3000V Series adopts Direct Digital Synthesis (DDS) technology, enabling the generation of high-precision, stable waveforms across a frequency range of 9 kHz to 6.5 GHz. It supports analog demodulation functions such as AM, FM, ΦM, and I/Q modulation, and is also equipped with pulse modulation, pulse train generation, and a power meter function. With its user-friendly operation, superior technical specifications, and intuitive graphical display, the USG3000V Series serves as a versatile tool for learning, testing, and improving work efficiency.
CW: 9 kHz - 6.5 GHz IQ: 5 MHz - 6 GHz
FREQUENCY RANGE
0.001 Hz
FREQUENCY RESOLUTION
-135 dBm - +25 dBm
LEVEL RANGE
＜-122 dBc/Hz(1GHz@20kHz)
PHASE NOISE
Yes
MECHANICAL ATTENUATOR
5 inch TFT LCD(touch screen)
DISPLAY
FEATURES
MODEL
MANUAL
OPTIONS&ACCESSORIES
SOFTWARE&FIRMWARE
VIDEO
FAQS

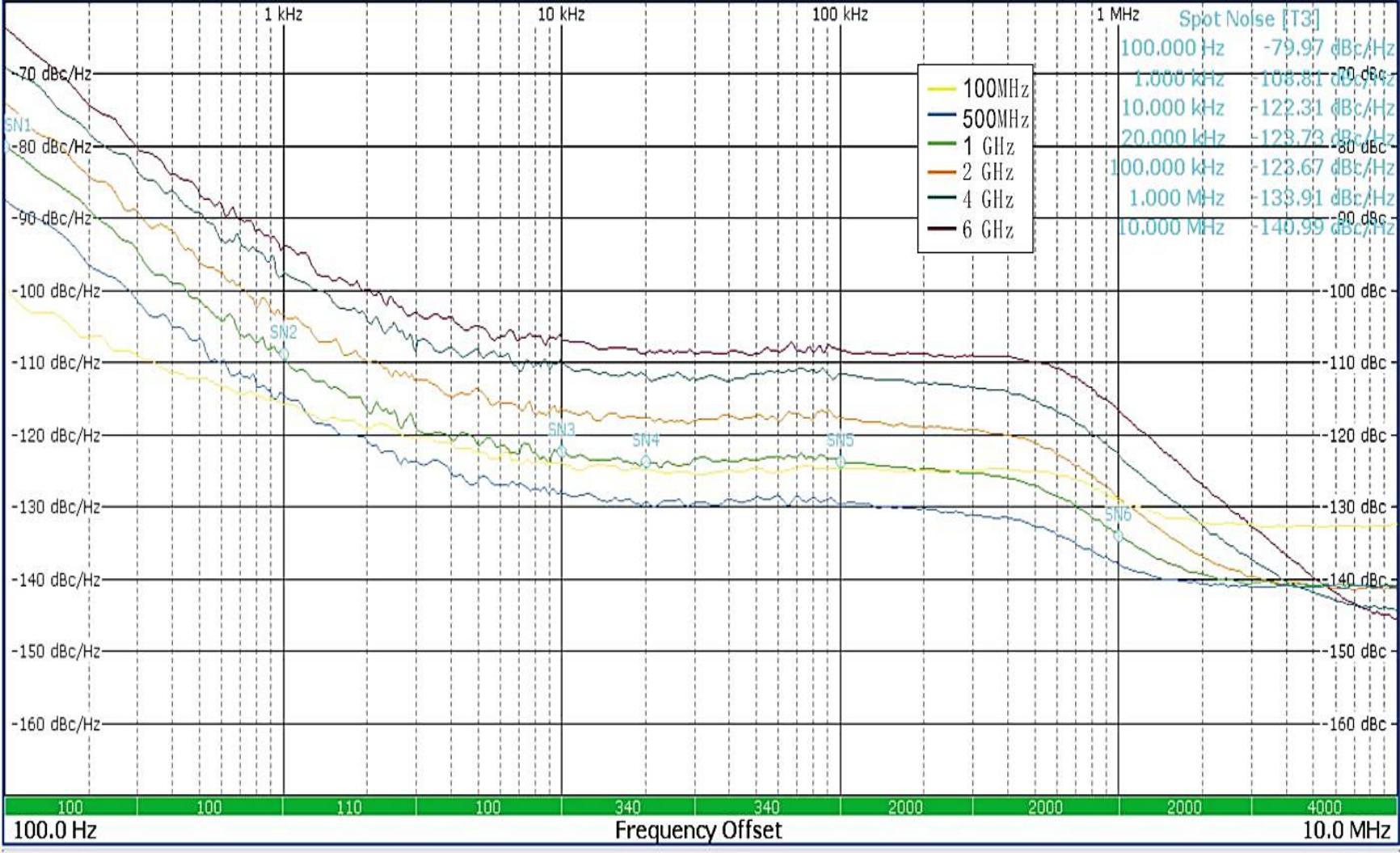

Low phase noise performance
Phase noise as low as -122 dBc/Hz (1 GHz, 20 kHz offset, Typ.). High spectral purity ensures that advanced testing can be conducted with greater precision and reliability
Low phase noise performance

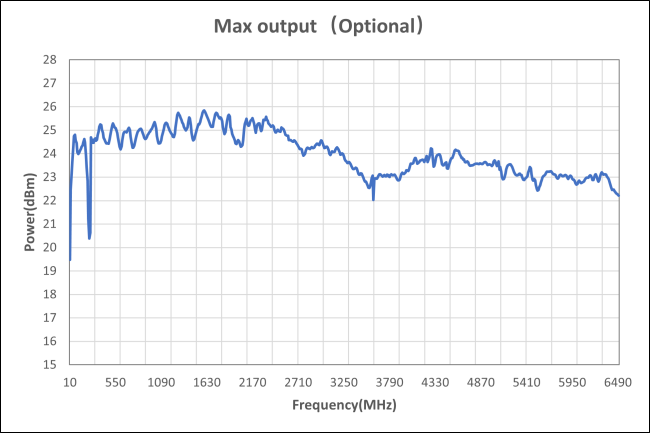

Large Dynamic Range, High-Accuracy Power Output
Maximum output power (Typ.): +25 dBm at 1.6 GHz
Minimum output power: -135 dBm
Dynamic range: up to 160 dB
Excellent power accuracy with a typical value of < 0.7 dB (Typ.)
Large Dynamic Range, High-Accuracy Power Output
Large Dynamic Range, High-Accuracy Power Output
Complete Standard Vector Modulation Formats
Generates real-time digital standard modulated signals including PSK, FSK, QAM, and ASK, while also supporting custom modulation types and filling settings, covering all critical frequency bands and digital communication formats.
Complete Standard Vector Modulation Formats
Complete Standard Vector Modulation Formats
Multi-Type Noise Injection
Provides output of pure noise and additive white Gaussian noise (AWGN), supporting flexible noise simulation in diverse testing scenarios.
Multi-Type Noise Injection
Multi-Type Noise Injection
Comprehensive Analog Modulation
Supports AM, FM, and ΦM, with optional pulse and narrow pulse modulation capable of outputting pulses as short as 40 ns with 10 ns resolution, meeting the testing requirements of applications such as automotive millimeter-wave radar systems.
Comprehensive Analog Modulation
Comprehensive Analog Modulation
Power Meter option
The power meter option connects to the instrument via the front panel USB port, enabling power measurement, power output control, and line loss calibration.
Power Meter option
Touch-Controlled Graphical Guided Interaction
Equipped with a 5-inch high-resolution touch screen, it provides a clear view of key parameters and instrument status. The signal flow diagram-guided interface delivers an intuitive display and user-friendly operation.
Touch-Controlled Graphical Guided Interaction
Function/ Arbitrary Waveform Generator
Built-in 50 MHz function signal generator supports: standard waveform output, sweep functions, and modulation functions.
Function/ Arbitrary Waveform Generator
Function/ Arbitrary Waveform Generator
Function/ Arbitrary Waveform Generator
ARB Modulation
Allows playback of user-defined arbitrary waveforms at variable sampling rates with real-time baseband preview.
Supports ARB multi-carrier mode, with each subcarrier capable of independent modulation and data transmission.
ARB Modulation
ARB Modulation
ARB Modulation
Multi-Tone Modulation
Generates multiple frequency components simultaneously to simulate complex signals. It can reproduce multi-frequency scenarios in frame-based testing, allowing effective verification of device performance under challenging spectrum conditions.
Multi-Tone Modulation
Multi-Tone Modulation
IoT Modulation
Offers support for IoT-specific configurations
Protocol types: ZigBee, Z-Wave
Modulation parameters: Flexible settings such as modulation count and modulation methods.
IoT Modulation
IoT Modulation
MODEL
USG3065V-P
FREQUENCY RANGE：CW: 9 kHz - 6.5 GHz IQ: 5 MHz - 6 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：Yes
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
USG3065V
FREQUENCY RANGE：CW: 9 kHz - 6.5 GHz IQ: 5 MHz - 6 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：No
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
USG3045V-P
FREQUENCY RANGE：CW: 9 kHz - 4.5 GHz IQ: 5 MHz - 4.5 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：Yes
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
USG3045V
FREQUENCY RANGE：CW: 9 kHz - 4.5 GHz IQ: 5 MHz - 4.5 GHz
FREQUENCY RESOLUTION：0.001 Hz
LEVEL RANGE：-135 dBm - +25 dBm
PHASE NOISE：＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR：No
DISPLAY：5 inch TFT LCD (touch screen)
Get a Quote
Add to Compare
