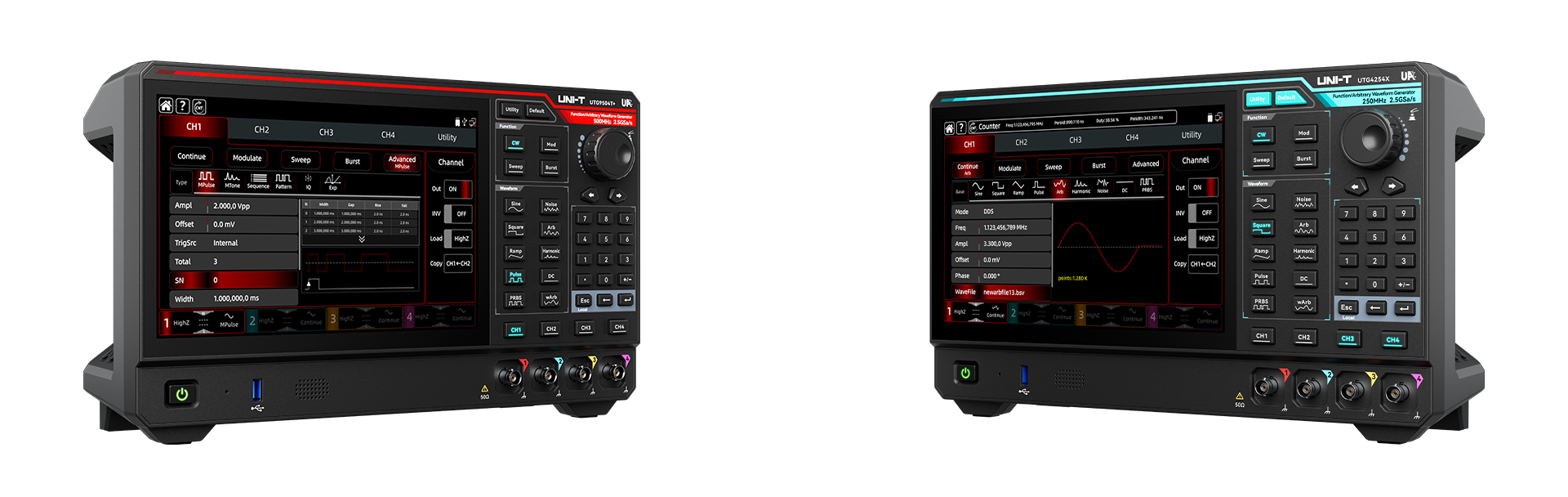

UNI-T Launches New UTG9000T+ & UTG4000X Series: True 4-Channel Function/Arbitrary Waveform Generators with Consistent Performance

The UTG9000T+ and UTG4000X Function / Arbitrary Waveform Generator deliver four equal‑performance, fully independent channels with 16‑bit resolution, a maximum output frequency of up to 500 MHz, up to 2.5 GSa/s sample rate, and 128 Mpts memory, enabling synchronized multi‑channel validation and efficient automated testing in communications, power electronics, and embedded design.

Key Specs.

• Four independent channels with consistent performance for parallel testing and multi-DUT validation
• Max. sample rate: 2.5 GSa/s; vertical resolution: 16-bit
• Max. output frequency: 500 MHz, 350 MHz/250 MHz, 160 MHz, 100 MHz
• Arbitrary waveform length: 8 pts to 128 Mpts; supports point-by-point output
• Square wave up to 170 MHz / 120 MHz (UTG9000T+) and 100 MHz / 80 MHz / 50 MHz (UTG4000X)
• Pulse output up to 120 MHz (UTG9000T+) and 100 MHz/ 80 MHz / 50 MHz (UTG4000X)

Key Features

Flexible Channel Coupling & Merge Outputs

Equal‑performance 4-channel, fully independent channels with flexible coupling, merging, switch linking, and one‑touch sync tracking.

Low-Distortion Continuous Waveform Output

Provides low spurious content and low jitter for stable, reliable signal output.

Generate the Signal

Easily Edit Arbitrary Waveforms

Freely create/edit waveforms on the instrument or connected PC—200+ built-in waves, intuitive drawing & math tools.

Shape the Signal

Pulse Wave and Fast Edge Time

Fast-edge pulse performance for digital verification: Edge times down to 2 ns and minimum pulse width ≥ 3 ns (with fine-tuning) support timing, interface, and stress tests.

Pulse Wave and Fast Edge Time

Rich Advanced Functions

Advanced arbitrary waveform functions enable flexible generation of complex real‑world signals for communication and digital testing.

Multi‑pulse, Multi‑tone, Sequence, Pattern, and I/Q Waveforms

Typical Applications

• Power electronics and control loops: Multi-channel stimulus and response characterization.
• Embedded development: Bus/protocol emulation (SPI, I²C, UART) and mixed-signal stimulus.
• High-speed digital timing: Fast-edge pulses and PRBS patterns for stress tests.
• Communication and modulation education: AM/FM/PM, QAM/FSK/PSK waveform generation.
• ATE and system integration: LAN/USB control and 10 MHz reference synchronization.

Contact Us for application support, DownloadUTG9000T+ Datasheet/UTG4000X Datasheet for technical details, or Get a Quote for customized pricing.
