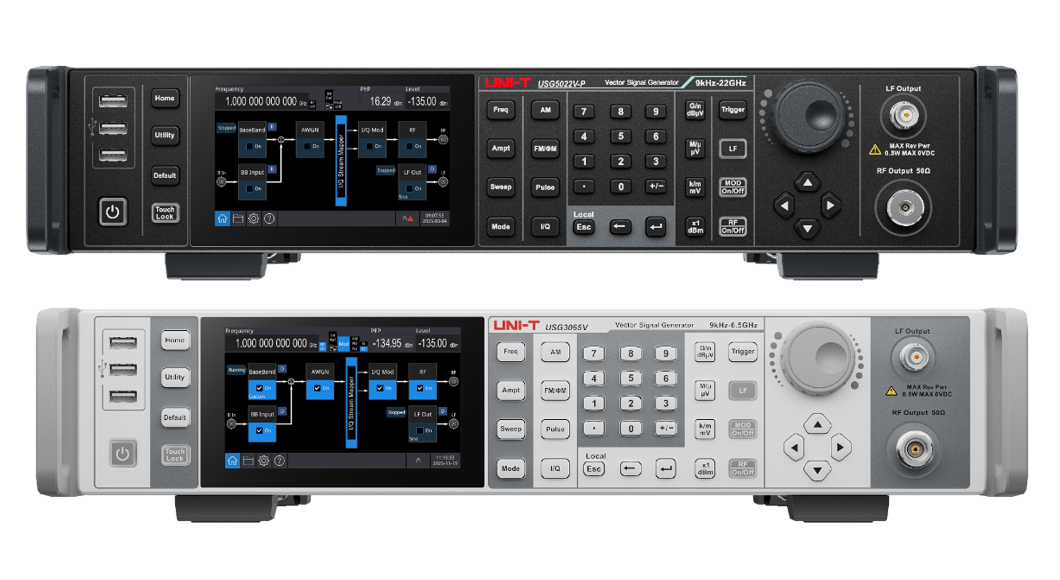

UNI‑T USG5000V / USG3000V – RF Vector Signal Generators

New Launch: UNI-T USG5000V/3000V Series RF Vector Signal Generators

Up to 22 GHz | –135 dBm to +25 dBm | Real‑Time IQ AWGN (50 MHz)

RF design, validation, and manufacturing teams, a reliable signal source is essential, delivering clean output, stable level control, and modulation options that match real wireless standards.

UNIT introduces the USG3000V & USG5000V Series RF Vector Signal Generators to support critical test applications. The series delivers low phase noise (typ. < –122 dBc/Hz @ 1 GHz, 20 kHz offset), wide level range, and both analog/digital modulation in an intuitive touch interface—A high-stability OCXO clock is now standard, improving frequency accuracy and long-term stability. These capabilities help engineers streamline workflows from bench verification to production testing.

Series USG5000V Series USG3000V Series
Frequency Range CW: 9 kHz – 22 GHz; I/Q: 5 MHz – 6 GHz. CW: 9 kHz–6.5 GHz; I/Q: 5 MHz–6 GHz.
Application 5G NR, satellite communications, aerospace/radar testing. Wi‑Fi 6/7, Bluetooth 5.4, automotive infotainment testing.
Power Dynamic Range –135 dBm to +25 dBm (160 dB total), amplitude accuracy ≤ 0.7 dB (typ.). –135 dBm to +25 dBm (typ.) with high‑accuracy leveling, ensuring consistent results in manufacturing.
Key Advantage Optional mechanical attenuator “-P” for enhanced power stability in demanding environments. Optional mechanical attenuator “-P” for enhanced power stability in demanding environments.
View USG5000V Details Download Data Sheet Get a Quote

Key Features

Low Phase Noise Signal Purity

Improves receiver sensitivity testing and reduces measurement uncertainty.

Multiple Test Modes & Capabilities

USG5000V: Typ. <–122 dBc/Hz @ 1 GHz, 20 kHz Offset

USG3000V: Typ. <–122 dBc/Hz @ 1 GHz, 20 kHz Offset

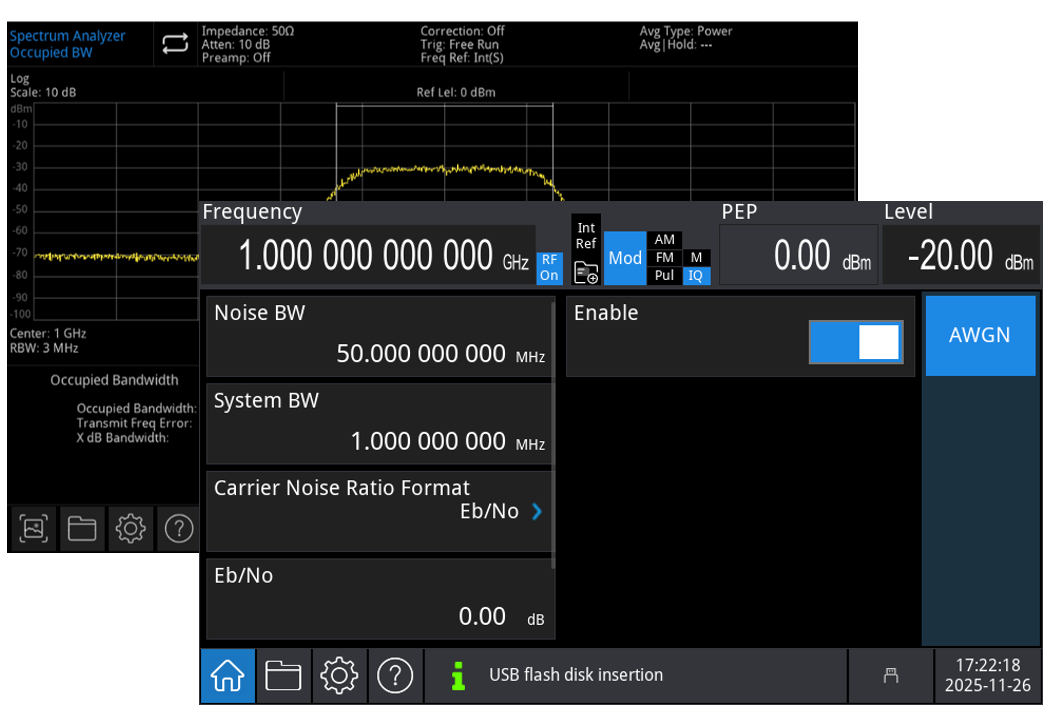

AWGN Noise Injection

Simulates real-world interference to evaluate receiver performance and robustness.

Supporting Flexible Noise Simulation

Integrated 50 MHz Function & ARB Generator

Supports versatile waveforms for streamlined testing.

Supported Protocols: ZigBee, Z‑Wave

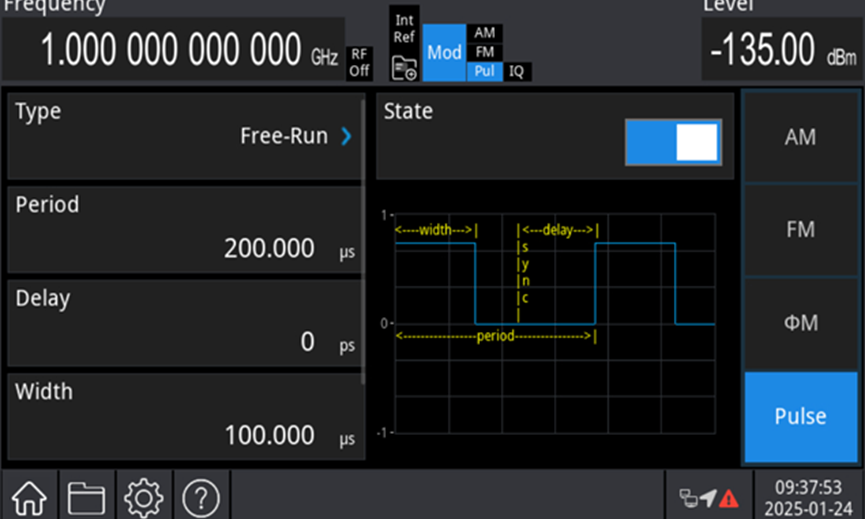

Flexible Pulse and Narrow-Pulse Capabilities

Enables automotive millimeter-wave radar testing and time-domain signal analysis.

Pulse width ≥ 40 ns, 10 ns resolution, On/Off ratio ≥ 80 dBc

Power Meter (Option)

Provides accurate power measurement and control.

Perform Rapid Measurements to Minimize Errors

Integrated Tools for Efficiency

  • Built-in 50 MHz Function/Arbitrary Waveform Generator: Eliminates external low-frequency sources to save rack space and cost.
  • ARB Playback: Up to 500 MSa waveform memory depth with 1,024 segments for replaying complex sequences (e.g., 5G protocol scenarios).
  • Optional Power Meter (USG5000V-PK/USG3000V-PK): Connects via USB for power measurement, output control, and line-loss calibration, streamlining setup and improving efficiency.

Contact Us for application support, Download Datasheet for technical details, or Get a Quote for customized pricing.
