DC Family Upgraded Again — UNI-T Releases the Newly Upgraded UTL8500X+ Series DC Electronic Load

500 kHz Sample Rate & up to 1500W Power for Versatile Applications

UTL8500X+ Series DC Electronic Load is designed to address the challenges faced in battery and power supply testing. Engineered for engineers and quality assurance teams, this series supports both high-voltage battery modules (up to 500V with UTL8514B+) and low-voltage, high-current power supplies (up to 240A with UTL8514C+), delivering reliable and consistent results.

Models UTL8514B+ UTL8514C+
Resolution 0.1 mV/0.2 mA 0.1 mV/1 mA
Operating Range 500V/120 A/1500 W 150V/240 A/1500 W
Sample Rate 500 kSa/s 500 kSa/s
DYNA 50 kHz 50 kHz
View UTL8500X+ Details Download Data Sheet Get a Quote

Key Features

Multiple Test Modes & Capabilities

Provides 15 test modes to support a broad range of application scenarios.

Multiple Test Modes & Capabilities

Mode Interface

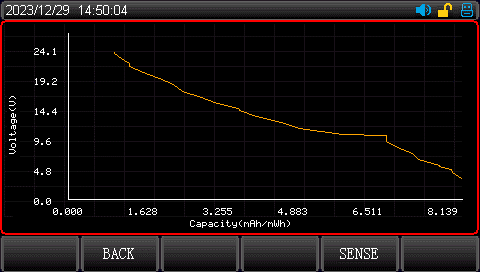

Battery Testing: Dynamic curve visualization with real-time monitoring of battery charge and discharge capacity.

High-resolution LCD displays real-time voltage, current, and capacity curves

Accurately Visualize Waveforms and Measure Ripple

Ripple measurement enables accurate evaluation of power supply performance, and waveform display provides clear visibility of the testing process.

DANL — up to -167 dBm

Up to 500 kHz synchronous sampling with high-performance DSP processing

List Programmable Auto Test Mode

LIST mode and automated test sequences can be controlled via SCPI commands.

Supports RS232 and USB HOST interfaces for easy connection

Protection & Safety

Ensures safer and more reliable testing.

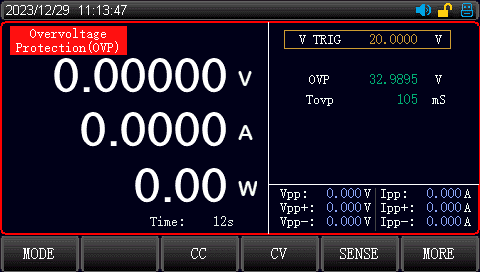

OVP/OCP tests evaluate protection functions and response times

TL8500X+ Series combines reliable performance with flexible features, making it an ideal choice for advanced battery and power supply testing. Its user-friendly interface helps streamline your testing workflow.

Contact Us for application support, Download Datasheet for technical details, or Get a Quote for customized pricing.
