UNI-T UPO7000L Series Digital Oscilloscopes

Redefine Density Without Sacrificing Performance

Optimize Rack Space with Integrated Test Capability

Facing rack space constraints? UPO7000L Series Digital Phosphor Oscilloscope delivers essential oscilloscope performance in a space-efficient 1U rack-mount design. Its compact, lightweight form factor is engineered for integration into multi-instrument systems, high-density racks, and remote operations.

Product Overview

Explore UPO7000L Series

Key Advantages

Space-Optimized Design

The 1U height enables efficient rack utilization, ideal for system integration and maximizing lab or production floor density. Units are designed for easy stacking and organization.

Scalable Synchronized Systems

A significant capability is multi-unit synchronization. The system can expand to incorporate up to 128 oscilloscopes, enabling synchronized data acquisition across hundreds of channels for complex testing requirements.

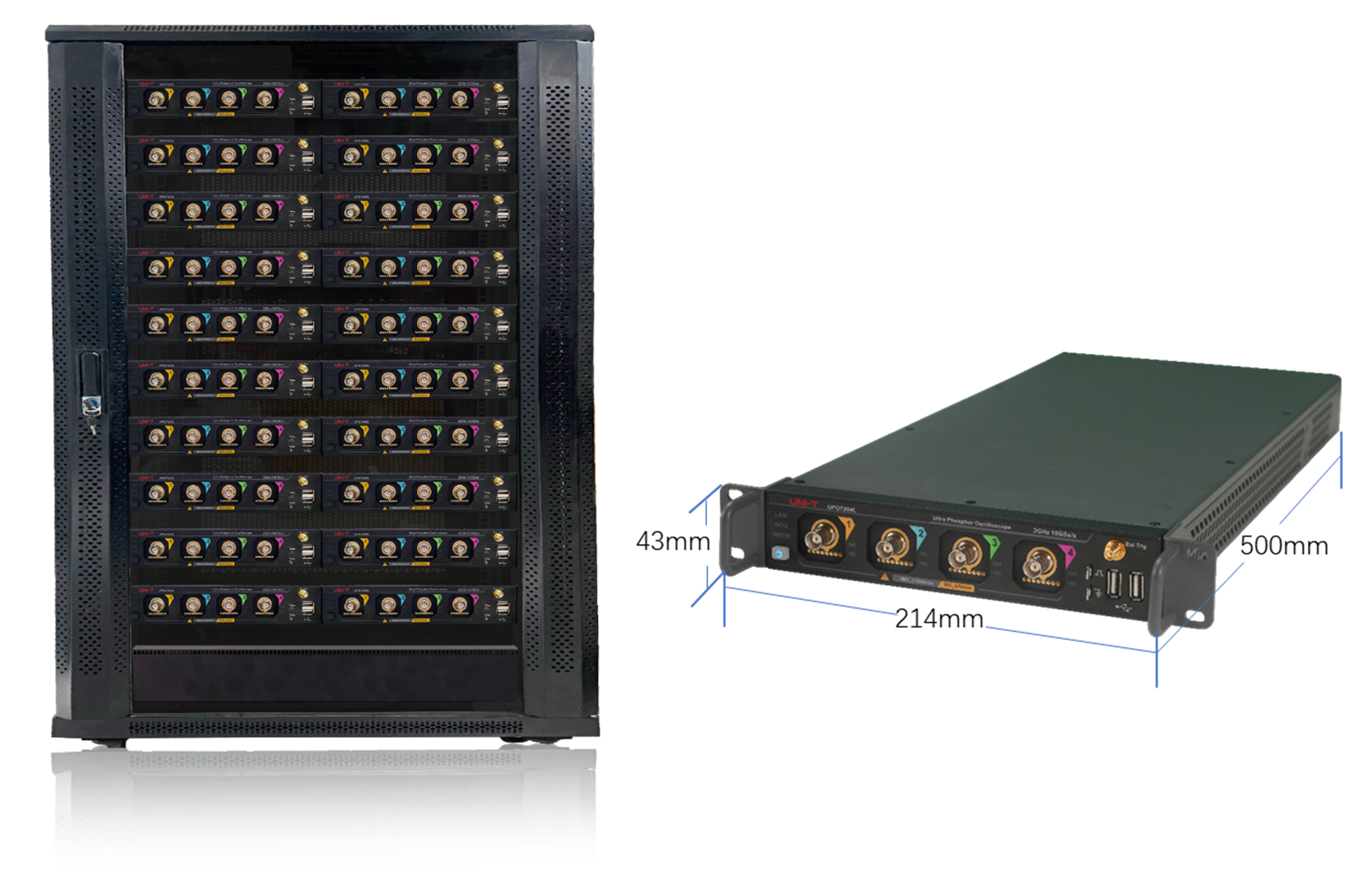

Figure 1: UPO7000L and Stacked 1U Units

Core Performance Specifications

Combines compact size with capable performance:

    • Bandwidth: 2 GHz / 1 GHz
    • Sample Rate: 10 GSa/s
    • Memory Depth: 1 Gpts
    • Waveform Capture Rate: ≥600,000 wfms/s (UltraAcq® mode), up to 2,000,000 wfms/s (Sequence mode)

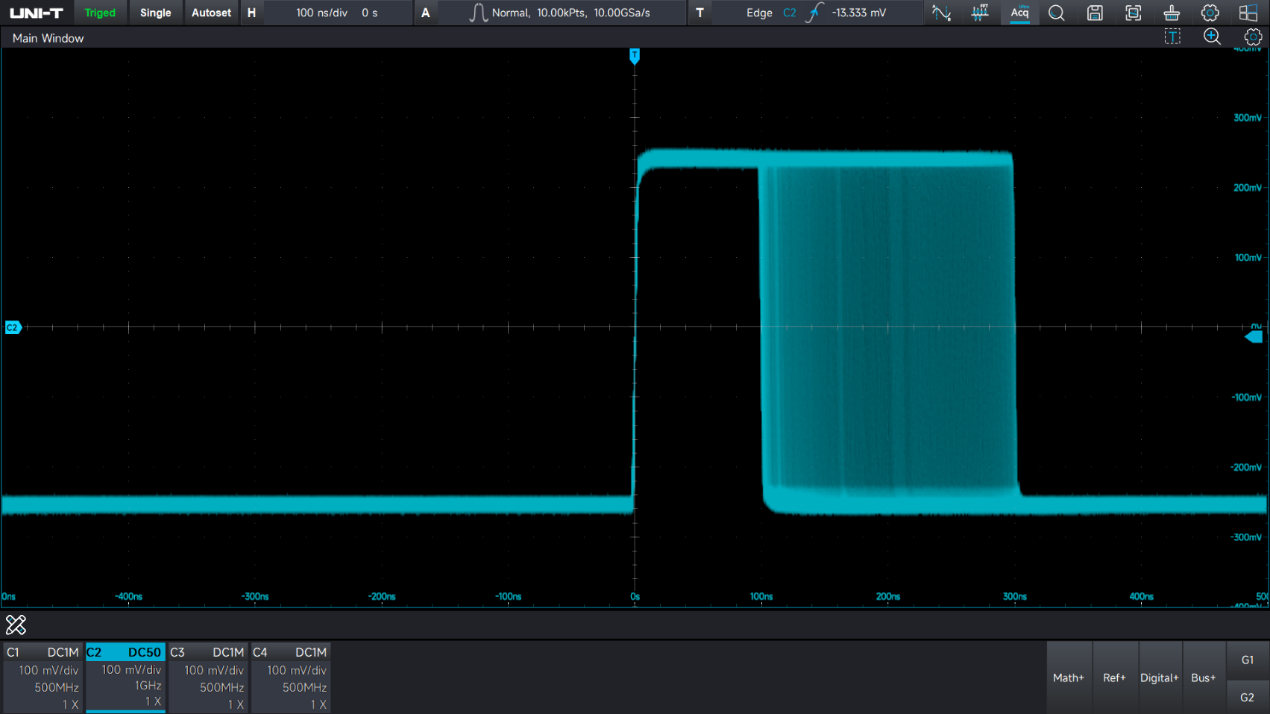

Figure 2: Real-Time Waveform Capture Rate

Advanced Signal Analysis

  • Jitter & Eye Diagram: Precision measurements for high-speed designs (TIE, TJ, DJ, RJ and Bathtub Curve)
  • Serial Bus Validation: Efficient clock and protocol integrity analysis

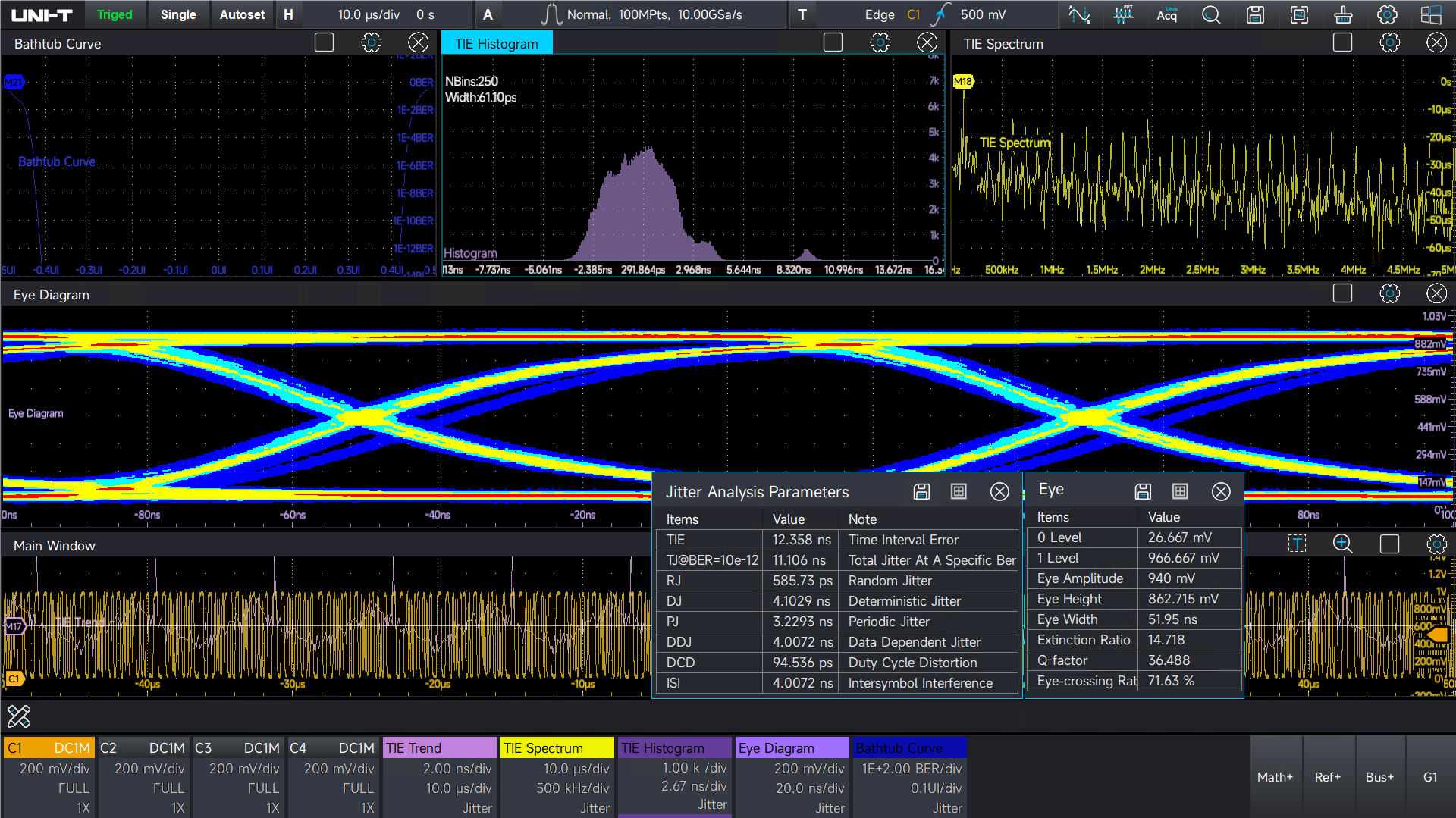

Figure 3: Jitter and Eye Diagram Analysis

Integrated Multi-Function Instrumentation

Each unit provides 4 analog channels, 1 external trigger, and a built-in function/arbitrary waveform generator. It also integrates capabilities including Spectrum Analyzer, DVM, Frequency Counter, Protocol Analyzer (11 serial protocols), and Power Analyzer, supporting 48 waveform parameter measurements.

Operational Compatibility

Leverages the established 7000 series platform, offering a familiar workflow for users of 7000X instruments. An optional external touch display provides responsive control.

Engineered for Modern Test Systems

Enhance automation and analysis with embedded MATLAB support, SCPI command compatibility, and a built-in WebServer for convenient remote access and control.

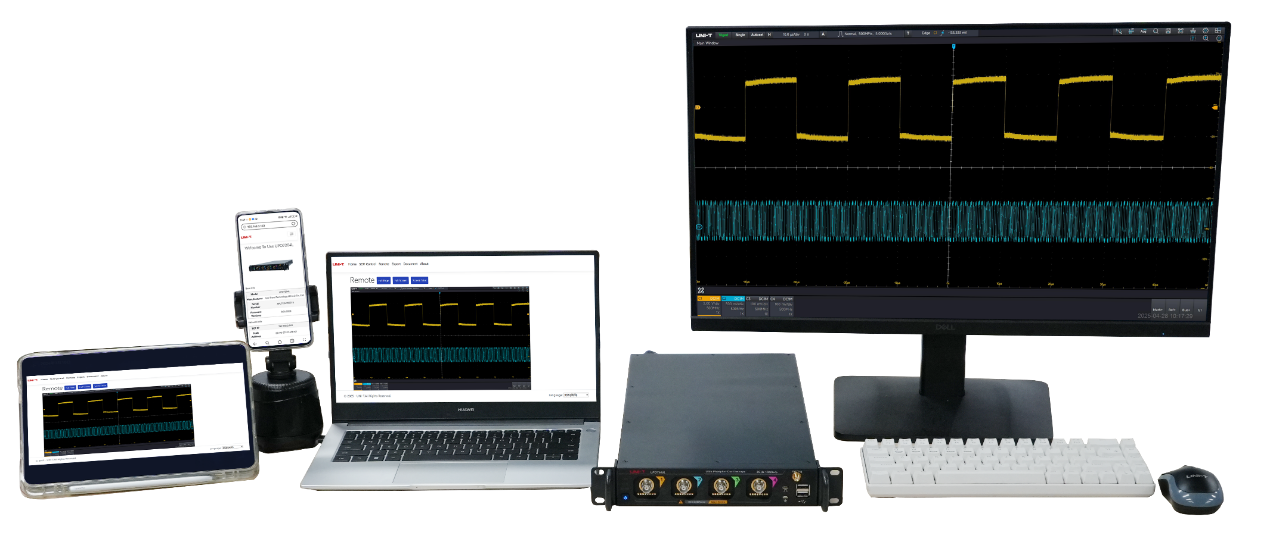

Figure 4: Flexible Near-End/Far-End Platform

Ideal For: Building high-channel-count ATE, rack-mounted monitoring solutions, and applications demanding synchronized measurements across multiple points with minimal rack space footprint.



Ready to enhance your high-density testing capabilities? UPO7000L Series provides a balance of performance and space efficiency for integrated systems.
