UTL8500X SERIES

The UTL8500X Series Programmable DC Electronic Loads are equipped with

4.3-inch LCD screen, wide power range and up to 0.1mV/0.1mA resolution,

support real-time waveform display and multiple test modes, such as dynamic test,

overload test, auto test, list test, batiery test, CR-LED test.

Application: power suppliers test of chargers, power source of switches,

UPS power supplies, LED driver, mobile phone batieries and power banks

and in areas of electronic performance test, new energy test, aerospace industries,

high-power test, labs, R&D and production line, etc.


150V
VOLTAGE
30A
CURRENT
150W/300W
TOTAL POWER
0.1mV/0.1mA
RESOLUTION
½ 2U
SIZE
RS232,(Optional RS232-RS485, RS232-USB)
CONNECTIVITY

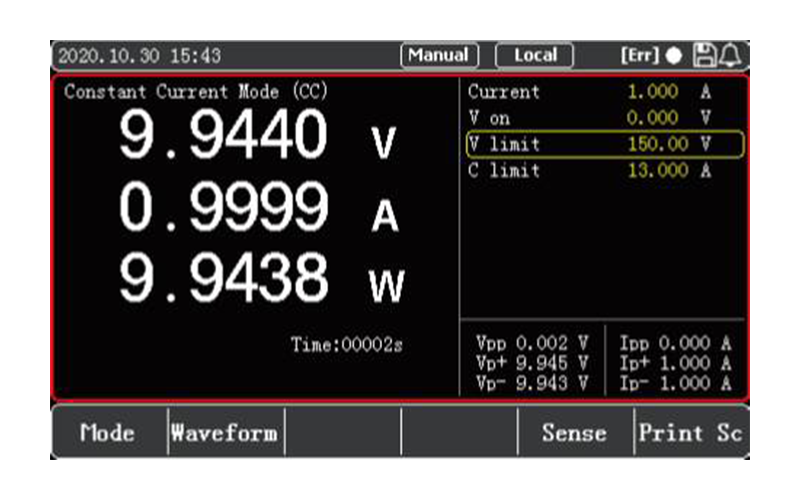

4.3 inch LCD screen display

4.3 inch LCD screen display

Test resolution: 0.1mV/0.1mA;

Voltage test range: 0~150V;

Current test range: 0~30A

Power test range: 0~150W/300W

Four basic test modes
Four basic test modes
Four basic test modes
Four basic test modes

Four basic test modes

Four basic working modes: CC/CV/CR/CP

Rich test mode
Rich test mode

Rich test mode

In order to meet diversified test requirements,

UTL8500X series electronic loads provide more test modes for users to choose,

dynamic test, list test, combination test, OCP/OVP/OPP test, CR-LED test,

battery test, load effect, short circuit , Time test and other modes.

Screenshot and list save and call function
Screenshot and list save and call function

Screenshot and list save and call function

The list test can have a more comprehensive understanding of the

comprehensive working characteristics of the tested product in actual applications.

Real-time waveform display function and ripple measurement function
Real-time waveform display function and ripple measurement function

Real-time waveform display function and ripple measurement function

With ripple measurement and real-time waveform display function,

you can refer to the waveform changes of voltage and current

MODEL
VOLTAGE
CURRENT
TOTAL POWER
RESOLUTION
MAX. DYNAMIC FREQUENCY
CURRENT SLEW RATE
SIZE
CONNECTIVITY
PRICE
VS
UTL8511S
150V
30A
150W
0.1mV/0.1mA
10kHz
3A/μs
½ 2U
RS-232,(Optional :RS232-USB, RS232-RS485)
Add to Compare
UTL8512S
150V
30A
300W
0.1mV/0.1mA
10kHz
3A/μs
½ 2U
RS-232,(Optional :RS232-USB, RS232-RS485)
Add to Compare

USER MANUAL

Name
Version
Release Date
Download
UTL8500X User's Guide
V1.0
2021.02.05
download

DATASHEETS

Name
Version
Release Date
Download
UTL8500X Datasheet
V1.0
2021.02.05
download

ACCESSORIES

Model
Description
Price
Manual Download
3C
3C
Power cable
download

SOFTWARE

Name
Version
Release Date
Download
UTL8200 and UTL8500 Series Software
V1.0
2021/08/17
download
